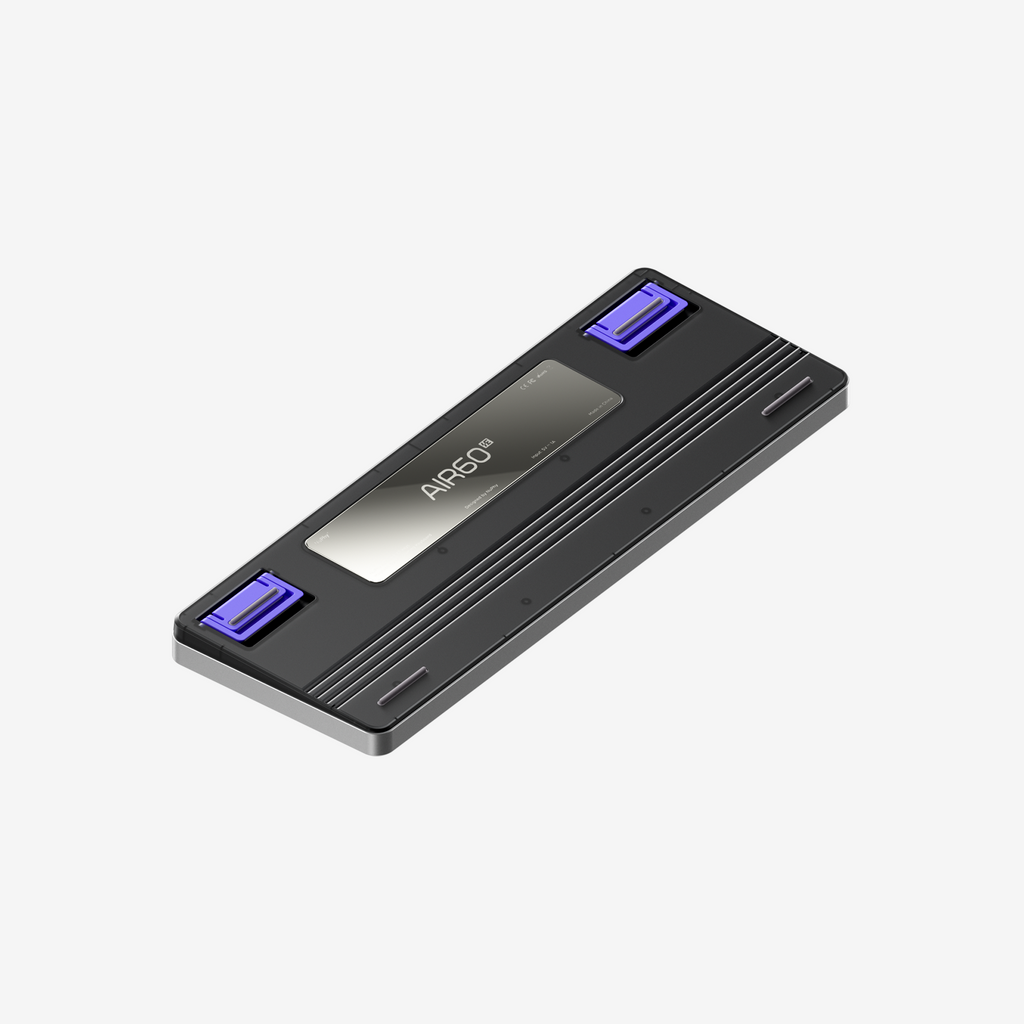

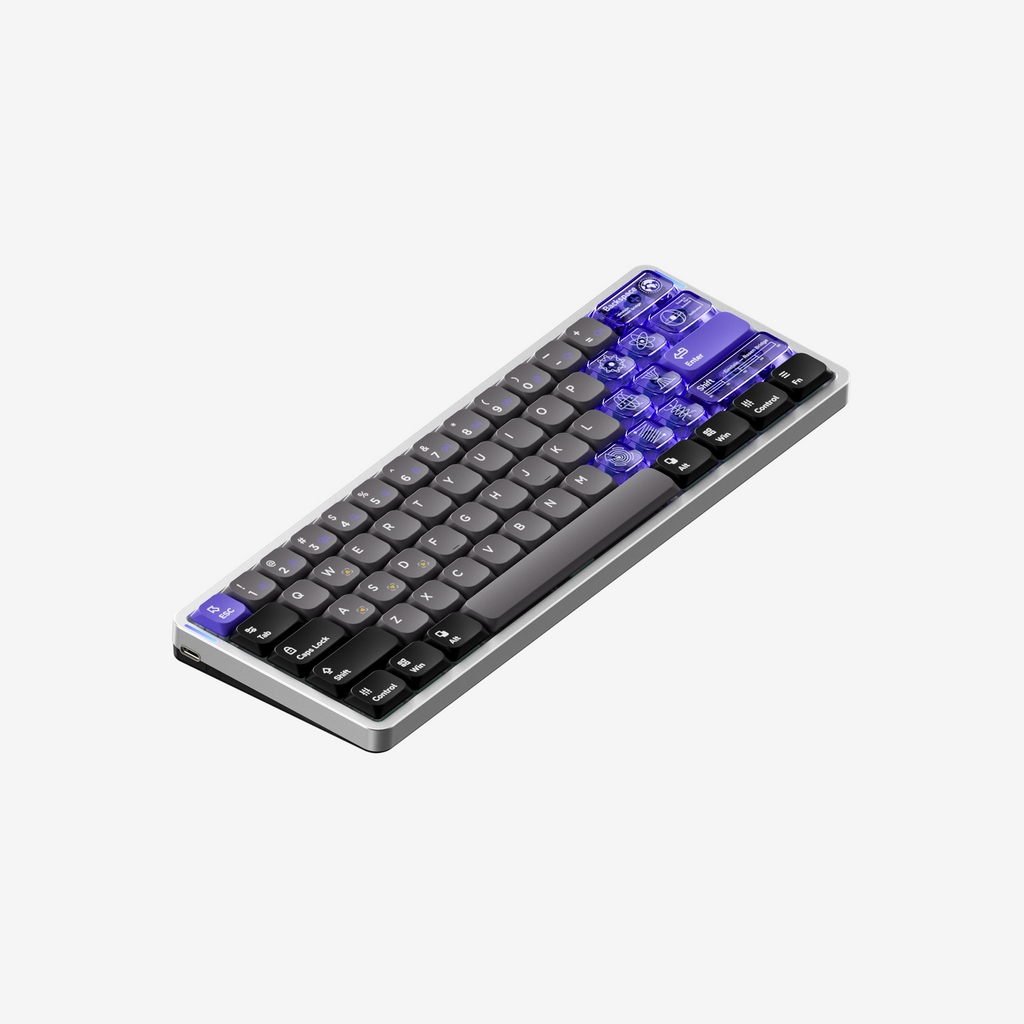

Air60 HE - Silver - Low Profile Magnetic Jade

NuPhySKU: 301031

Prix:
Prix réduit$169.99

Description

The NuPhy Air60 HE is a compact 60% low-profile mechanical keyboard featuring hall effect magnetic switches, offering fully adjustable actuation, rapid trigger input, and dynamic keystroke actions for next-level responsiveness. Designed for gamers and performance users who demand precision and speed, the Air60 HE also supports QMK/VIA for complete customization and advanced layering. With a sleek aluminum top case, USB-C wired connectivity, and support for both Mac and Windows systems, it’s a cutting-edge gaming keyboard in a highly portable form factor.

Hall Effect Magnetic Switches
Unlike traditional mechanical switches, the Air60 HE uses magnetic sensors to detect key travel, enabling fully adjustable actuation points from 0.1mm to 3.3mm. Fine-tune each key’s sensitivity to match your gameplay or typing style.

Rapid Trigger Support
Thanks to analog sensing, Rapid Trigger enables keystrokes to activate and reset dynamically based on movement — not fixed positions. This allows faster consecutive inputs and smoother repeated actions, ideal for FPS and rhythm games.

Dynamic Keystroke (4-in-1 Actions)
Assign multiple actions to a single keypress based on depth. For example:

  • Light tap = Walk

  • Deeper press = Run

  • Bottom-out = Sprint
    Customize multi-layer key actions via NuPhy Console for advanced control and combos.

Hyper Tap & Rapid Shift
Hyper Tap allows a key to trigger a secondary action upon release, enhancing in-game responsiveness. Rapid Shift enables dynamic input switching based on press depth, providing nuanced control for complex commands.Amazon+2Tom's Guide+2PC Gamer+2Amazon

SOCD Resolution & Mod Tap
The Air60 HE includes SOCD (Simultaneous Opposite Cardinal Direction) resolution options, allowing for precise input handling. Mod Tap functionality lets you assign different actions to a key based on tap or hold, increasing versatility.PC Gamer+2Tom's Guide+2PC Gamer+2

8,000Hz Polling Rate
Experience ultra-low latency with an 8,000Hz polling rate, ensuring your inputs are registered with exceptional speed and accuracy.IGN+6Pickle Tech+6PC Gamer+6

Hot-Swappable Magnetic Switches
Compatible with Gateron Low-Profile Magnetic Jade and Jade Pro switches. Easily swap switches with no soldering and customize typing feel or travel distance preferences.Medium+7RTINGS.com+7PC Gamer+7

QMK/VIA Support
Air60 HE supports full QMK and VIA programmability for advanced key remapping, macro creation, and multi-layer custom layouts.

Double-Shot PBT Keycaps
High-quality keycaps with a crisp texture and long-lasting legends. Optimized for RGB illumination.

Enhanced Acoustics
Features multi-layer dampening, including PORON plate foam, IXPE switch pad, PET acoustic film, and a silicone base pad. Combined with factory-lubed stabilizers, the typing sound is soft, deep, and satisfying.

Premium Build
A durable aluminum top case and a compact design provide a sleek and sturdy keyboard that fits seamlessly into any setup.

SPECIFICATION
Layout: ANSI 60%
Number of Keys: 61
Switch Type: Low-Profile Magnetic Switches
Stabilizer Type: Plate Mounted
Mount Type: Top
Hot-swappable Support: No
N-key Rollover Support: Yes
Backlight: South-facing RGB-LED
Backlight Modes: 20
Compatible System: macOS/Windows/Linux/Android/iOS
Operating Environment: -10 to 50℃
MCU: Nu2-8K-D-2407

CONNECTION
Wired Polling Rate: 8000Hz
PCB Scan Rate: 8000Hz

MATERIALS
Top Case: Aluminum
Bottom Case: ABS

SIZE AND WEIGHT
Long 297.2 mm (11.7 inches)
Wide 107.2 mm (4.22 inches)
Back Height 18.8 mm (0.74 inches)
Front Height 13.2 mm (0.52 inch)
Weight 534 grams (1.18 pound)
Type Angle 3.1º/ 7.0º / 10.0º


IN THE BOX
1 x Air60 HE Keyboard
1 x 1.5m (59 inches) Cable
1 x Keycap/Switch Puller
5 x Extra PBT Keycaps
10 x Extra PC Keycaps
1 x Quick Guide/Poster Download
Specification Detail
MPN AIR60HE-SL-LPJD
