Air75 HE - Silver - Low Profile Magnetic Jade PRO

The NuPhy Air75 HE is a performance-driven 75% low-profile keyboard built with Hall Effect magnetic switches, delivering fully adjustable actuation, rapid trigger response, and dynamic multi-action keystrokes. Designed for competitive gamers and fast-paced workflows, it enables ultra-precise input control at every depth of press. With QMK/VIA support, an 8000Hz polling rate, and hot-swappable magnetic switches, the Air75 HE brings cutting-edge analog functionality to a compact low-profile form. Built from CNC-machined aluminum and optimized for both Mac and Windows, it’s a professional-grade keyboard ready for any scenario.

Key Features

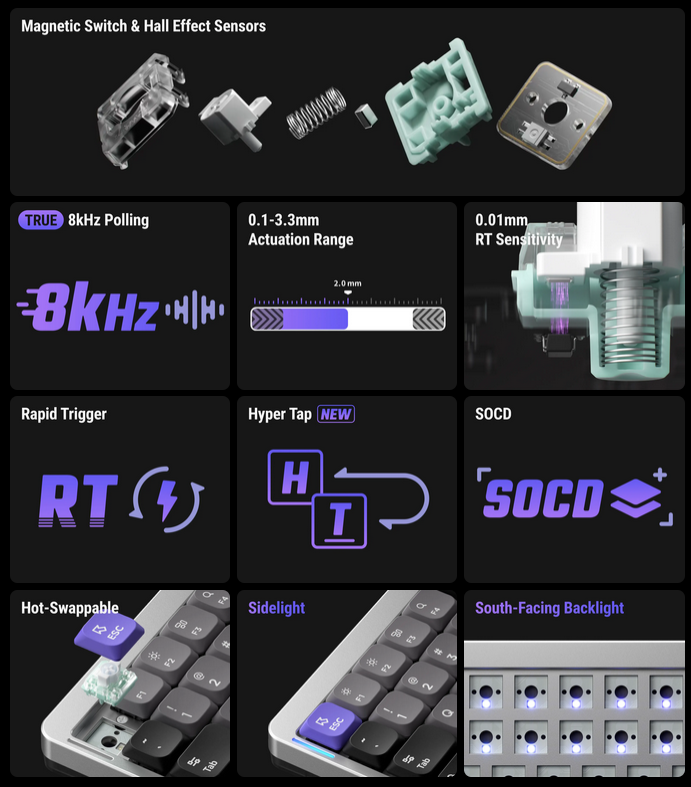

Hall Effect Magnetic Switches

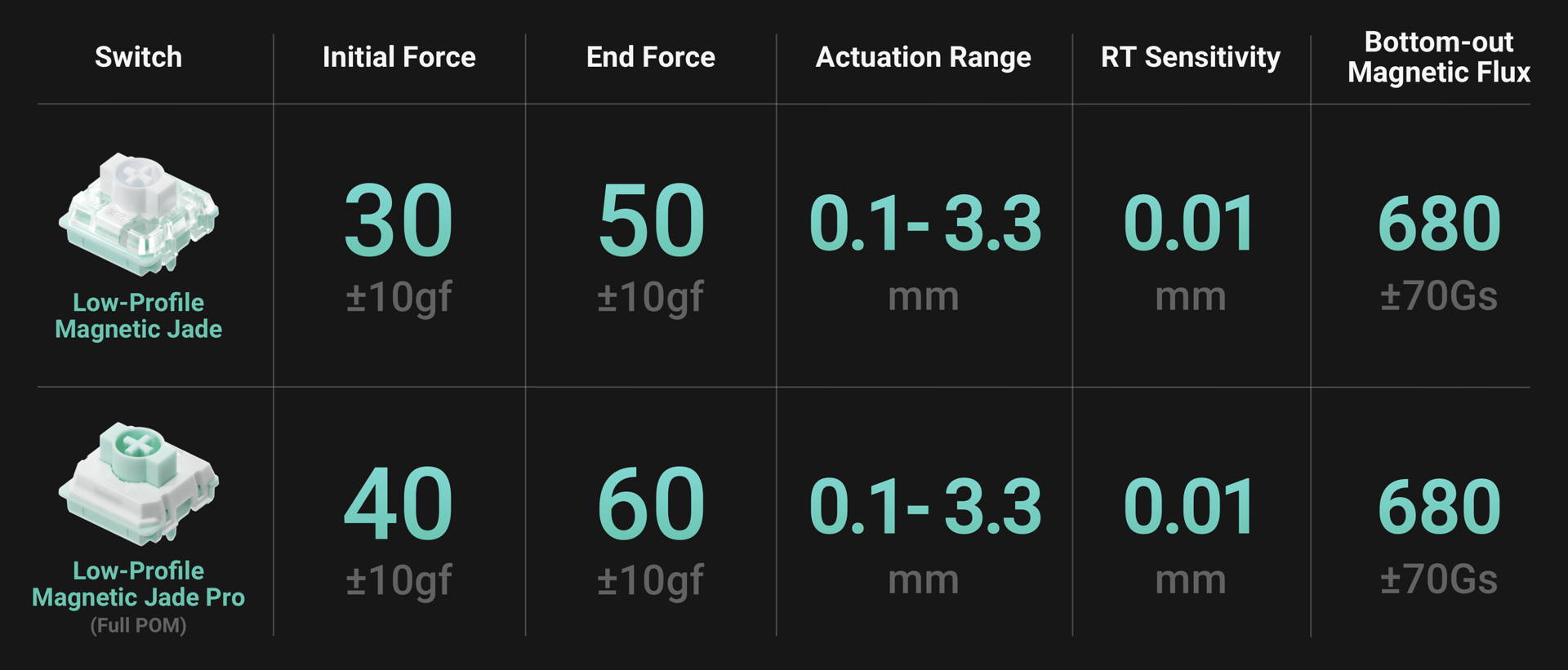

Unlike traditional mechanical switches, the Air75 HE uses magnetic sensors to detect key travel, enabling fully adjustable actuation points from 0.1mm to 3.3mm. Fine-tune each key’s sensitivity to match your gameplay or typing style.

Rapid Trigger Support
Thanks to analog sensing, Rapid Trigger enables keystrokes to activate and reset dynamically based on movement — not fixed positions. This allows faster consecutive inputs and smoother repeated actions, ideal for FPS and rhythm games.

Dynamic Keystroke (4-in-1 Actions)
Assign multiple actions to a single keypress based on depth. For example:

• Light tap = Walk

• Deeper press = Run

• Bottom-out = Sprint
  Customize multi-layer key actions via NuPhy Console for advanced control and combos.

Hyper Tap & Rapid Shift
Hyper Tap allows a key to trigger a secondary action upon release, enhancing in-game responsiveness. Rapid Shift enables dynamic input switching based on press depth, providing nuanced control for complex commands.

SOCD Resolution & Mod Tap
The Air75 HE includes SOCD (Simultaneous Opposite Cardinal Direction) resolution options, allowing for precise input handling. Mod Tap functionality lets you assign different actions to a key based on tap or hold, increasing versatility.

8,000Hz Polling Rate
Experience ultra-low latency with an 8,000Hz polling rate, ensuring your inputs are registered with exceptional speed and accuracy.

Hot-Swappable Magnetic Switches

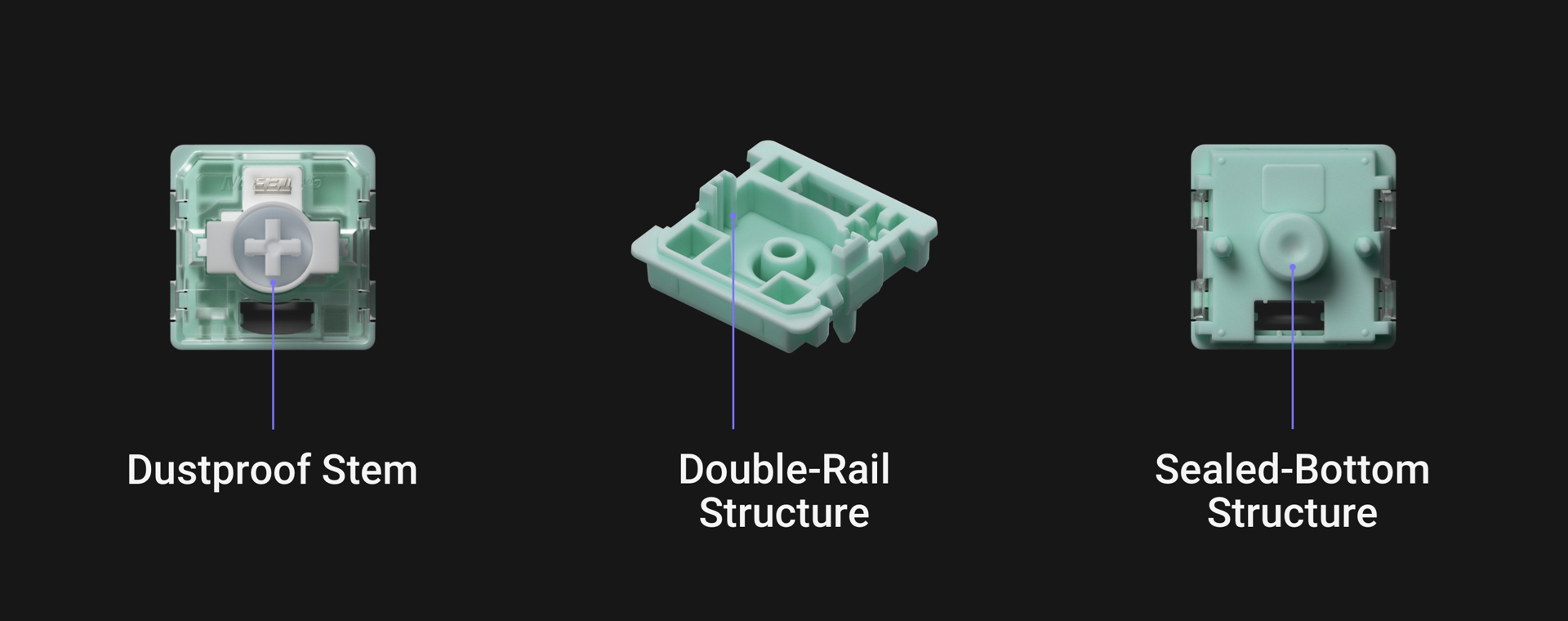

Compatible with Gateron Low-Profile Magnetic Jade and Jade Pro switches. Easily swap switches with no soldering and customize typing feel or travel distance preferences.

QMK/VIA Support
Air75 HE supports full QMK and VIA programmability for advanced key remapping, macro creation, and multi-layer custom layouts.

Double-Shot PBT Keycaps
High-quality keycaps with a crisp texture and long-lasting legends. Optimized for RGB illumination.

Enhanced Acoustics

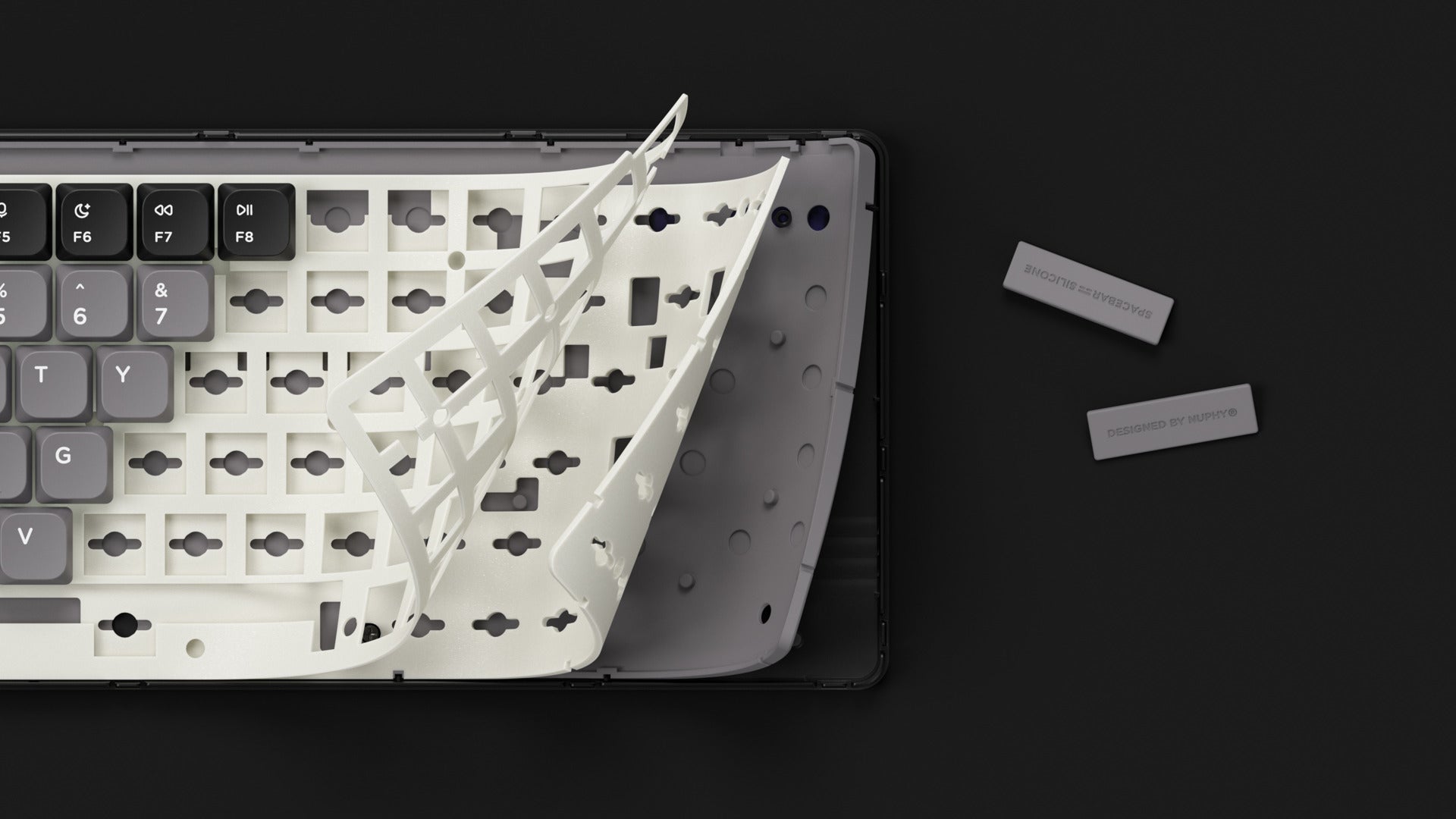

Features multi-layer dampening, including PORON plate foam, IXPE switch pad, PET acoustic film, and a silicone base pad. Combined with factory-lubed stabilizers, the typing sound is soft, deep, and satisfying.

Premium Build
A durable aluminum top case and a compact design provide a sleek and sturdy keyboard that fits seamlessly into any setup.
