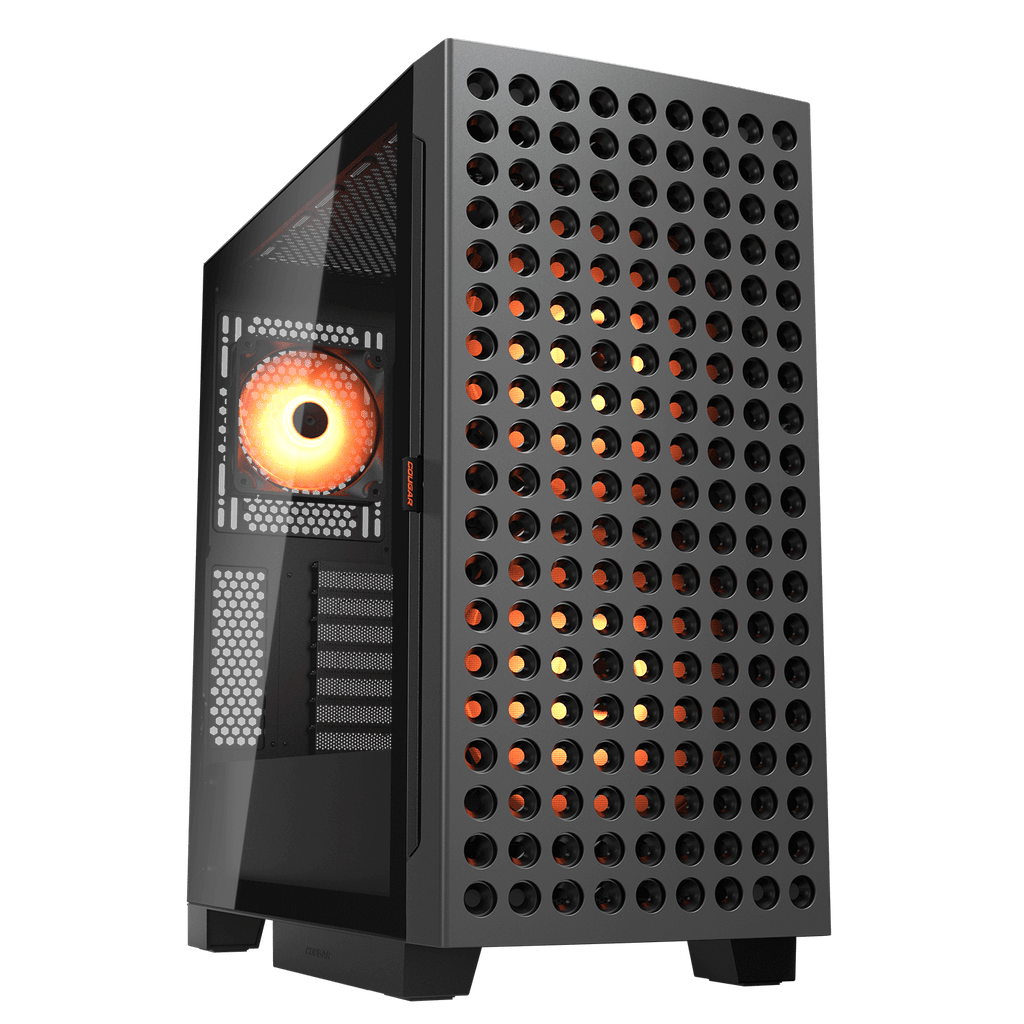

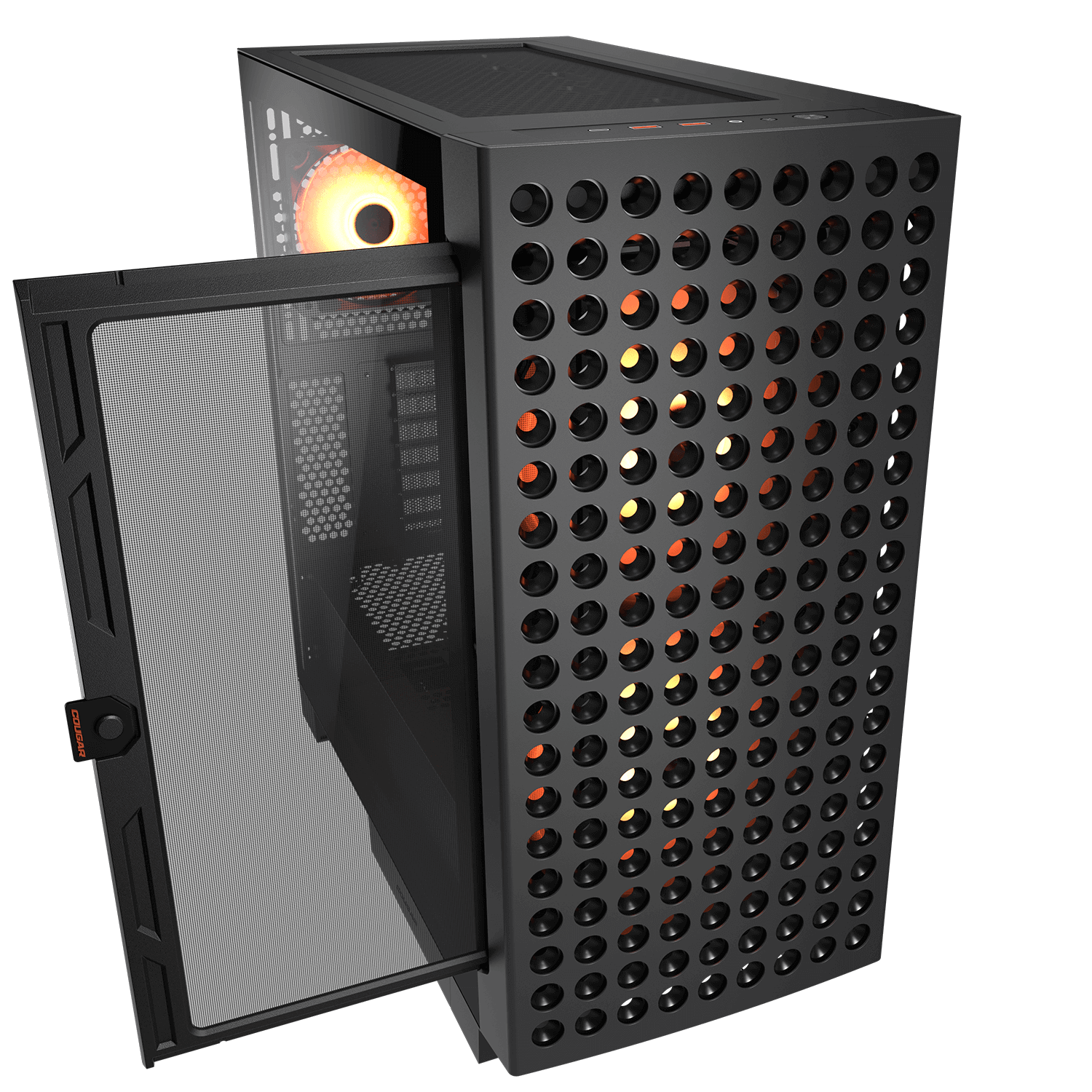

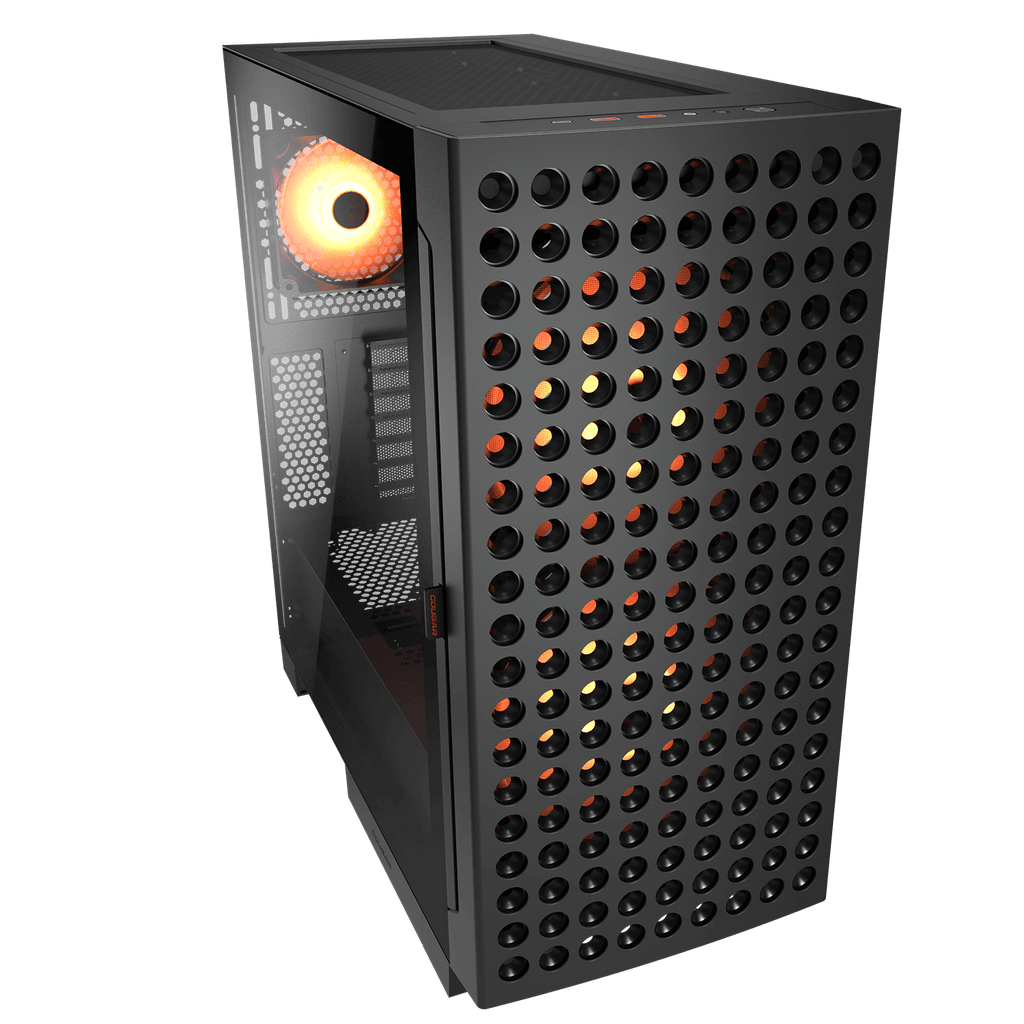

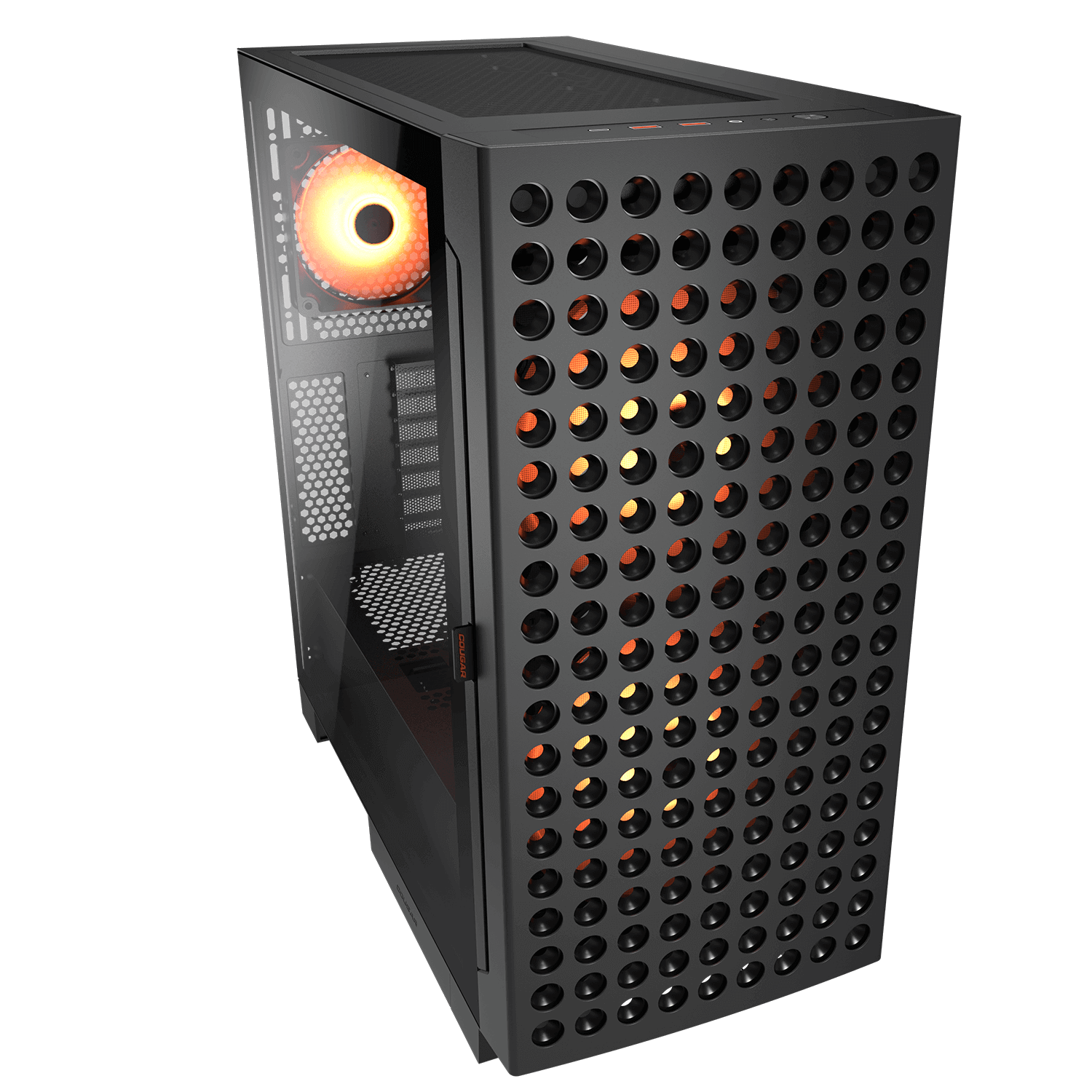

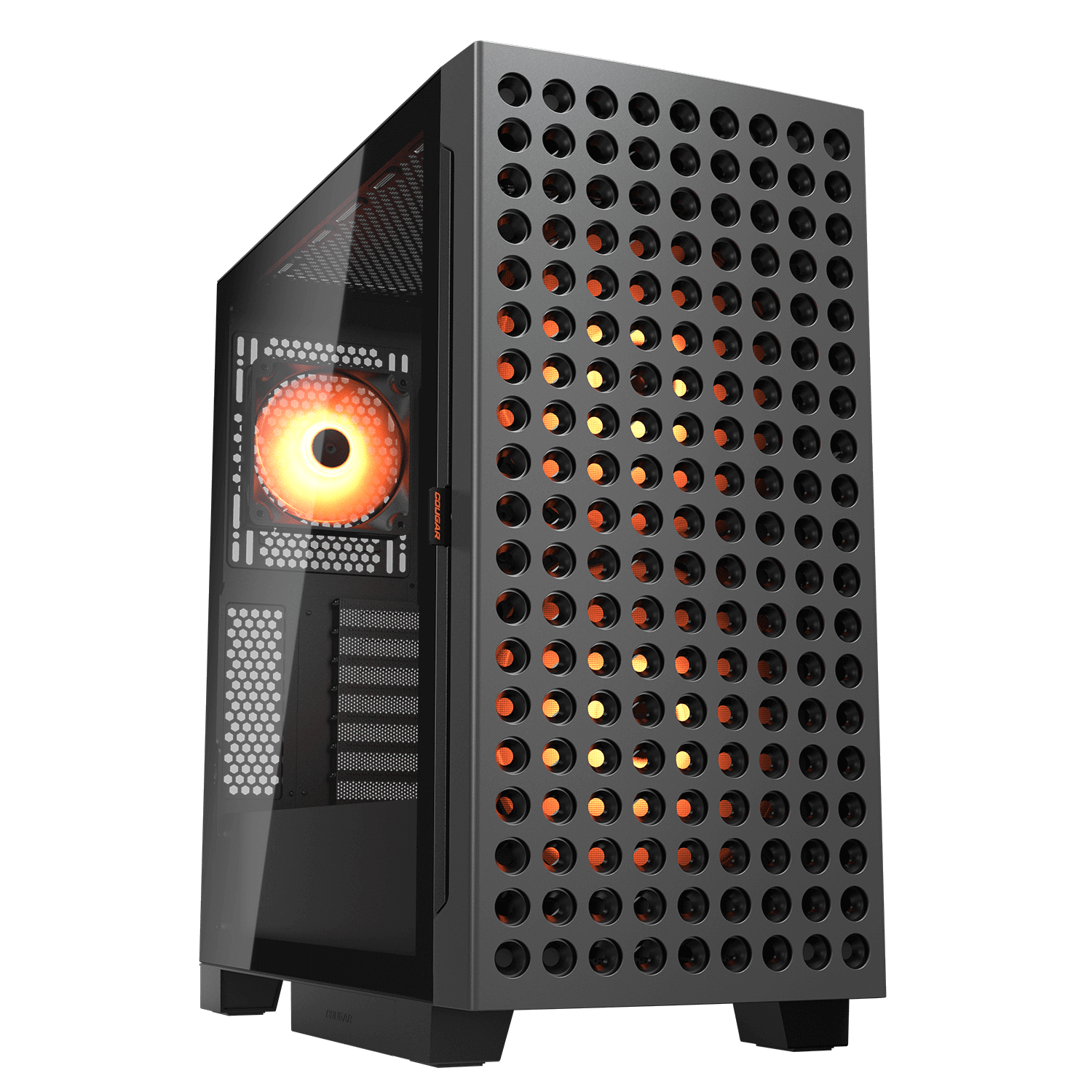

Airface ECO RGB - Black - PC Case

The COUGAR Airface ECO RGB combines environmental efficiency with high-performance airflow, delivering a chassis that reduces energy consumption without compromising cooling power. With its thermodynamically optimized front panel, preinstalled 180mm PWM fans, and smart construction upgrades based on user feedback, the Airface ECO RGB represents a new benchmark in eco-conscious case design.

---

Key Features

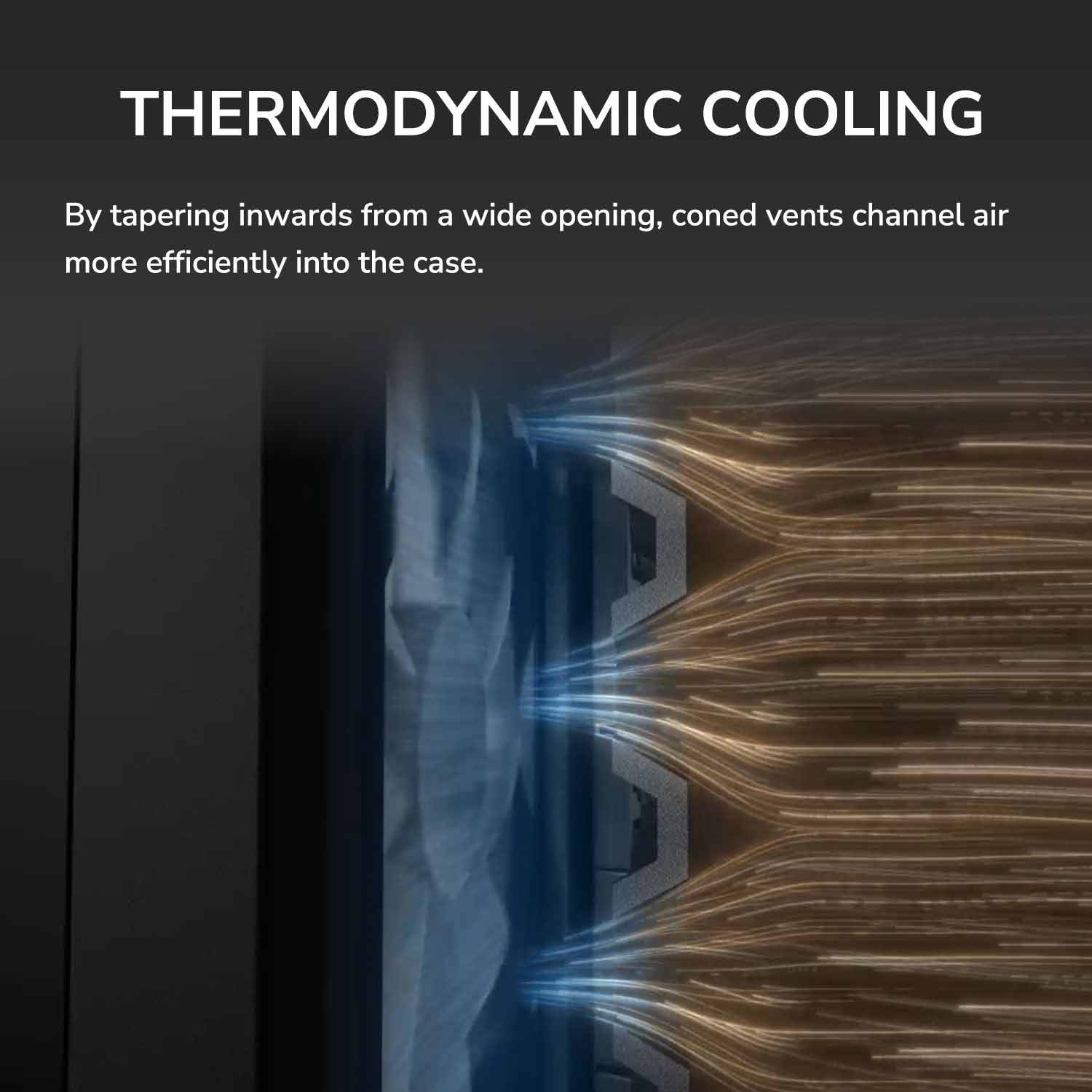

Thermodynamic Cooling Efficiency

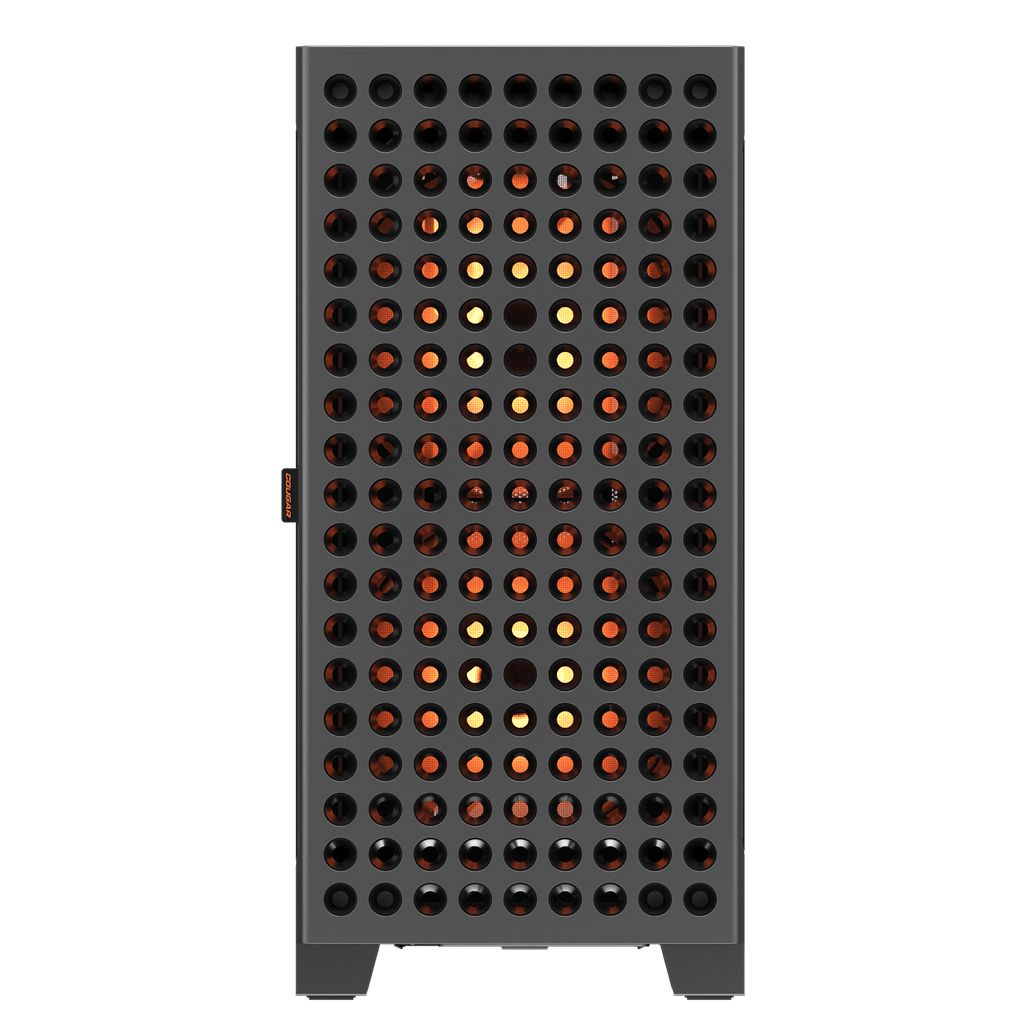

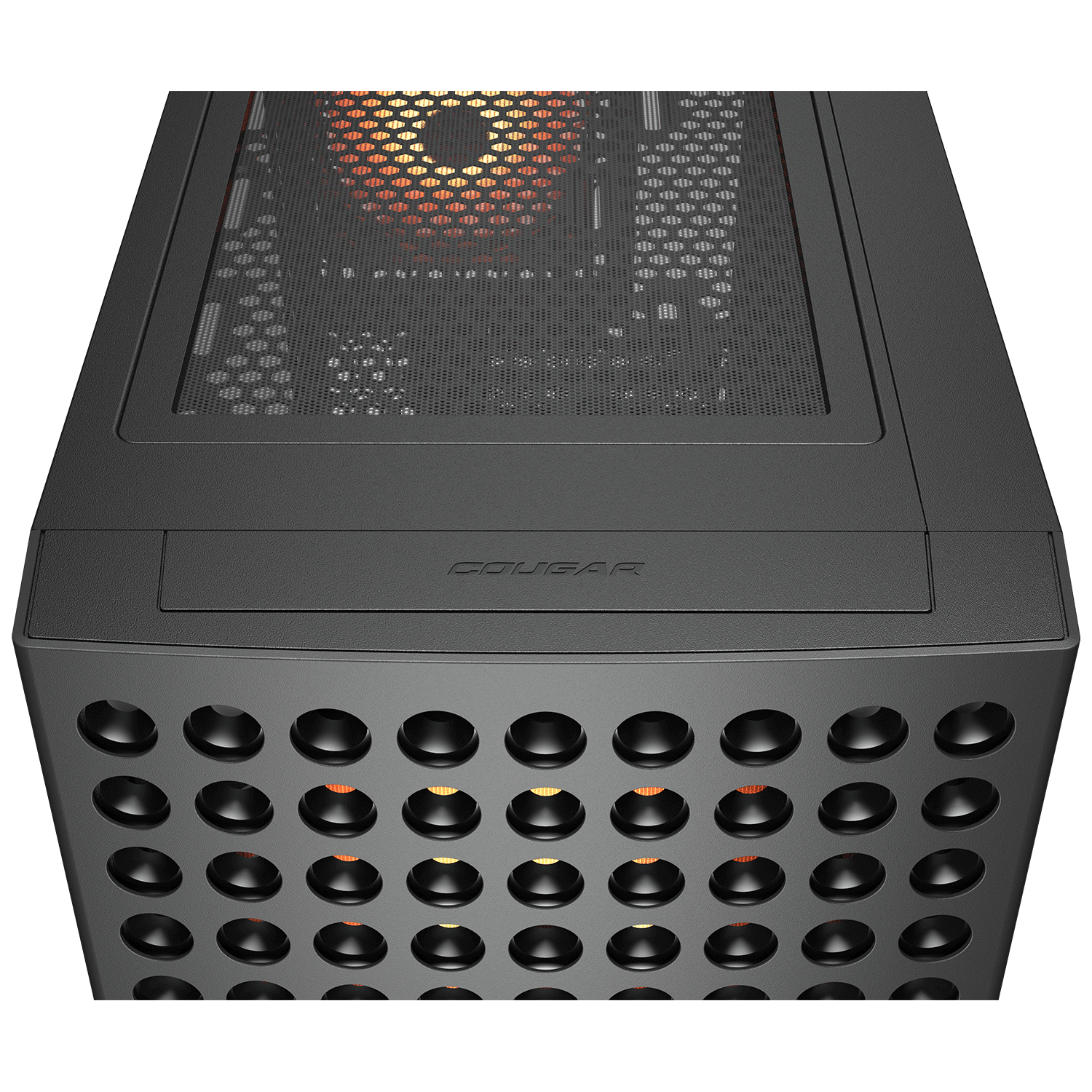

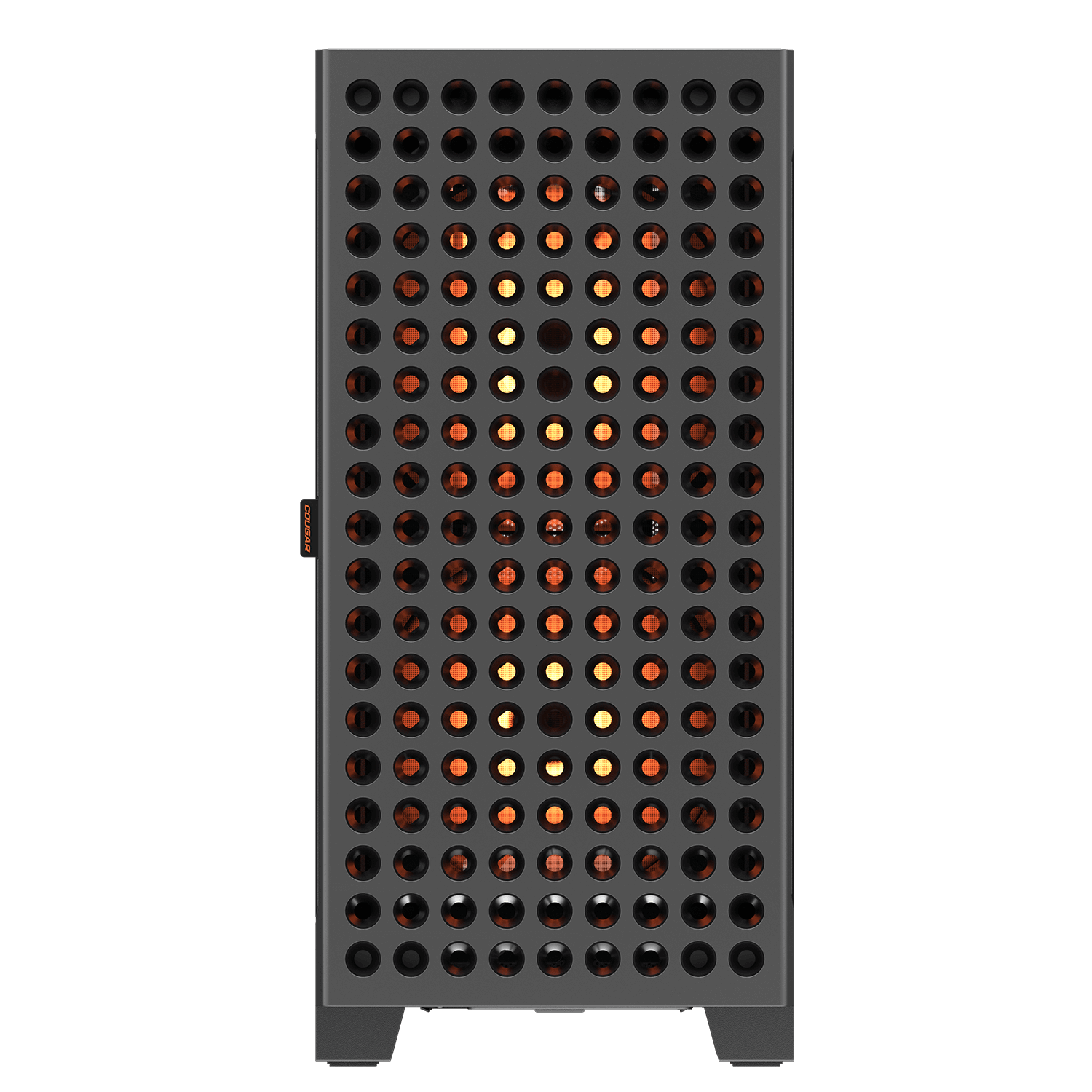

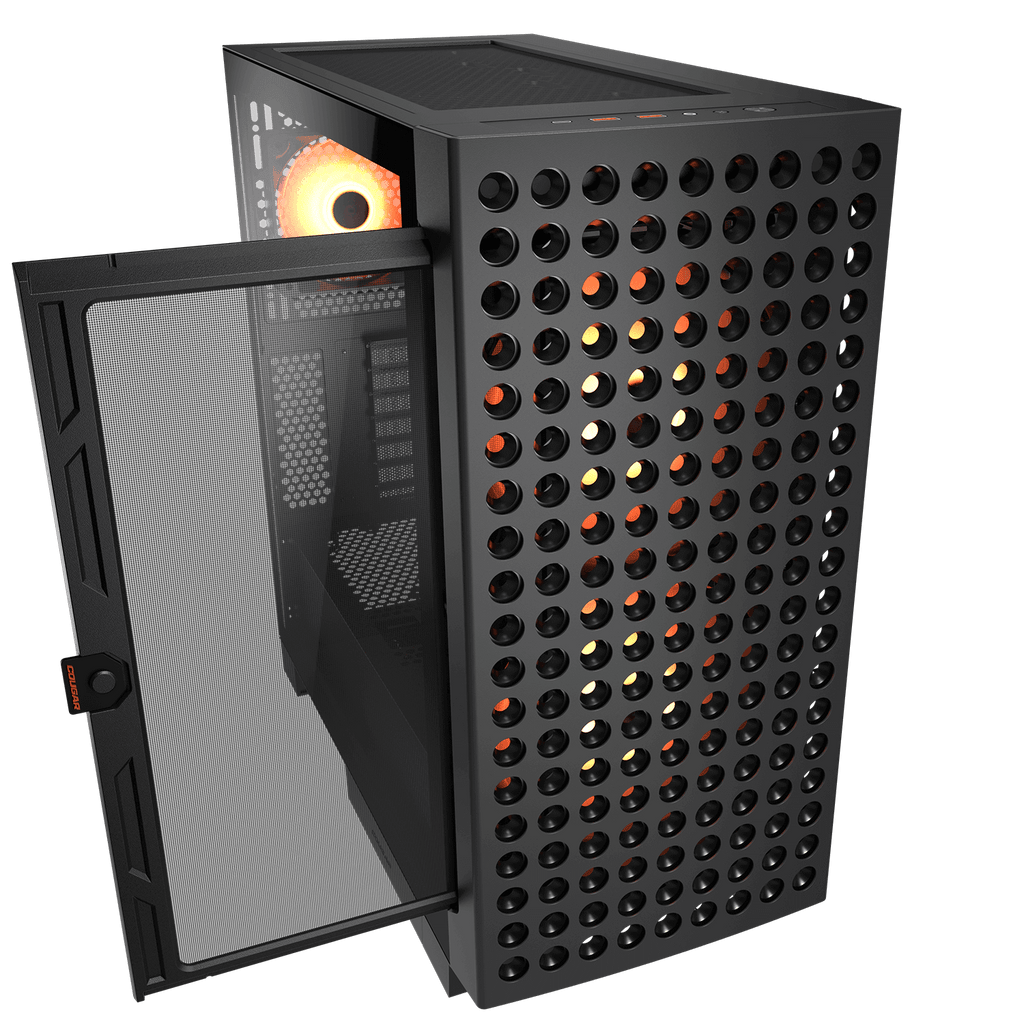

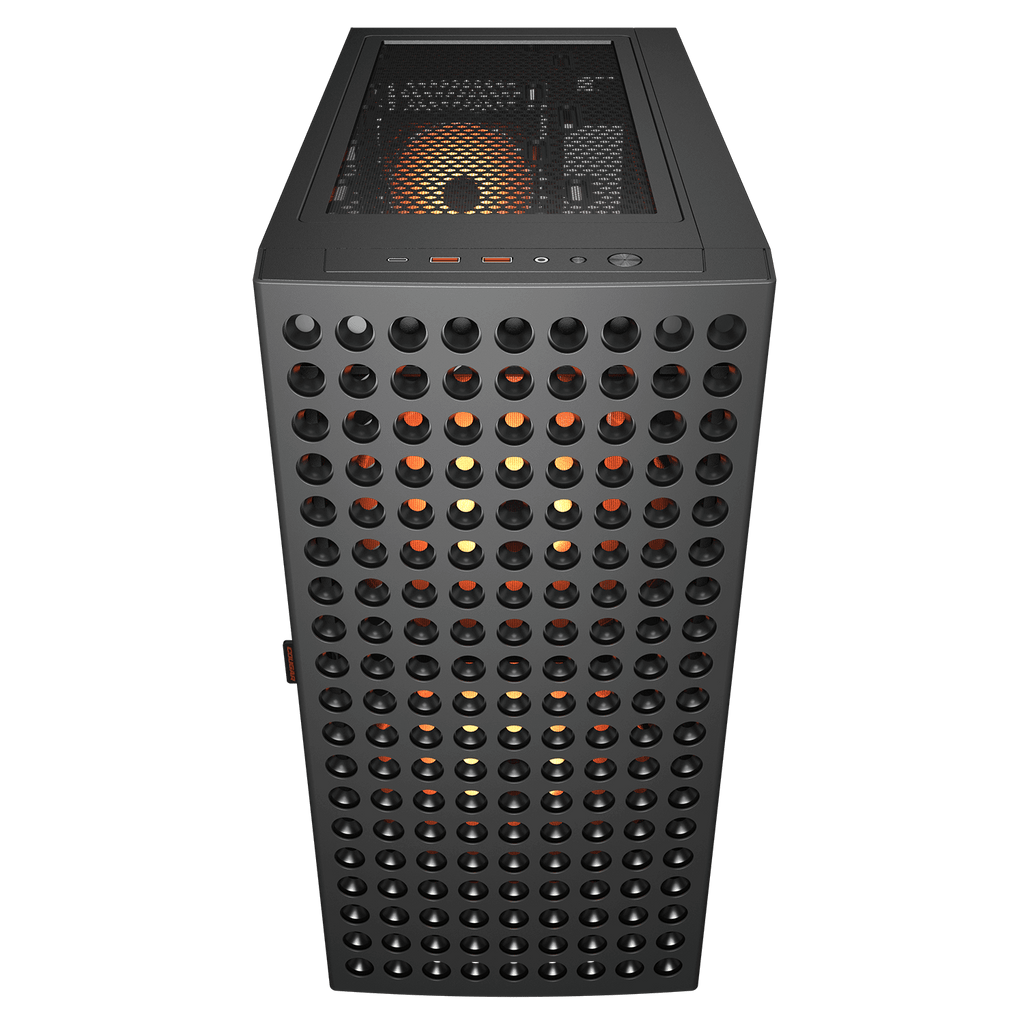

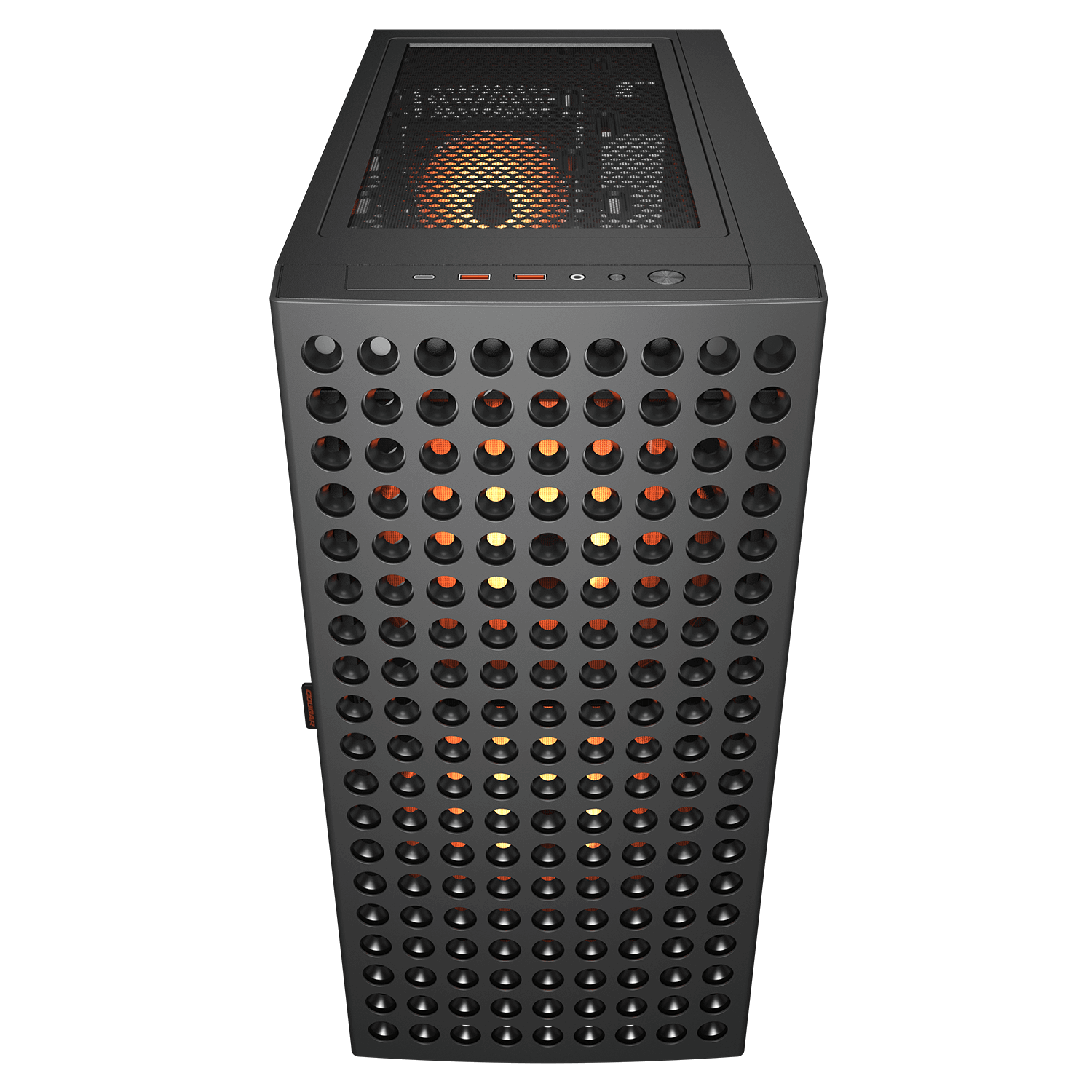

The Airface ECO RGB features a unique coned vent design that tapers inward from a wide front opening. This funneling effect leverages thermodynamic principles to channel air more efficiently into the system, reducing internal temperatures with lower energy consumption.

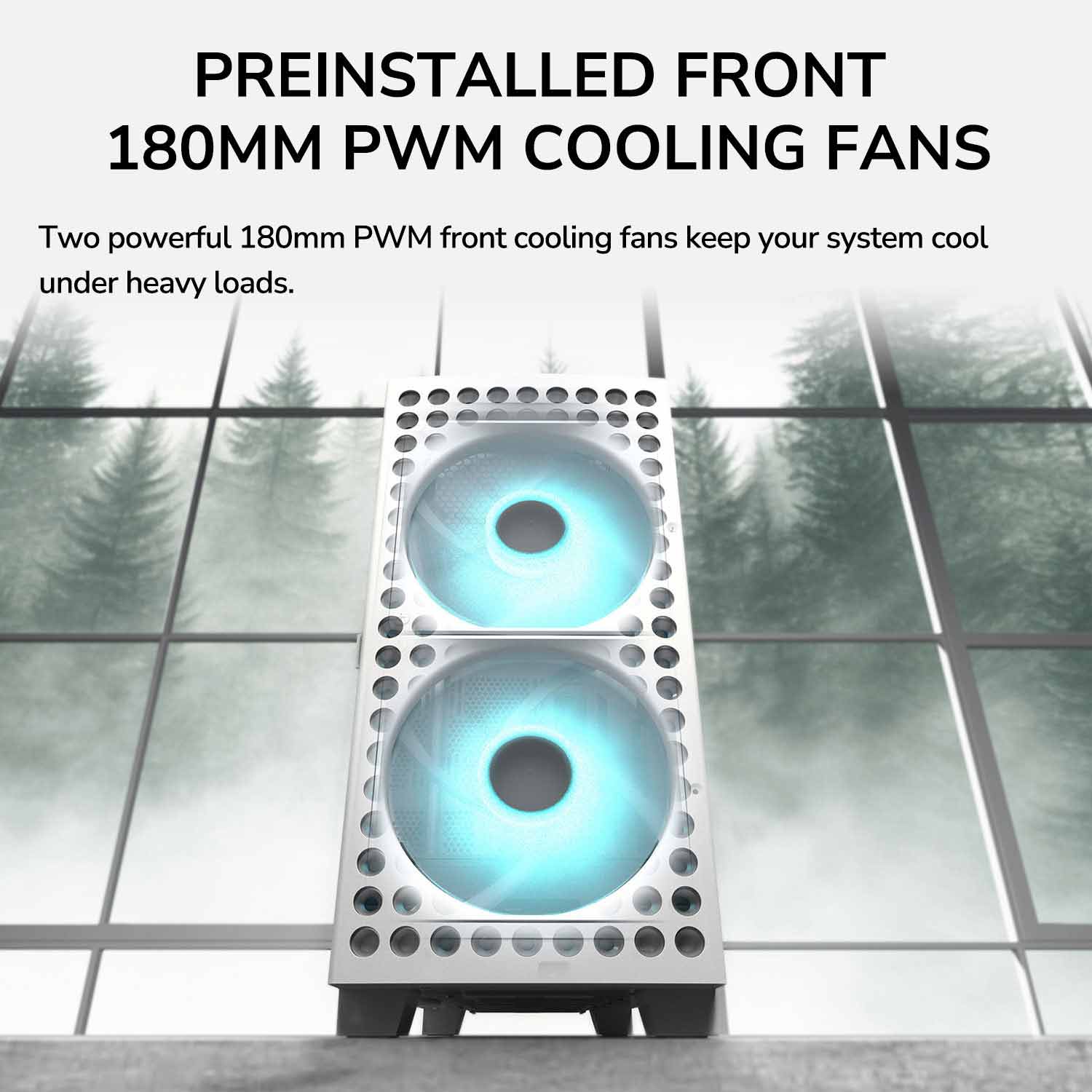

Preinstalled High-Airflow Cooling Fans

• 2 × 180mm PWM front intake fans for powerful, low-noise cooling

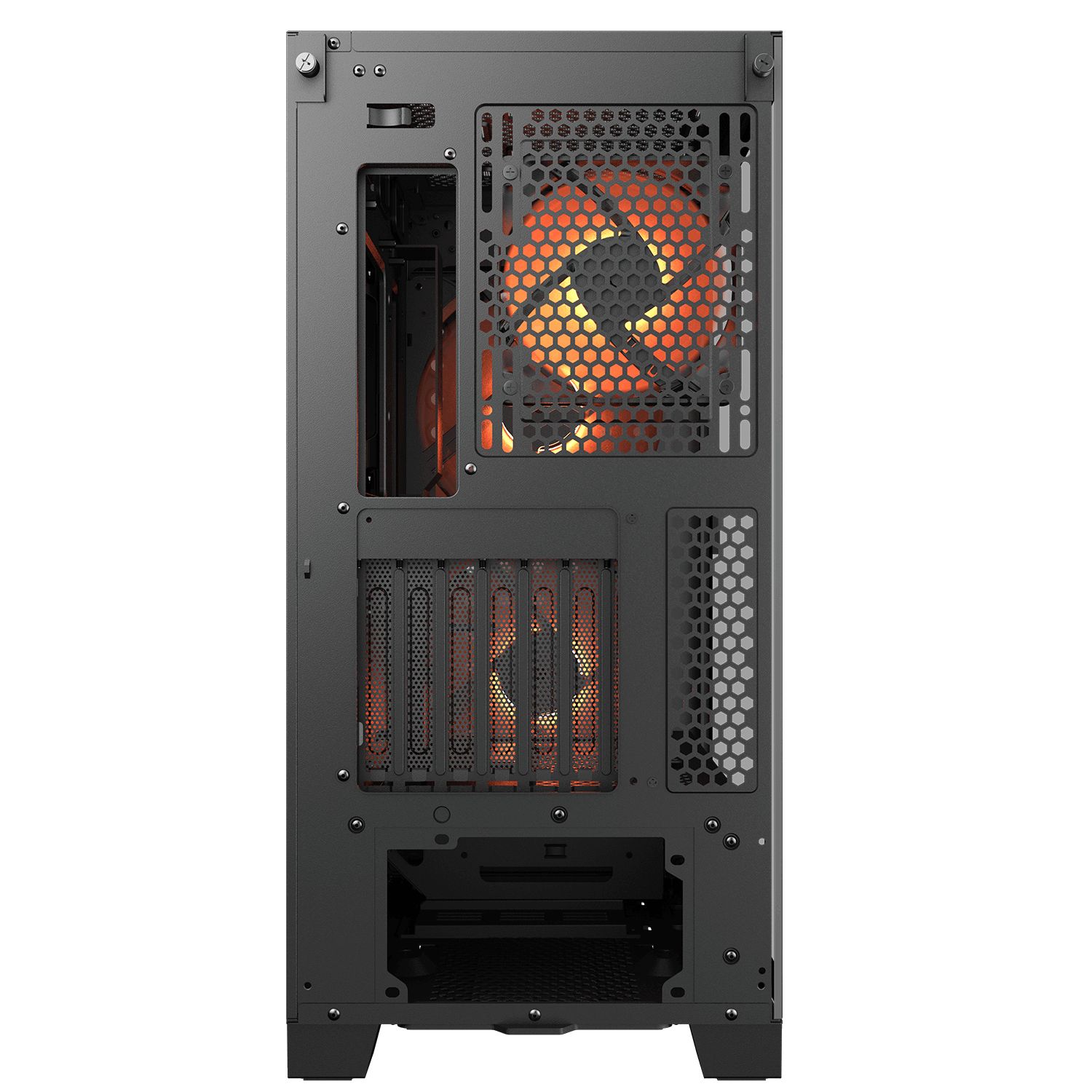

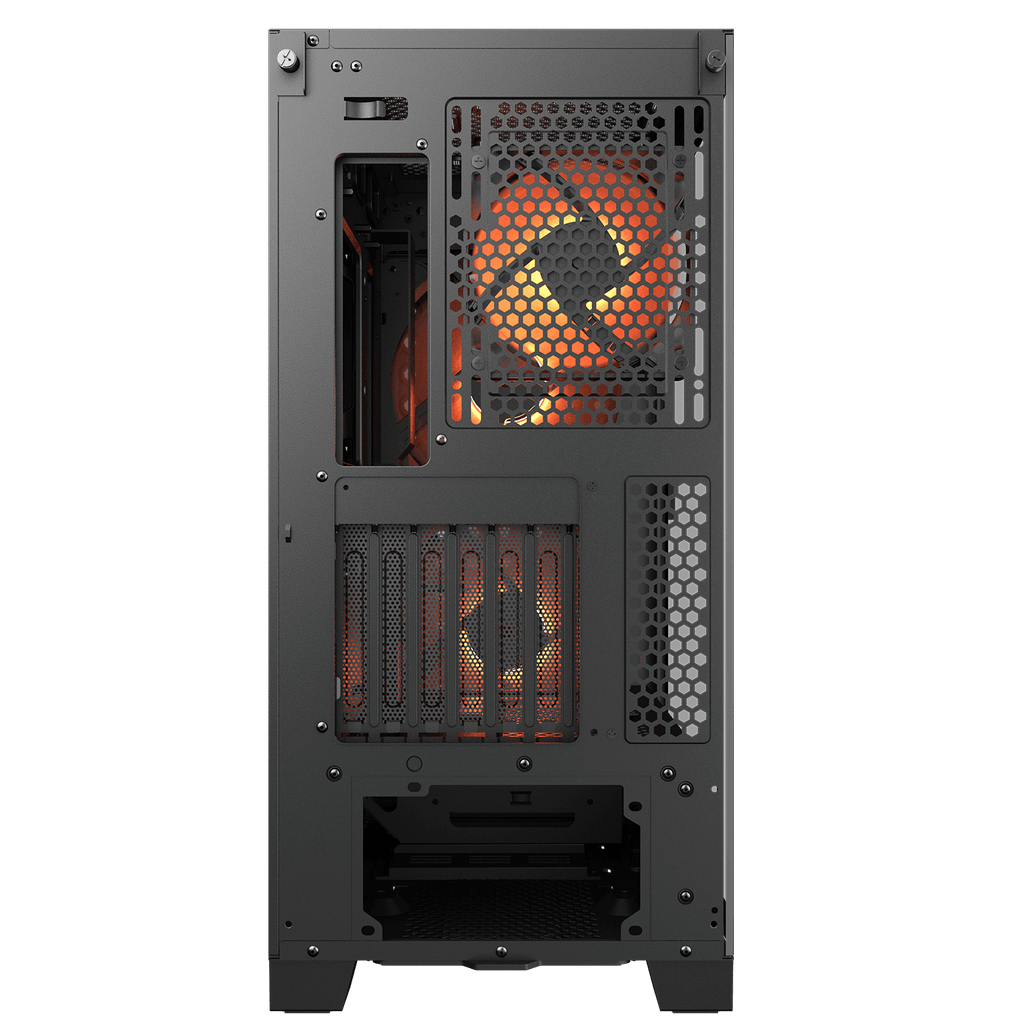

• 1 × 120mm rear exhaust fan for balanced airflow
  Fan speeds adapt automatically to system demands, delivering efficient cooling straight out of the box.

Advanced Cooling Support

• Fan Capacity: Supports multiple fan configurations

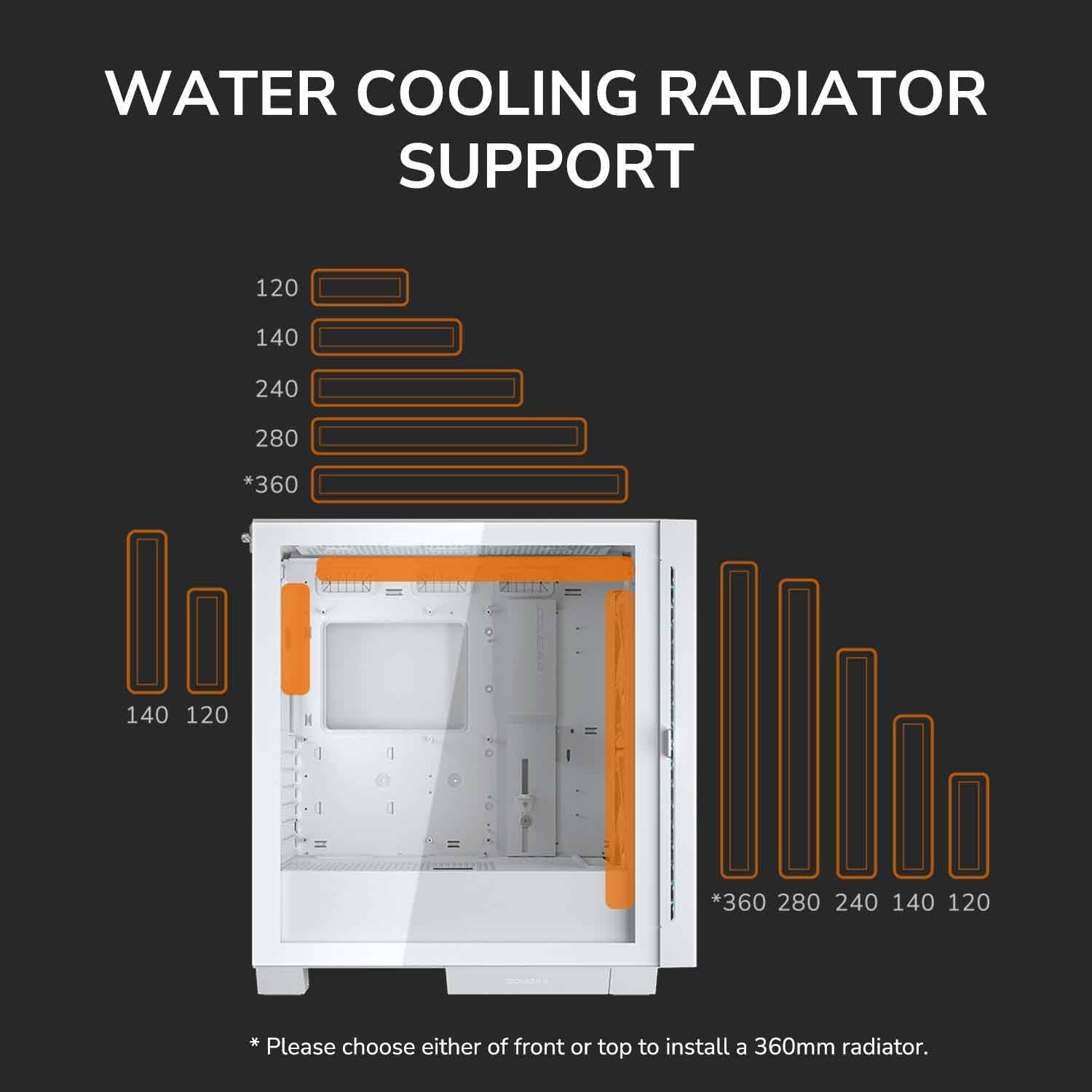

• Radiator Support: Up to 360mm radiator on either the front or top
  Note: Only one 360mm radiator can be installed at a time (front or top)

• Air Cooler Height Clearance: Supports tall CPU air coolers for flexible thermal solutions

---

Refined for Assembly and Maintenance

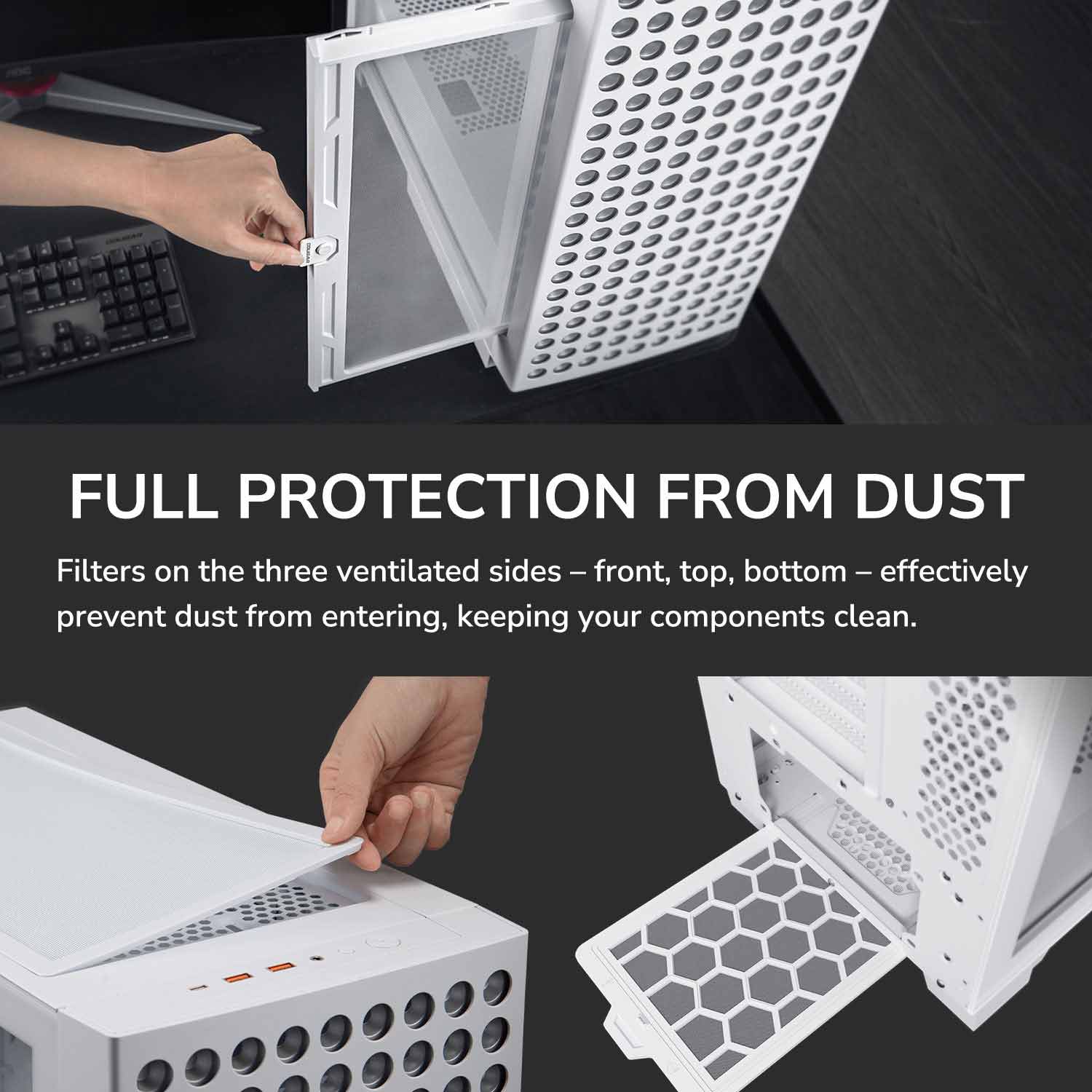

Full Dust Protection
Dust filters on the front, top, and bottom prevent particulate buildup and extend hardware longevity:

• Quick-slide front filter can be removed without detaching the front panel

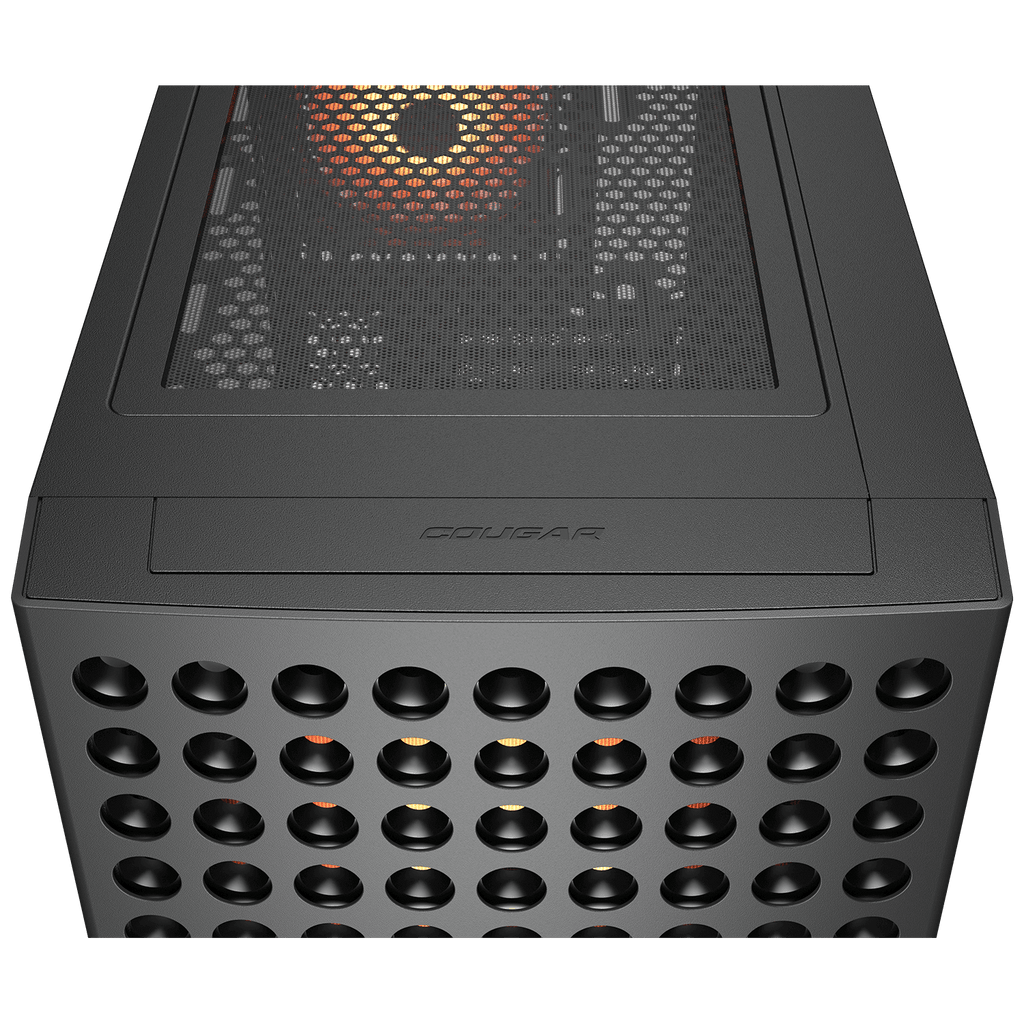

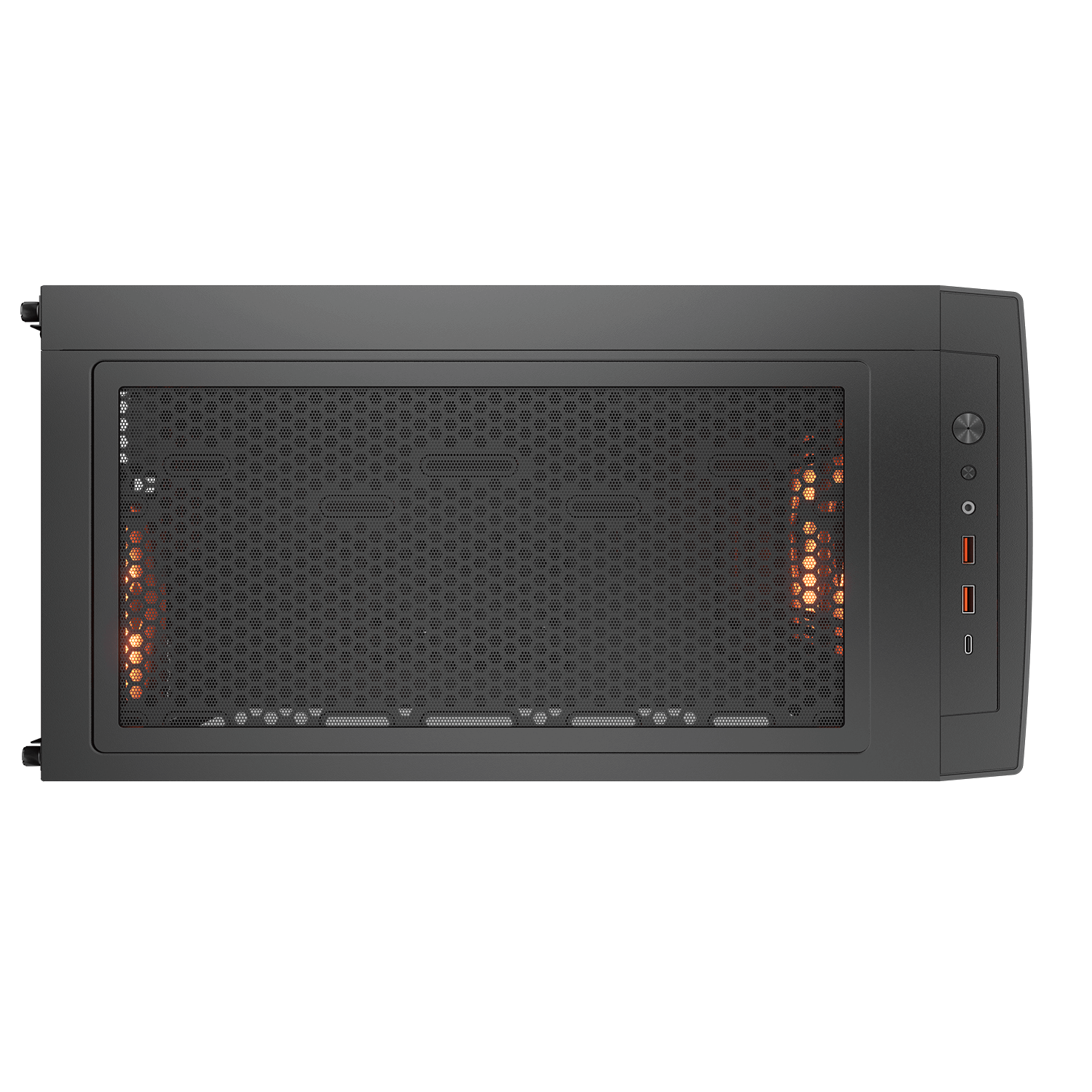

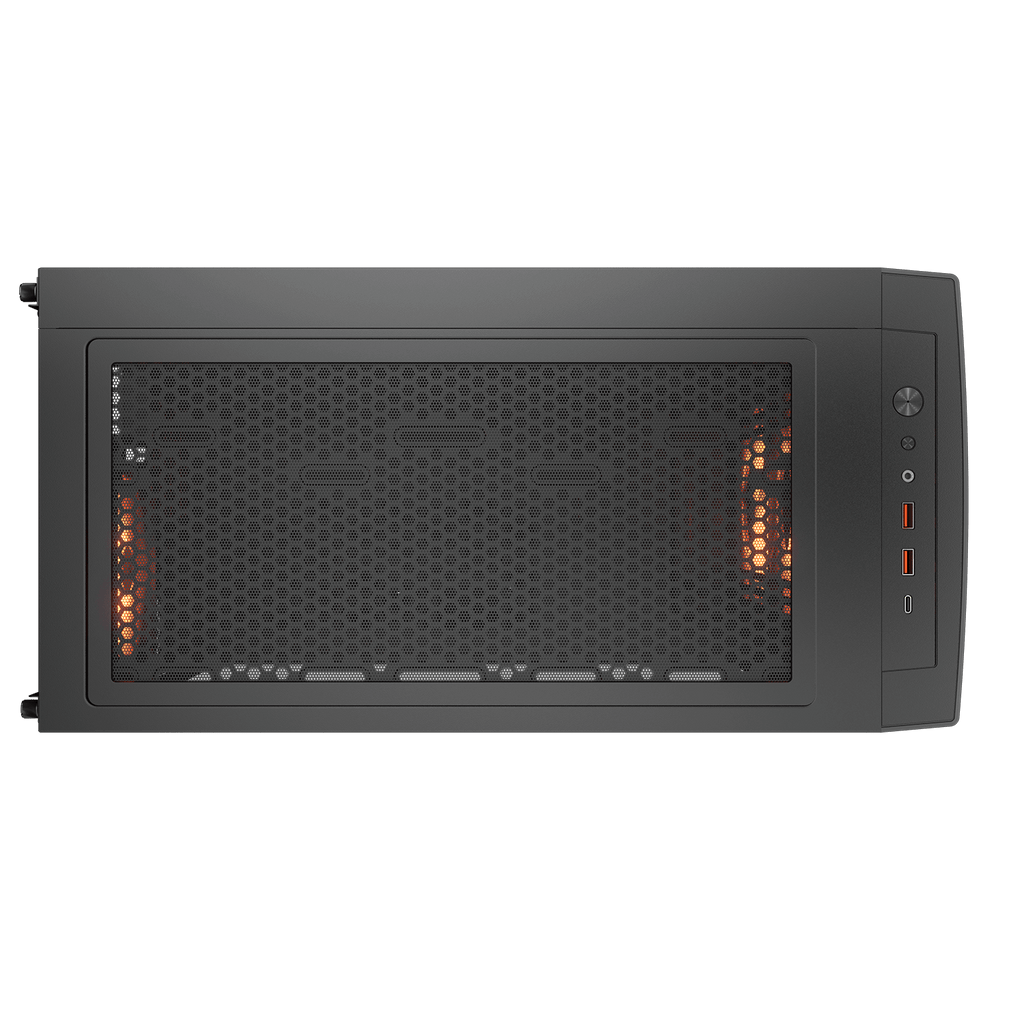

• Magnetic top filter offers easy access

• Slide-out bottom filter simplifies cleaning
  A rubber grip tab enhances usability for quick maintenance.

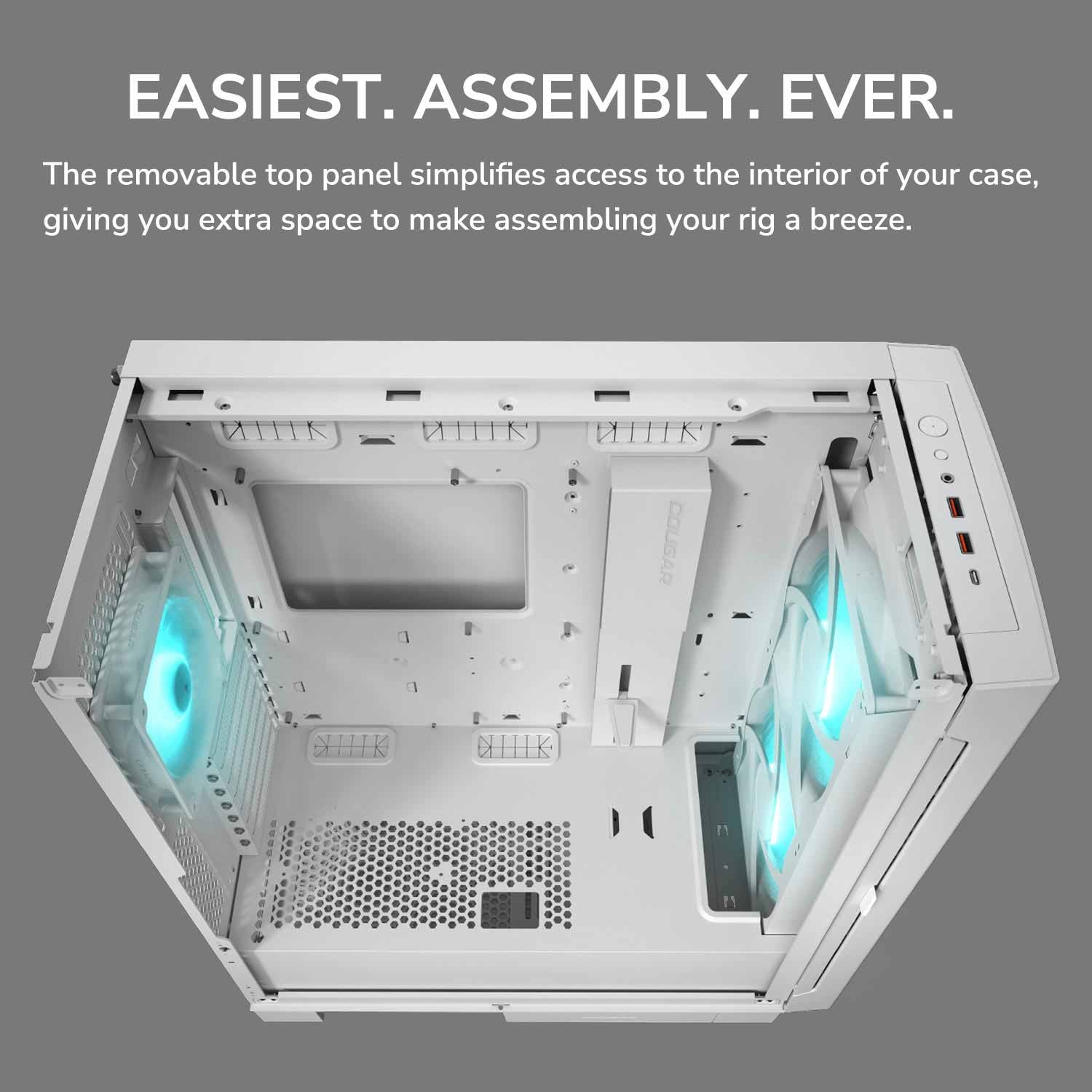

Removable Top Panel
Provides open access to the internal layout, greatly simplifying component installation and cable routing.

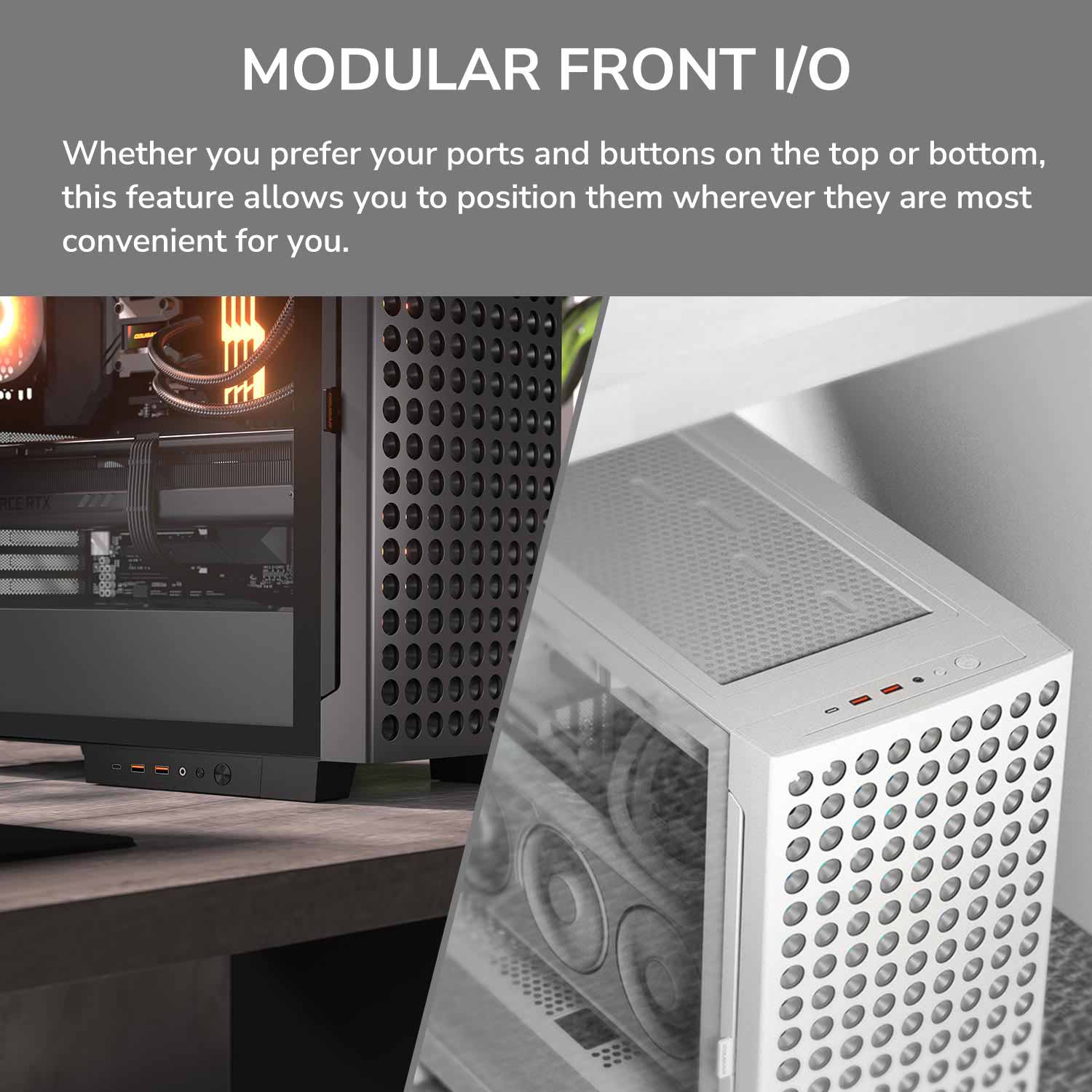

Modular Front I/O Panel
Designed for adaptability, the I/O panel can be repositioned to the top or bottom of the case.
Includes:

• 1 × USB 3.2 Gen 2 Type-C

• 2 × USB 3.0 Type-A

• 4-pole headphone jack

• RGB lighting control button

---

Build-Friendly Upgrades

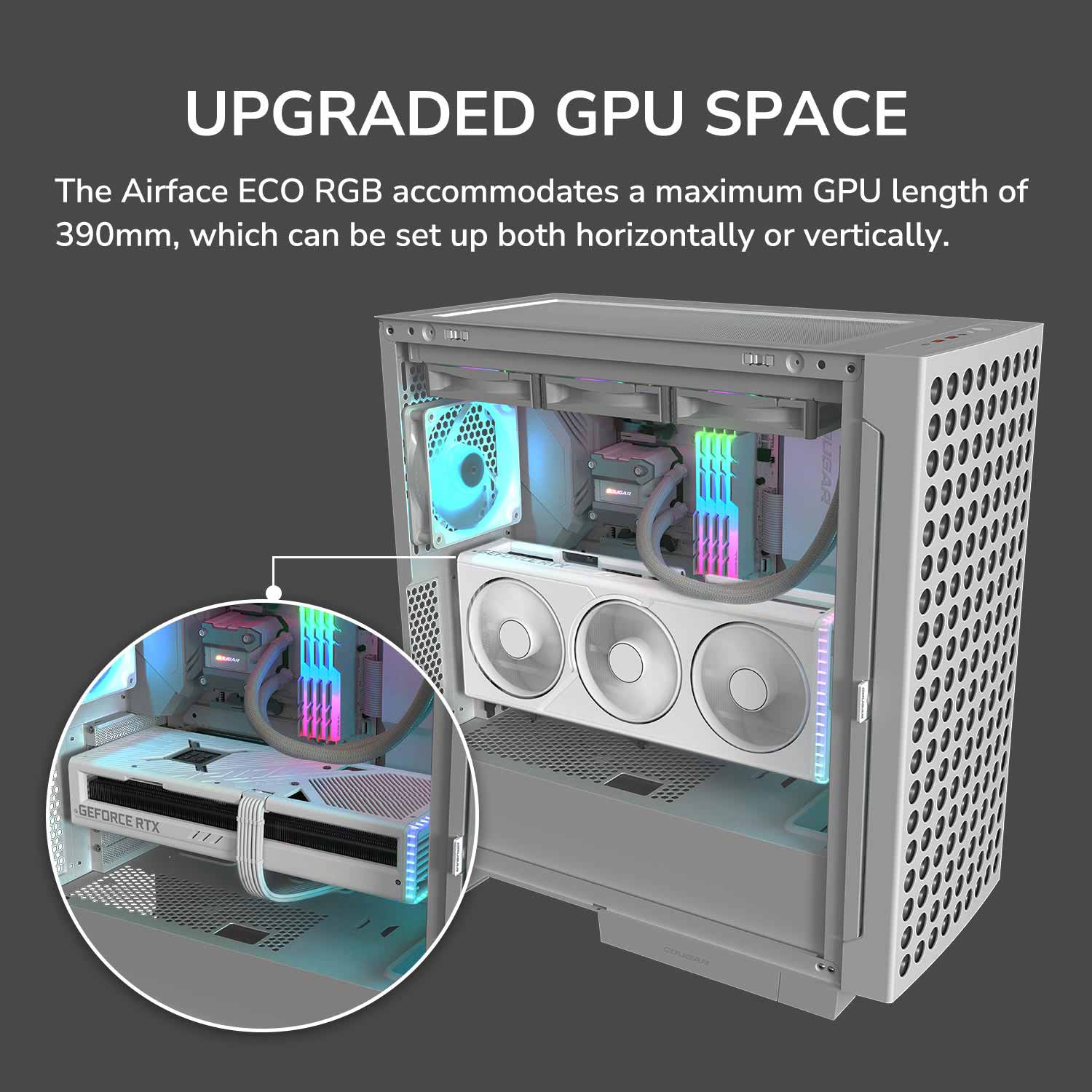

Enhanced GPU Clearance and Orientation

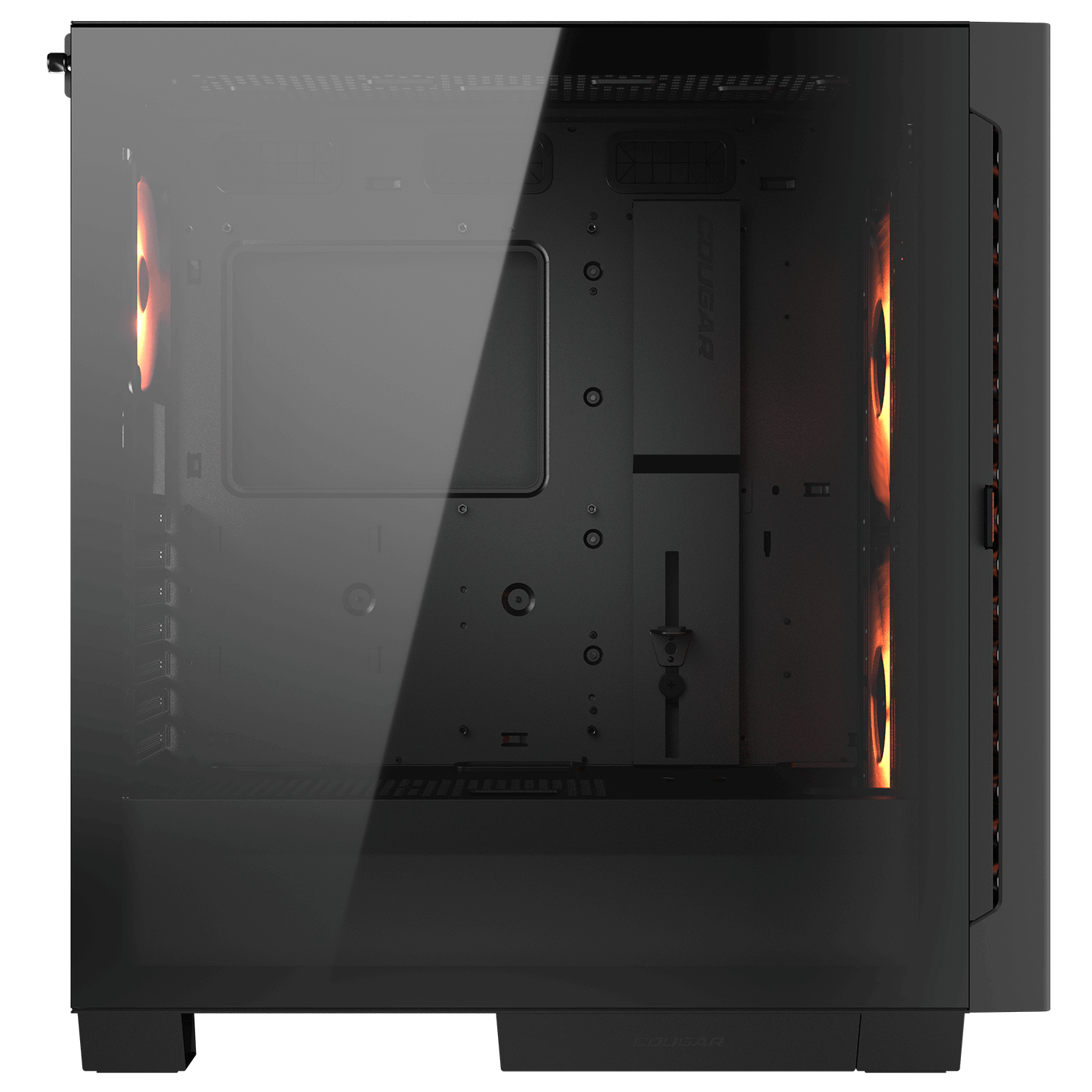

Supports graphics cards up to 390mm in both horizontal and vertical orientations. The upgraded vertical GPU space enables improved airflow and hardware compatibility, minimizing thermal restrictions around premium GPUs.

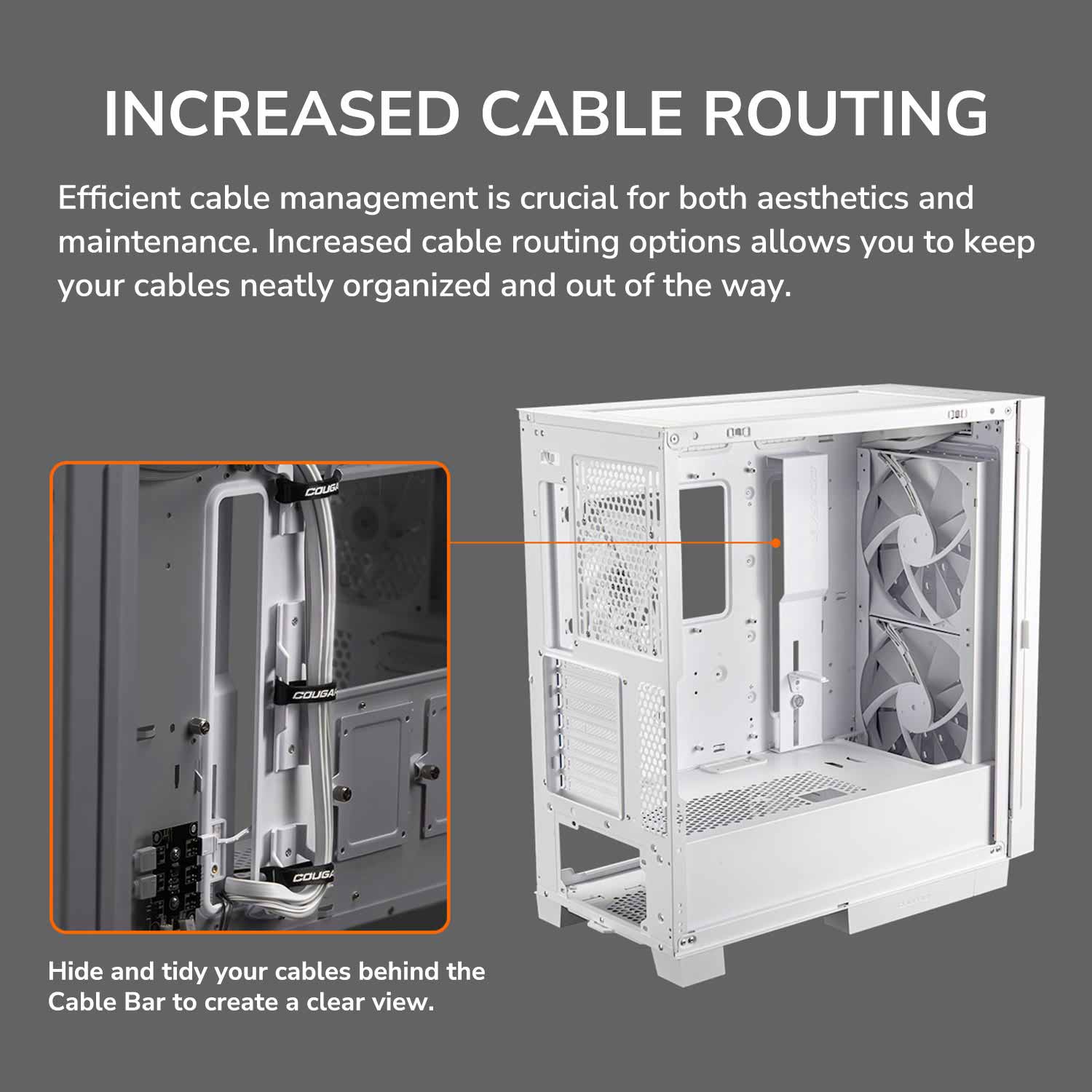

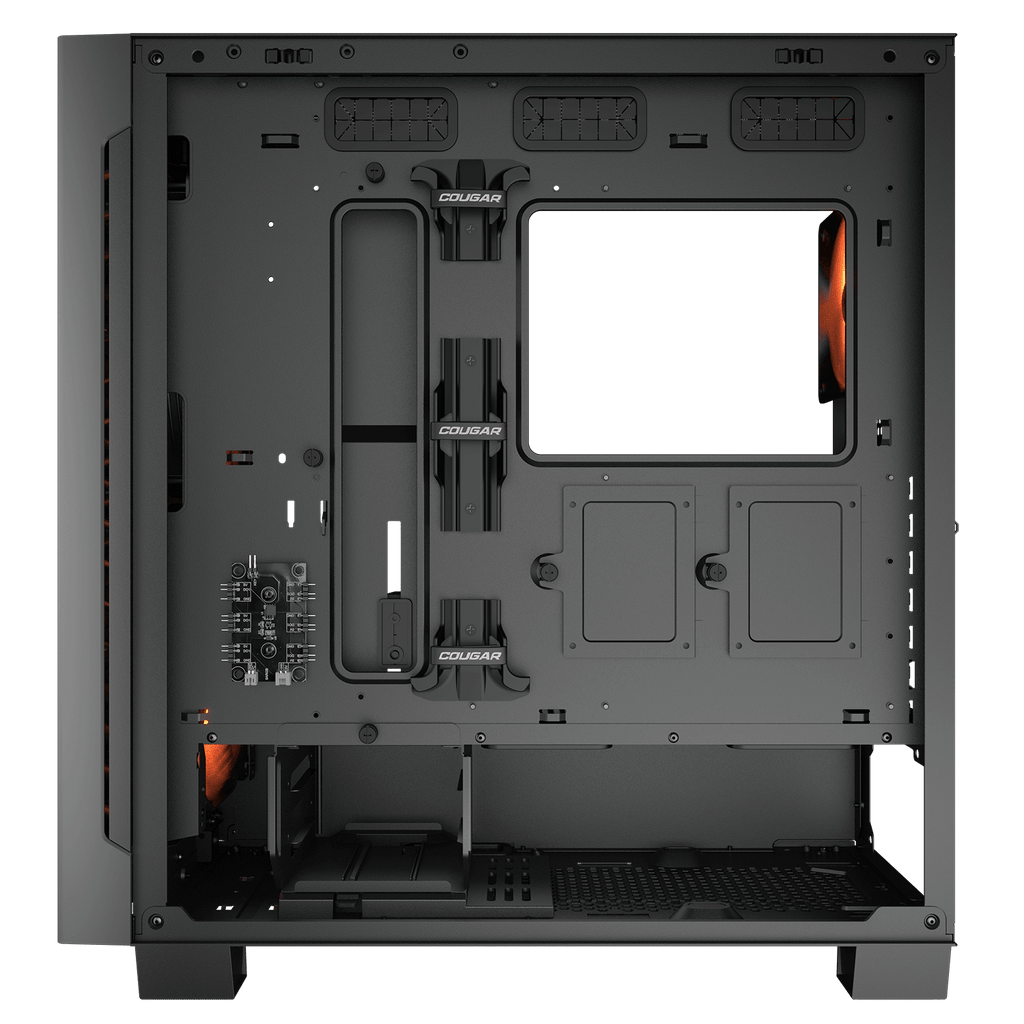

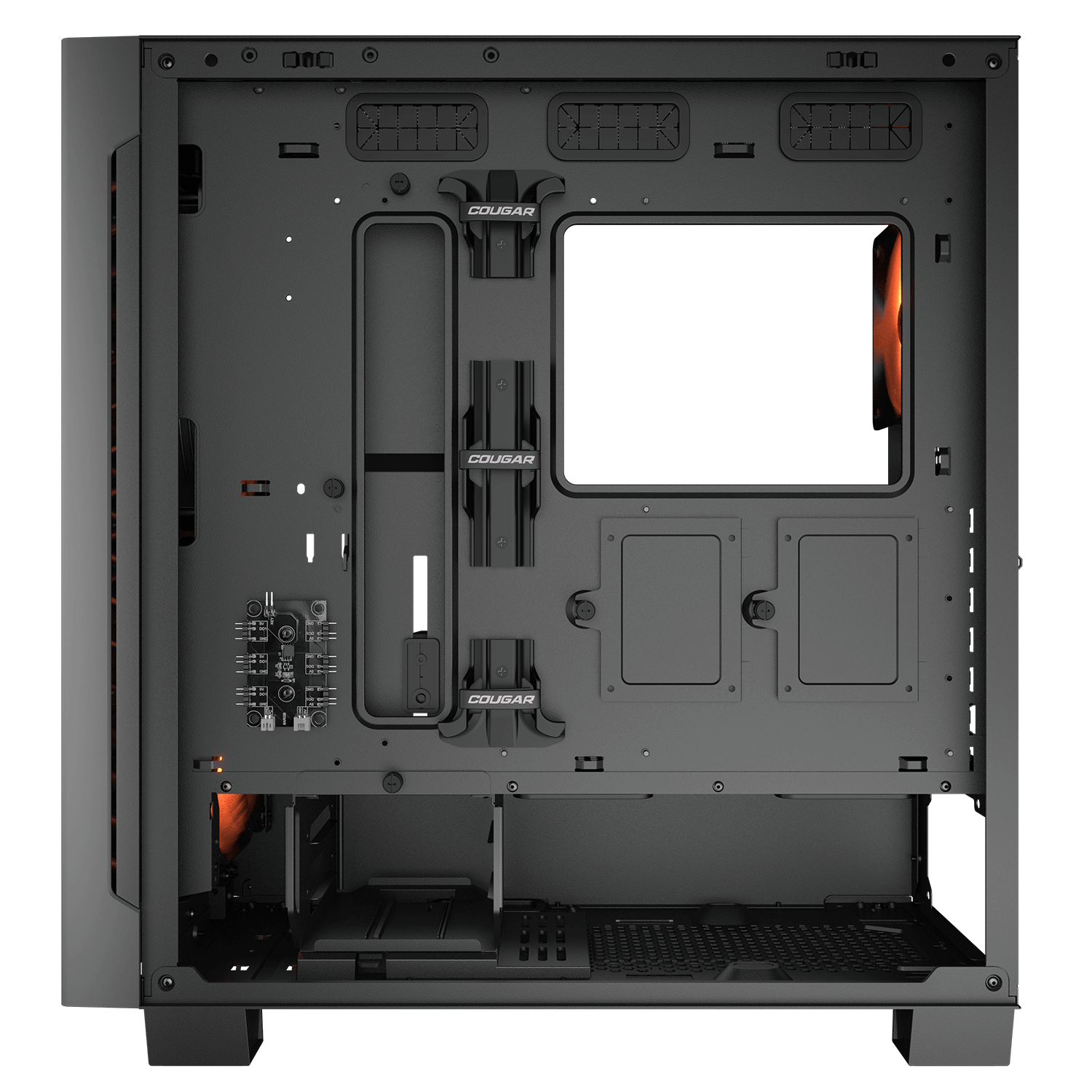

Expanded Cable Management

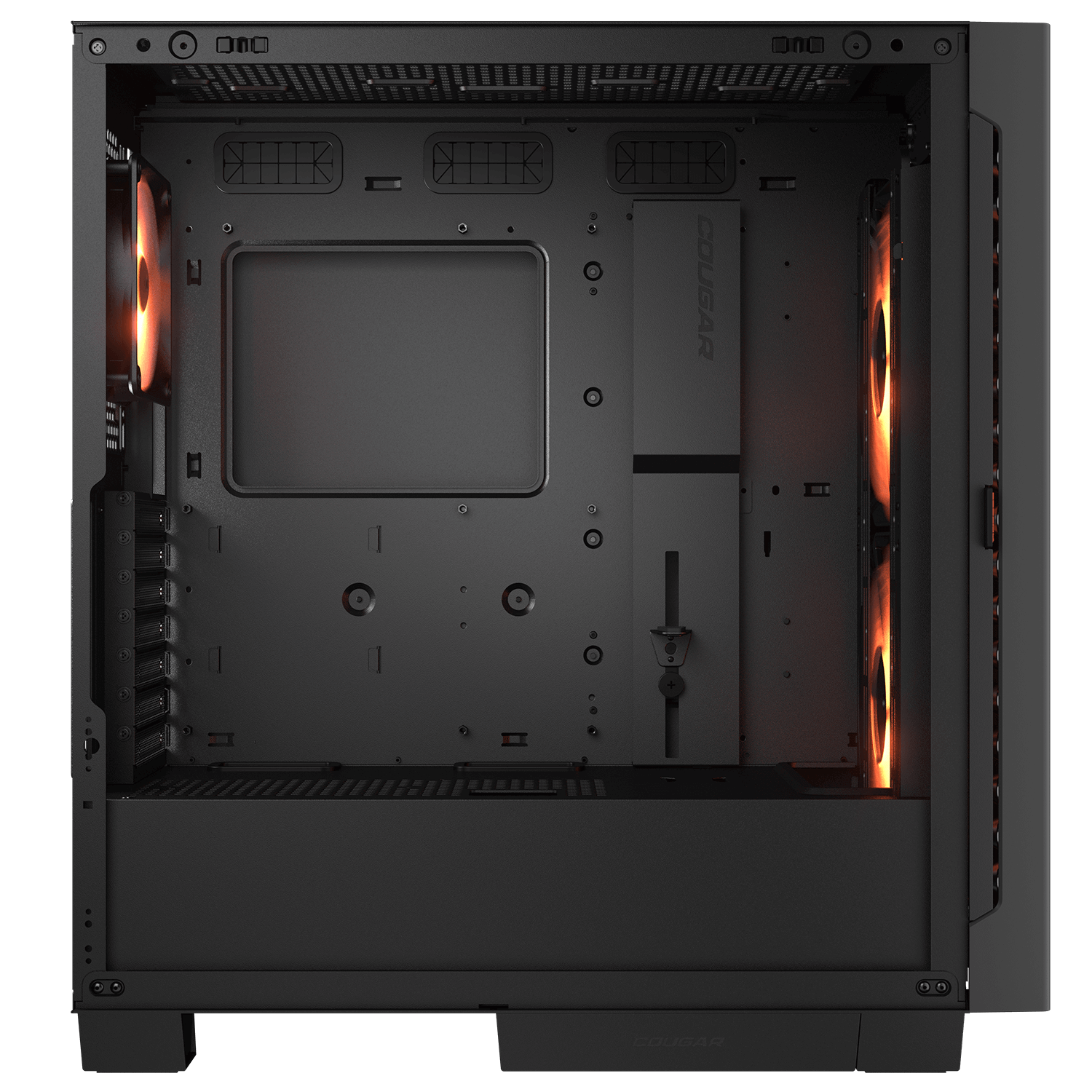

An increase in cable routing space, combined with a dedicated cable bar, allows for clean builds with hidden wires and a tidy interior.

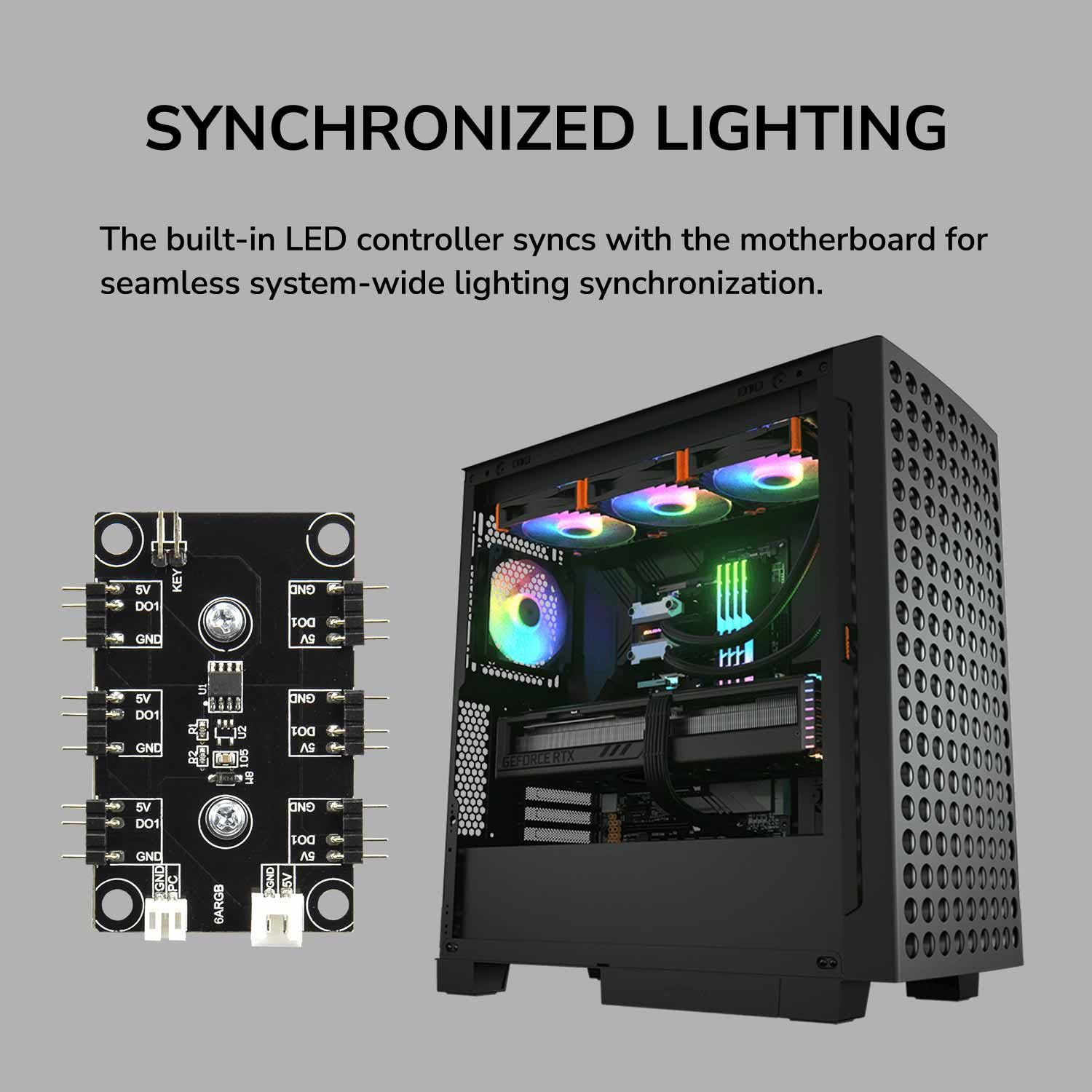

Synchronized RGB Lighting
The integrated LED controller syncs with motherboard software, ensuring consistent and customizable lighting across your entire system.

Versatile Storage and Motherboard Support

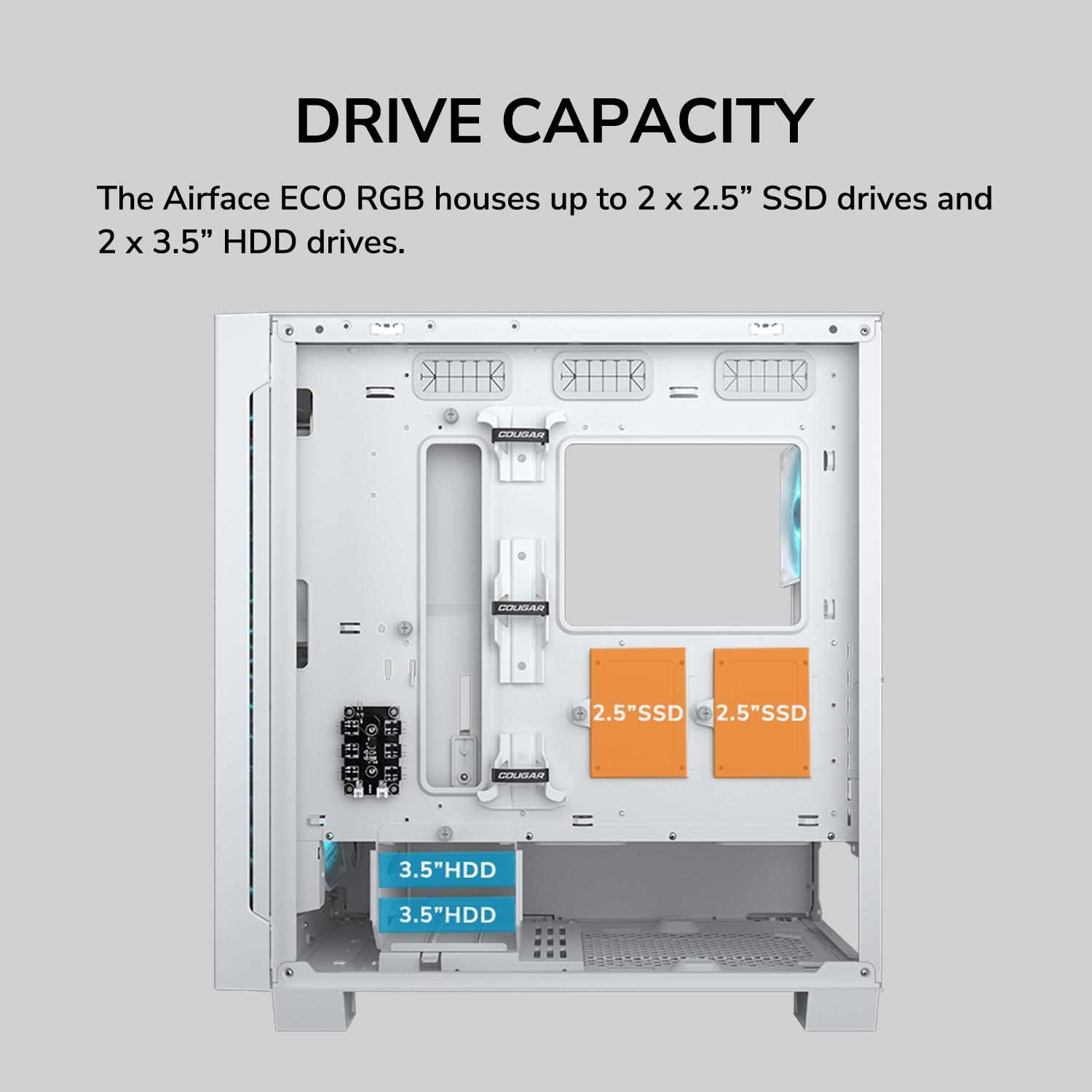

• Drive Bays:

  • Up to 2 × 2.5" SSDs

  • Up to 2 × 3.5" HDDs

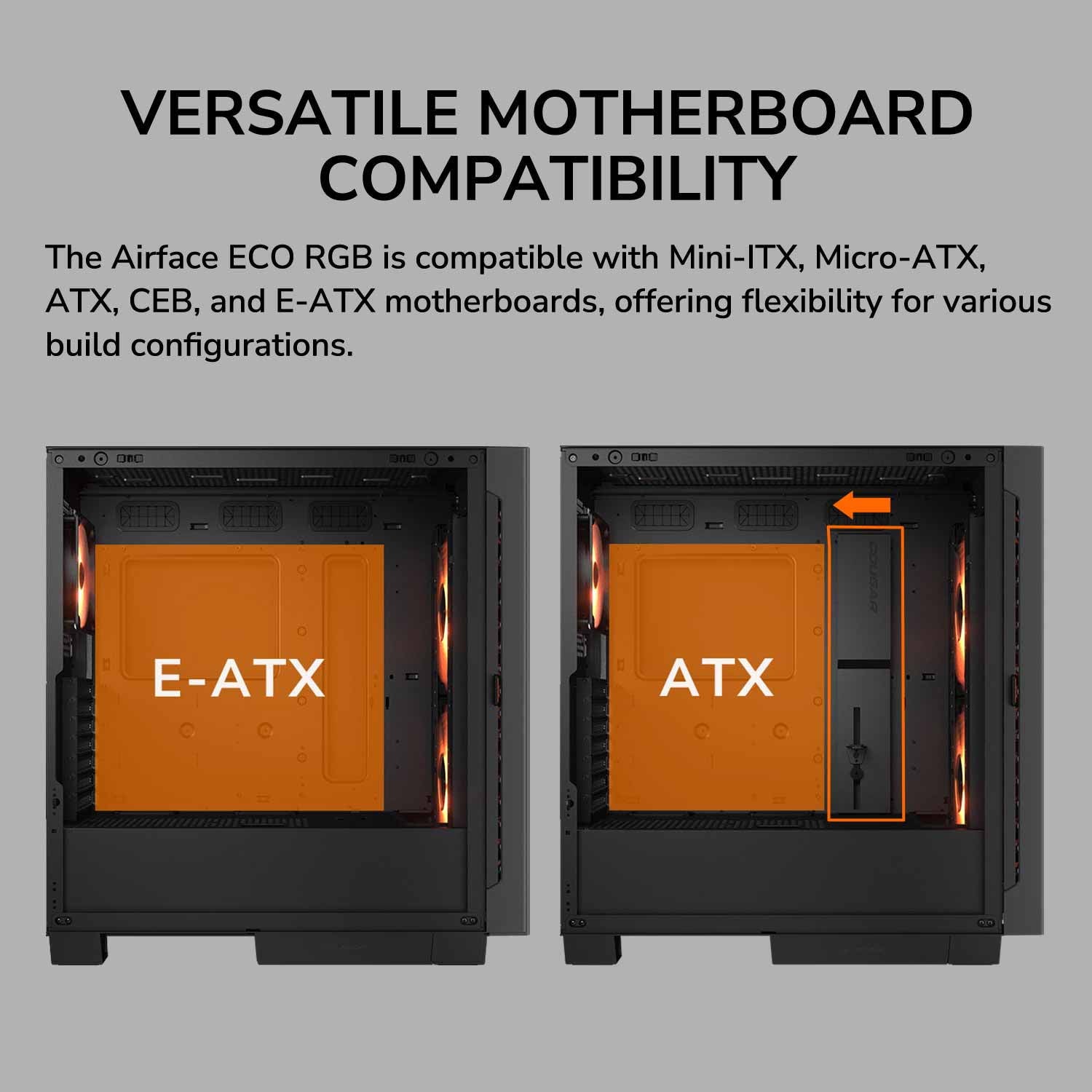

• Motherboard Compatibility:

  • Supports Mini-ITX, Micro-ATX, ATX, CEB, and E-ATX for maximum configuration flexibility

---

The Airface ECO RGB is a smart blend of eco-efficiency, functional elegance, and builder-focused enhancements. With its high-performance airflow and sustainable design, it's ideal for users seeking powerful cooling in a case that considers environmental impact without compromising on form or function.

Specifications:

Product Name		Airface ECO RGB / Airface ECO RGB(White)
Case Form Factor		Mid Tower
Motherboard Type		Mini ITX / Micro ATX / ATX / CEB / E-ATX
Dimensions (WxHxD)		240(W) x 509(H) x 480(D) (mm) 9.4(W) x 20(H) x 18.9(D) (in)
I/O Panel		USB 3.2 Gen 2 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button
3.5" Drive Bay		2
2.5" Drive Bay		2 (2 SSD trays included)

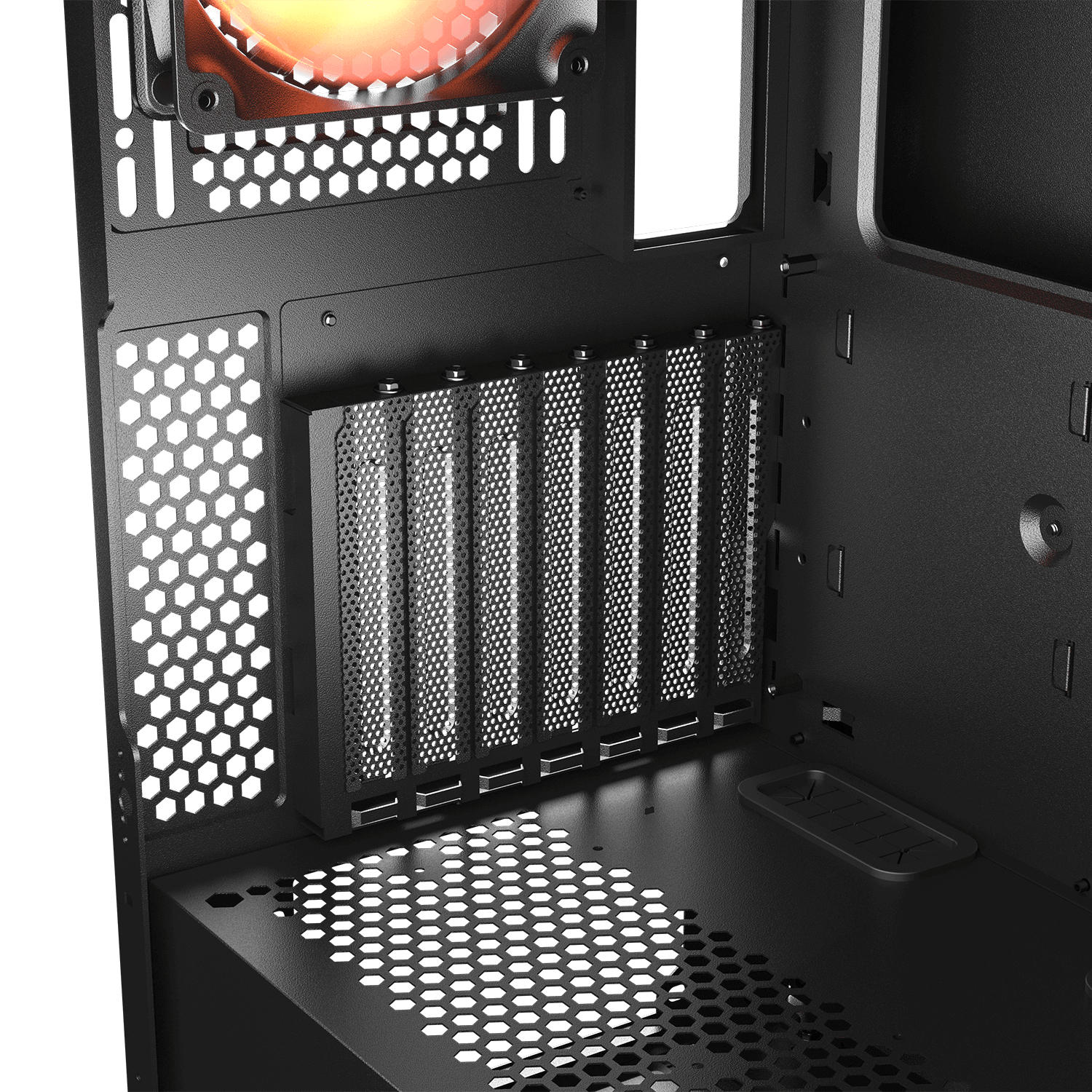

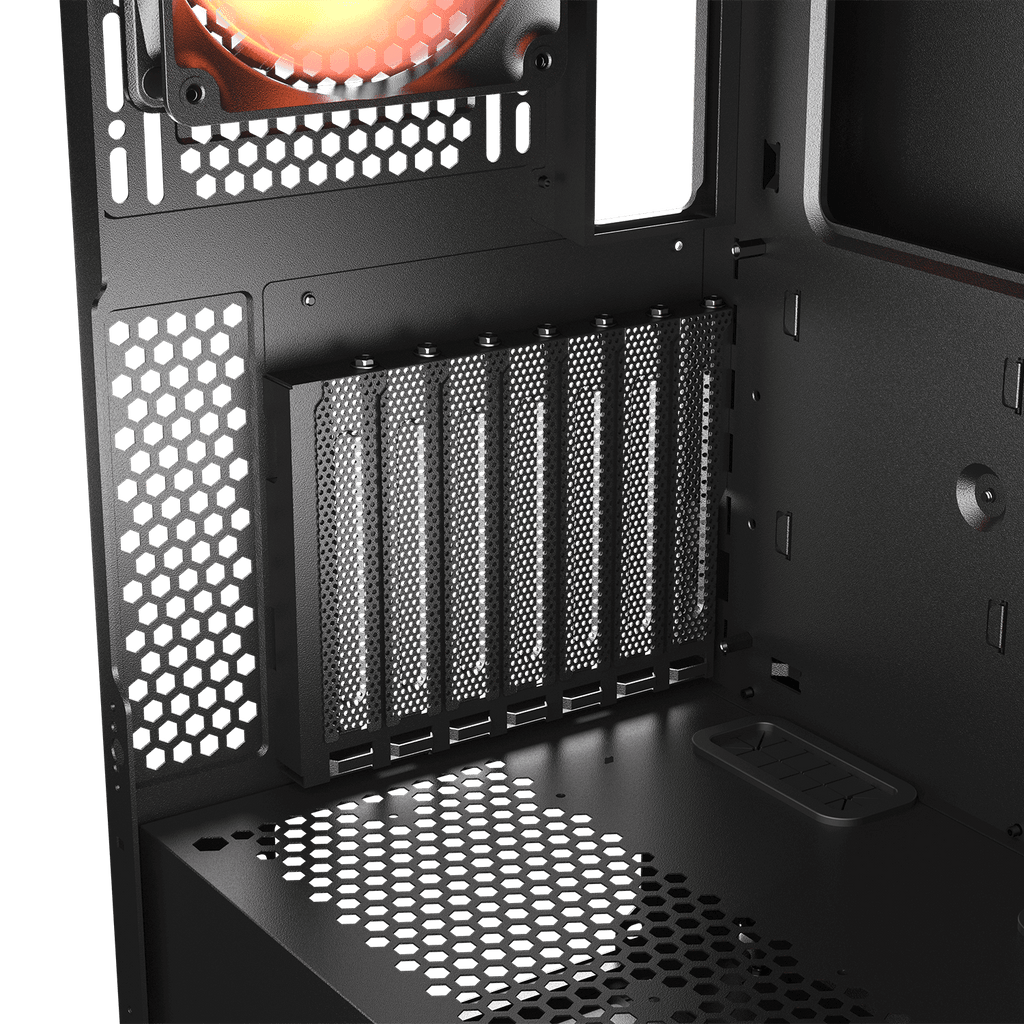

Expansion Slots		7 (horizontal slots can be converted into vertical slots)
Vertical GPU Support		Yes

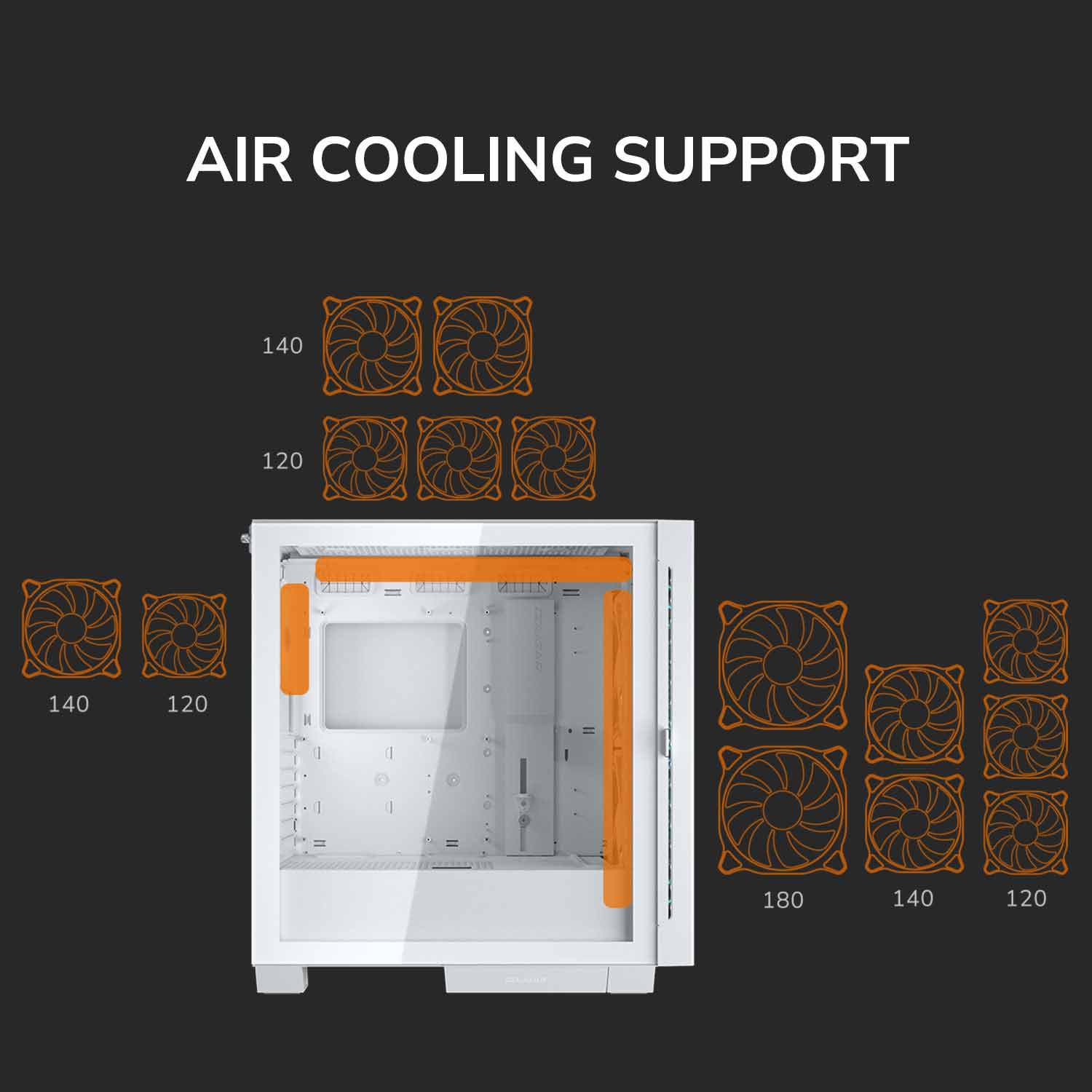

Cooling Fan Support	Front	120mm x 3 / 140mm x 2 / 180mm x 2
	Top	120mm x 3 / 140mm x 2
	Rear	120mm x 1 / 140mm x 1
Pre-installed Fans	Front	180mm ARGB PWM fan x 2
	Rear	120mm ARGB fan x 1
	Speed	180mm ARGB PWM fan : 300-1200 ± 10% RPM 120mm ARGB fan : 1000 ± 10% RPM
	Connector	180mm ARGB PWM fan Connector : 5V 3 Pin (ARGB) / 4 Pin PWM (Fan) 120mm ARGB fan Connector : 5V 3 Pin (ARGB) / 3 Pin (Fan)
Maximun Number of Fans		7
Water Cooling Support	Front	*360mm / 280mm / 240 mm / 140 mm / 120mm
	Top	*360mm / 280mm / 240 mm / 140 mm / 120mm
	Rear	140 mm / 120mm
RGB Hub Sync with M/B		Yes
Max. Graphics Card Length		390(mm) / 15.4(in)
Max. CPU Cooler Height		190(mm) / 7.5(in)
Max. PSU Length		200(mm) / 7.9(in)
