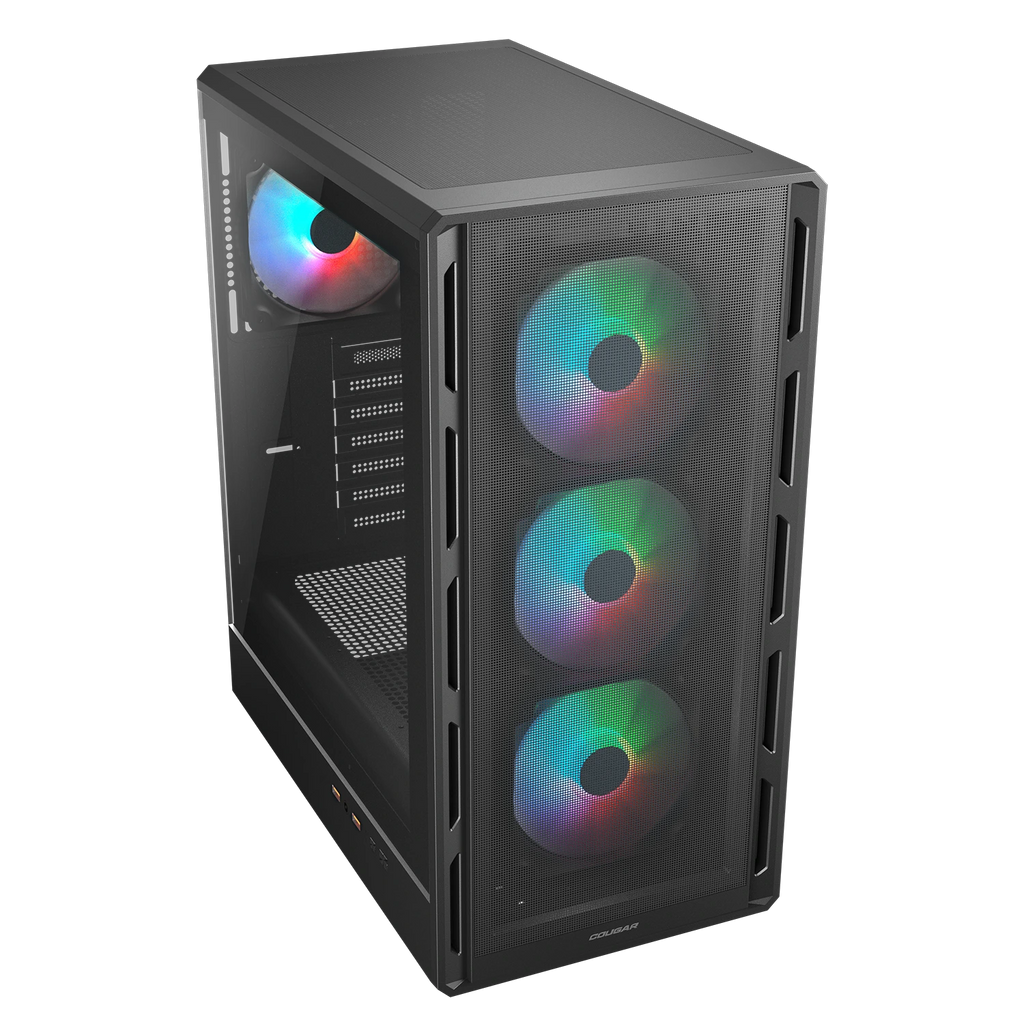

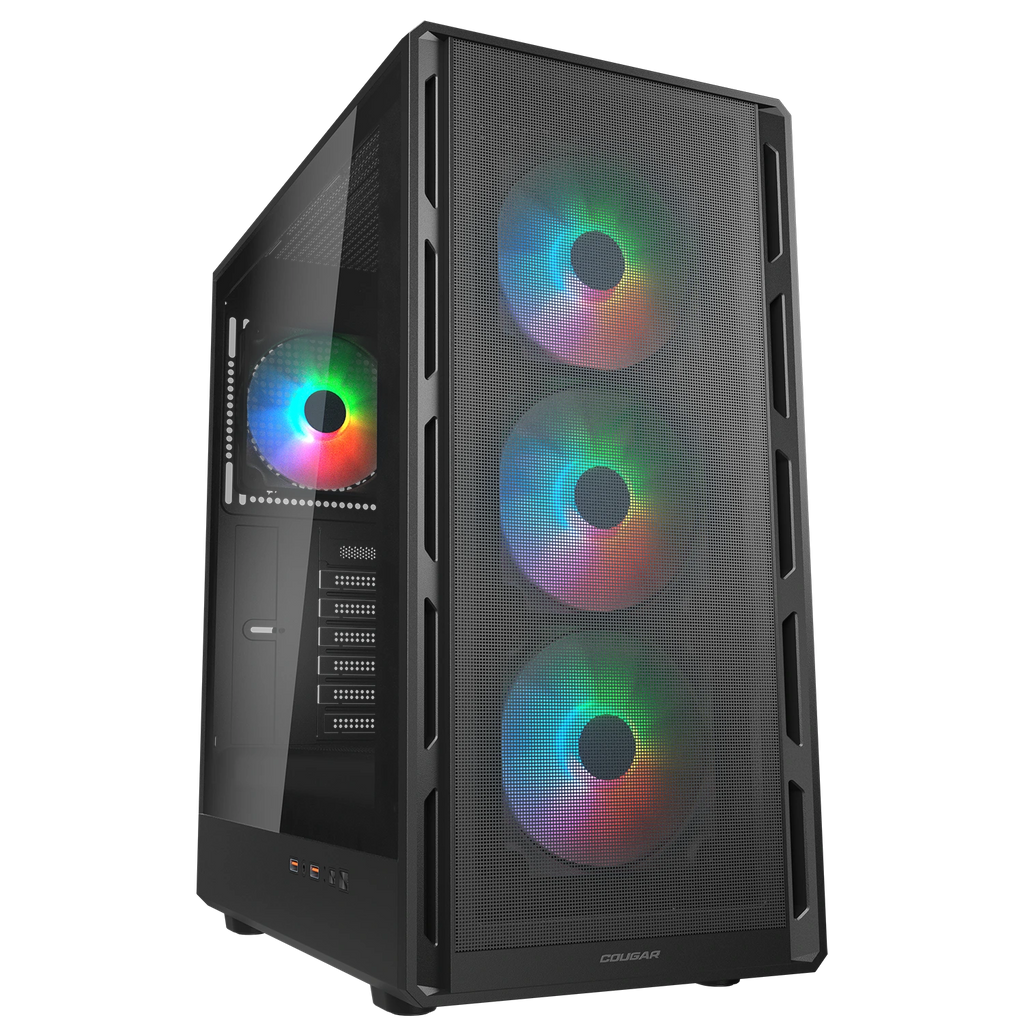

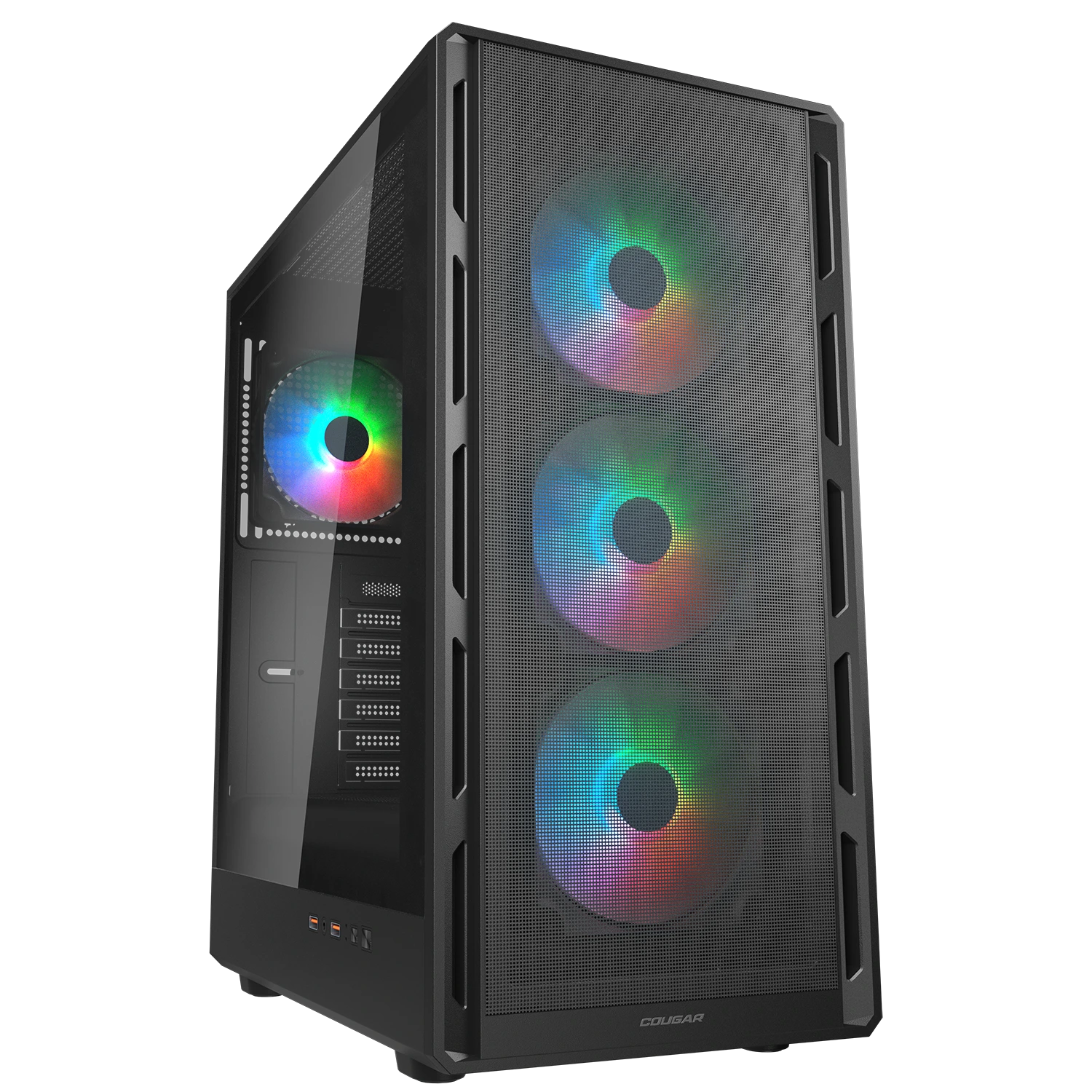

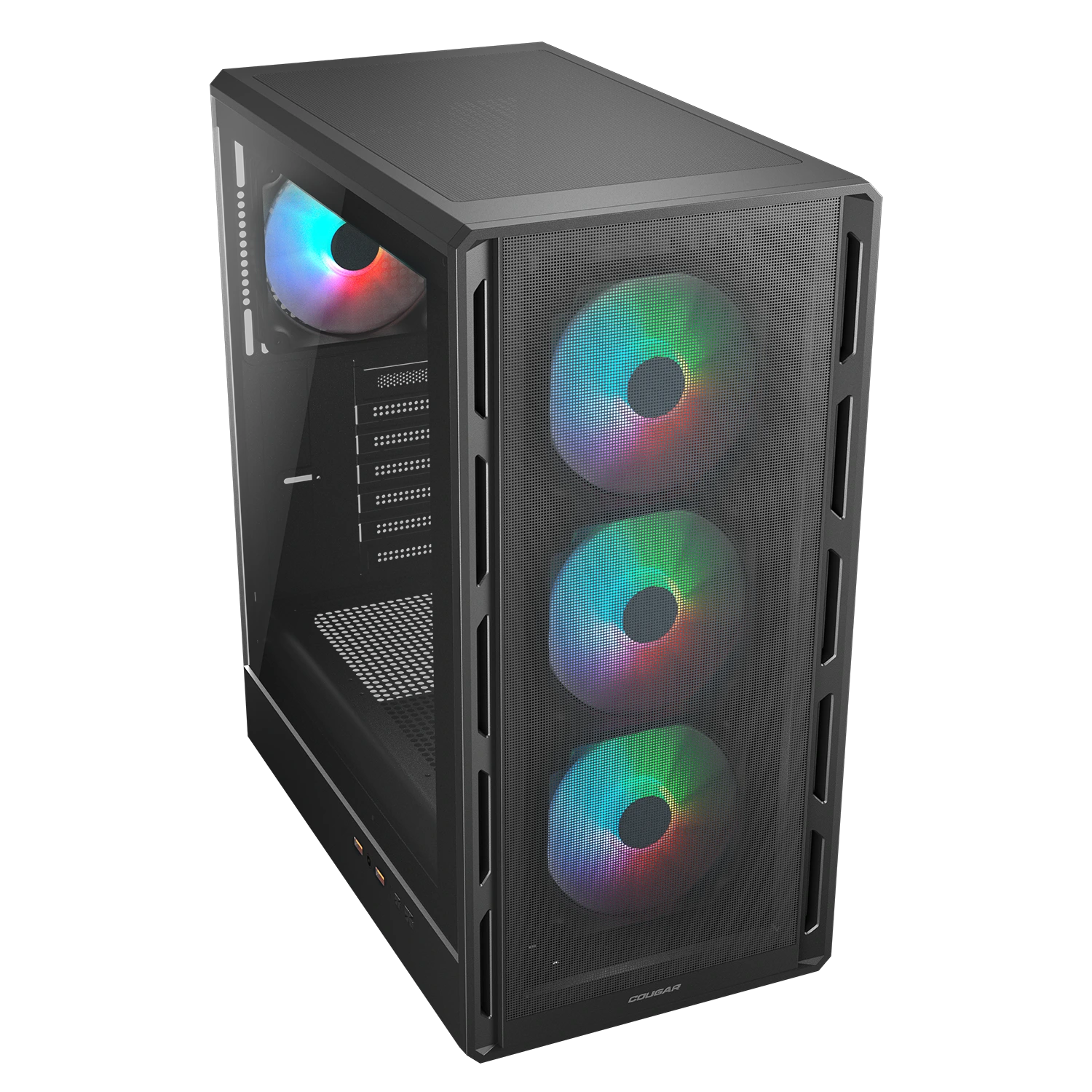

Airface Pure RGB - Black - PC Case

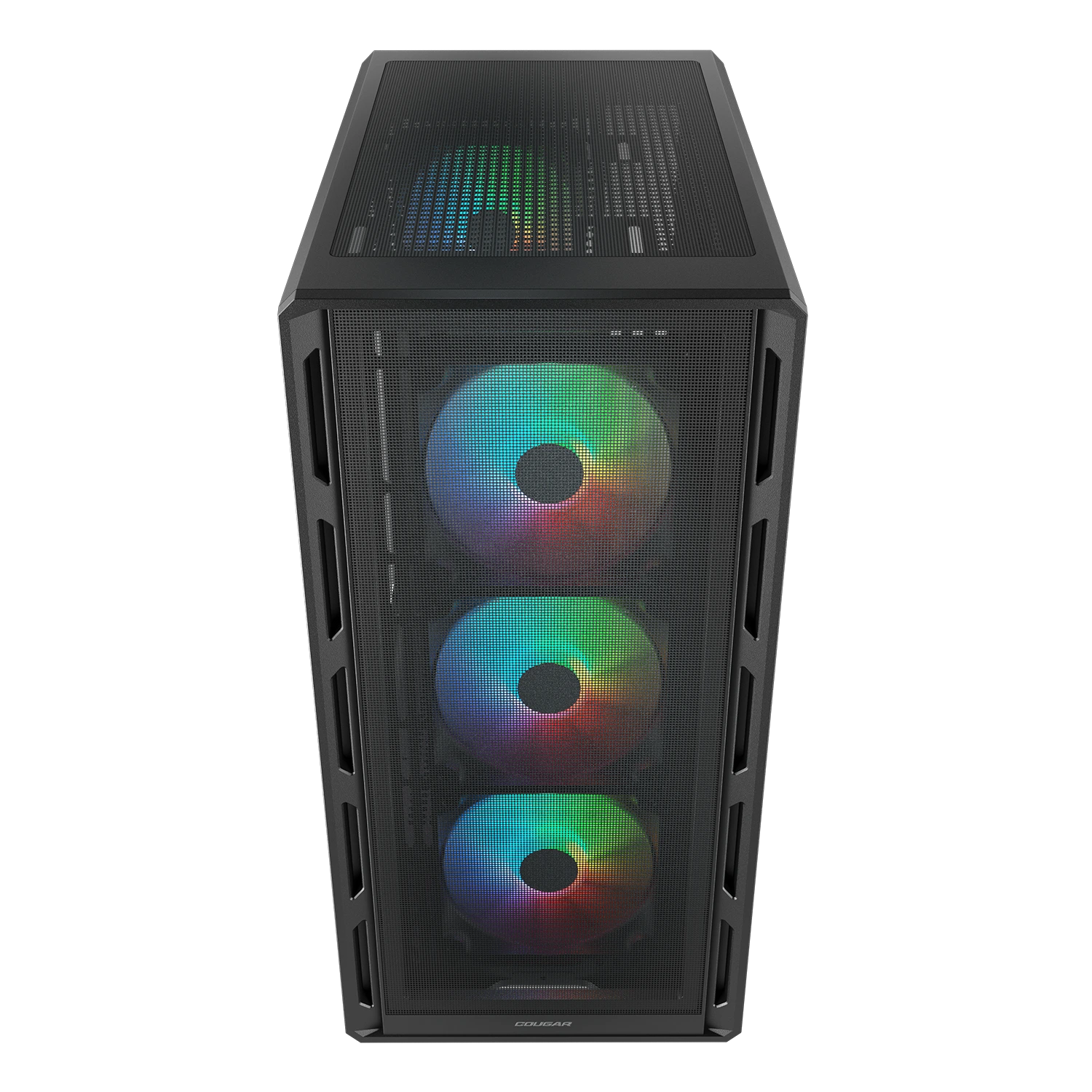

The COUGAR Airface Pure RGB continues the legacy of the Airface series by compressing full ATX compatibility into one of the smallest possible mid-tower footprints. Featuring a ventilation-optimized ultraslim perforated front panel, iconic grooved framing, and chamfered edges, the Airface Pure RGB delivers an ideal balance of performance, airflow, and aesthetic refinement in a lean, space-conscious form factor.

---

Key Features

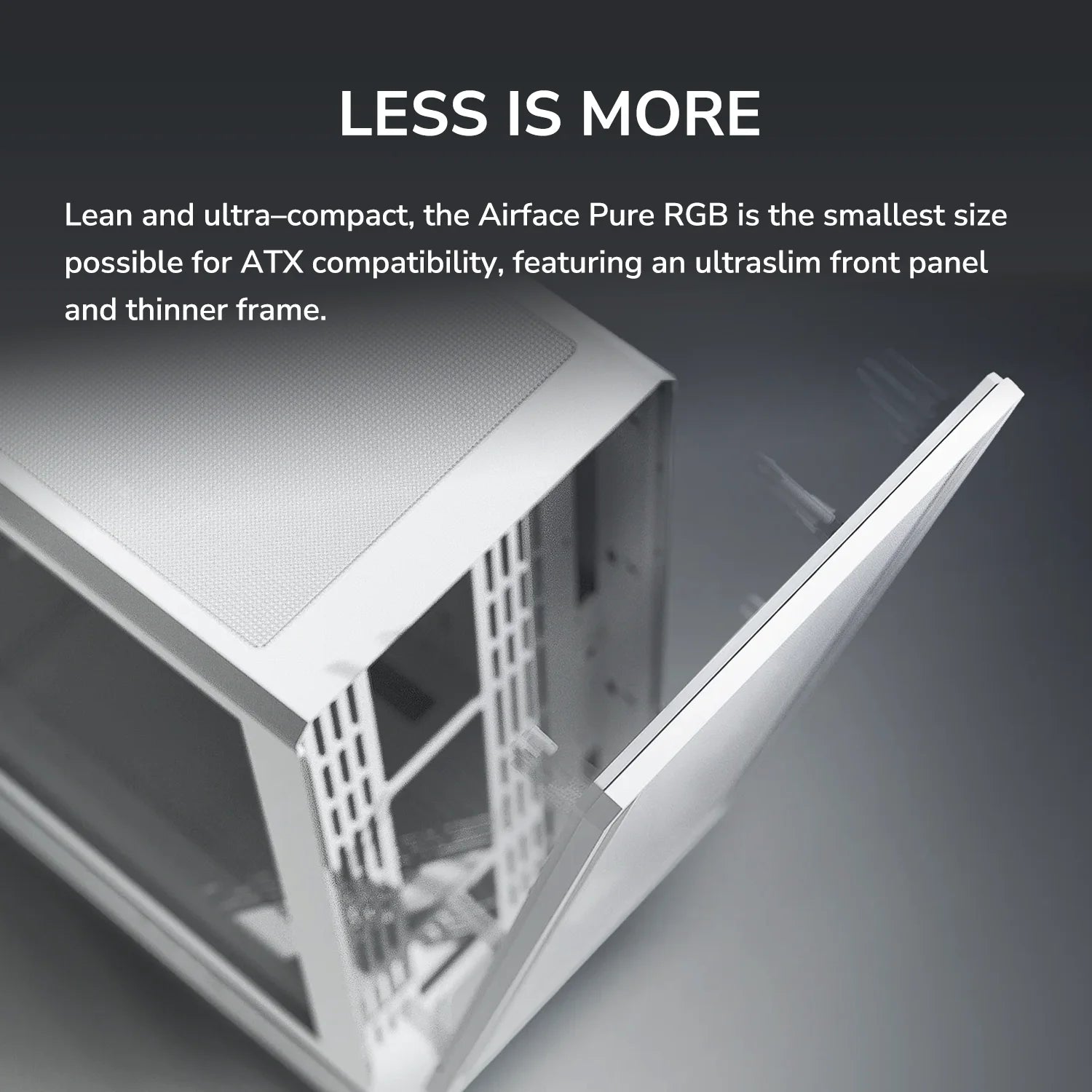

Minimal Footprint with ATX Support
Designed for builders seeking a space-efficient chassis, the Airface Pure RGB maintains full ATX motherboard compatibility while reducing bulk through a thinner frame and ultraslim front panel.

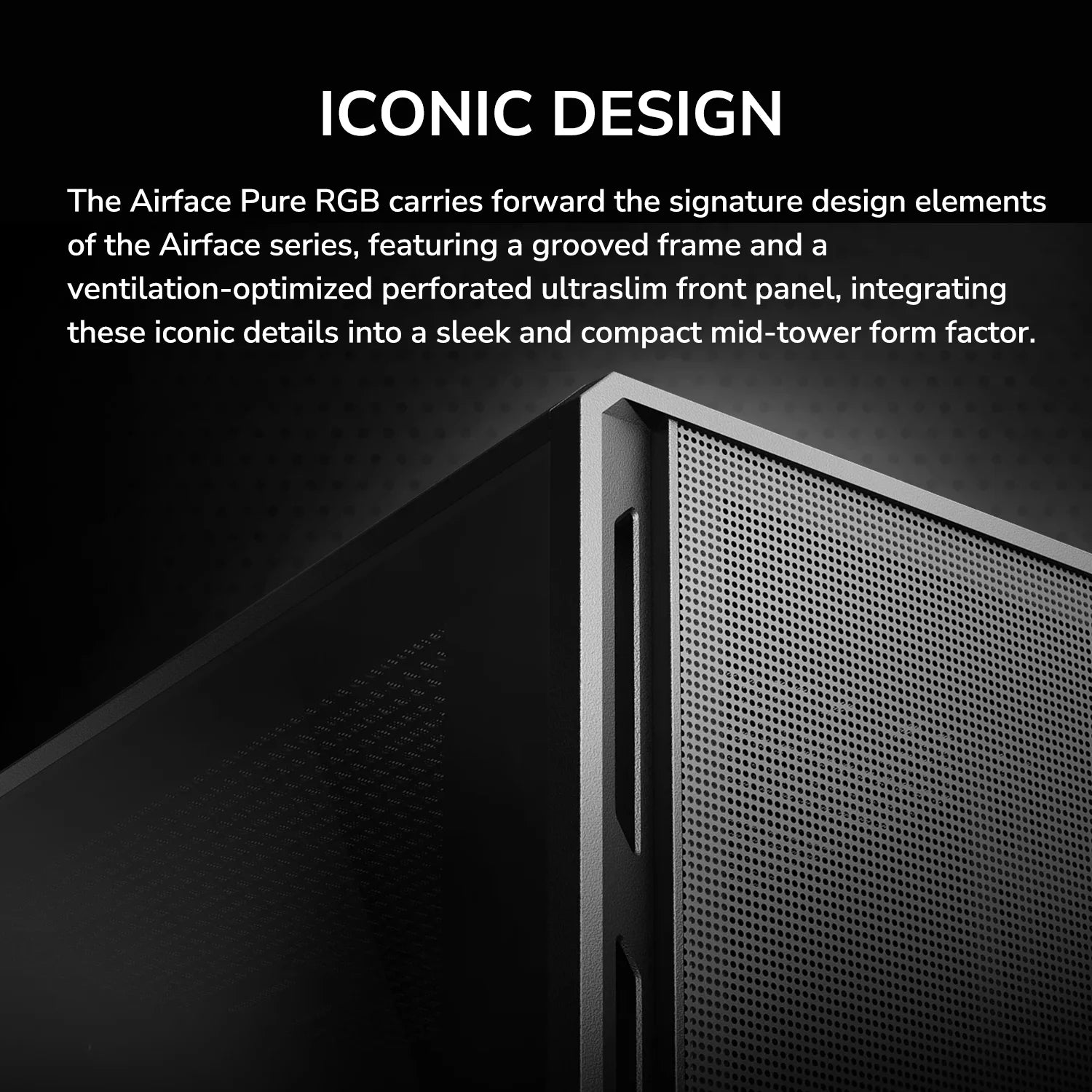

Signature Airface Design
Carries forward hallmark design elements of the Airface series, including a grooved frame and fine-perforation airflow panel. The result is a clean, modern visual identity with excellent ventilation performance.

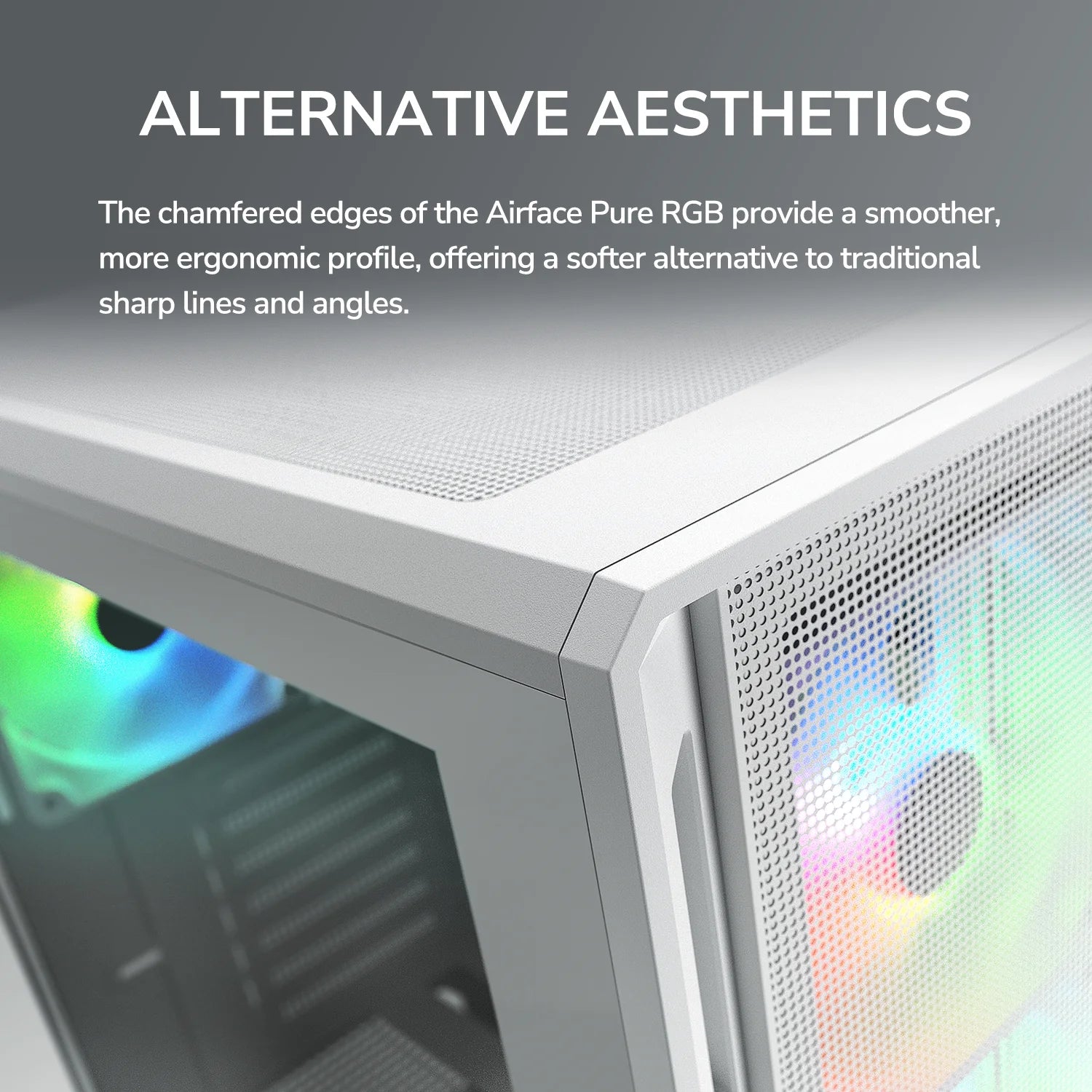

Soft-Edge Aesthetics
Chamfered edges replace harsh angles, creating a smoother exterior profile. This enhances visual cohesion while improving comfort during handling and installation.

---

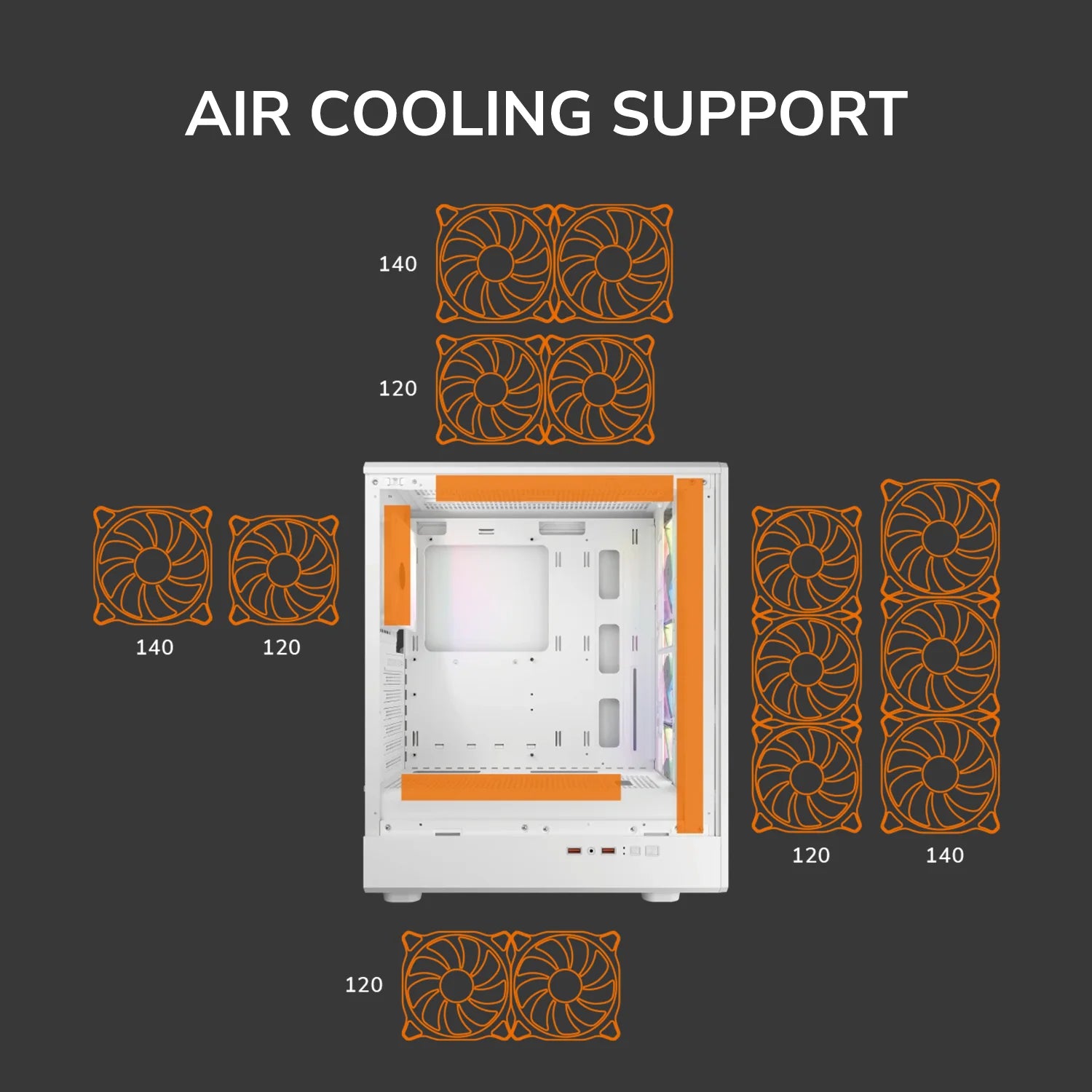

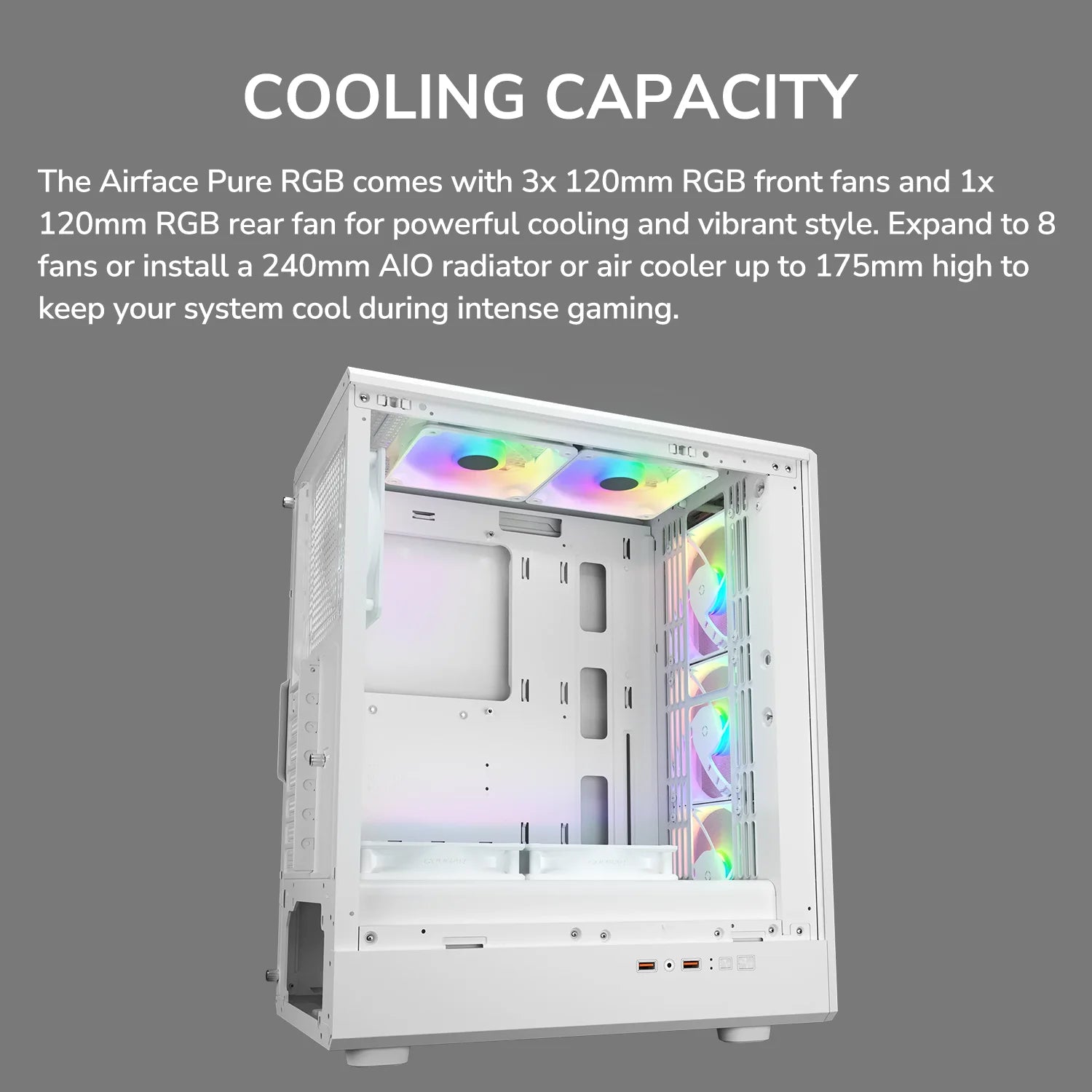

Cooling and Airflow

• Pre-installed Fans:

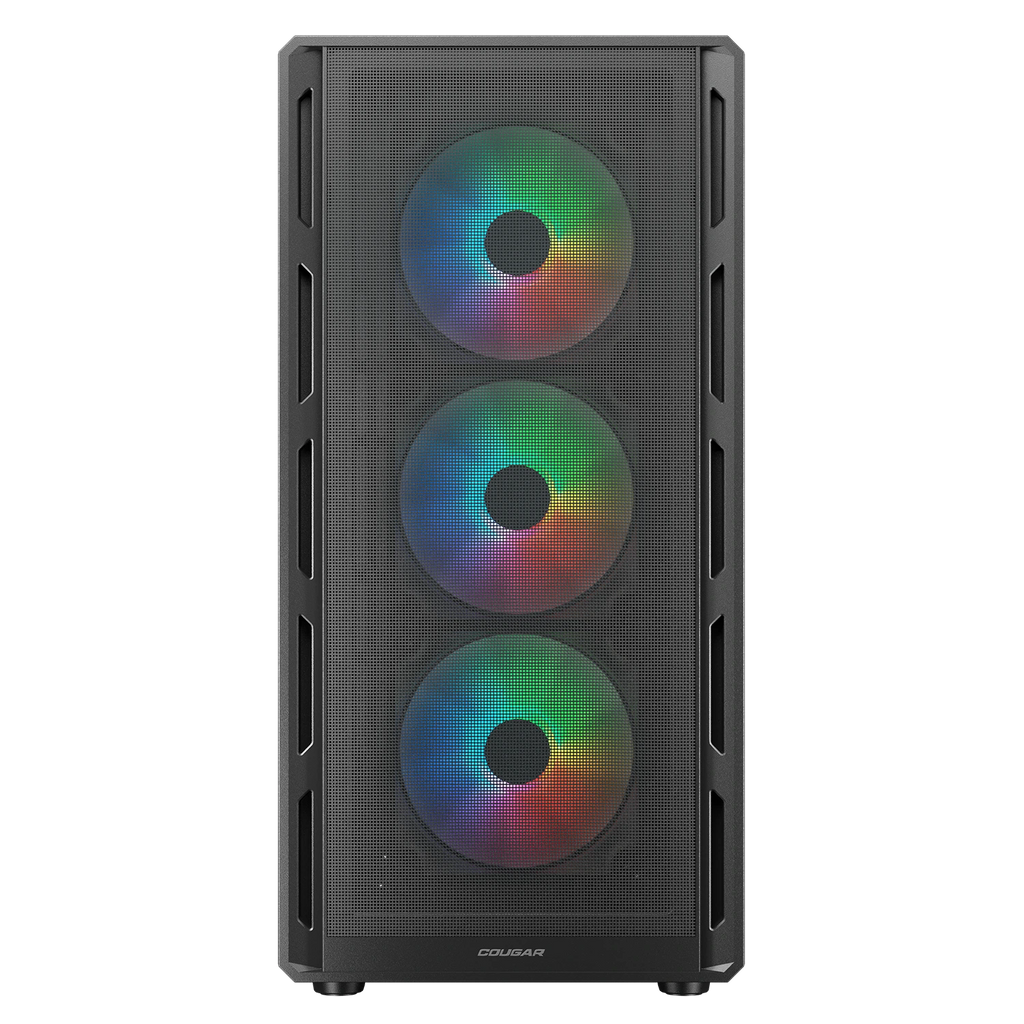

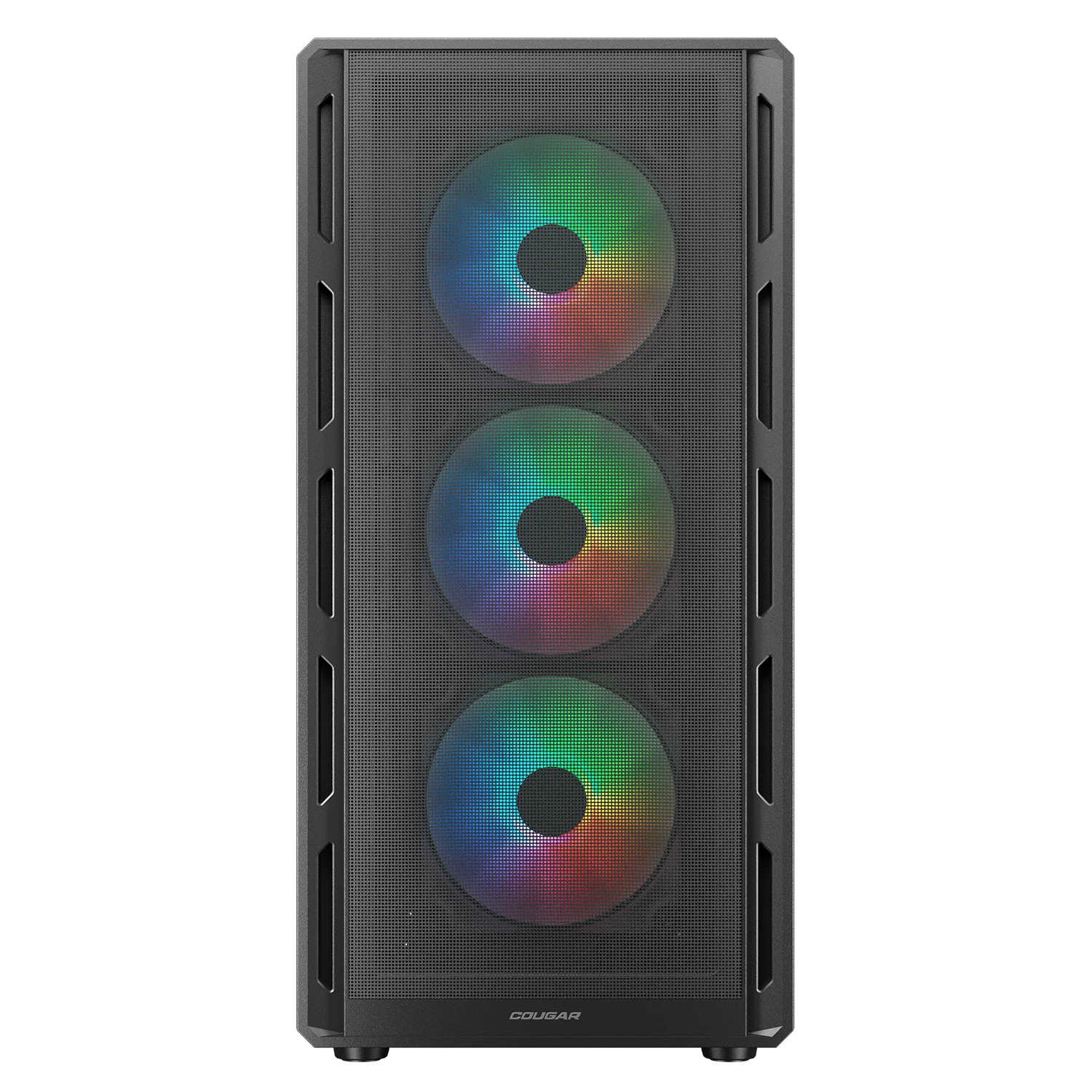

  • 3 × 120mm RGB fixed mode fans (front)

  • 1 × 120mm RGB fixed mode fan (rear)

• Total Fan Support: Up to 8 fans

• Water Cooling Support:

  • Supports radiators up to 240mm (front or top — choose one)

• Air Cooler Clearance: Up to 175mm in height

Whether you're using air or liquid cooling, the Airface Pure RGB ensures efficient thermal performance in a compact layout.

---

Hardware Compatibility

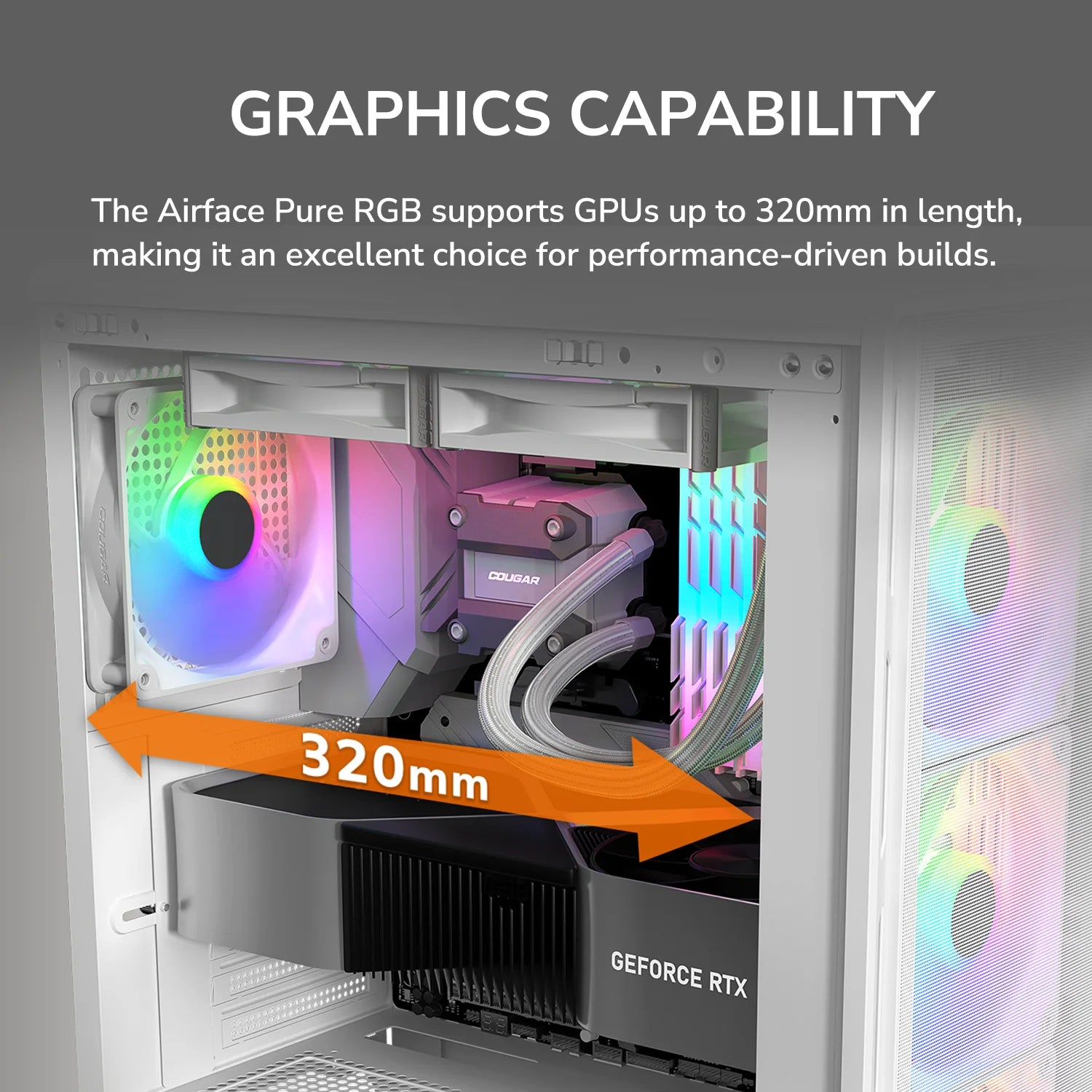

GPU Clearance
Supports graphics cards up to 320mm, allowing for high-performance builds with modern GPUs.

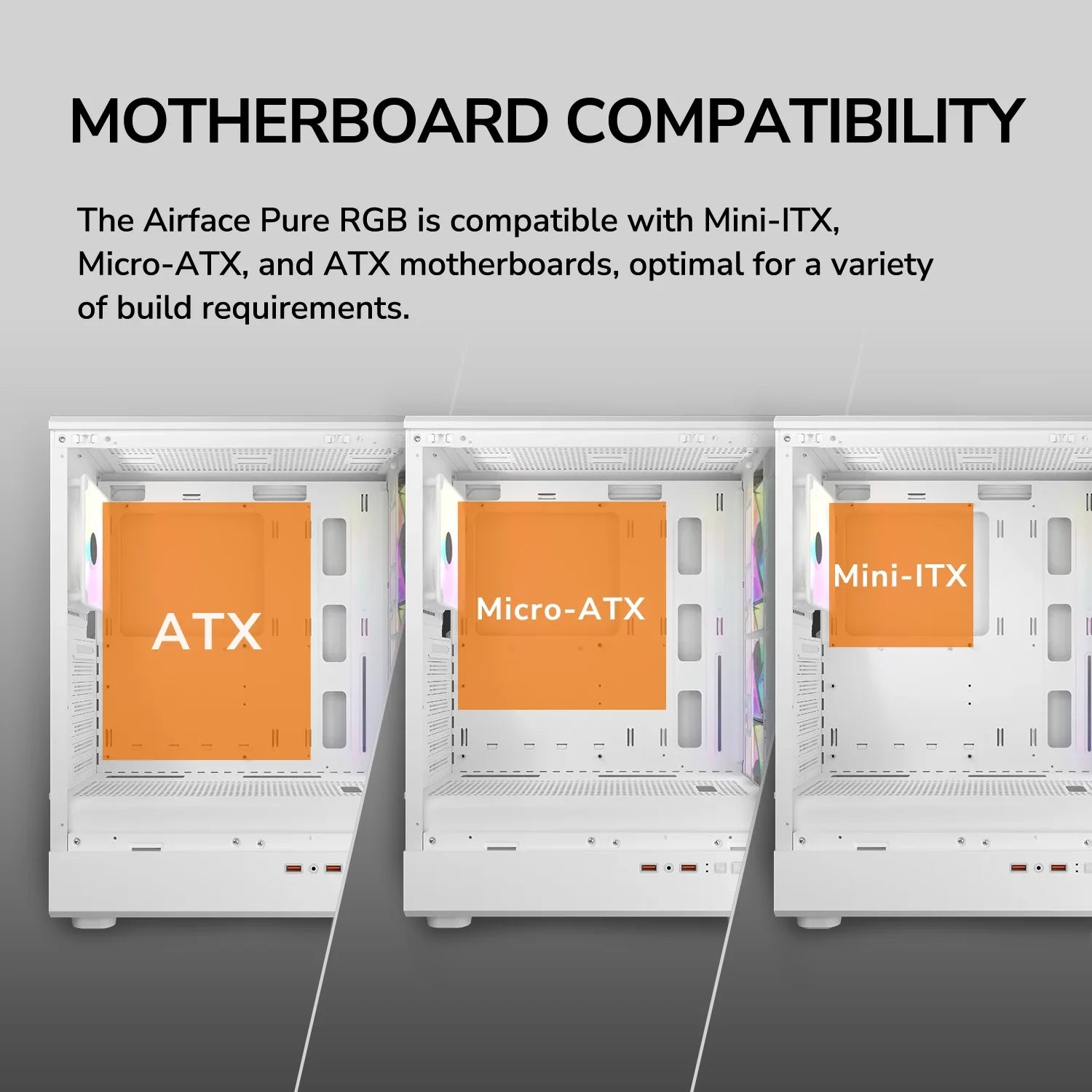

Motherboard Support
Compatible with Mini-ITX, Micro-ATX, and ATX motherboards, giving builders flexibility across a range of configurations.

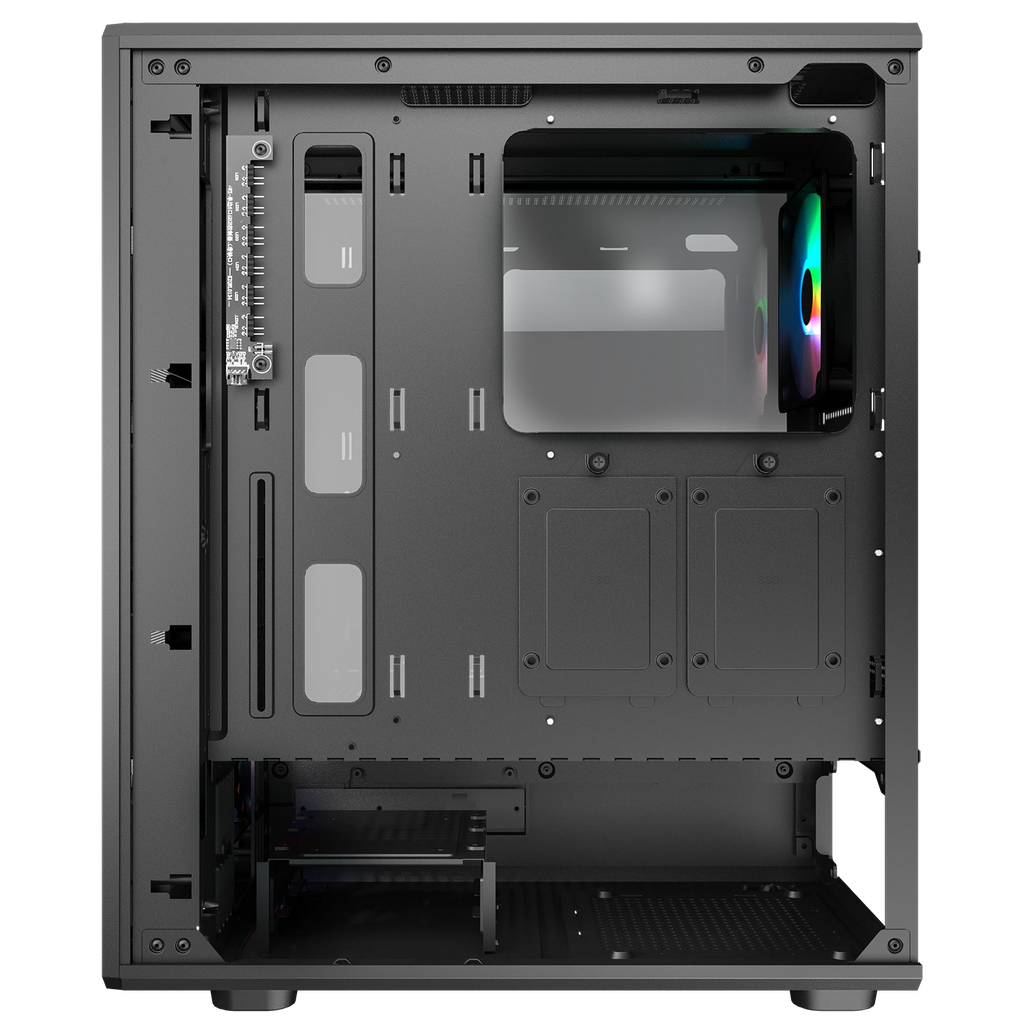

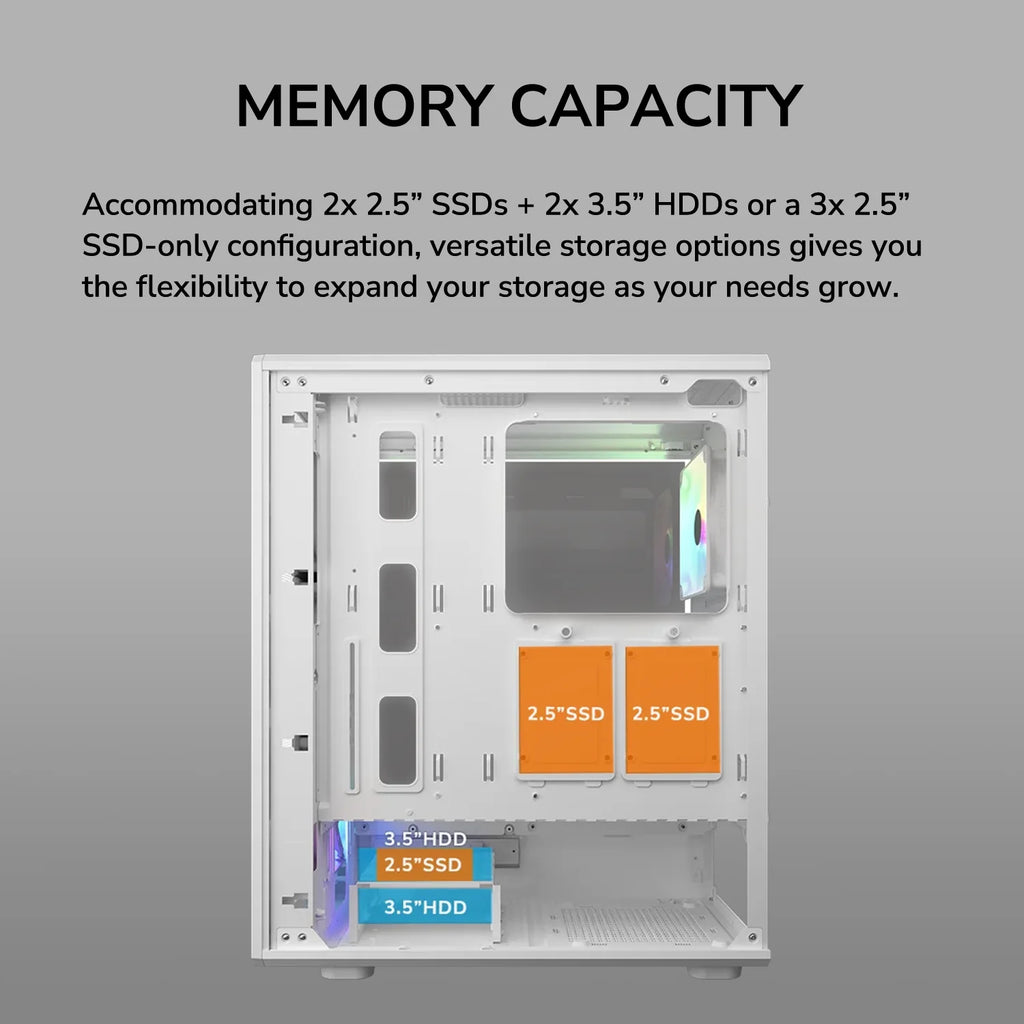

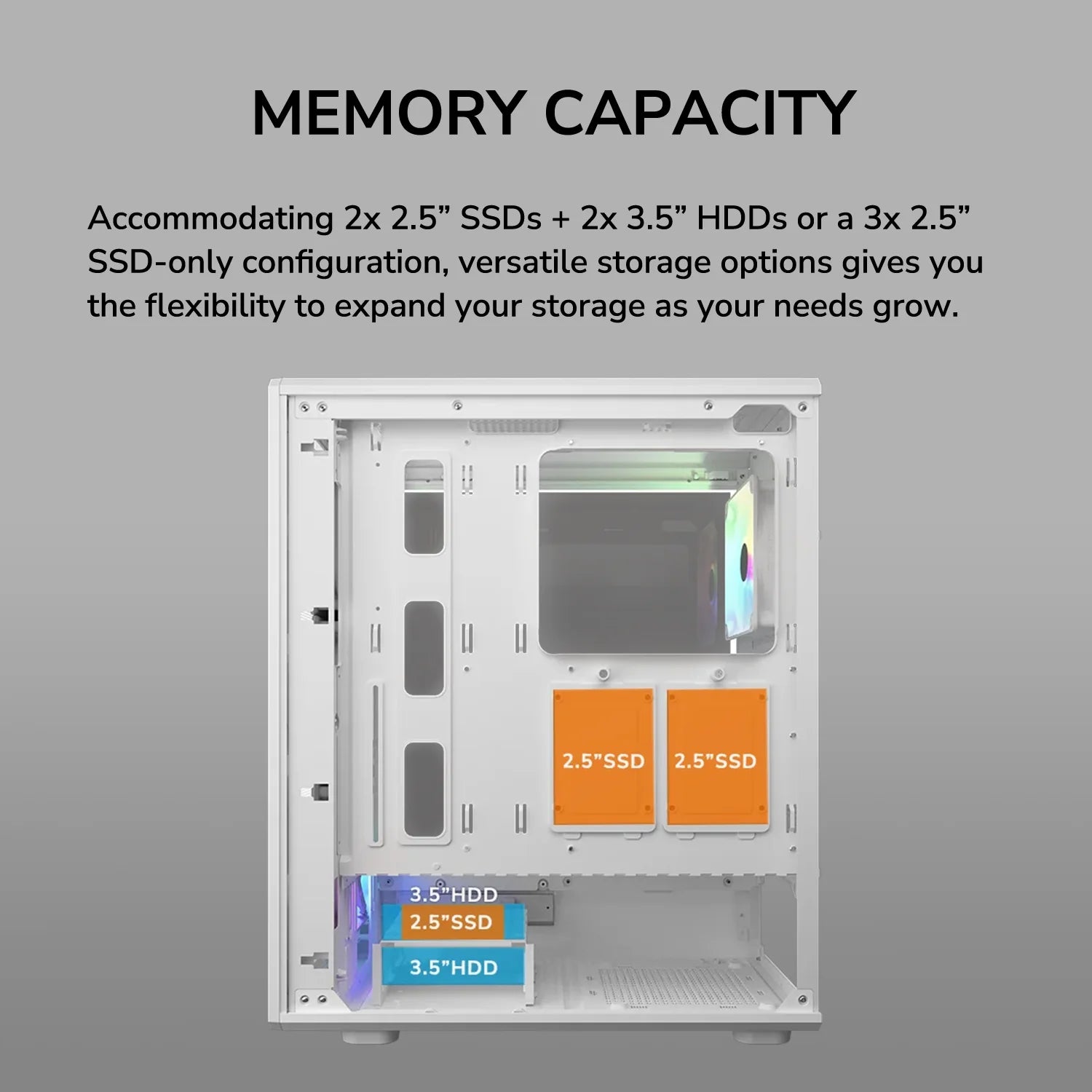

Storage Flexibility
Offers multiple drive configurations:

• 2 × 3.5" HDD + 2 × 2.5" SSD

• or 3 × 2.5" SSD only
  This versatile layout allows for seamless storage expansion based on user needs.

---

The Airface Pure RGB delivers iconic design, compact efficiency, and dependable cooling—making it an excellent choice for builders who want a space-saving case without compromising aesthetics or airflow.

Specifications:

Product Name		Airface Pure RGB / Airface Pure RGB (White)
Case Form Factor		Mid Tower
Motherboard Type		Mini ITX / Micro ATX / ATX
Dimensions (WxHxD)		220 x 460 x 375 (mm) 8.7 x 18.1 x 14.8 (in)
I/O Panel		USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, Reset Button
3.5" Drive Bay		2
2.5" Drive Bay		2+1 (converted from 3.5" drive bays)
Expansion Slots		7
Cooling Fan Support	Front	120mm x 3 / 140mm x 3
	Top	120mm x 2 / 140mm x 2
	PSU Shroud	120mm x 2
	Rear	120mm x 1 / 140mm x 1
Pre-installed Fans	Front	120mm fixed RGB fan x 3
	Rear	120mm fixed RGB fan x 1
	Speed	1200 ± 10% RPM
	Connector	Molex 4 Pin
Maximun Number of Fans		8

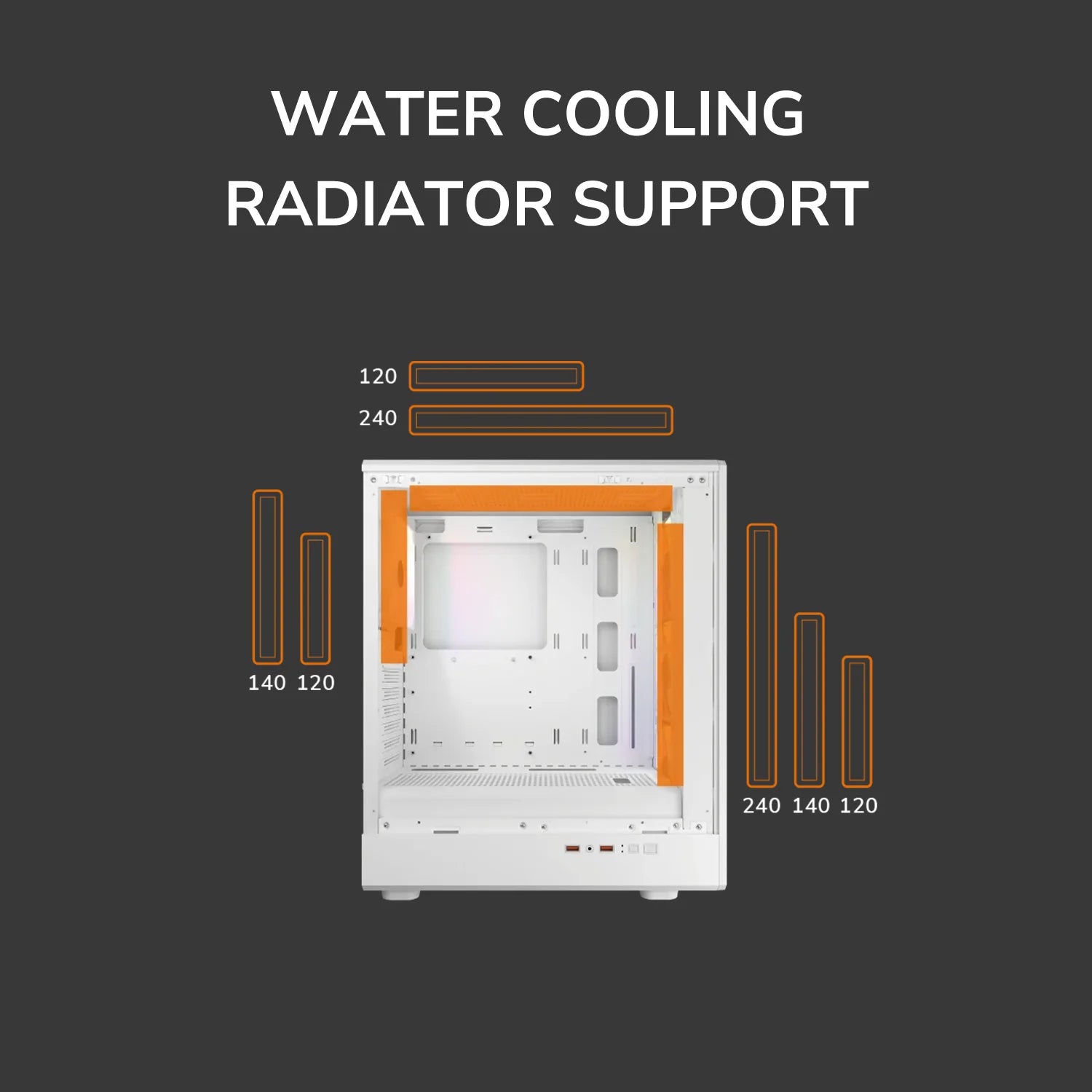

Water Cooling Support	Front	* 240mm / 140mm / 120mm
	Top	* 240mm / 120mm (When installing the top radiator, the RAM height limitation is 43mm.)
	Rear	140mm / 120mm
Max. Graphics Card Length		320 (mm) / 12.6 (in)
Max. CPU Cooler Height		175 (mm) / 6.9 (in)
Max. PSU Length		160 (mm) / 6.3 (in)
