Description

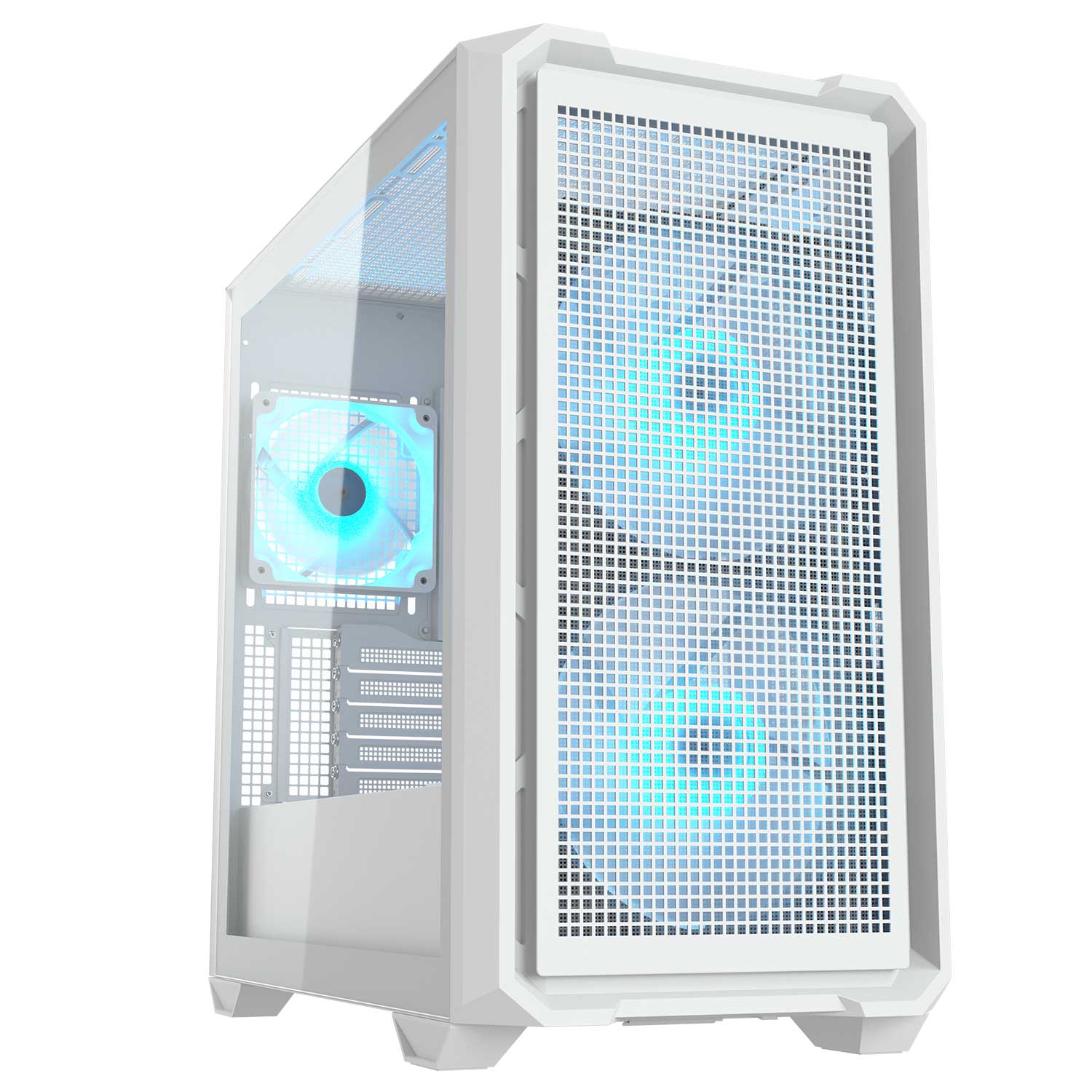

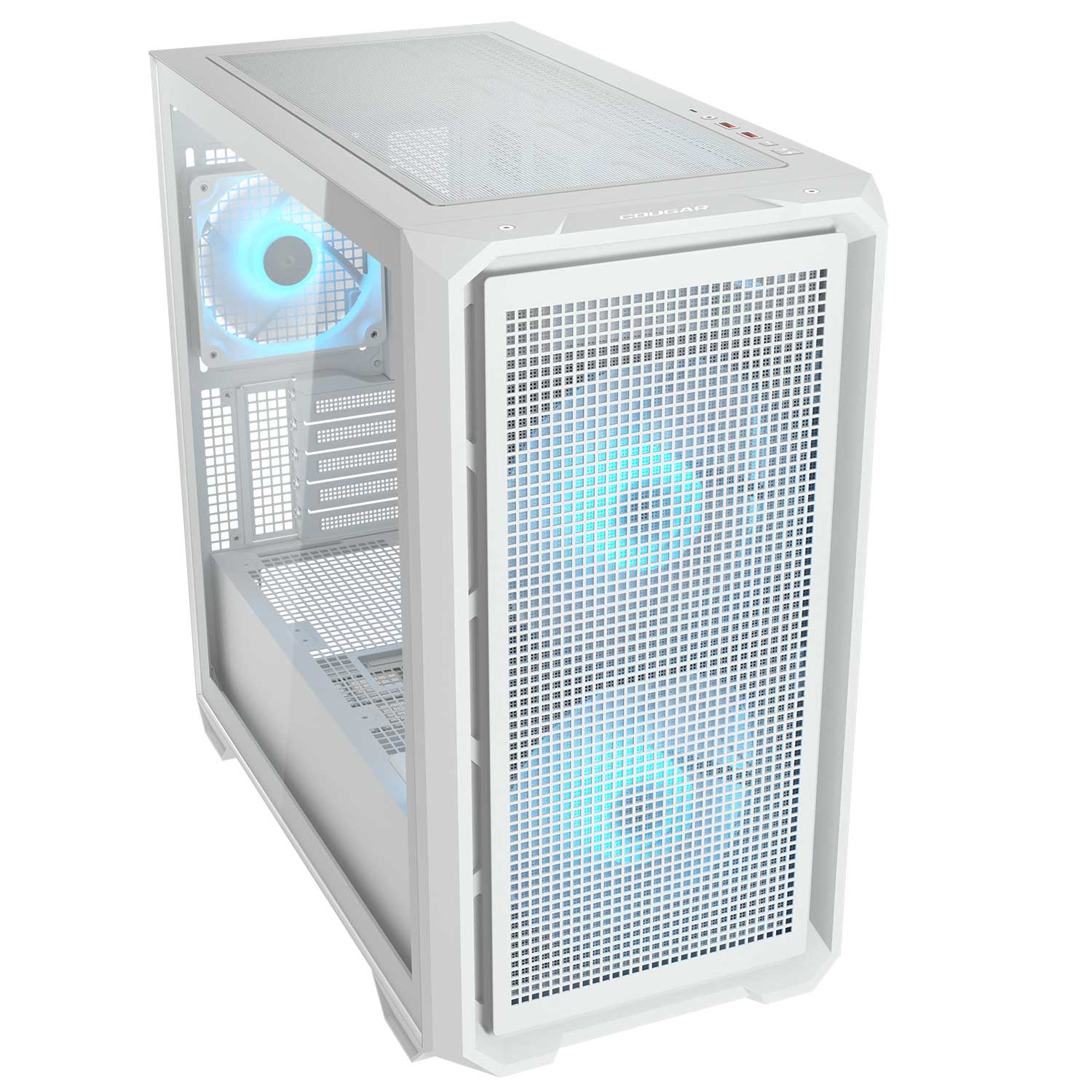

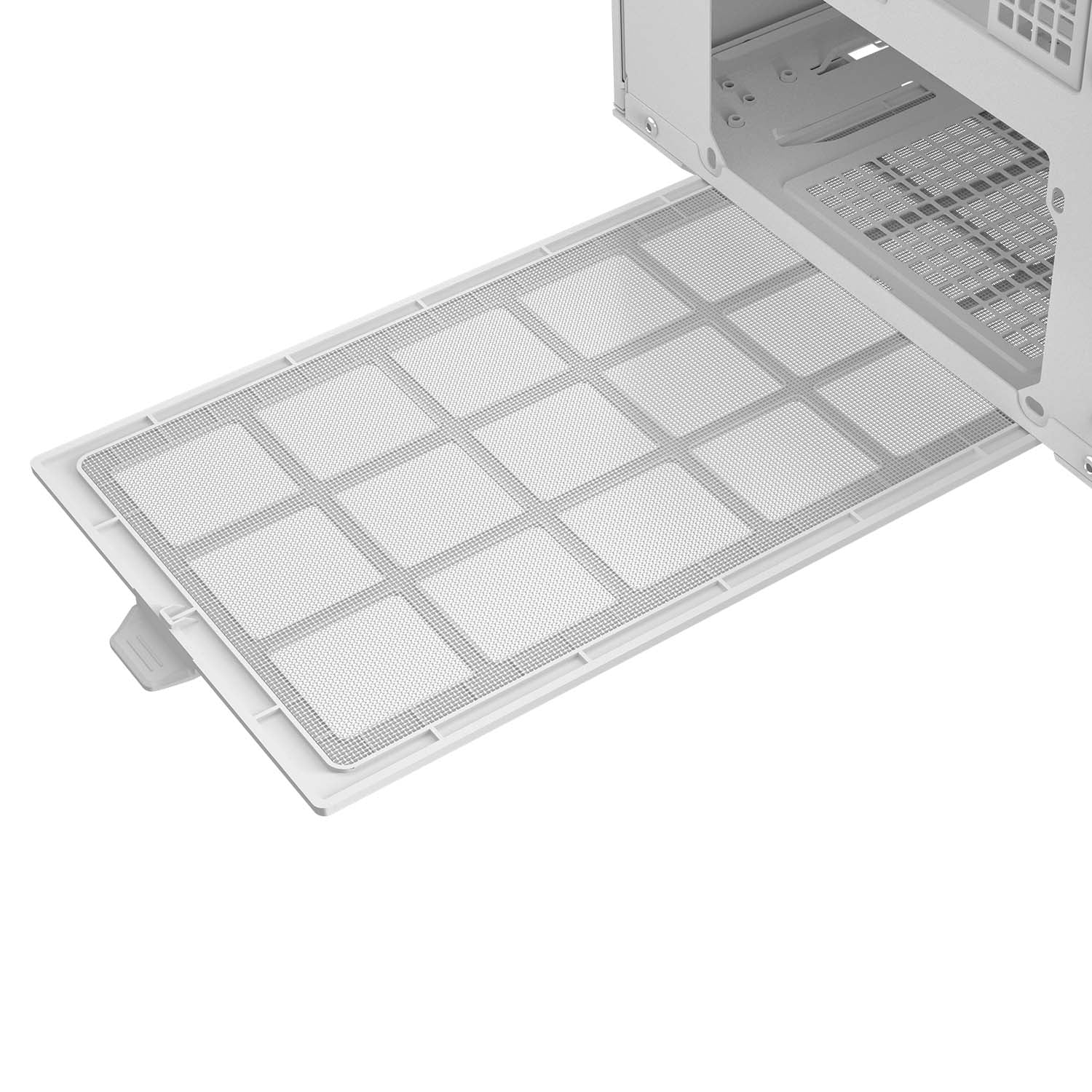

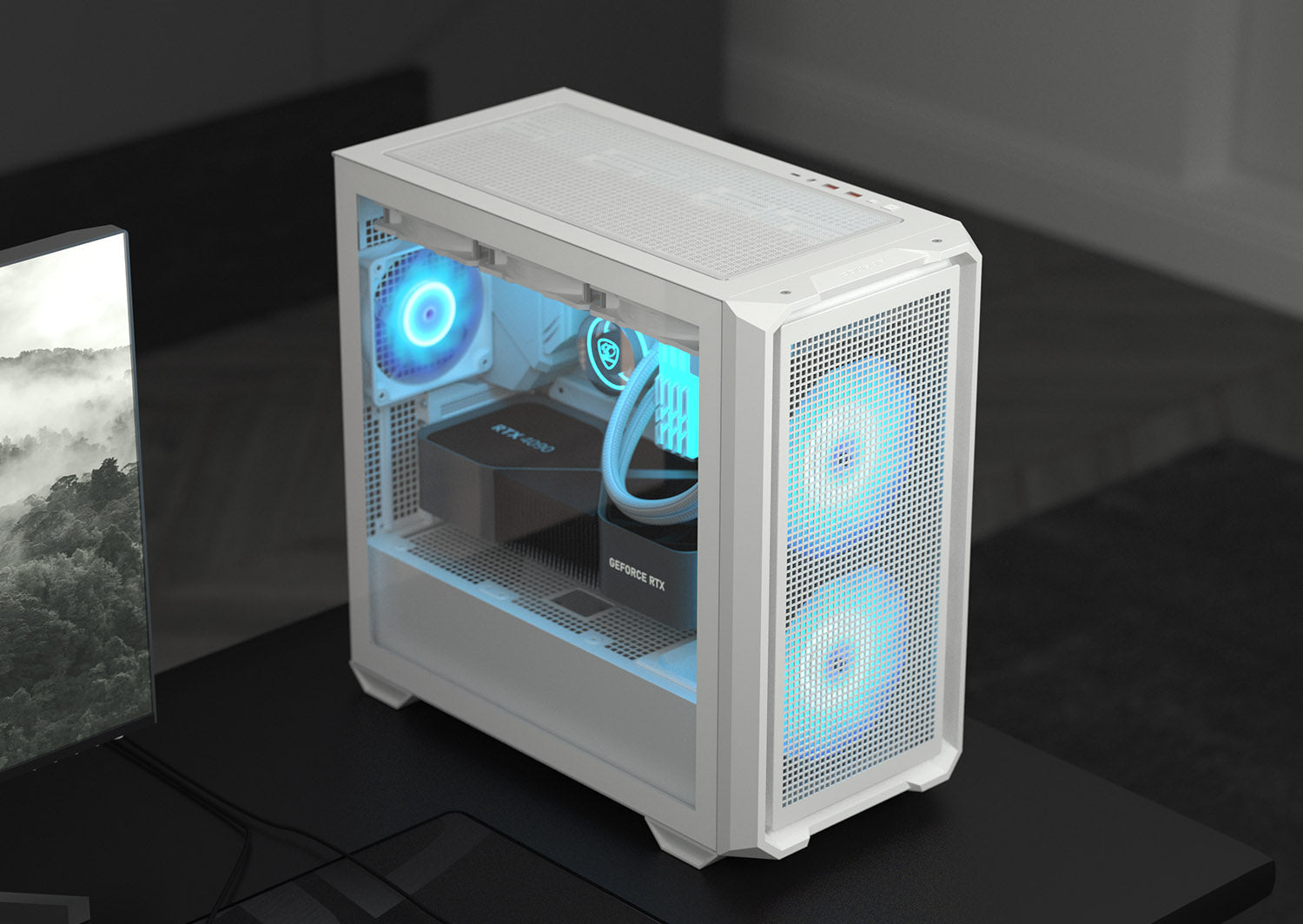

The MX600 Mini RGB is a groundbreaking mini tower that integrates the formidable cooling power of twin 160mm fans into a compact, space-efficient chassis. With support for up to 10 fans and compatibility with reverse connector motherboards, this case offers high-performance cooling, superior airflow, and flexibility for even the most demanding builds. The MX600 Mini RGB also inherits key features from its mid-tower predecessor, including full ventilation, strategic filtering, and support for top 360mm water cooling.
Key Features:

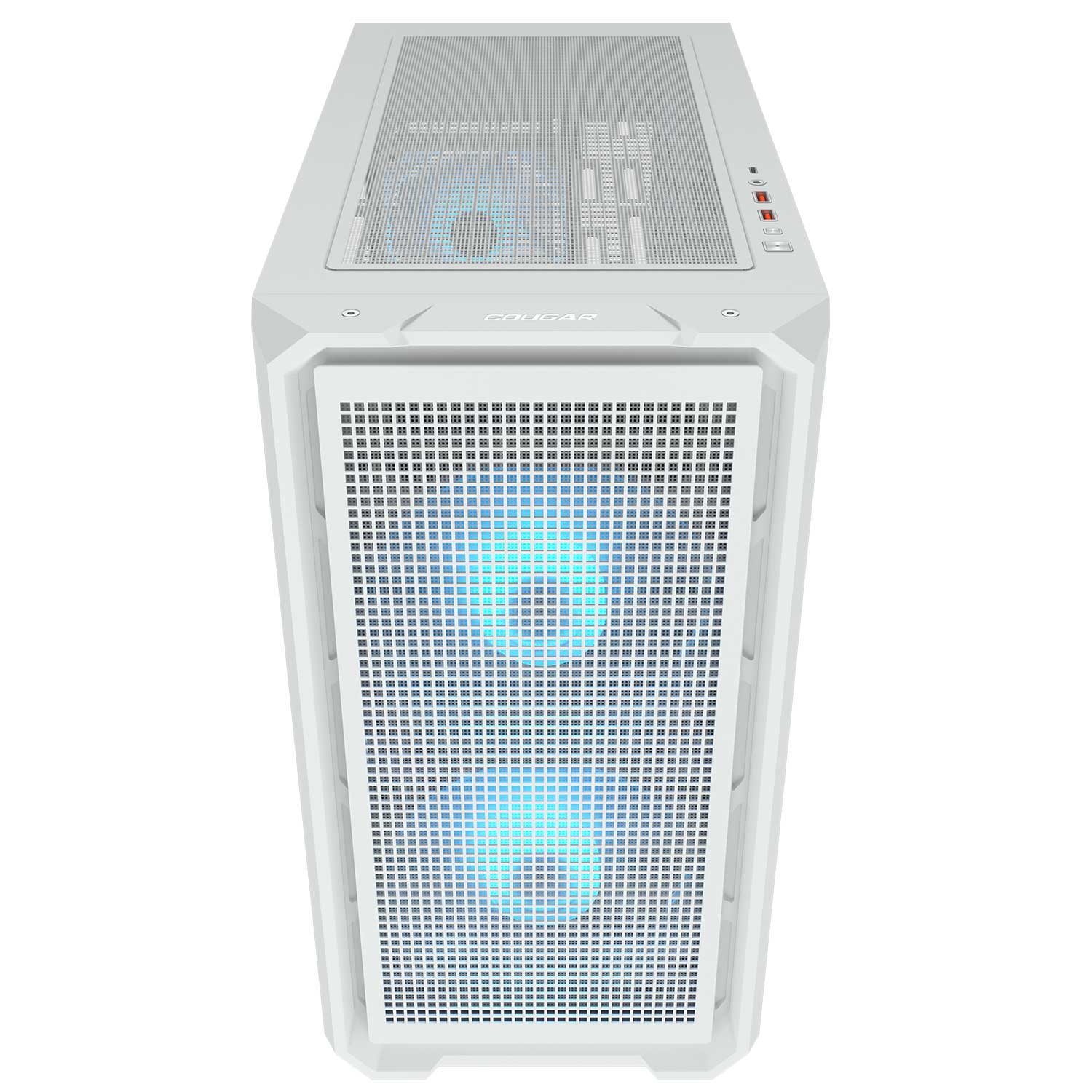

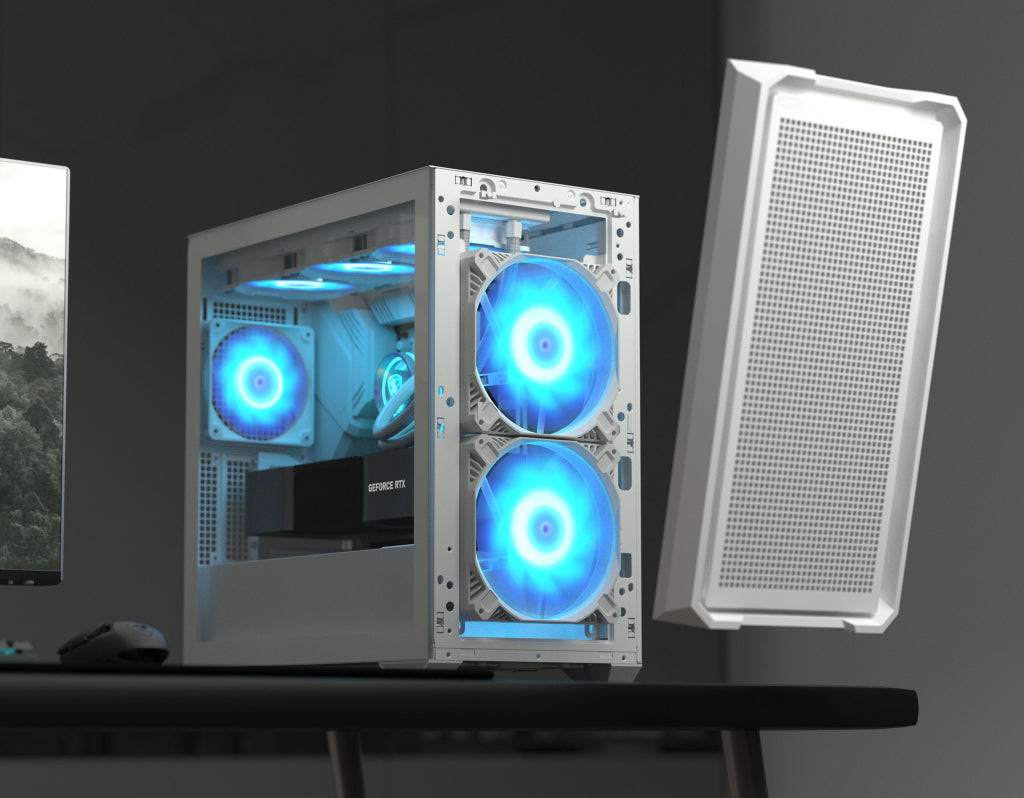

- Preinstalled 2 x 160mm PWM Cooling Fans: The front panel comes with two preinstalled 160mm fans for powerful cooling right out of the box.
- Expand to 10 Fans: With space for up to 10 fans, the MX600 Mini RGB provides exceptional cooling potential, making it ideal for performance-intensive systems.

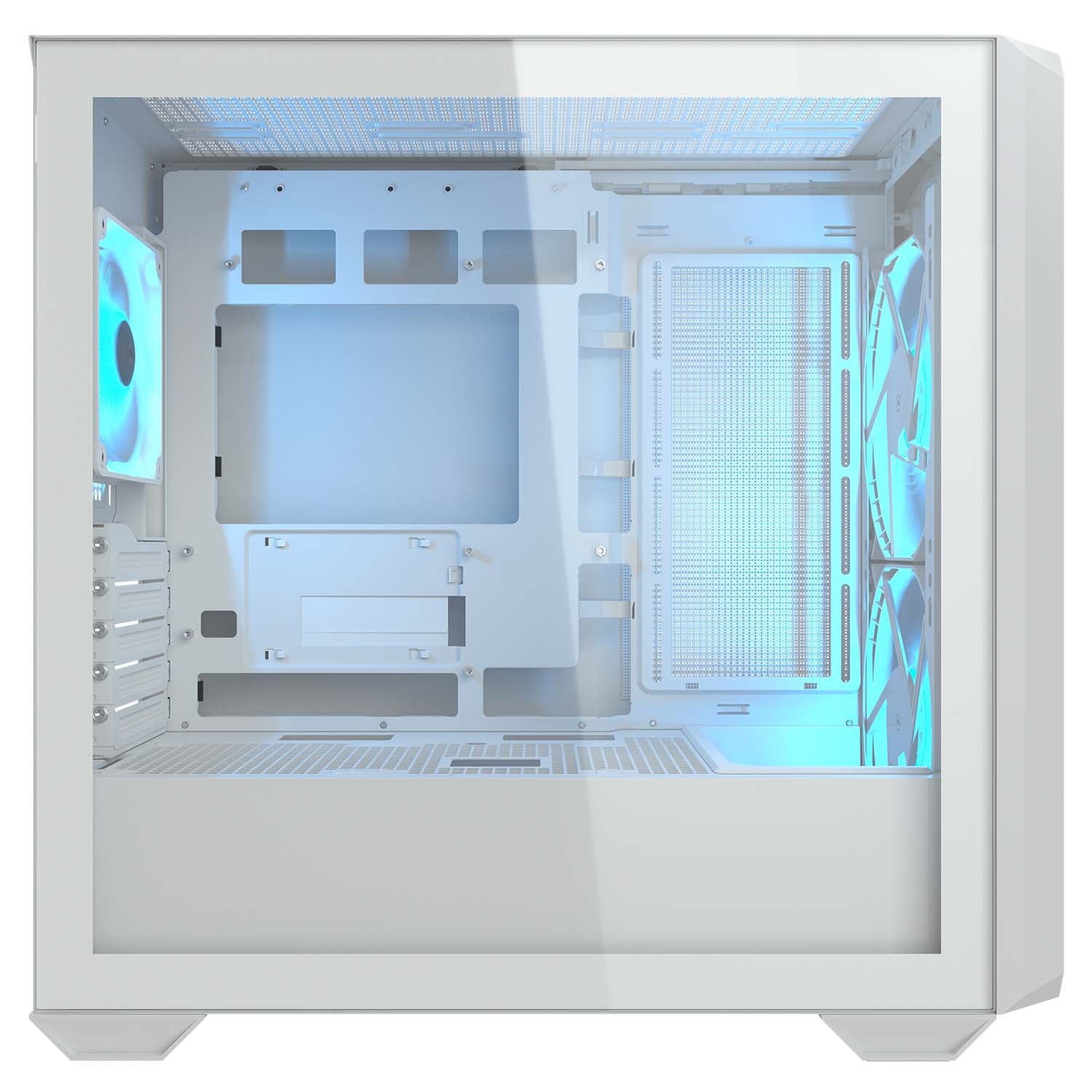

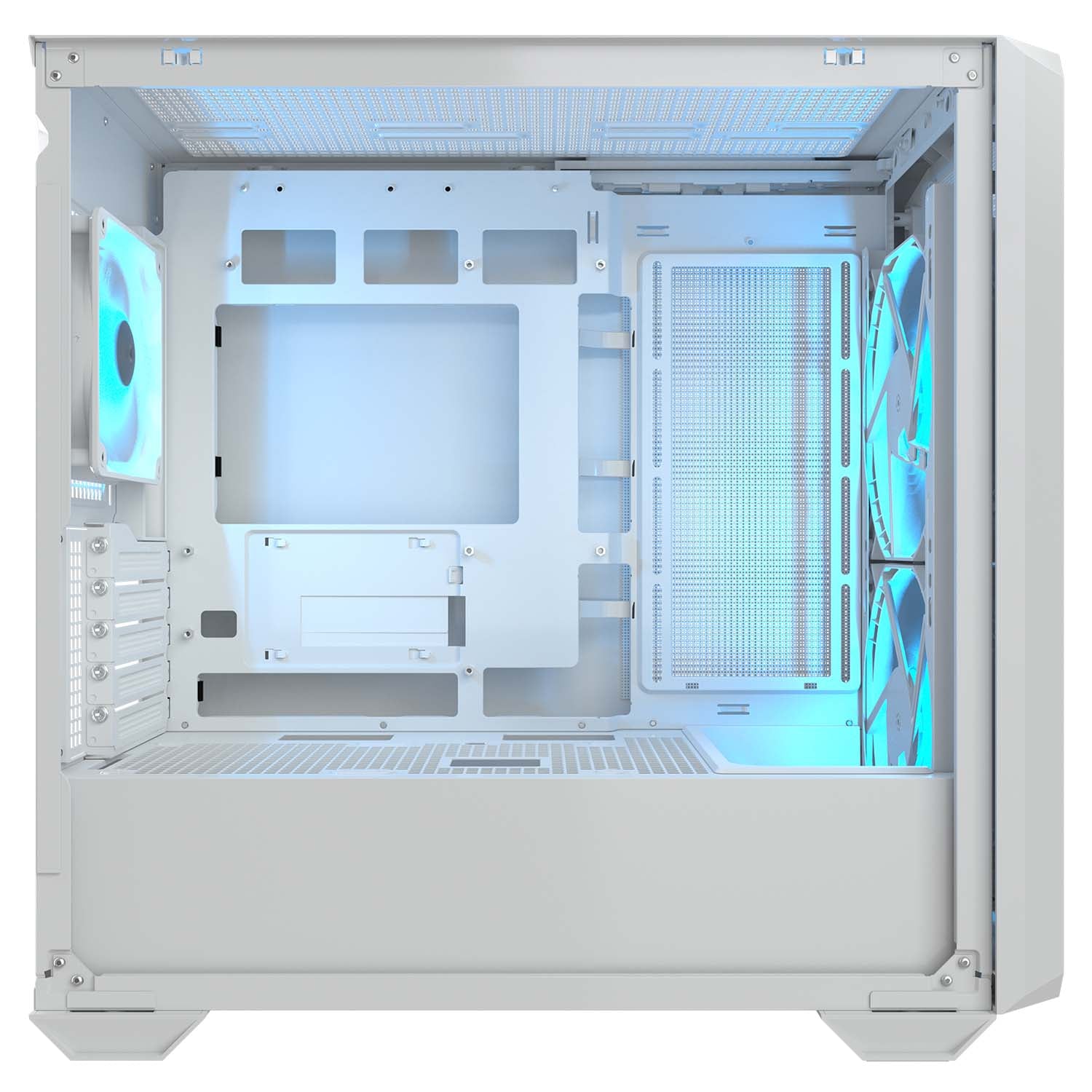

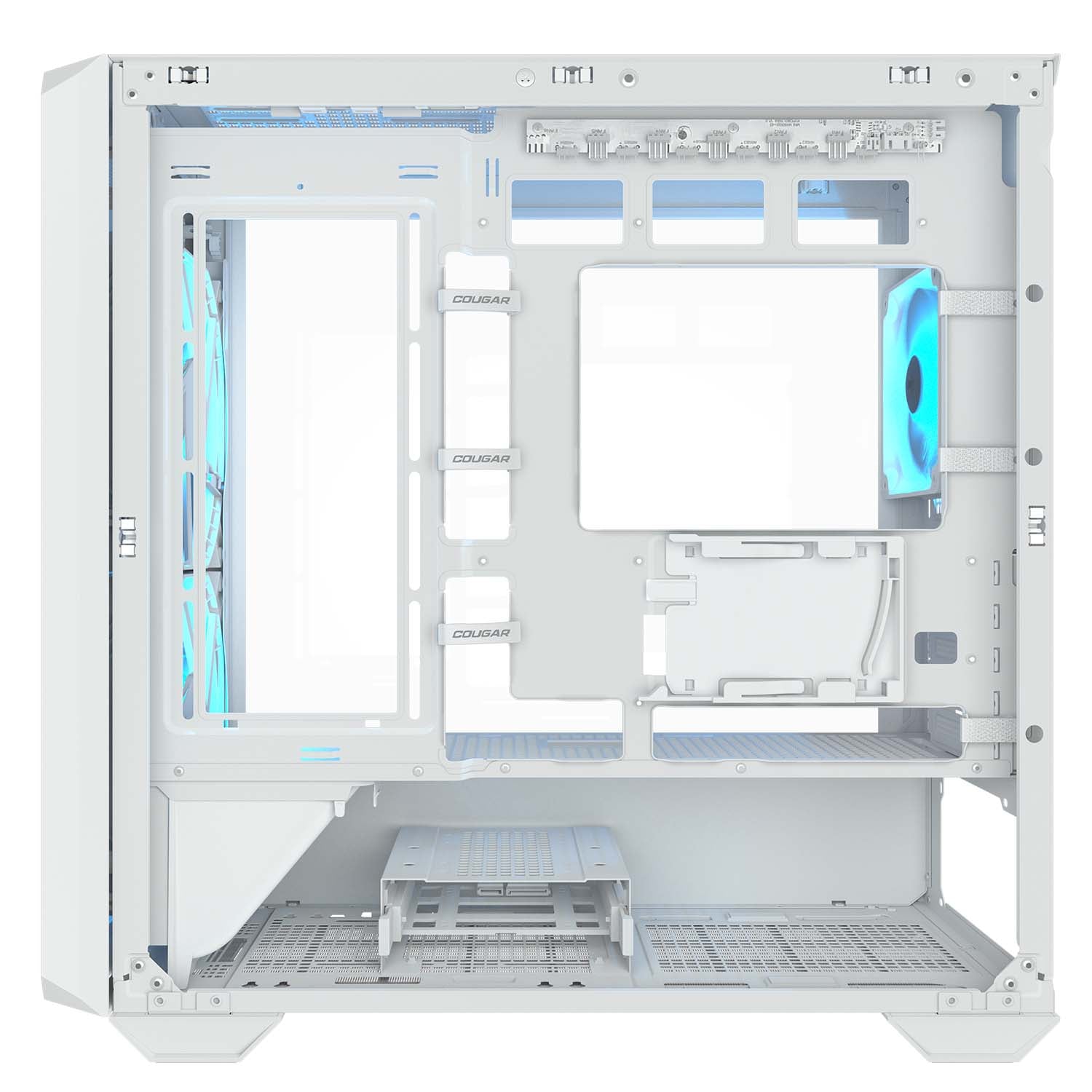

- Reverse Connector Motherboard Compatibility: Say goodbye to cable clutter with support for reverse connector motherboards (e.g., ASUS BTF and MSI Project Zero), offering a clean, streamlined build.
- Sloped Airflow Ramp: Directs airflow more smoothly, enhancing cooling efficiency.
- Top 360mm Water Cooling Support: The MX600 Mini RGB can accommodate a 360mm water cooling radiator at the top, providing optimal cooling for high-performance builds.

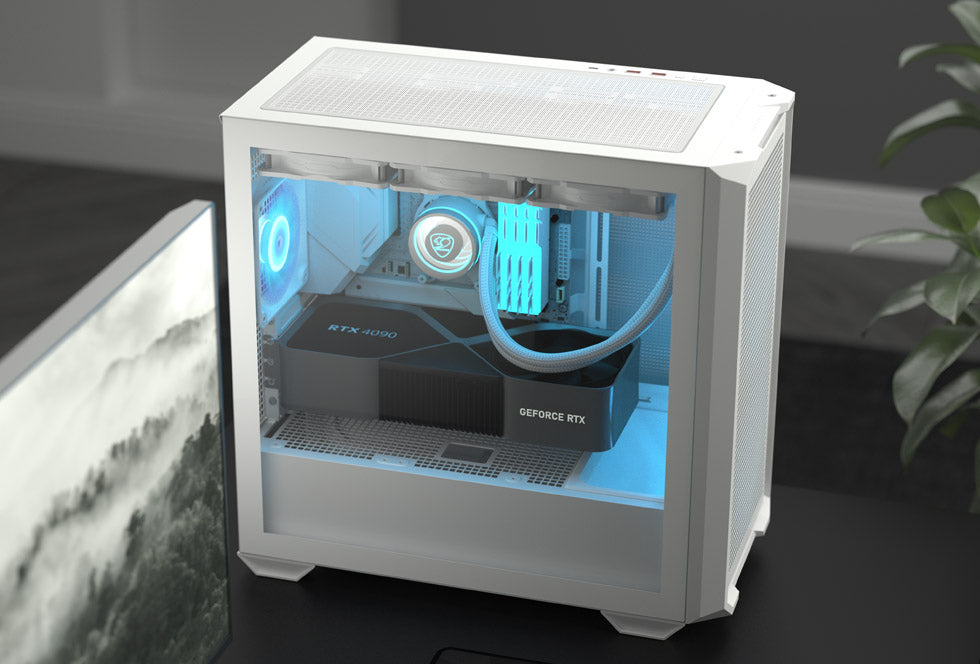

- Support for up to 380mm GPUs: The case offers ample room for large graphics cards, supporting GPUs up to 380mm in length.
Hardcore Cooling Performance:
- 2x 160mm Front Panel Fans: These fans deliver exceptional cooling power, defying the compact size of the case.
- Total Capacity for 10 Fans: The ability to install up to 10 fans ensures that even the most performance-driven systems stay cool during peak operation.

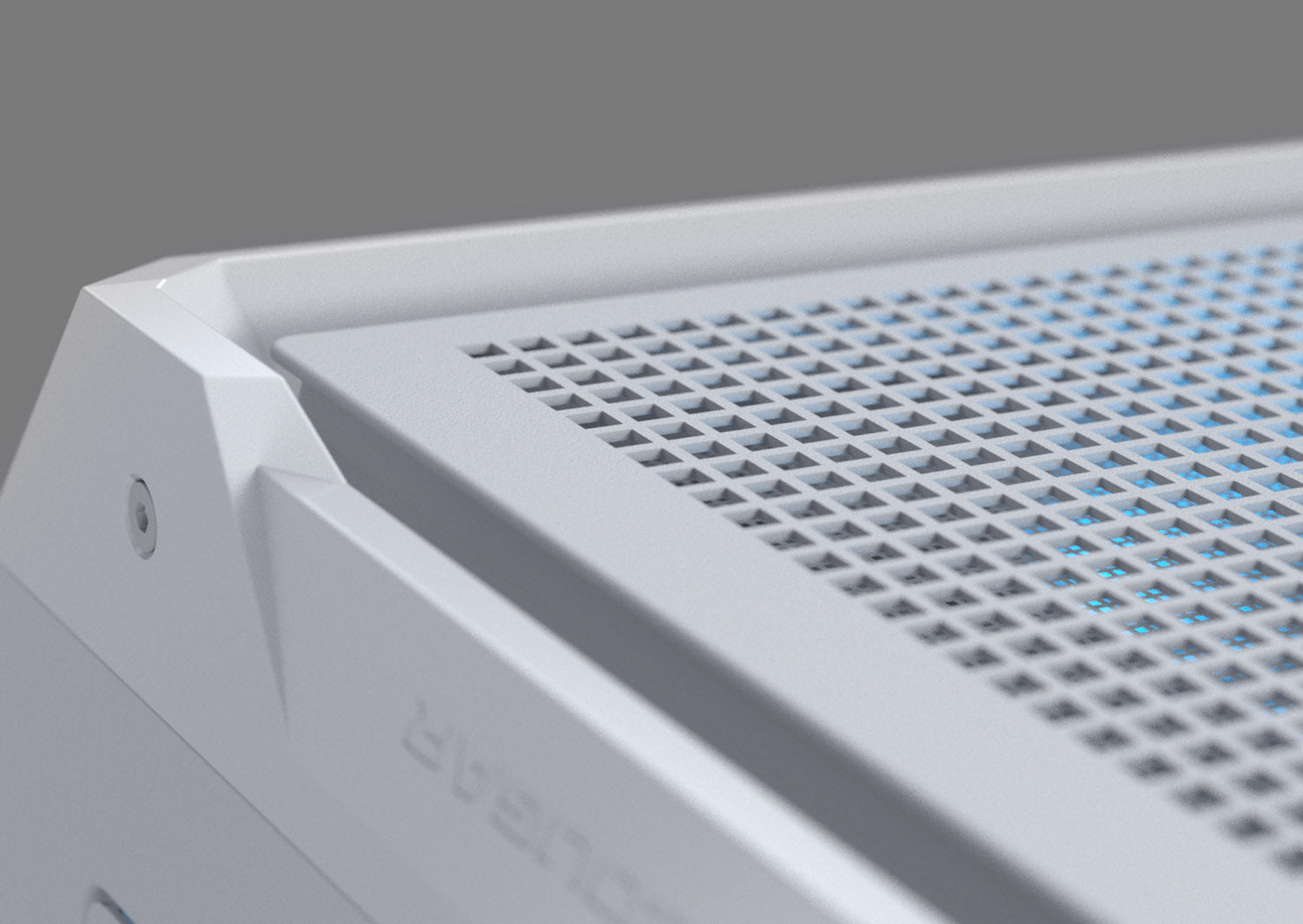

- 11% Increased Airflow: Square perforations on the front panel boost airflow by 11% compared to traditional circular designs, ensuring efficient cooling for your components.
Cutting-Edge Features:
- Universal Fan Hub: The built-in fan hub allows seamless coordination of PWM fan speed and RGB lighting. Control your RGB lighting without software or synchronize it with your motherboard software for a unified lighting experience.
- Storage Options: The case can house up to 3 x 2.5” SSDs or a combination of 1 x 2.5” SSD and 2 x 3.5” HDDs, offering flexible storage solutions for various needs.
Advanced I/O Panel:

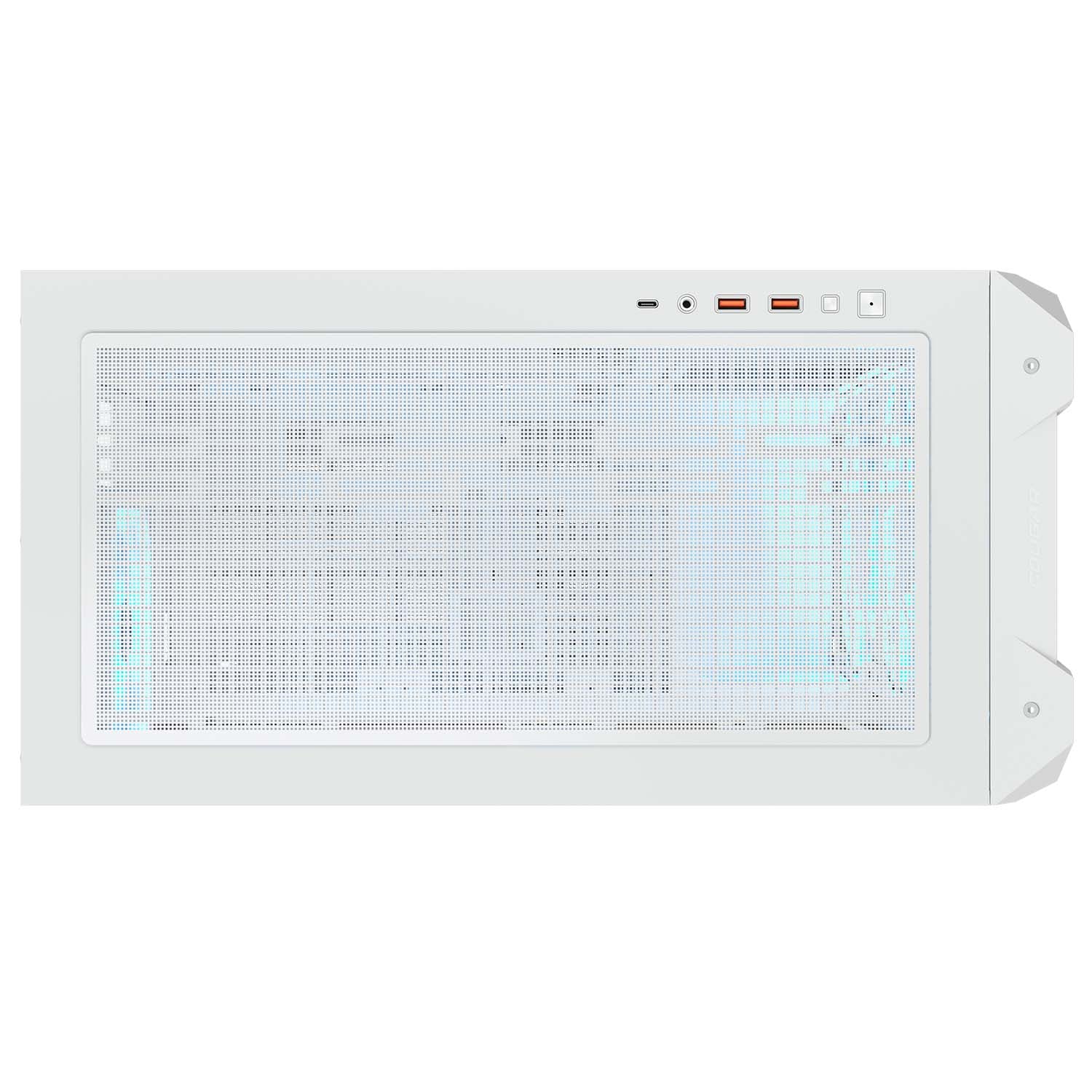

- Peripheral Vision: The I/O panel includes 2 x USB-A and 1 x USB-C Gen2 ports, providing fast and convenient access for your peripherals.
Specifications
| Product Name | MX600 MINI RGB / MX600 MINI RGB (White) | |
|---|---|---|
| Case Form Factor | Mini Tower | |
| Motherboard Type | Mini ITX / Micro ATX | |
| Dimensions (WxHxD) | 232 x 445 x 456 (mm) 9.1 x 17.5 x 18 (in) |
|
| I/O Panel | Type C Gen 2 x 1, USB 3.0 x 2, 4 Pole Headset Audio Jack & RGB Button | |
| 3.5" Drive Bay | 2 | |
| 2.5" Drive Bay | 1+2 (converted from 3.5" drive bays) | |

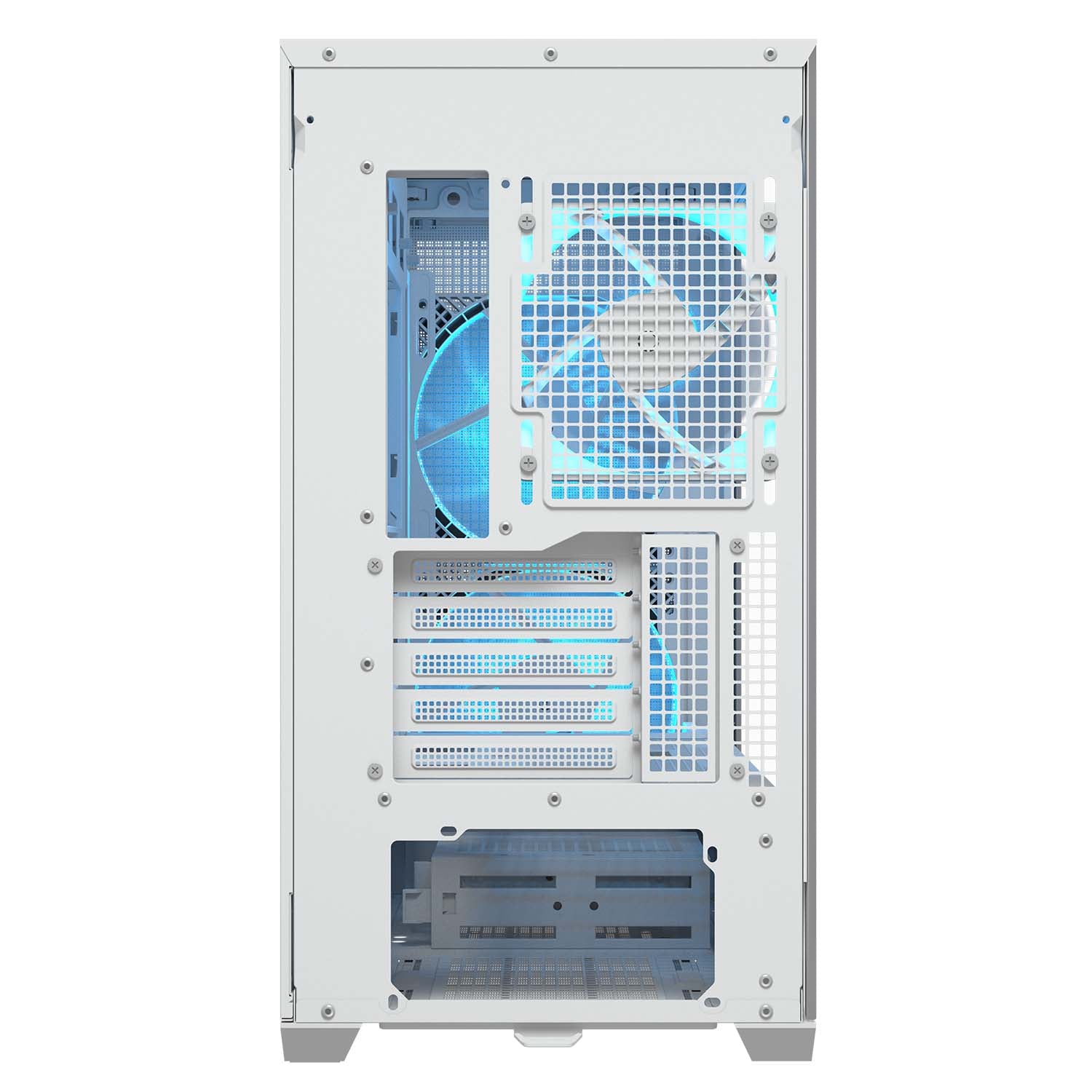

| Expansion Slots | 5 | |
| Cooling Fan Support | Front | 160mm x 2 |
| Top | 120mm x 3 / 140mm x 2 | |
| M/B Side | 120mm x 2 | |
| PSU Shroud | 120mm x 2 | |
| Rear | 120mm x 1 | |
| Pre-installed Fans | Front | 160mm ARGB PWM fan x 2 |
| Rear | 120mm ARGB PWM fan x 1 | |
| Speed | 160mm ARGB PWM fan: 400-1200 ± 10% RPM 120mm ARGB PWM fan: 500-1400 ± 10% RPM |
|
| Connector | 5V 3 Pin (ARGB) 4 Pin PWM (Fan) |
|
| Maximun Number of Fans | 10 | |
| Water Cooling Support | Top | *360mm / 280mm / 240mm / 140mm / 120mm |
| M/B Side | *240mm / 120mm *Please choose either top or M/B side to install a radiator. |
|
| Rear | 120mm |
|
| PWM and RGB hub Sync with M/B | Yes | |
| Max. Graphics Card Length | 380 (mm) / 15 (in) (Only fans at the M/B Side) 255 (mm) / 10 (in) (Radiator with fans at the M/B Side) |
|
| Max. CPU Cooler Height | 175 (mm) / 6.9 (in) | |
| Max. PSU Length | 180 (mm) / 7.1 (in) | |
| Specification | Detail |
|---|---|
| Carton Weight | 8.8 |
| Carton Quantity | 1 |
| Warranty | 1 Year |
| Carton Volume | 76.5 |
| MPN | CGR-5GC9W-RGB |
| Barcode | 192554007946 |
