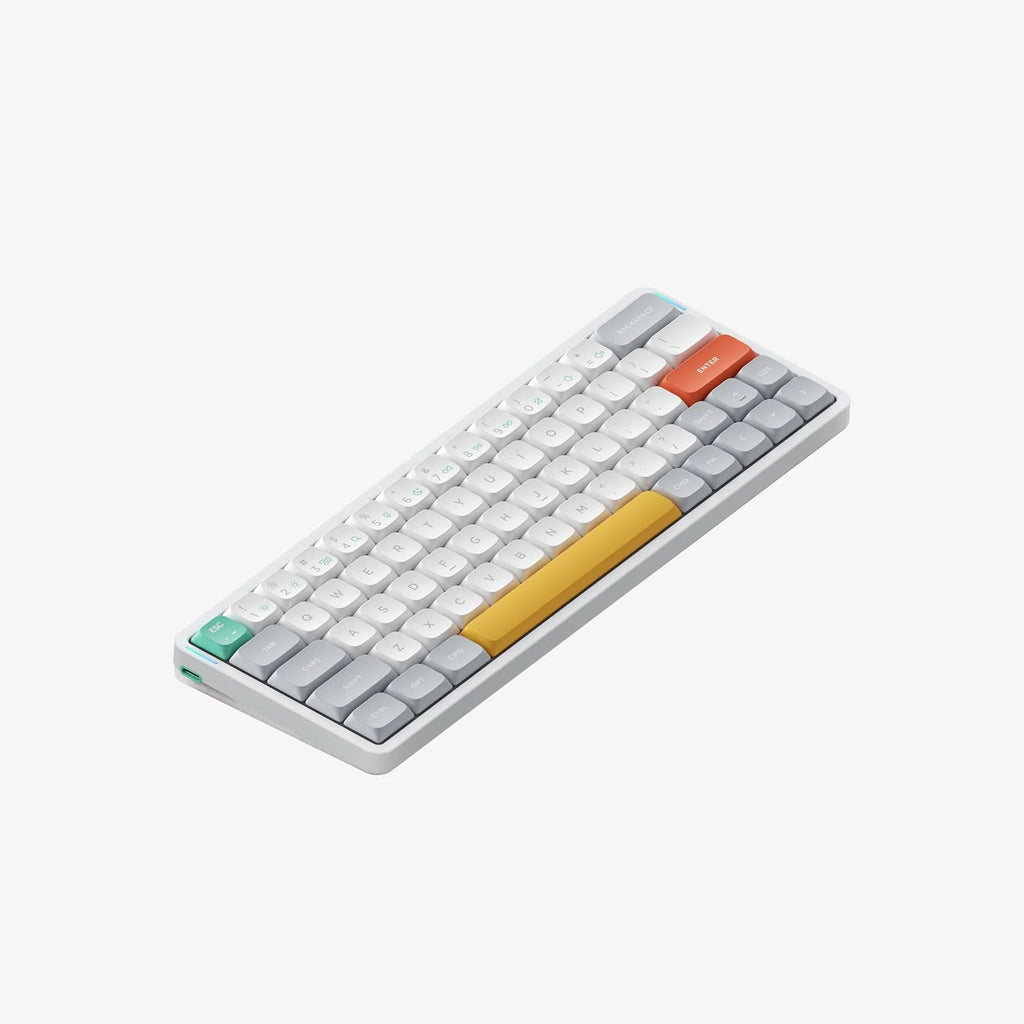

The NuPhy Air60 V2 redefines portable mechanical keyboards with a 60% layout, ultra-slim profile, and pro-grade functionality. Featuring tri-mode wireless connectivity, full QMK/VIA support, and low-profile hot-swappable switches, the Air60 V2 is engineered for users who need performance and portability without compromise. Whether you're working on a MacBook, gaming on a PC, or switching between multiple devices, the Air60 V2 adapts instantly.
Key Features
Tri-Mode Connectivity
Switch seamlessly between Bluetooth 5.0, 2.4GHz wireless (via included receiver), and USB-C wired mode. Supports up to 4 paired devices and offers ultra-low latency for gaming and real-time tasks.
QMK/VIA Programmable
Full support for QMK and VIA firmware allows for deep customization, including key remapping, macro creation, and custom layers — all via a clean visual interface.
Hot-Swappable Low-Profile Switches
Compatible with Gateron low-profile 2.0 and NuPhy’s own low-profile switches (Aloe, Cowberry, Wisteria, Moss). Easily change switches without soldering to dial in your preferred typing experience.
Double-Shot PBT Keycaps (Shine-Through)
Durable, low-profile double-shot PBT keycaps resist shine and wear over time. Optimized for RGB lighting with clear legends and excellent legibility.
Premium Typing Feel
Redesigned stabilizers and upgraded dampening structure (plate foam, PCB foam, IXPE switch pad) deliver quieter, more refined acoustics and improved key feel.
Ultra-Slim CNC Aluminum Design
Measuring just 16.5mm at its tallest point, the Air60 V2 pairs portability with strength thanks to a CNC aluminum top case and reinforced internal structure.
Extended Battery Life
A 2500mAh rechargeable battery delivers:
Mac & Windows Compatibility

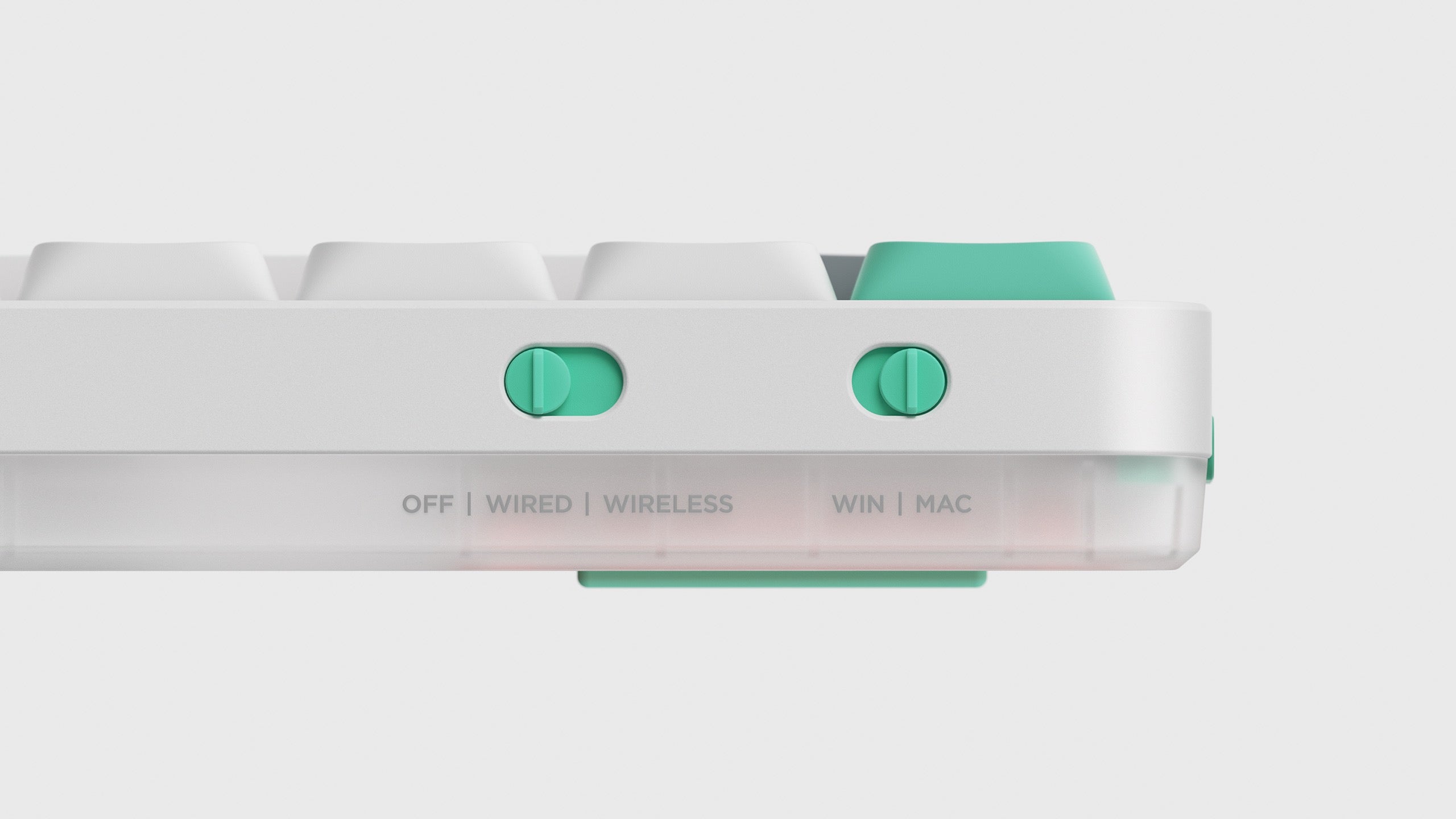

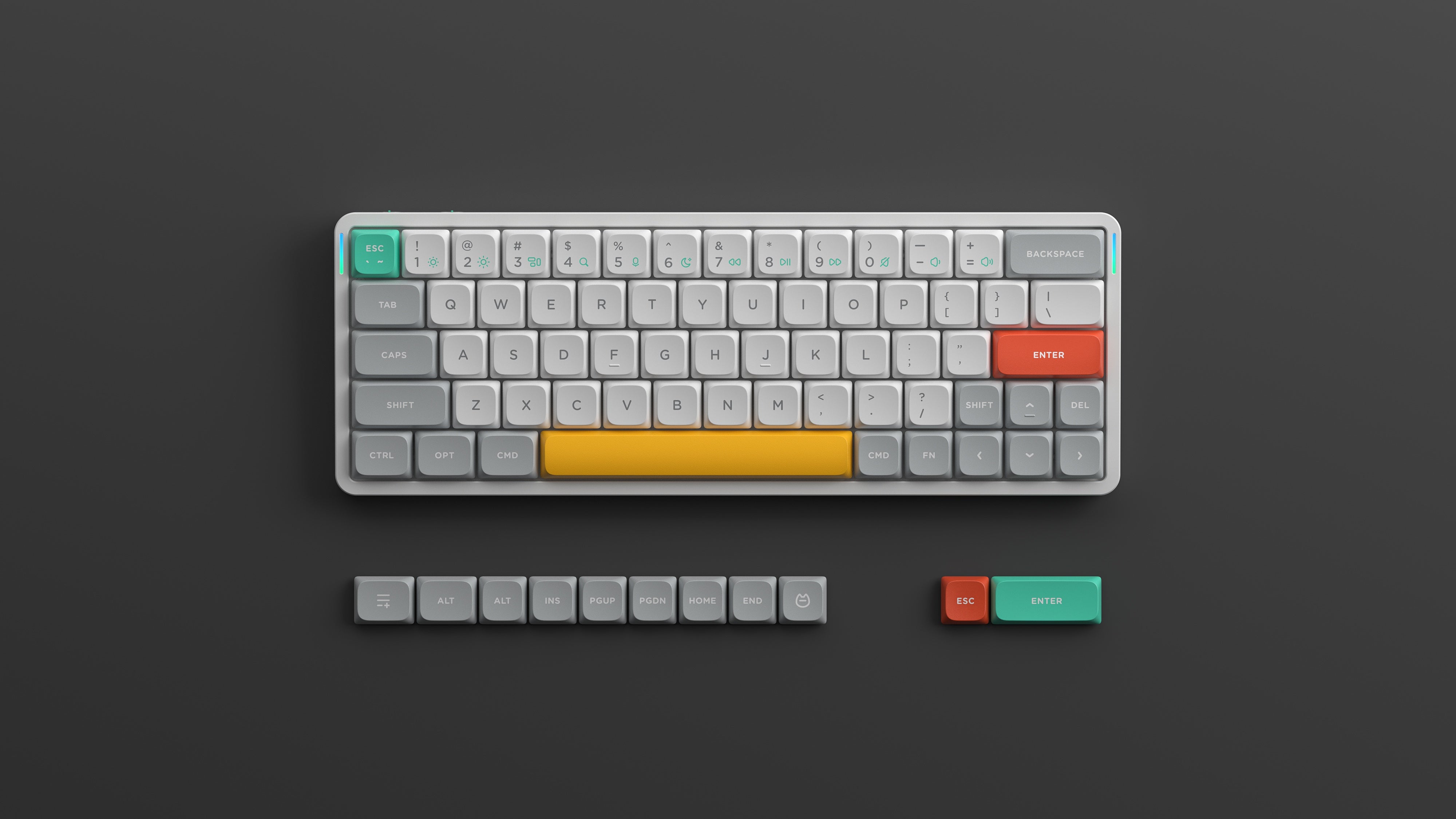

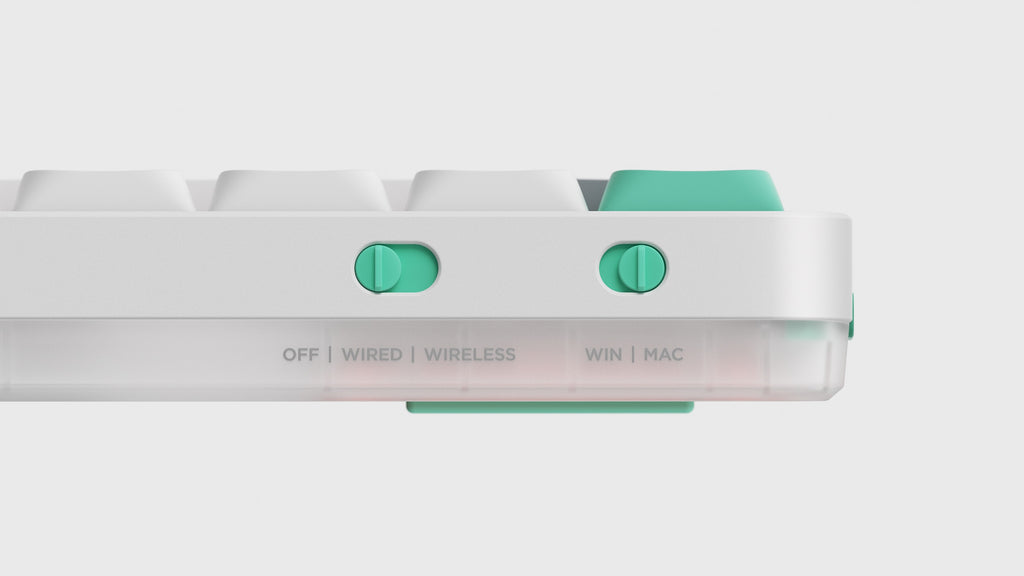

Built-in OS toggle switch plus extra keycaps for Mac and Windows layouts. Fully compatible with macOS, Windows, iOS, Linux, and Android devices.
RGB Backlighting
Per-key customizable RGB with 16+ lighting modes, brightness/speed controls, and onboard adjustment. Configurable via VIA or hotkeys.

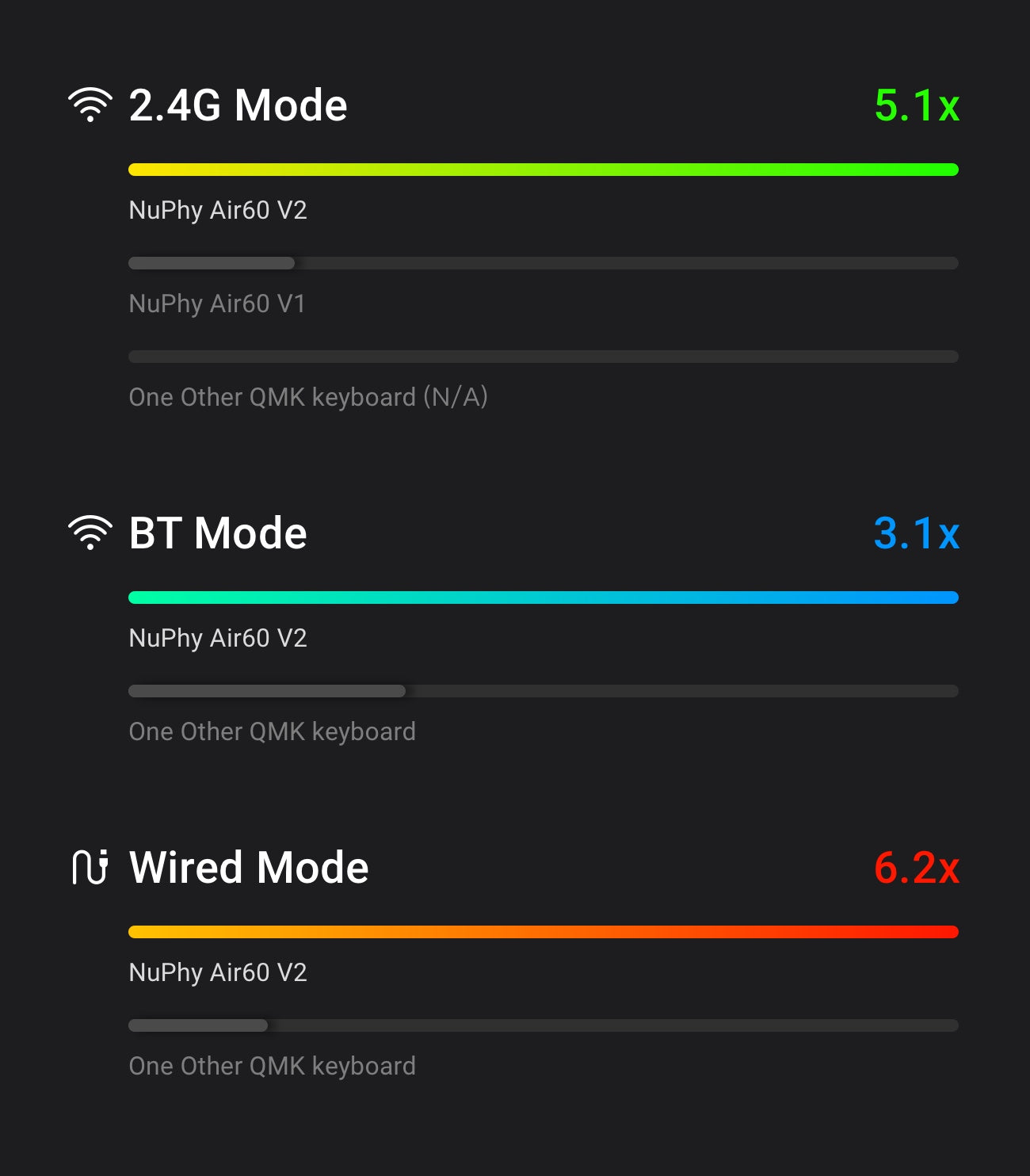

Polling Rate
Technical Specifications
SPECIFICATION
Switch Type: Gateron Low-profile Mechanical (KS-33)
Layout: ANSI 60%
Number of Keys: 64
Hot-swappable Support: Yes
N-key Rollover Support: Yes
Backlight: RGB-LED
Backlight Modes: 40
Compatible System: macOS/Windows/Linux/Android/iOS
Angle: 3.2º/ 7.0º / 10.0º
Operating Environment: -10 to 50℃
MCU: STM32F072
RF: NRF52810
CONNECTION
Mode: 2.4GHz, Bluetooth 5.1 or Wired (USB-C)
2.4GHz Polling Rate: 1000Hz
Bluetooth 5.1 Polling Rate: 125Hz
Wired Polling Rate: 1000Hz
POWER AND BATTERY
Battery Capacity: 2500mAh
Working Time (all lights on): 30~90 hours (lab test result)
Working Time (all lights off): Up to 150 hours (lab test result)
MATERIALS
Frame: Aluminum
Bottom Case: ABS
Keycap: Double-shot PBT
SIZE AND WEIGHT
297.3 mm x 107.2 mm x 13.5 mm
(11.70 inches x 4.20 inches x 0.59 inch)
463 grams
(1.0 pound)
What’s in the Box
-
1 x Air60 V2 Wireless Mechanical Keyboard
1 x USB-C to USB-A Cable (1.5 m)
1 x USB-C to USB-C Cable (0.2 m)
1 x 2.4G Receiver
11 x Extra Keycaps
4 x Extra Switches
1 x Keycap/Switch Puller
1 x Sticker Set
