Description

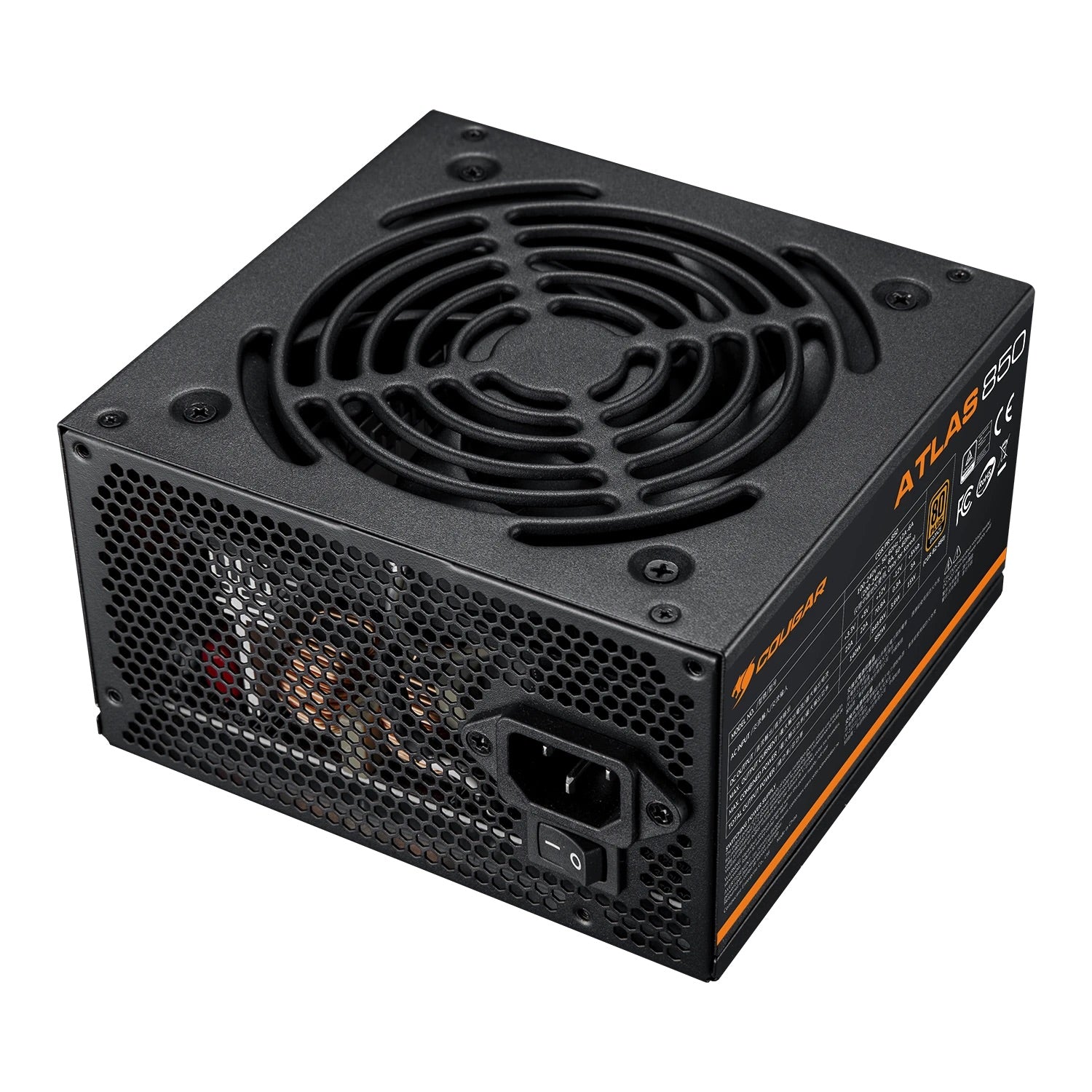

RELIABLE ATX 3.1 POWER SUPPLY
The COUGAR ATLAS series power supply is 80 PLUS Bronze certified. It features a native PCIe 12V-2X6 connector, meeting Intel ATX 3.1 and PCIe 5.1 standards. With a single 12+4-pin cable, it efficiently supports next-gen GPUs. Ensuring exceptional power delivery, efficiency, silent operation, and durability.
- Supports PCI Express 5.1 Graphics Cards with 12+4 Pin Connector for true 200% power excursion dynamic outputs.
- 80 PLUS Bronze Certified for up to 87% efficiency in power conversion.
- Designed for current and next-generation multi-core CPU platforms, is compatible with the latest PC technology.
- Full protections with SCP，OCP，OVP，UVP，OPP，OTP.
ATX 3.1 Certified
Designed to support next-generation systems, the COUGAR ATLAS series conforms to the ATX 3.1 standard. Featuring a native 12V-2X6 design, it provides power to the next-generation graphics cards through a single 12+4-pin cable. With both 80 PLUS Bronze efficiency rating, it offers high-quality stability, durability, and reliability.
Designed for the Next Generation of GPUs
The COUGAR ATLAS series supports the latest PCIe 5.1 specification: its powerful and stable performance meets the needs of next-generation GPUs, delivering perfect power for next-gen graphics cards. Equipped with a native PCIe 12V-2X6 connector, the 600mm length provides sufficient slack to reduce the risk of faulty connection during PC installation, without the need for a 6+2 pin adapter.
High Performance
Efficiency
80 Plus Bronze certification ensures up to 87% efficiency.
Perfect Fan Speed to Noise Ratio

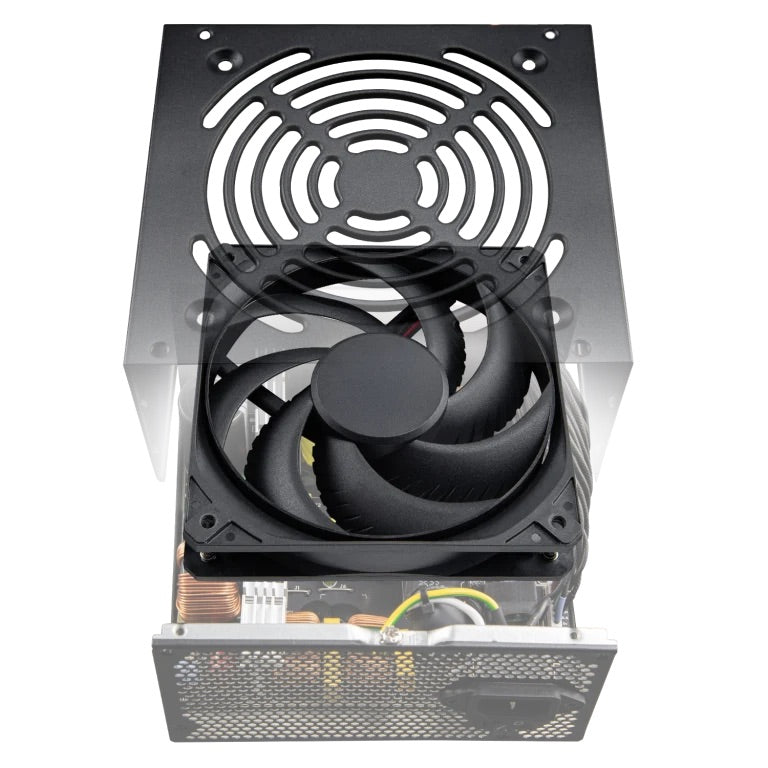

Using COUGAR’s exclusive 120mm rifle bearing fan , the advanced fan blade design enhances airflow smoothness and optimizes silent performance.
More Stability, Less Noise
Crafted for quiet operation, COUGAR’s exclusive 120mm rifle bearing fan achieves an ideal equilibrium between efficient cooling and minimal noise. Optimized, grooved fan blades are molded with an integrated stabilizing ring, minimizing flex during rotation and reducing turbulence for an optimal and silent cooling experience.
Refined Regulation. Stable Operation
- Equipped with (3.3V & 5V) DC-DC power conversion technology, ensuring stable operation.
- Powerful single +12V rail that outperforms typical multi-rail PSUs in its class.
- Active Power Factor Correction (Active PFC).
Ultra Durability
The ATLAS is highly durable to provide continuous and flawless power delivery with constantly reliable 105ºC Japanese standby capacitors.

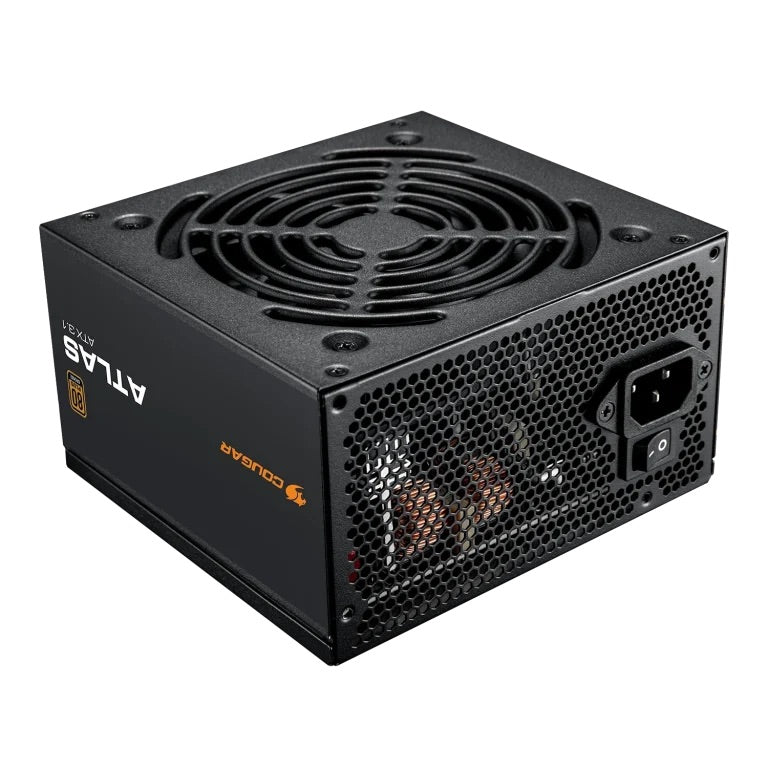

Stylish Design
Featuring a sleek embossed black design with ample cable length for easy and aesthetically pleasing PC installation.
Features
Support PCI Express 5.1 Graphics Cards 12+4 Pin Connector
Connect the 12V-2X6 with true 200% power excursion dynamic outputs.
80 PLUS Bronze Certified
Up to 87% efficiency power conversion.
Powerful Single +12V Rail
Powerful single +12V rail that outperforms typical multi-rail
PSUs in its class .
Compatible with The Lastest PC Technology
Created for user with current and next-generation multi-core CPU platforms.
Full Protections with SCP, OCP, OVP, UVP, OPP, OTP
Active Power Factor Correction (Active PFC)
PF value up to 99% for clean and reliable power.
Specifications
| AC Input | DC output | ||||||
| +3.3V | +5V | +12V | -12V | +5Vsb | Total | ||
| ATLAS 650 | 100-240V~ 50-60Hz 10A-6A |
20A | 20A | 54.1A | 0.3A | 3A | 650W |
|---|---|---|---|---|---|---|---|
| 130W | 649.2W | 3.6W | 15W | ||||
| ATLAS 750 | 100-240V~ 50-60Hz 10A-6A |
22A | 22A | 62.5A | 0.3A | 3A | 750W |
| 140W | 750W | 3.6W | 15W | ||||
| ATLAS 850 | 100-240V~ 50-60Hz 12A-6A |
22A | 22A | 70.8A | 0.3A | 3A | 850W |
| 140W | 849.6W | 3.6W | 15W | ||||
Total connectors
| Connector | Main | CPU | Peripherals | S-ATA | 12V-2X6 | PCI-E |
| Pins | 24 | 8(4+4) | - | - | 12+4 | 8(6+2) |
| ATLAS 650 | 1 | 2 | 2 | 6 | 1 | 2 |
|---|---|---|---|---|---|---|
| ATLAS 750 | 1 | 2 | 2 | 6 | 1 | 4 |
| ATLAS 850 | 1 | 2 | 2 | 6 | 1 | 4 |
| Specification | Detail |
|---|---|
| Carton Weight | 19.3 kg |
| Carton Quantity | 9 |
| Warranty | 5 Year |
| Package Height | 160.0 mm |
| Package Depth | 190.0 mm |
| Package Width | 160.0 mm |
| Carton Volume | 57.2 dm³ |
| MPN | 31AA065003P01 |
| Barcode | 192554009810 |
