Description
Float in Form. Flow in Function. Visualize in Motion.

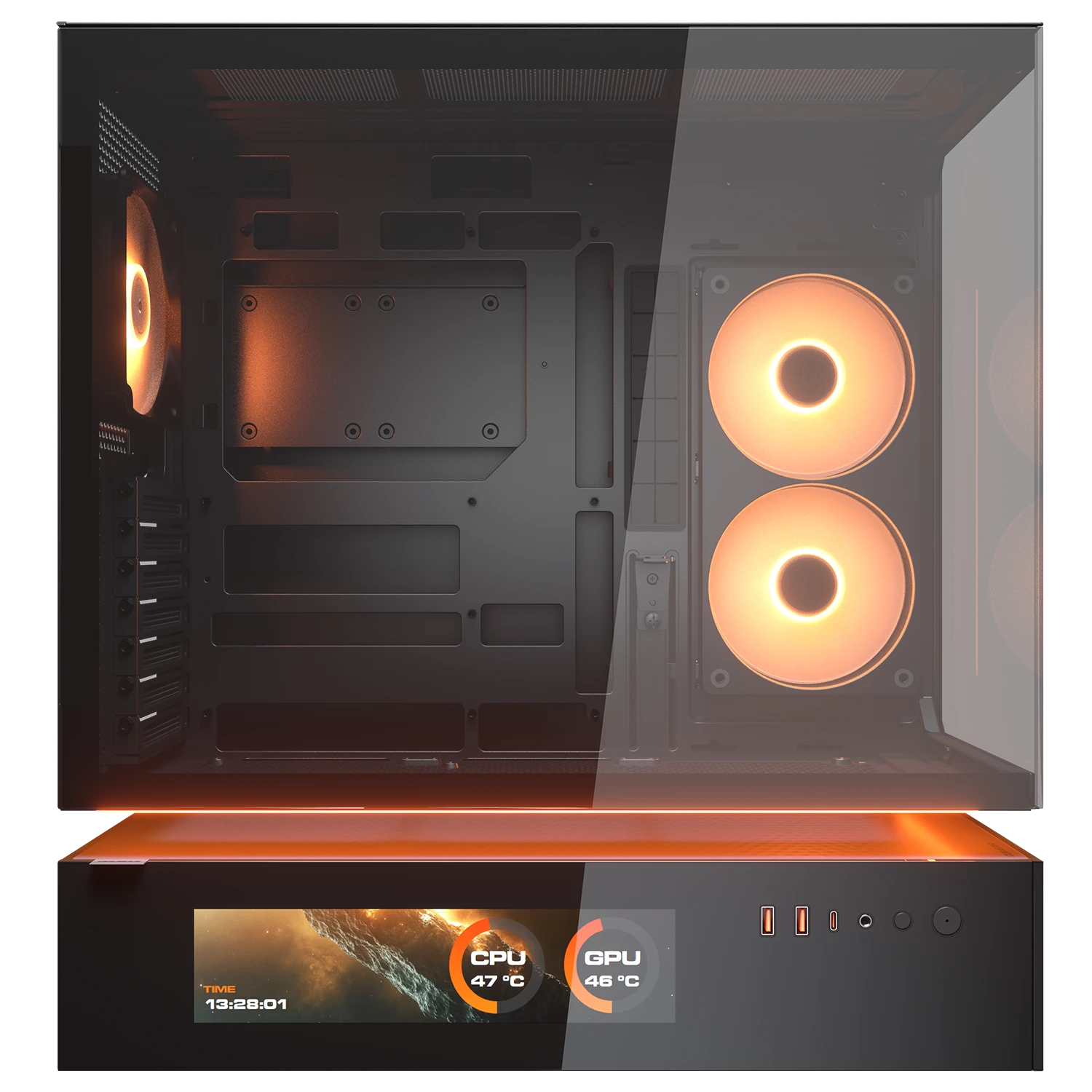

The CFV235 Vision is a new kind of PC case featuring the innovative Central Floating Ventilation (CFV) structure. This divides the PSU cabin and main chamber, retooling the open space in between as a cooling advantage by accessing extra ventilation. An integrated 9.16-inch IPS TFT LCD panel provides real-time, software-controlled system monitoring in ultra-crisp 1920×462 resolution at a 60Hz refresh rate, displaying critical data and customizable visuals.
An optimal combination of a full panoramic view, compact footprint, architecturally-enhanced cooling and immersive display technology, the CFV235 Vision empowers airflow beyond ordinary dimensions, visualized.
- Central Floating Ventilation free-floating separation provides a unique visual identity.
- True floating void adds an extra dimension of airflow across 270° of access.
- 9.16-inch IPS TFT LCD panel delivers real-time readouts and customizable visuals in 1920×462 resolution at a 60Hz refresh rate, fully accessible from your desktop through control software.
- The Aurora RGB lighting strip brings the awe and glory of RGB lighting to the free-floating space.

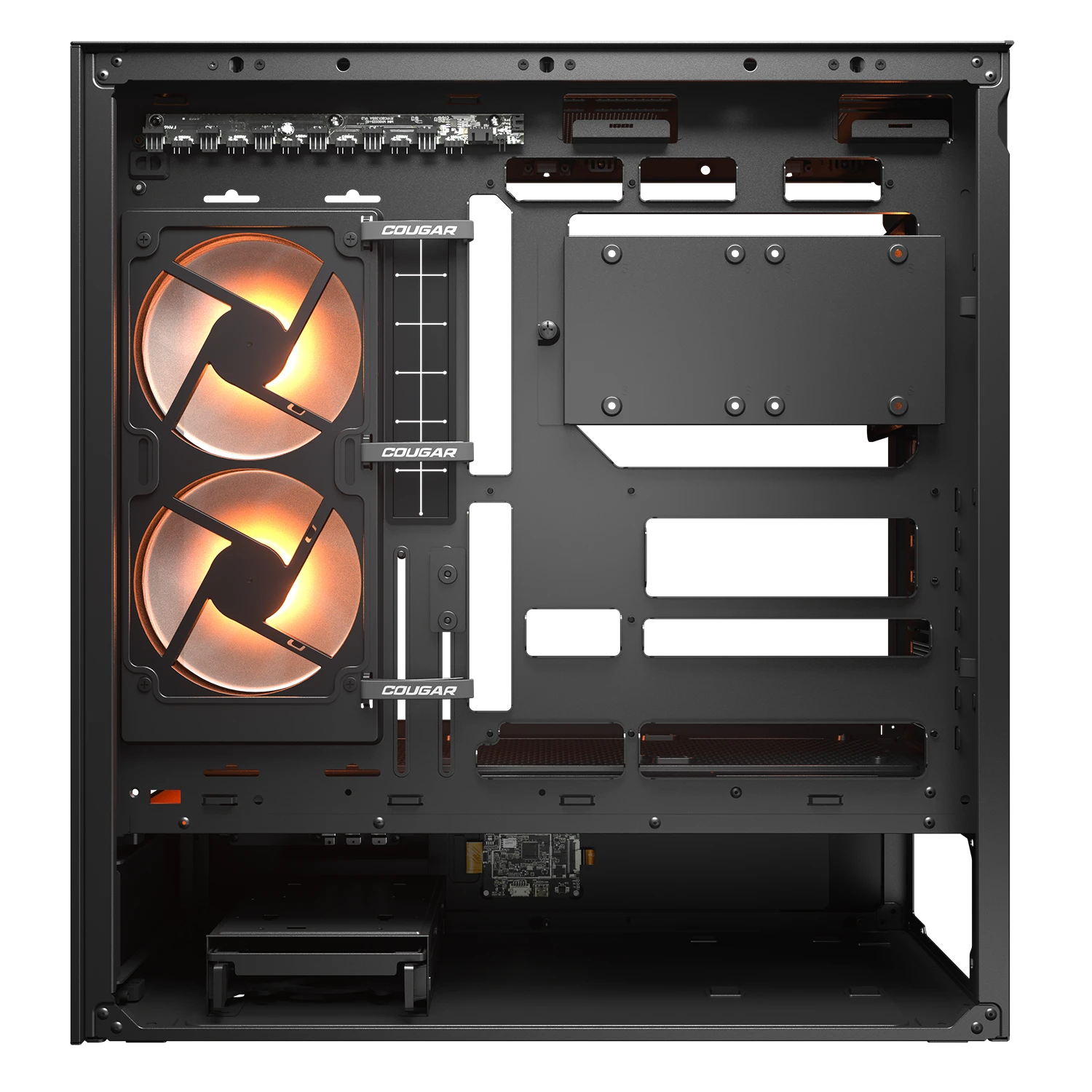

- COUGAR Unity 240 single-frame PWM reverse-blade fans are preinstalled on the motherboard side.
- Accommodates a maximum GPU length of 430mm.
- Compatible with Reverse Connector / Mini ITX / Micro ATX / ATX / CEB motherboards.
- USB 3.2 Gen 2×2 Type-C (20 Gbps) x1, USB 3.0 Type-A x 2, 4 pole headset audio jack for versatile device connectivity.
- Houses 2 x 3.5” HDD drives and 2+2 2.5” SSD drives (converted from 3.5” drive bays)

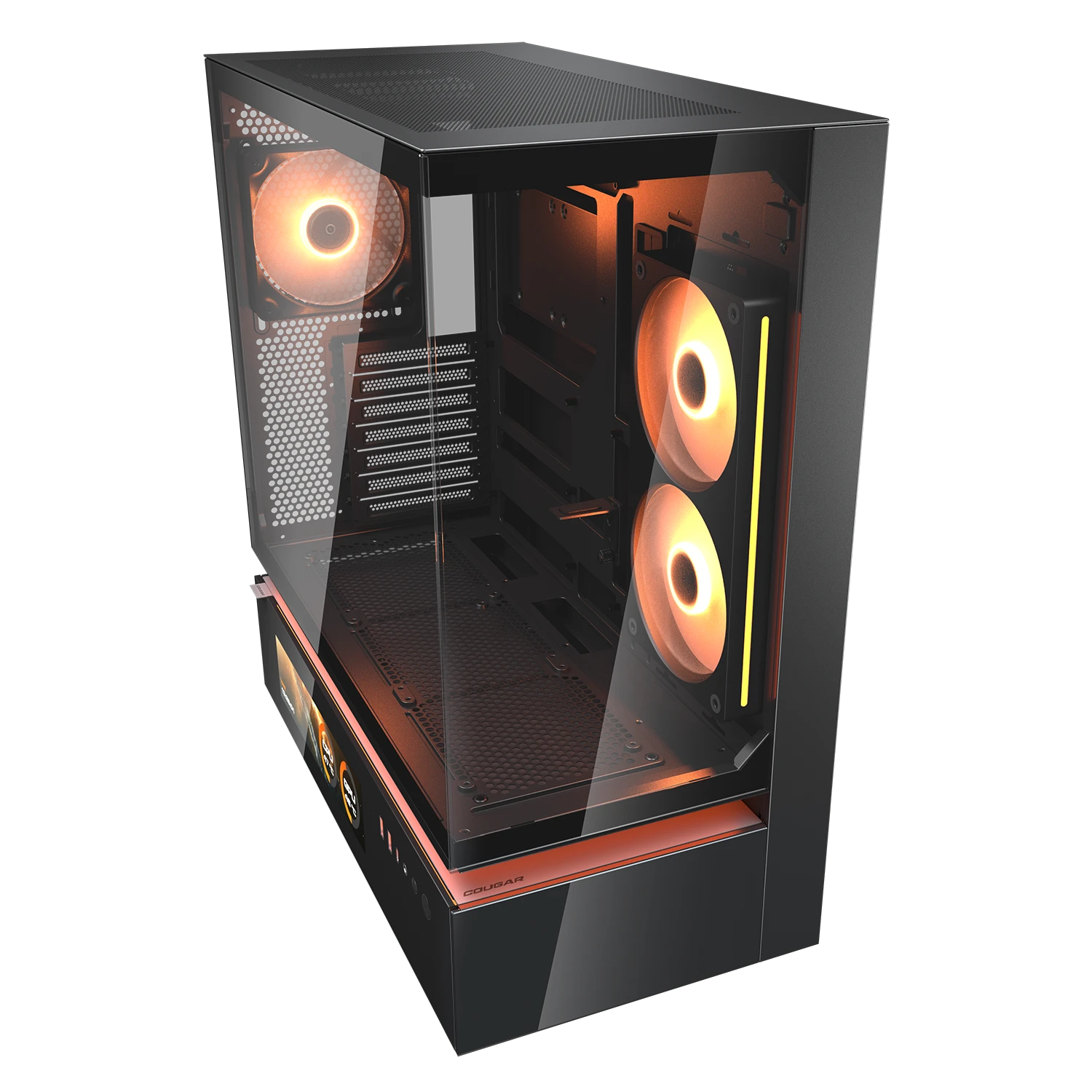

True Free-Floating Structural Separation
Conventional design squeezes both the PSU - a prime source of heat - and critical components in the same space, restricting airflow access to only the top, front and rear panels. The Central Floating Ventilation divides the PSU cabin and main chamber with a structural hollow that lets air move with greater freedom and purpose. This free-floating architectural separation also gives the CFV235 series its unique, progressive visual identity.
270° Airflow Access Within Suspended Space
The CFV235 series’ floating space is a fully 3 dimensional, discrete void suspended within the chassis. 270° of spacious, unobstructed airflow intake delivers greater ventilation than enclosed layouts to where it’s most needed.
The Eye in the Machine
The CFV235 Vision integrates a 9.16-inch IPS TFT LCD panel for real-time system monitoring in an ultra-crisp 1920 x 462 resolution with a 60Hz refresh rate. Keep an eye on critical data from temperatures to fan speeds, while you personalize the display with JPG, PNG, GIF, or MP4 content, all managed through desktop software that acts as a live command centre.
Operational Control
Performance data and absolute control over customization and display alignment can be instantly and fully accessed through the installable software, equipping you with a command centre console directly on your desktop.
Pre Installed Reverse Blade
Unity ARGB 240 Fans
The Rainbow In Between
The Aurora lighting strip lights up with the integrated space of the Central Floating Ventilation structure from within, highlighting this innovative feature and displaying it as an architectural reinvention. It’s included with the case and attaches magnetically for ease and convenience.
Light. Speed
Dual Magnetic Filtration

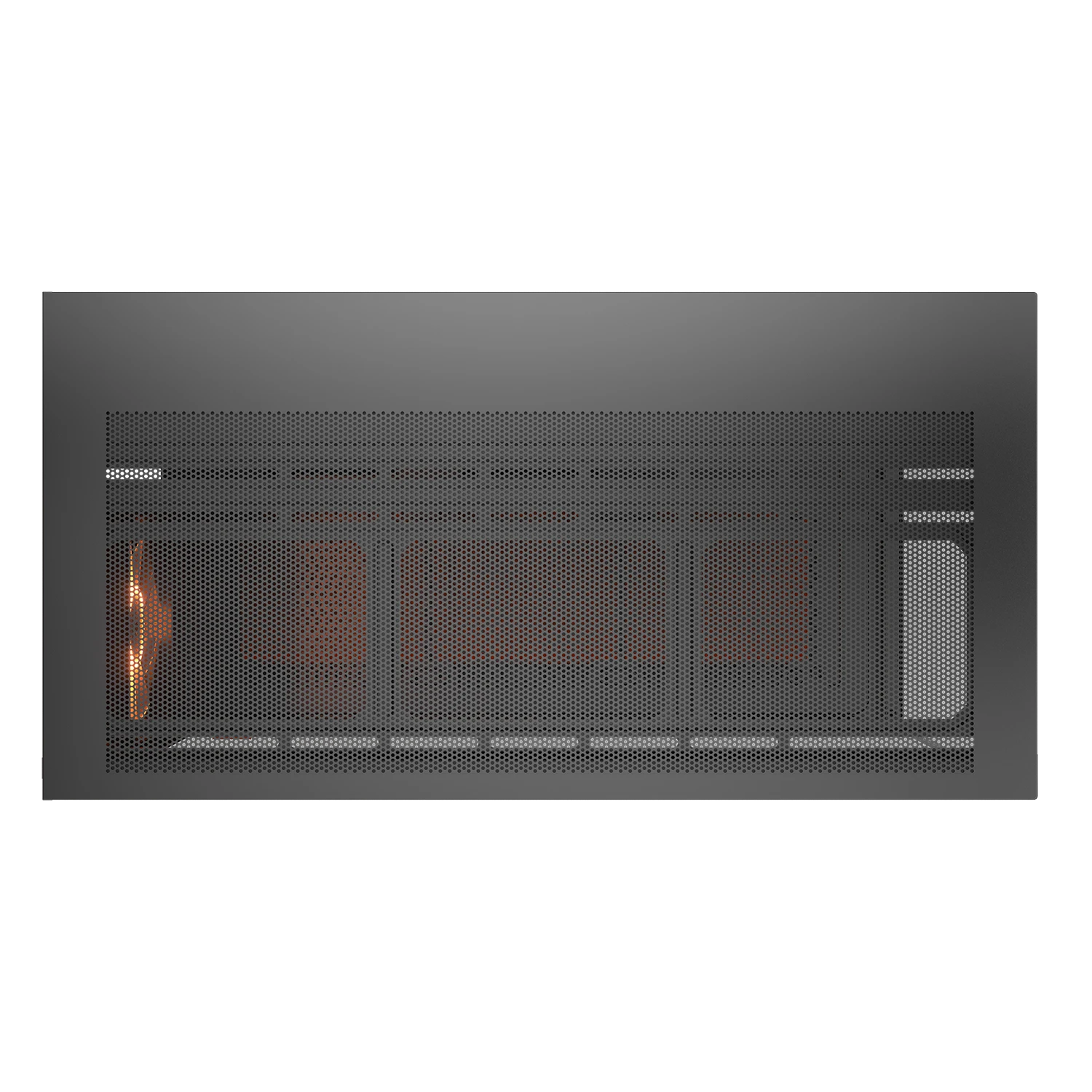

Magnetic dust filters at the roof and base of the Central Floating Ventilation structure proactively prevent dust and debris buildup, keeping airflow clean and uninterrupted without disrupting the suspended design.
Vertical Spatial Efficiency
Space Engineering
Architectural Strength
Versatile Compatibility
Compatible with reverse connector motherboards and accommodating GPUs of up to 430mm, the CFV235 Vision is engineered for the gaming rigs of the future. An L–shaped GPU mounting bracket with flexible installation options protects against GPU sag.
Peripheral Vision
The CFV235 Vision is equipped with USB 3.2 Gen 2x2 Type-C (20 Gbps) x1, USB 3.0 Type-A x 2, 4 pole headset audio jack for versatile device and peripheral connectivity.
Cooling Capacity

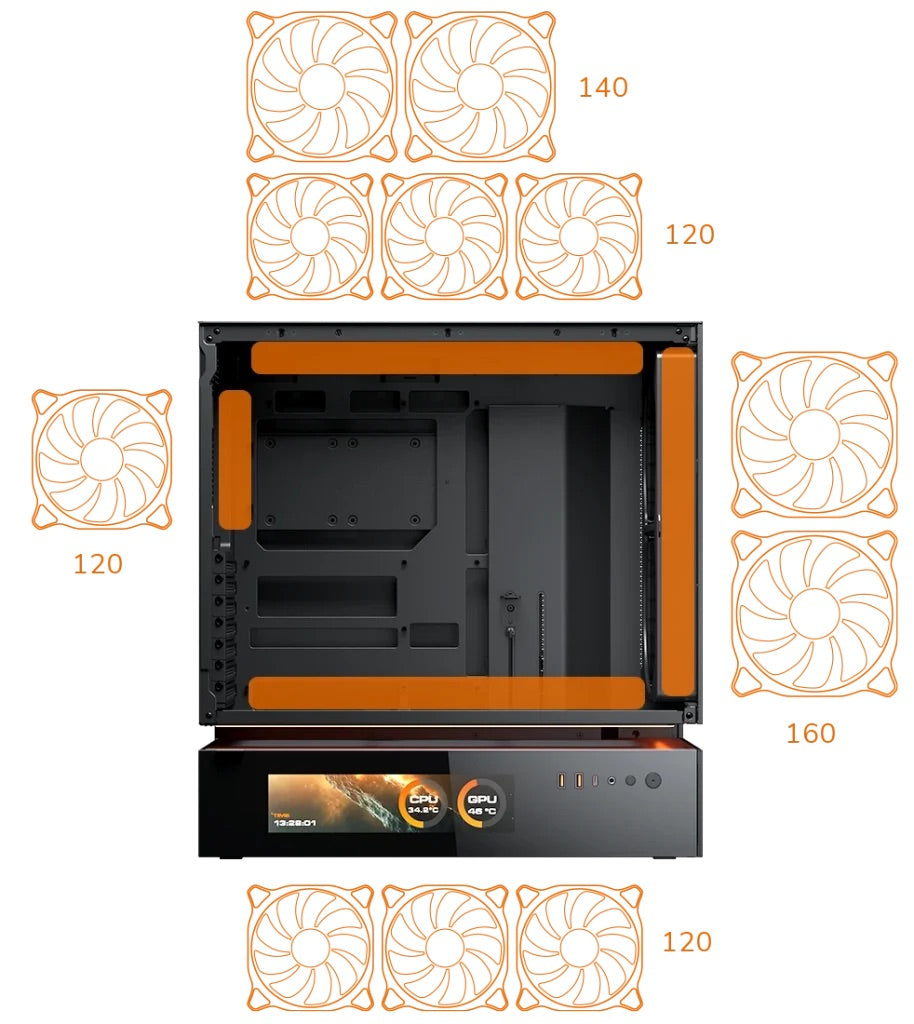

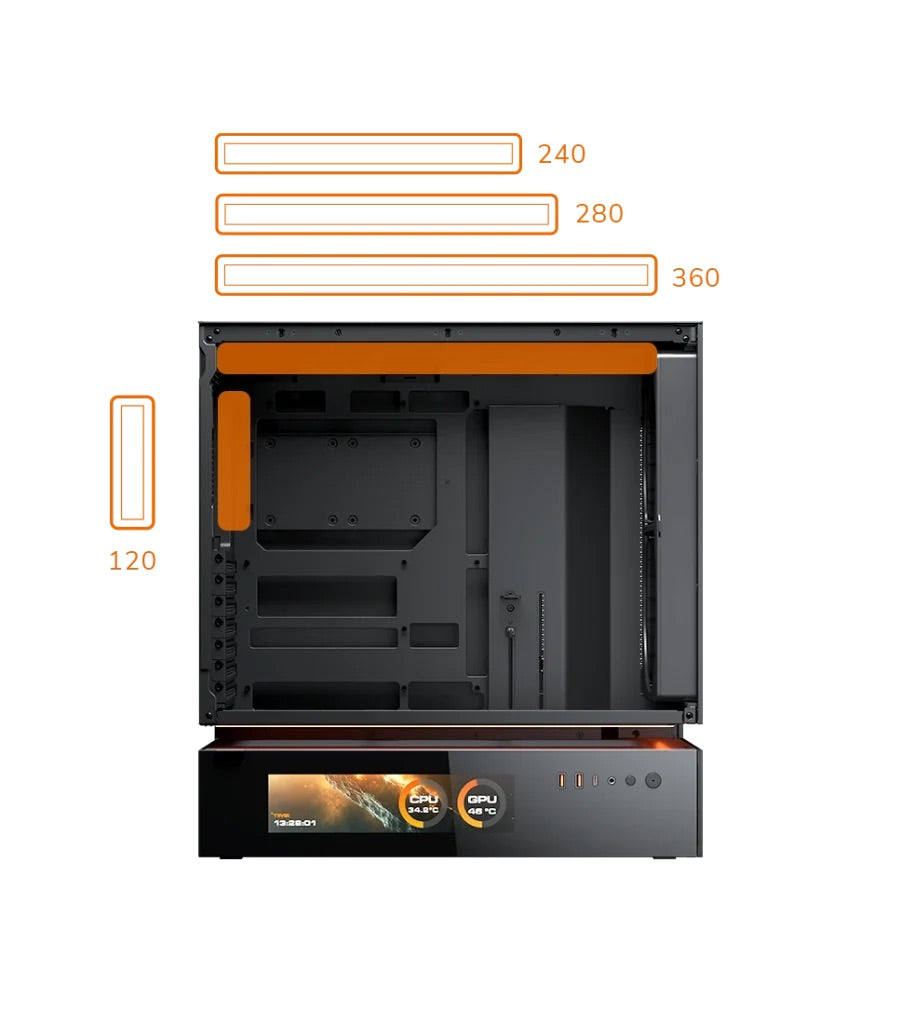

The CFV235 Vision has a fan capacity of 3x120mm or 3x140mm on the top, 3x120mm on the floor of the main chamber, 2x120mm fans on the motherboard side, and 1x120mm (pre-installed) on the rear. Water cooling support maxes out at 360mm on the top.
Full House
Specifications
| Product Name | CFV235 Vision / CFV235 Vision (White) | ||
|---|---|---|---|
| Case Form Factor | Mid Tower | ||
| Motherboard Type | Mini ITX / Micro ATX / ATX / CEB | ||
| Dimensions (WxHxD) | 235 x 493 x 460 (mm) 9.3 x 19.4 x 18.1 (in) |
||
| 9.16" LCD Monitor (1920 x 462 px) | Yes | ||
| I/O Panel | USB 3.2 Gen 2x2 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button | ||
| 3.5" Drive Bay | 2 | ||
| 2.5" Drive Bay | 2+2 (converted from 3.5" drive bays) | ||
| Expansion Slots | 7 | ||
| Cooling Fan Support | Top | 120mm x 3 / 140mm x 3 | |
| M/B Side | 120mm x 2 | ||
| Bottom | 120mm x 3 | ||
| Rear | 120mm x 1 | ||
| Pre-installed Fans | M/B Side | Unity 240 ARGB PWM Reversed fan x 1 | |
| Rear | 120mm ARGB PWM fan x 1 | ||
| Speed | Unity 240 ARGB PWM Reversed fan: 700-1600 RPM ±10% 120mm ARGB PWM fan: 500-1400 ± 10% RPM |
||
| Connector | 5V 3 Pin (ARGB) / 4 Pin PWM (Fan) | ||
| Maximun Number of Fans | 9 | ||
| Water Cooling Support | Top | 360mm / 280mm / 240mm / 140mm / 120mm | |
| Rear | 120mm | ||
| Aurora LED Strip | Yes | ||
| PWM and RGB hub Sync with M/B | Yes | ||
| Max. Graphics Card Length | 430 (mm) / 16.9 (in) | ||
| Max. CPU Cooler Height | 175 (mm) / 6.9 (in) | ||
| Max. PSU Length | 200 (mm) / 7.9 (in) | ||
| Specification | Detail |
|---|---|
| Carton Weight | 12.3 kg |
| Carton Quantity | 1 |
| Warranty | 1 Year |
| Carton Volume | 100.2 dm³ |
| MPN | 382DA40.0003 |
| Barcode | 192554009735 |
