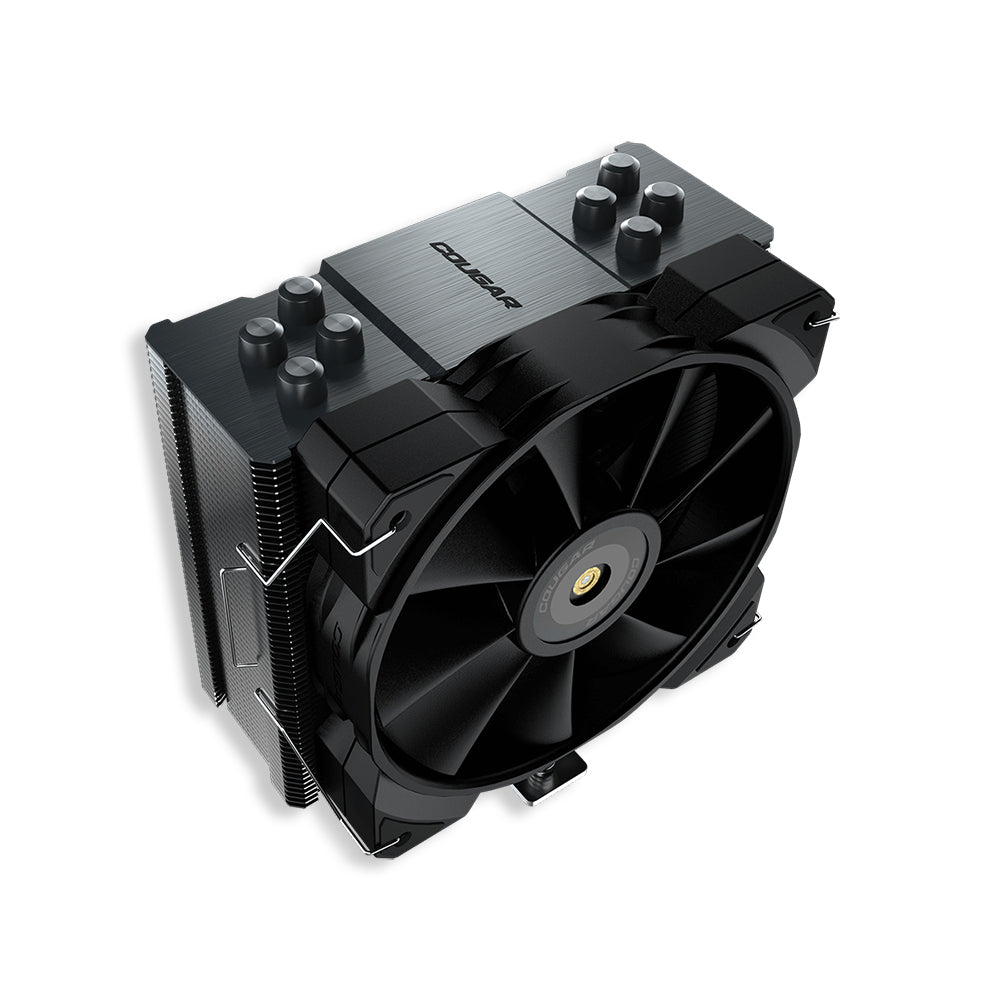

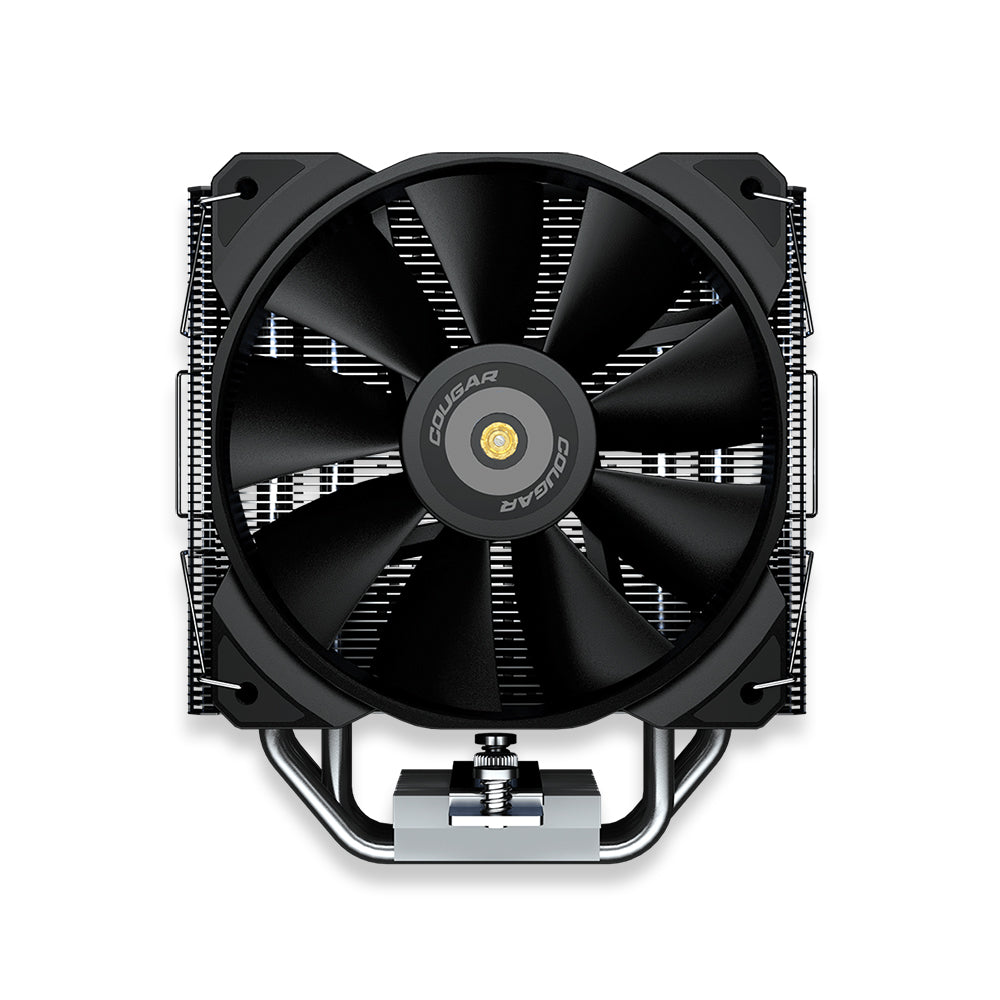

The Forza 50 single tower air cooler provides users with perfect heat dissipation.
-
Elegant Pipe Caps Decoration: The elegant cap design increases the aesthetic of the cooling tower and prevents oxidation at the heat pipe - the perfect combination of style and performance.
-
Hyper Fan With 2000 RPM (max): The Forza 50 is equipped with a COUGAR MHP 120 high-performance fan. With the durable metallic-reinforced motor hub and metal bearing shell design, as well as a fan speed capable of reaching up to 2000 rpm, the COUGAR MHP 120 provides high airflow and high static pressure to achieve an optimum balance between ultra-silent operation and extreme cooling. This makes it the perfect partner for the Forza 50 to deliver outstanding performance.
-
Vacuum Tunnel Design: To further enhance the efficiency of heat dissipation, the Forza 50 was designed with a 90-degree flip shape on both ends of the fins on the heatsink. This closed space design creates an air tunnel that shuts off airflow from the sides of the radiator, resulting in different air pressure from both sides of the Forza 50. This air pressure difference boosts the airflow through the fins for maximum cooling efficiency.
-
HDT Technology With 4 Heat Pipes: With HDT technology (HEAT PIPE DIRECT TOUCH) and four heat pipes with a 6mm diameter, the Forza 50 can provide excellent heat dissipation capacity, enough for entry-level users.
-
Excellent Compatibility: Through design verifications and installation tests, the Forza 50 provides superior component compatibility with RAM and GPUs from most brands.
-
Only 155mm Height: The Forza 50 can be installed in most tower chassis that support ATX motherboards with a height of only 155mm, making the Forza 50 an excellent choice for those who love building their own PCs.
-
Dual Fan Acceptable: The Forza 50 comes with an additional set of fan clips that allow for a second 120 mm fan of any brand to increase the heat dissipation efficiency of the Forza 50.
-
User-friendly Installation: To improve the overall installation experience, the Forza 50 comes with an INTEL/AMD bracket set that can be easily installed in only a few simple steps. A screwdriver is also included in the package for users to use directly without any prerequisite.
-
CPU Socket: Intel Socket LGA 115X / 1366 / 1200 / 1700 / 2011 / 2066 (Core i3 / i5 / i7 / i9 CPU) AMD AM4 / FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2 CPU
Technical Specifications:
-
Dimensions (WxDxH): 120 x 120 x 25mm
-
Fan Model: MHP120
-
Bearing Type: HDB Hydro Dynamic Bearing
-
Speed: 600-2000RPM +/- 200RPM
-
Air Flow: 82.48 CFM +/- 10%
-
Air Pressure: 4.24 mm H2O +/- 10%
-
Acoustical Noise: 31.68 dBA (Max)
-
Cable Length: 200 mm (with 100 mm Y-cable)
-
Power Consumption: 2.76 W +/- 10%
-
Connector & Control: 4 Pin PWM
-
Rated Voltage: 12 VDC
-
Rated Current: 0.23 A
Heatsink:
-
CPU touched base: Copper with HDT Technology
-
Heat Pipe diameter: 6mm
-
Heat pipe number: 4 units
-
Heat pipe finish: Copper with Nickel plating
-
Craftsmanship: Zipper fin
-

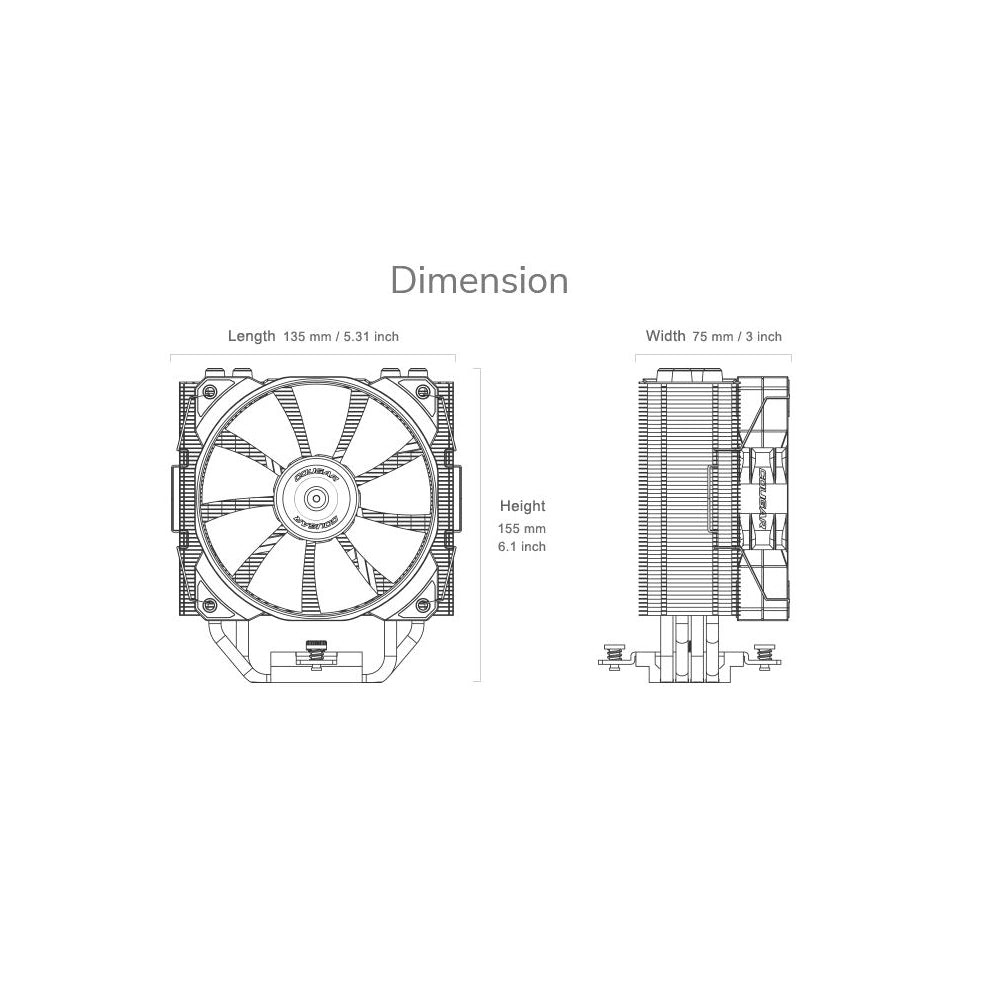

Dimensions (WxDxH): 50 x 135 x 155mm
-
Weight: 596g
-
Weight with fan: 792g
