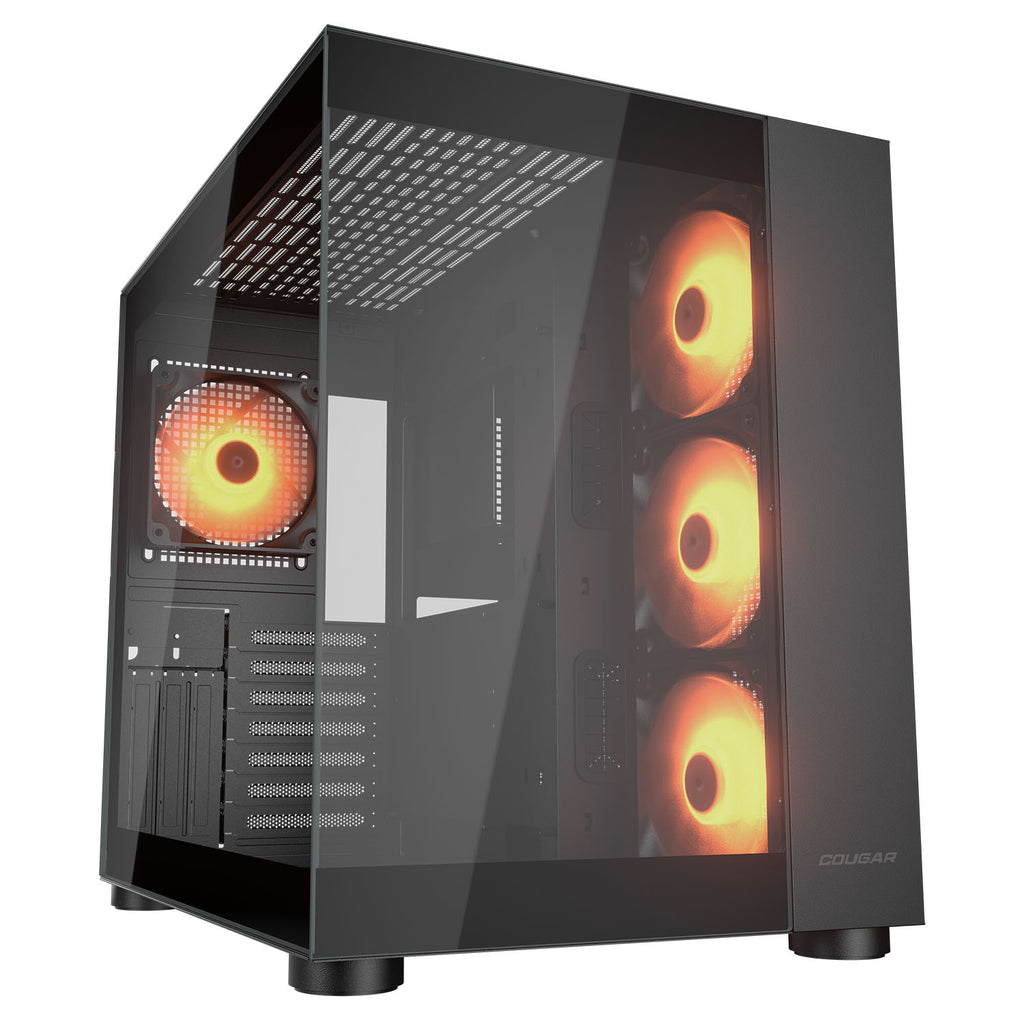

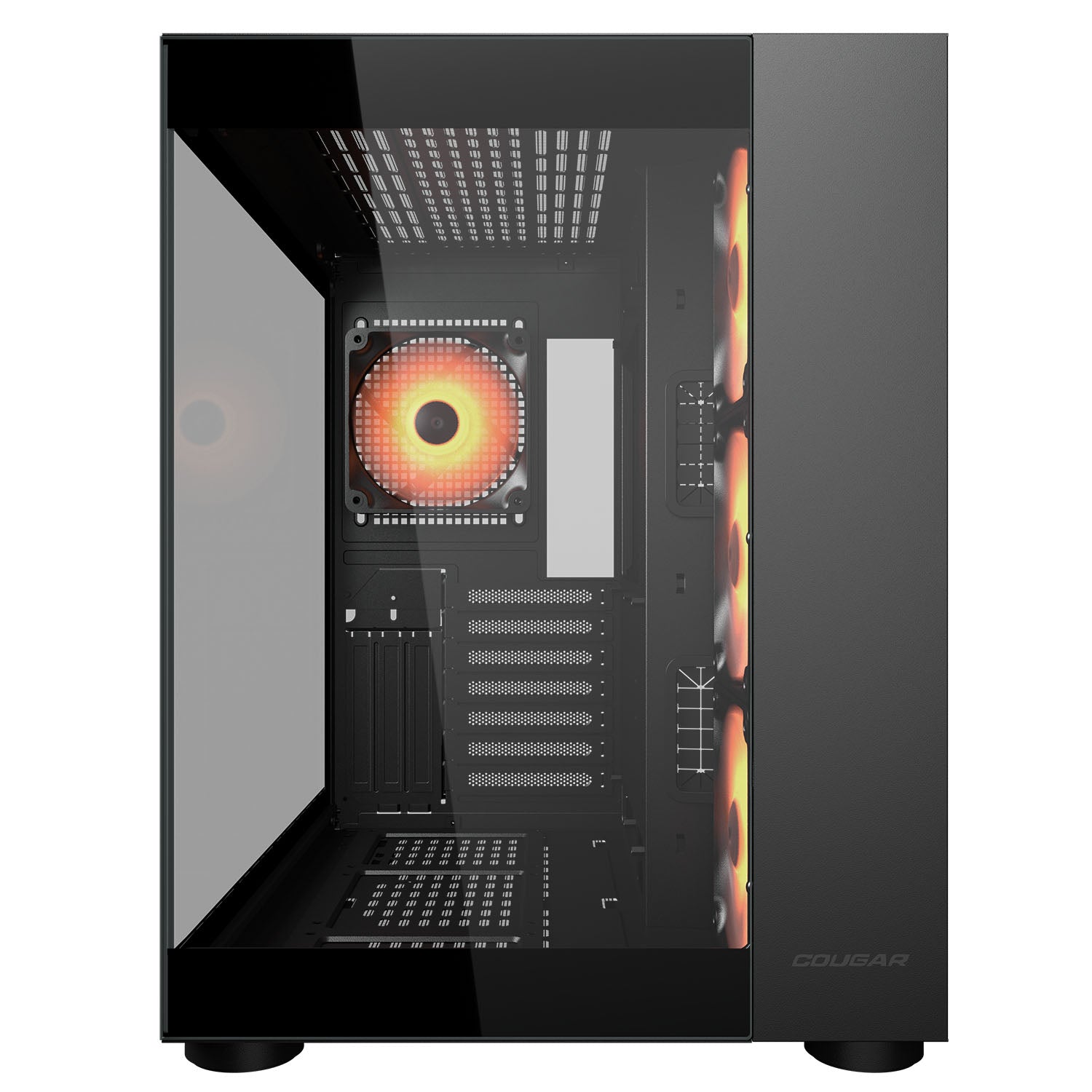

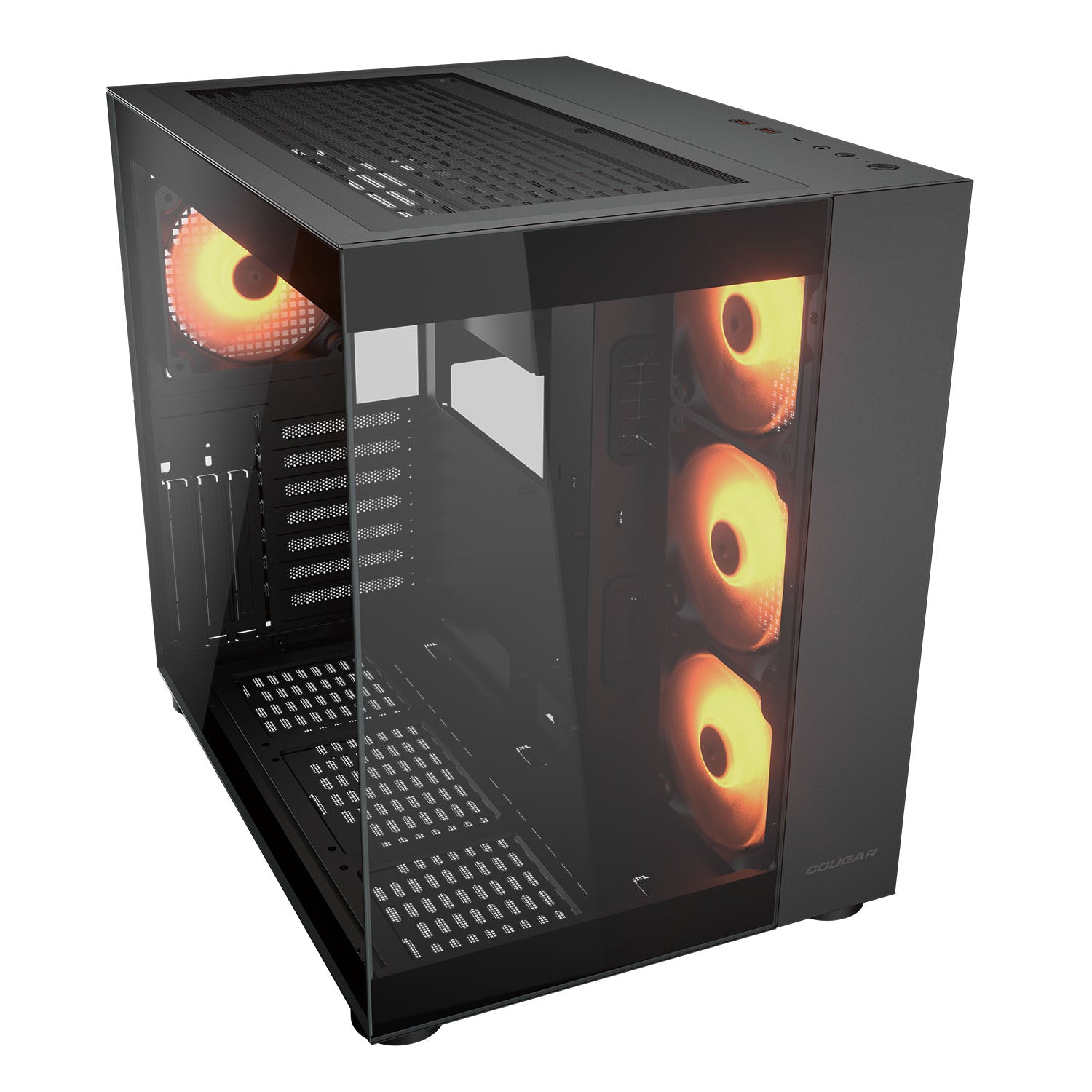

The FV150 RGB features a smart dual-chamber design that combines aesthetics with functionality. One chamber offers a clear view of your build through glass panels, while the second chamber discreetly hides cables, storage drives, and the PSU for a clean, organized look. With a user-friendly bottom fan bracket and support for high-performance GPUs and ATX motherboards, the FV150 RGB offers flexibility and ease for all your build configurations.
Key Features:
-

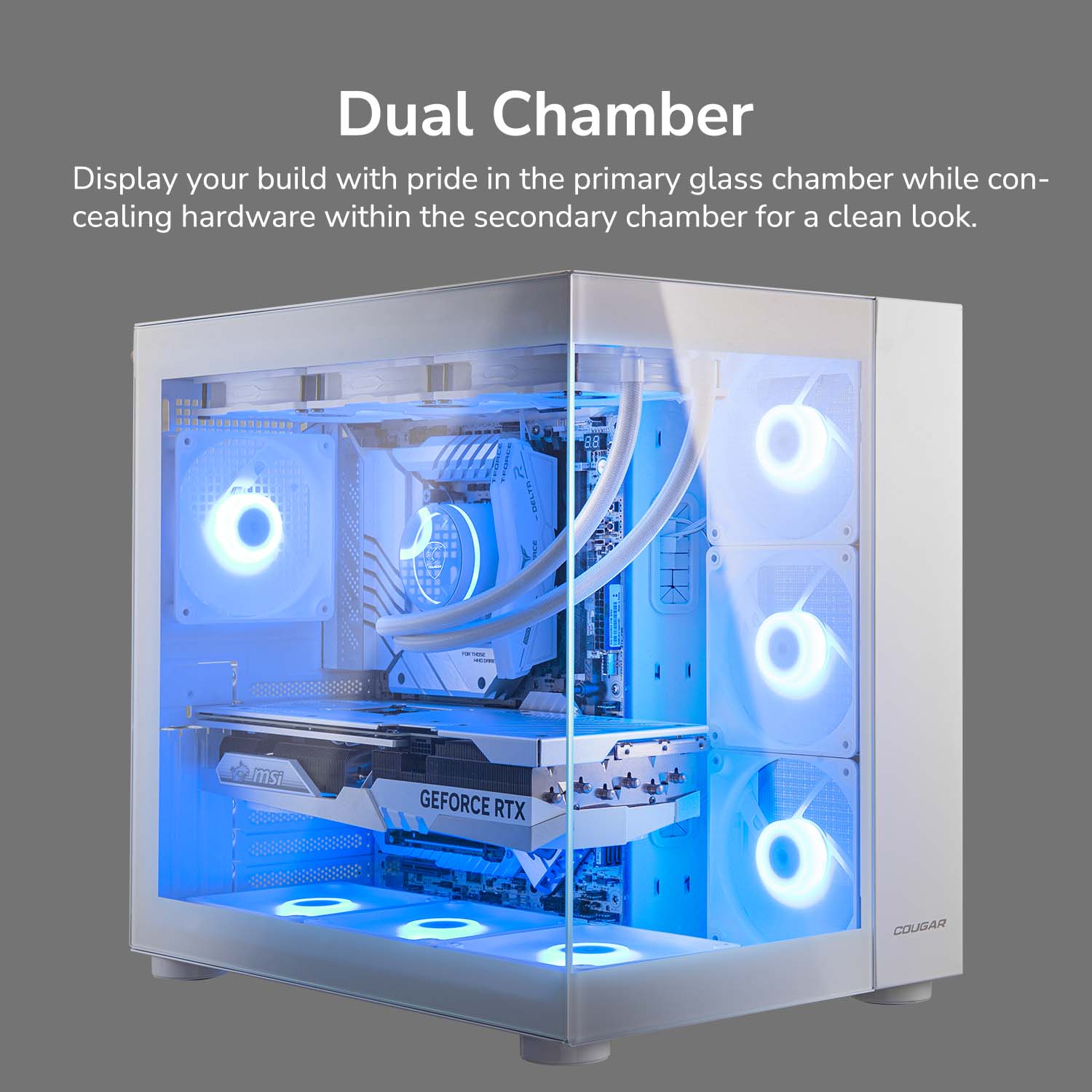

Dual-Chamber Design: Display your build in the main glass chamber while concealing cables, storage drives, and PSU in the secondary chamber for a sleek, clutter-free setup.
-
Supports Up to 400mm GPUs: Enjoy versatile GPU configurations, including vertical GPU orientation for a modern, high-performance aesthetic.
-

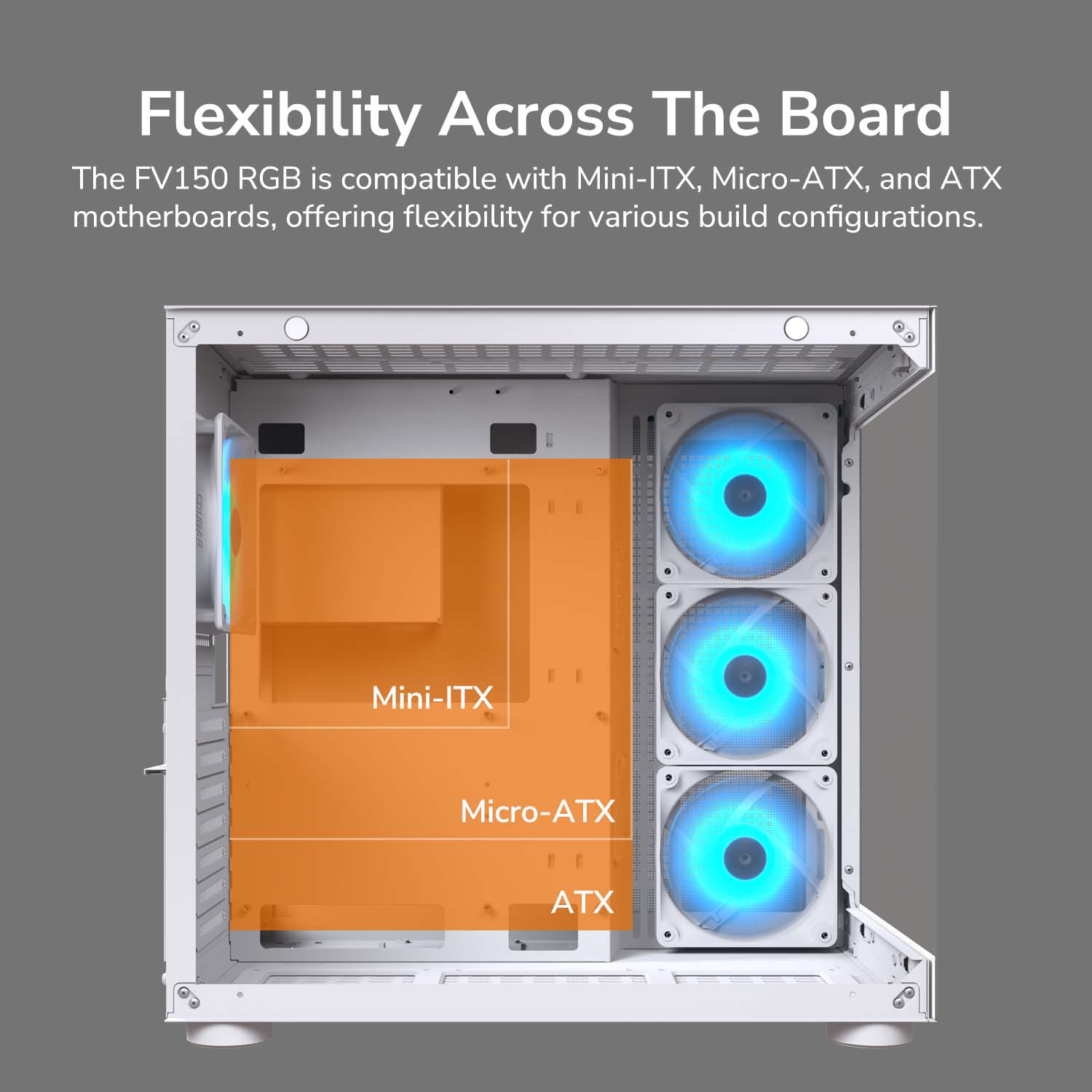

Motherboard Compatibility: Supports Mini-ITX, Micro-ATX, and ATX motherboards, providing flexibility for various build types.
-

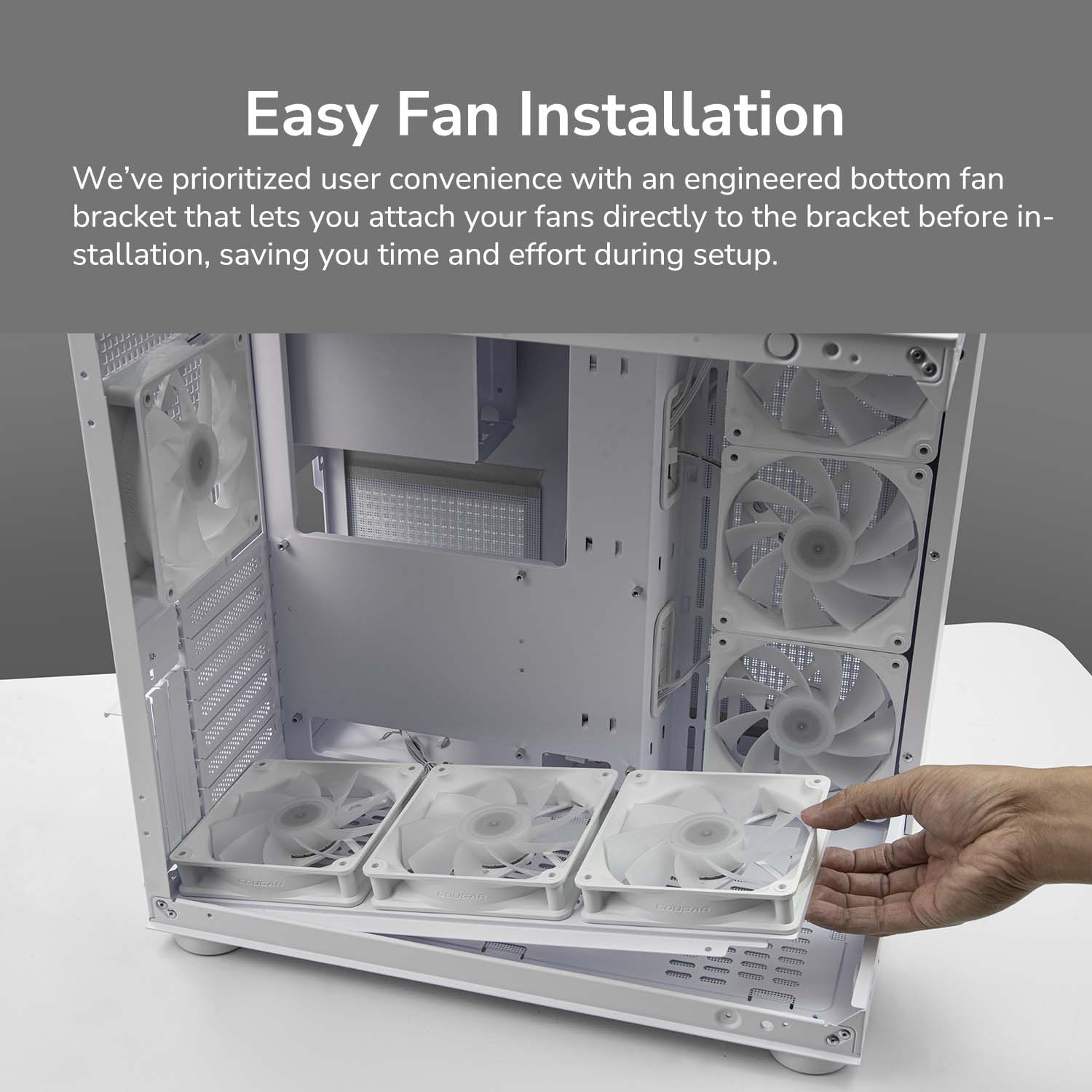

Engineered Bottom Fan Bracket: Simplify fan installation with a bottom bracket that lets you attach fans prior to setup, making the process hassle-free.

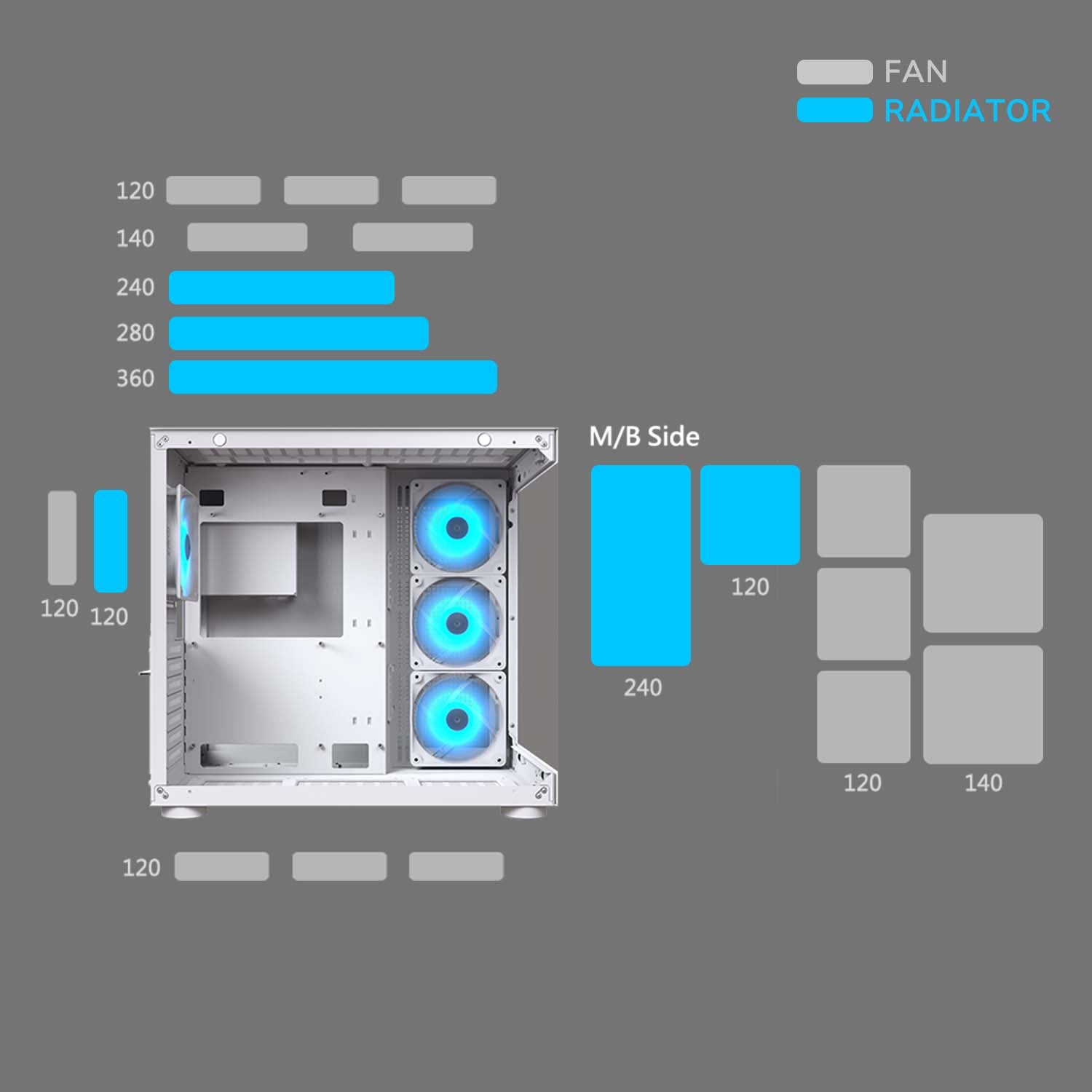

Advanced Cooling Capacity:
-
Fan Support:
- Top: 3 x 120mm or 2 x 140mm fans
- Bottom: 3 x 120mm or 2 x 140mm fans

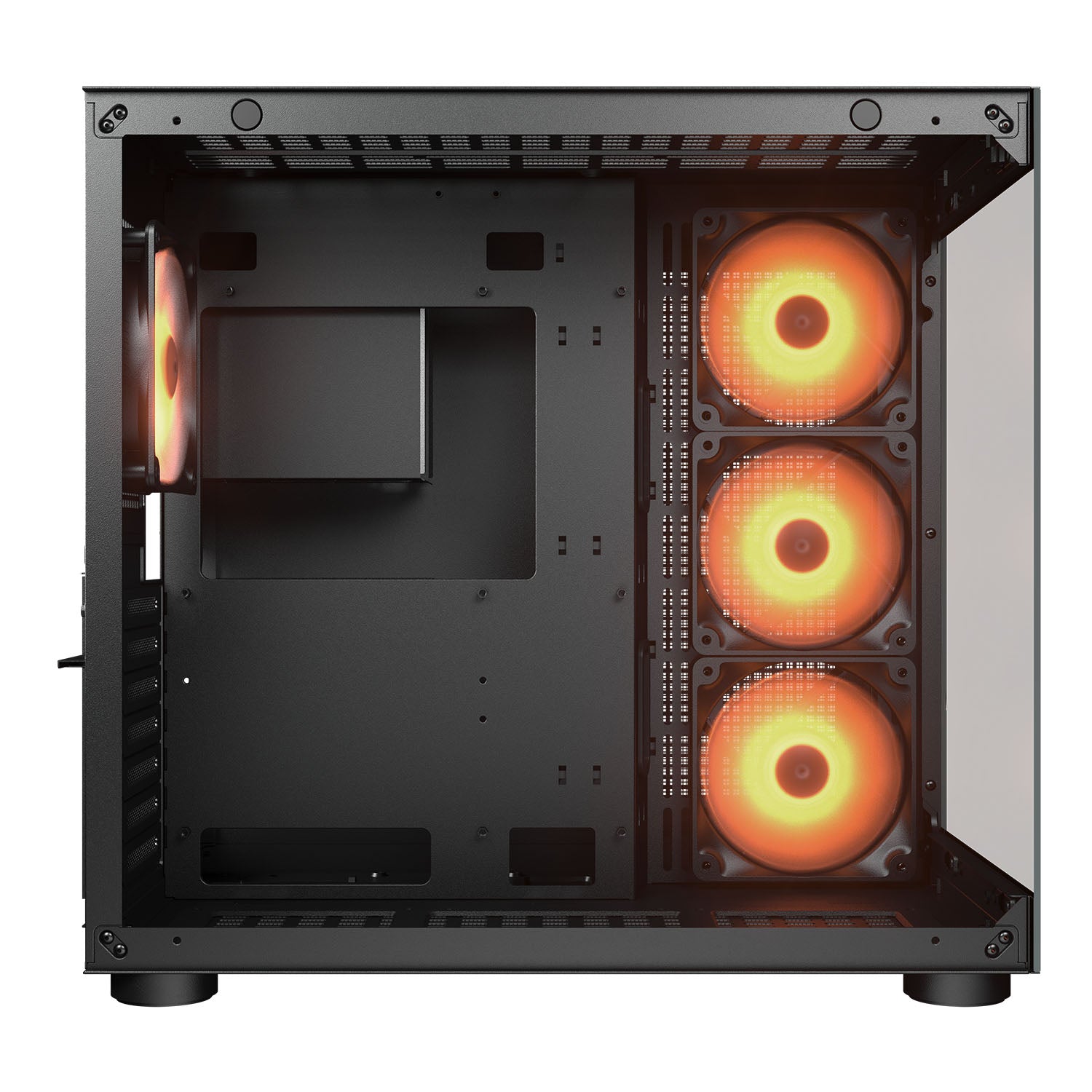

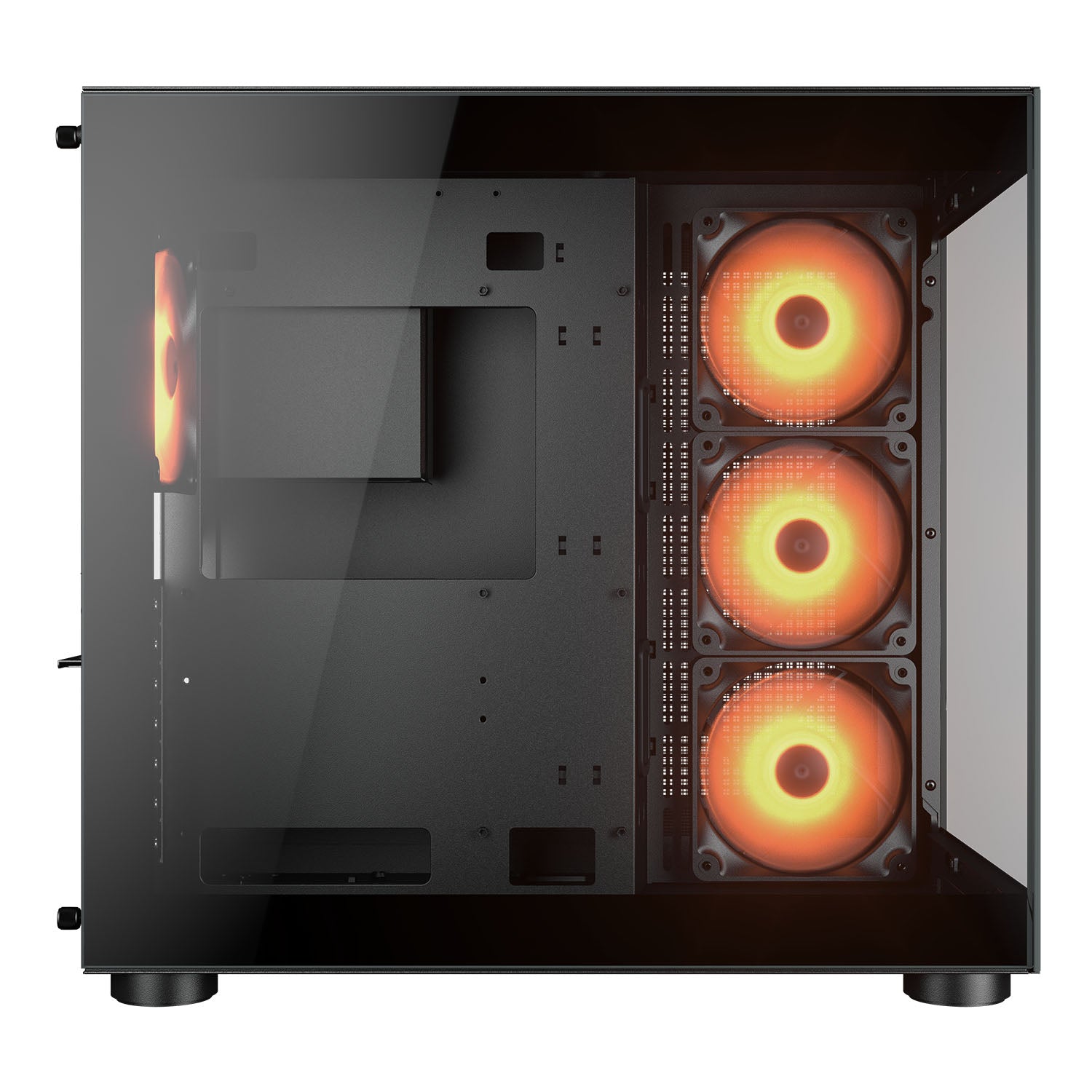

- Side: 3 x 120mm fans (ARGB side fans preinstalled)
- Rear: 1 x 120mm fan (ARGB fan preinstalled)
-
Water Cooling Support: Maximum radiator capacity of 360mm on the top and 240mm on the side for advanced liquid cooling setups.

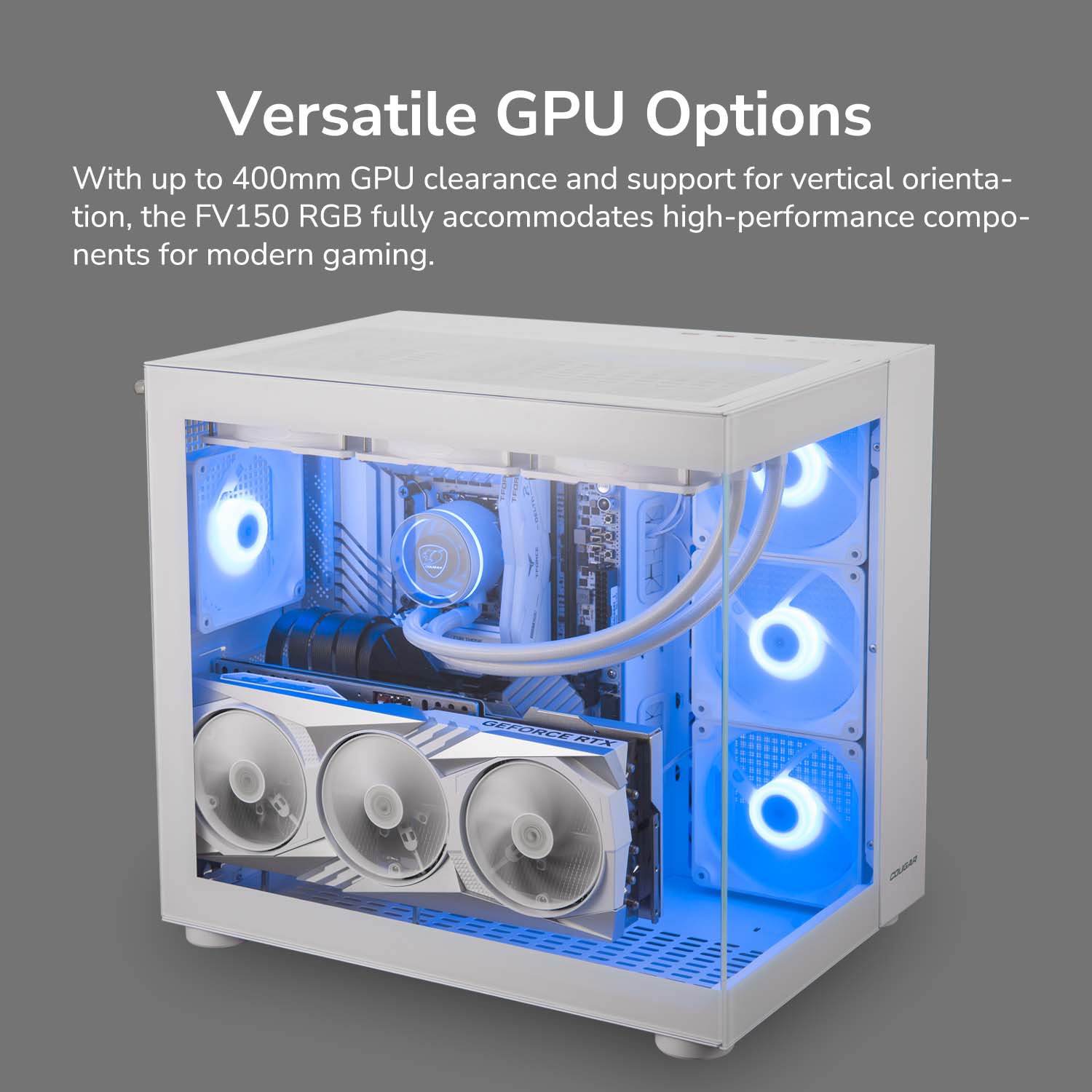

Versatile GPU Options:
With up to 400mm GPU clearance and support for vertical GPU orientation, the FV150 RGB accommodates even the most demanding gaming components.
User-Friendly Flexibility:
-
Motherboard Compatibility: Supports Mini-ITX, Micro-ATX, and ATX motherboards for a range of build configurations.
-

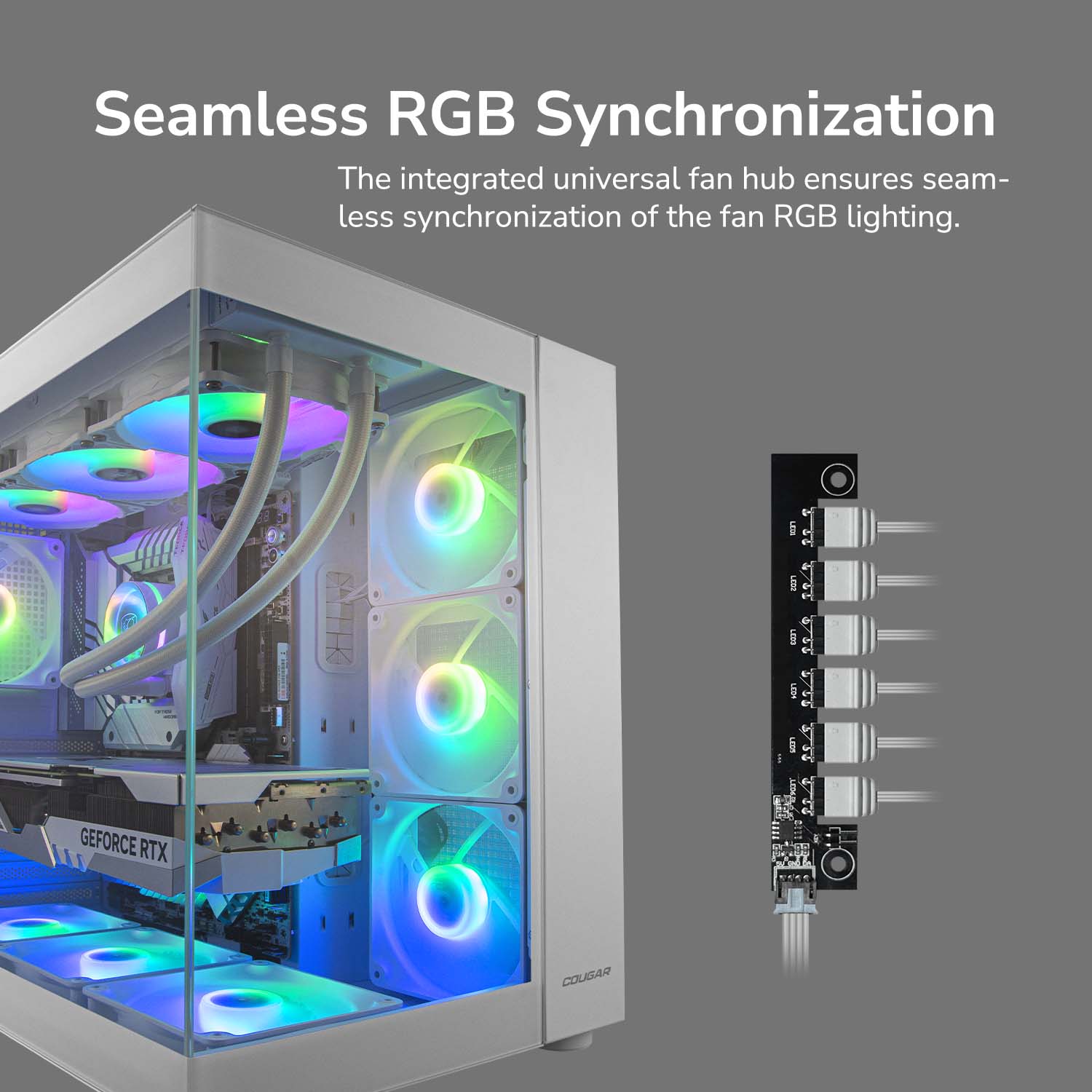

Seamless RGB Synchronization: The integrated universal fan hub provides easy synchronization of RGB lighting across your fans without the need for additional software.
I/O Panel and Storage:
-

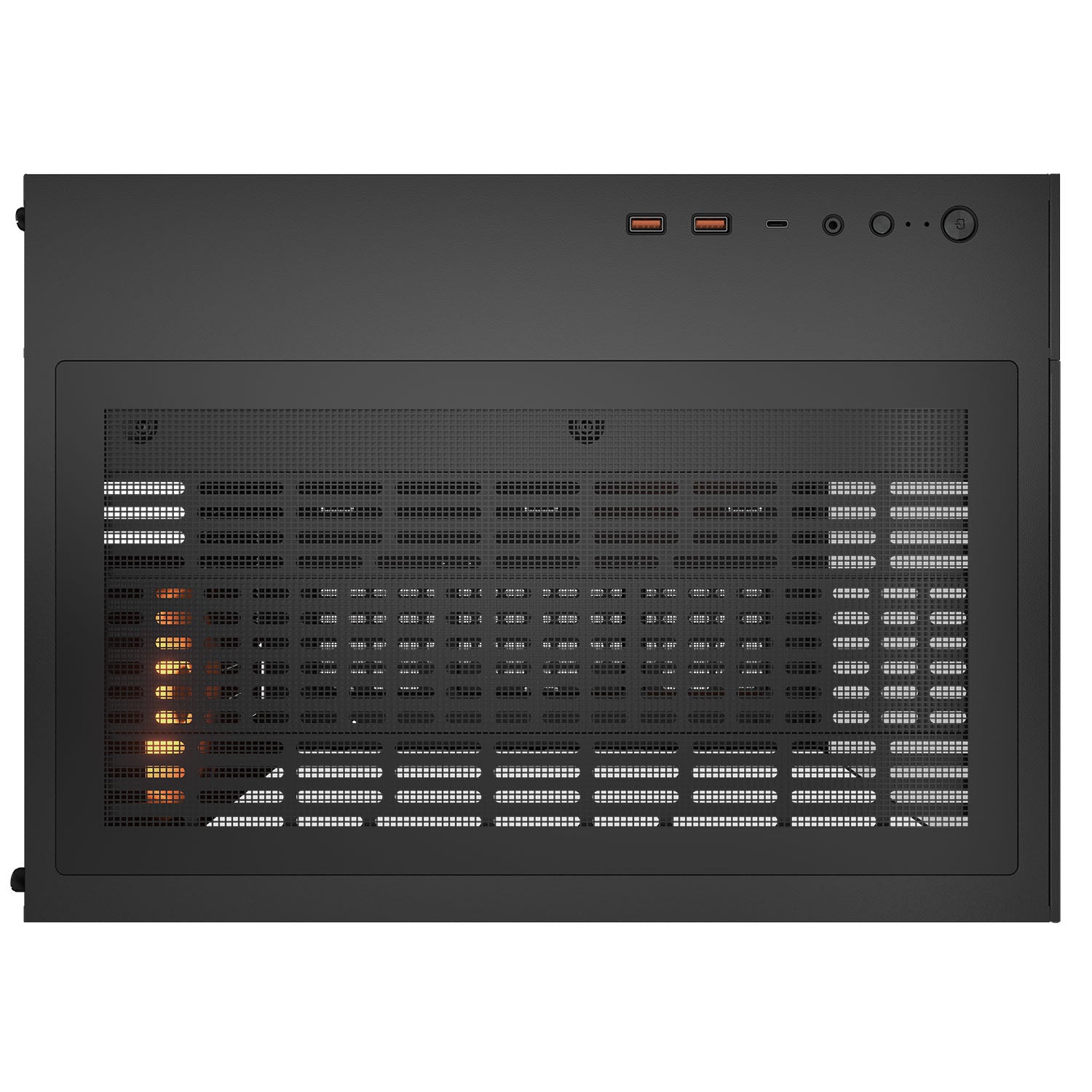

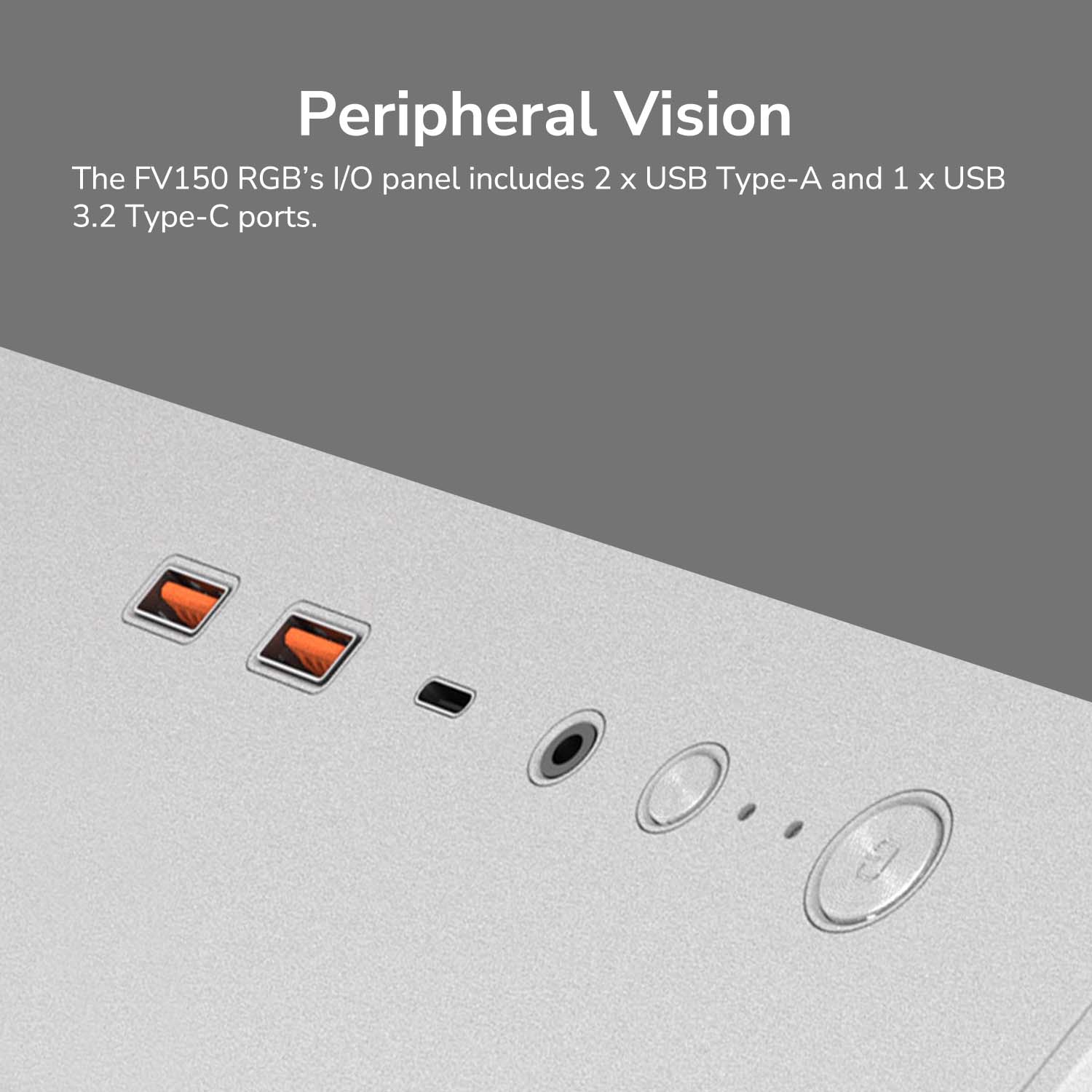

Peripheral Vision: The I/O panel includes 2 x USB Type-A and 1 x USB 3.2 Type-C ports for fast, convenient access.
-

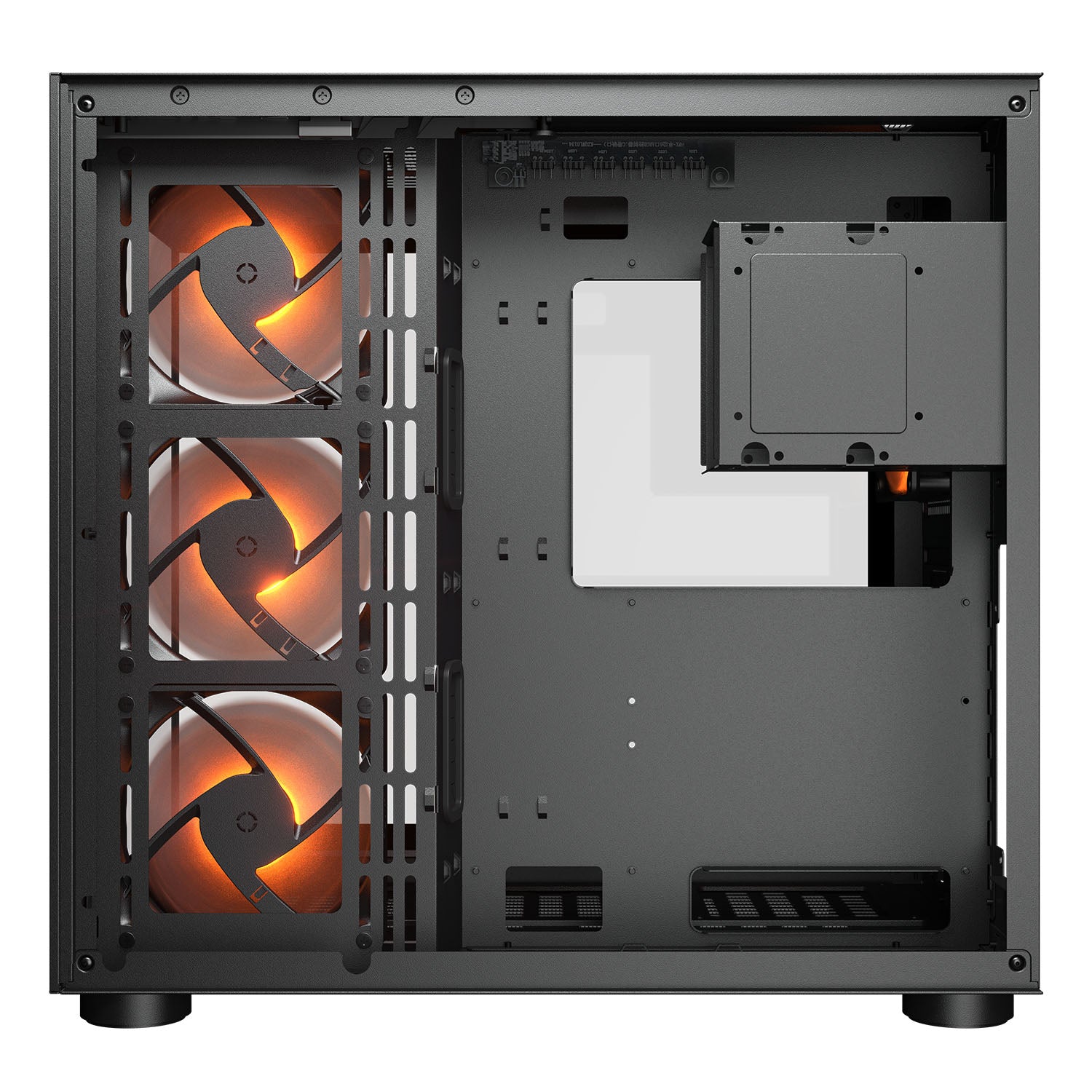

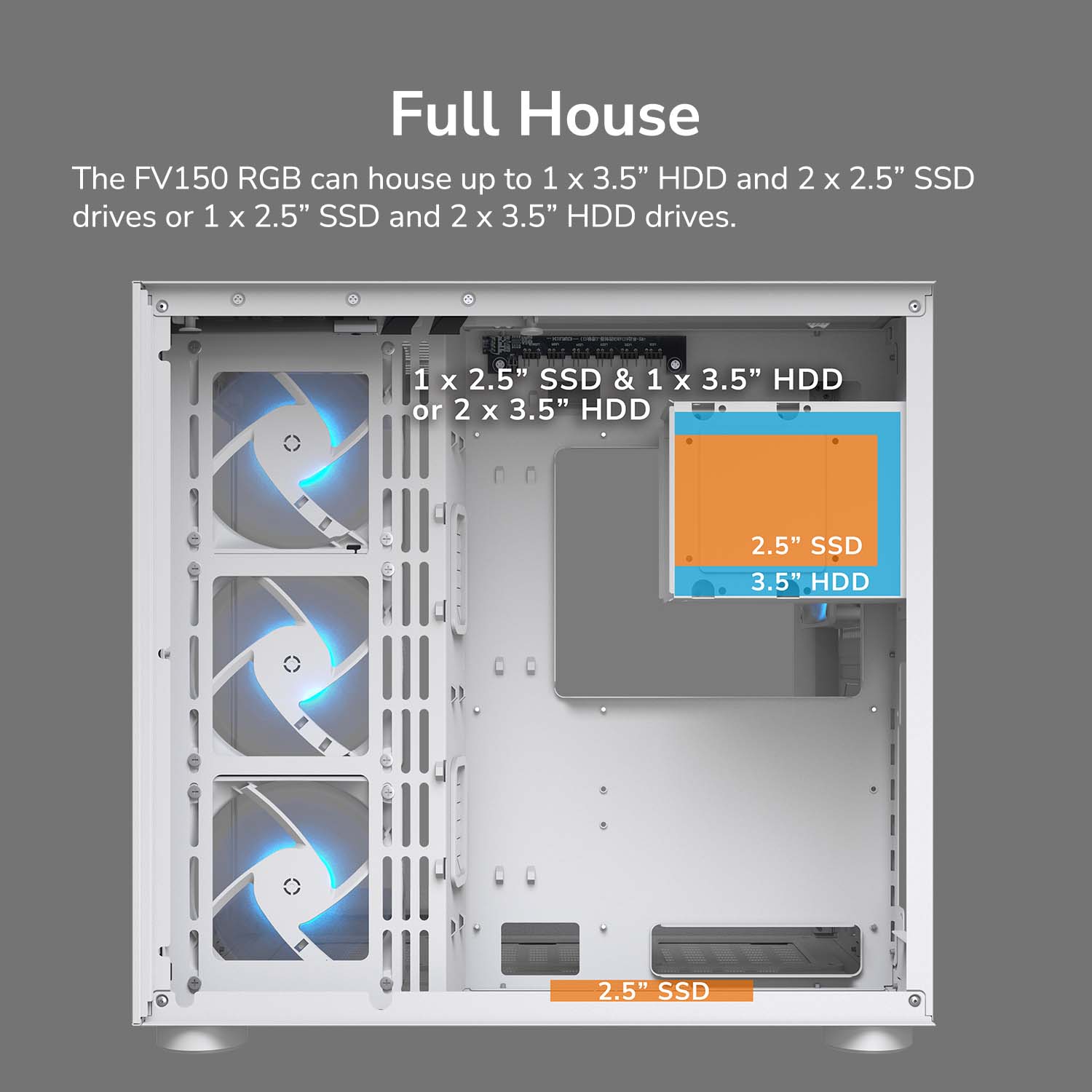

Storage Flexibility: Can house up to 1 x 3.5” HDD and 2 x 2.5” SSDs, or 1 x 2.5” SSD and 2 x 3.5” HDDs, ensuring ample storage options for your build.
Protection and Maintenance:
-

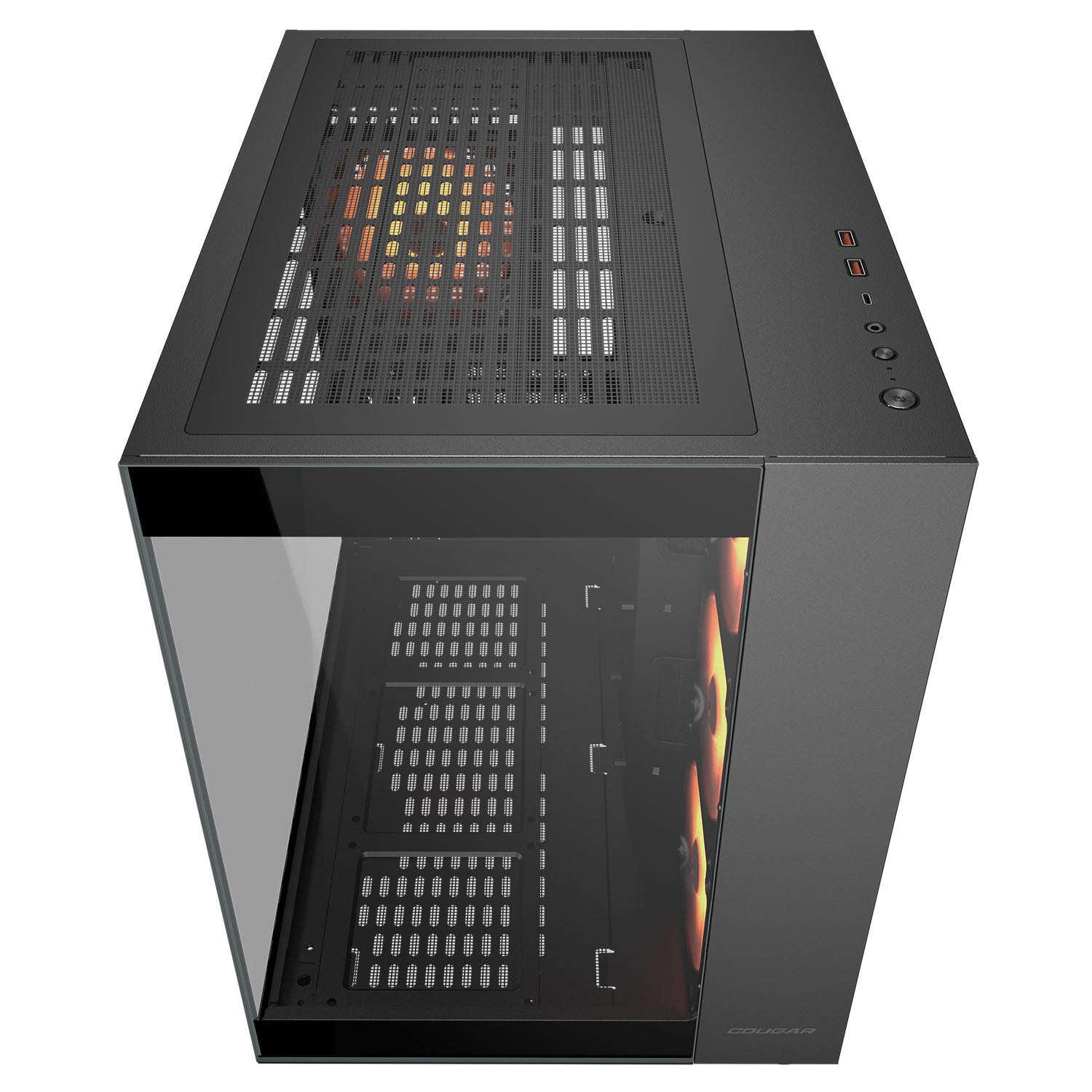

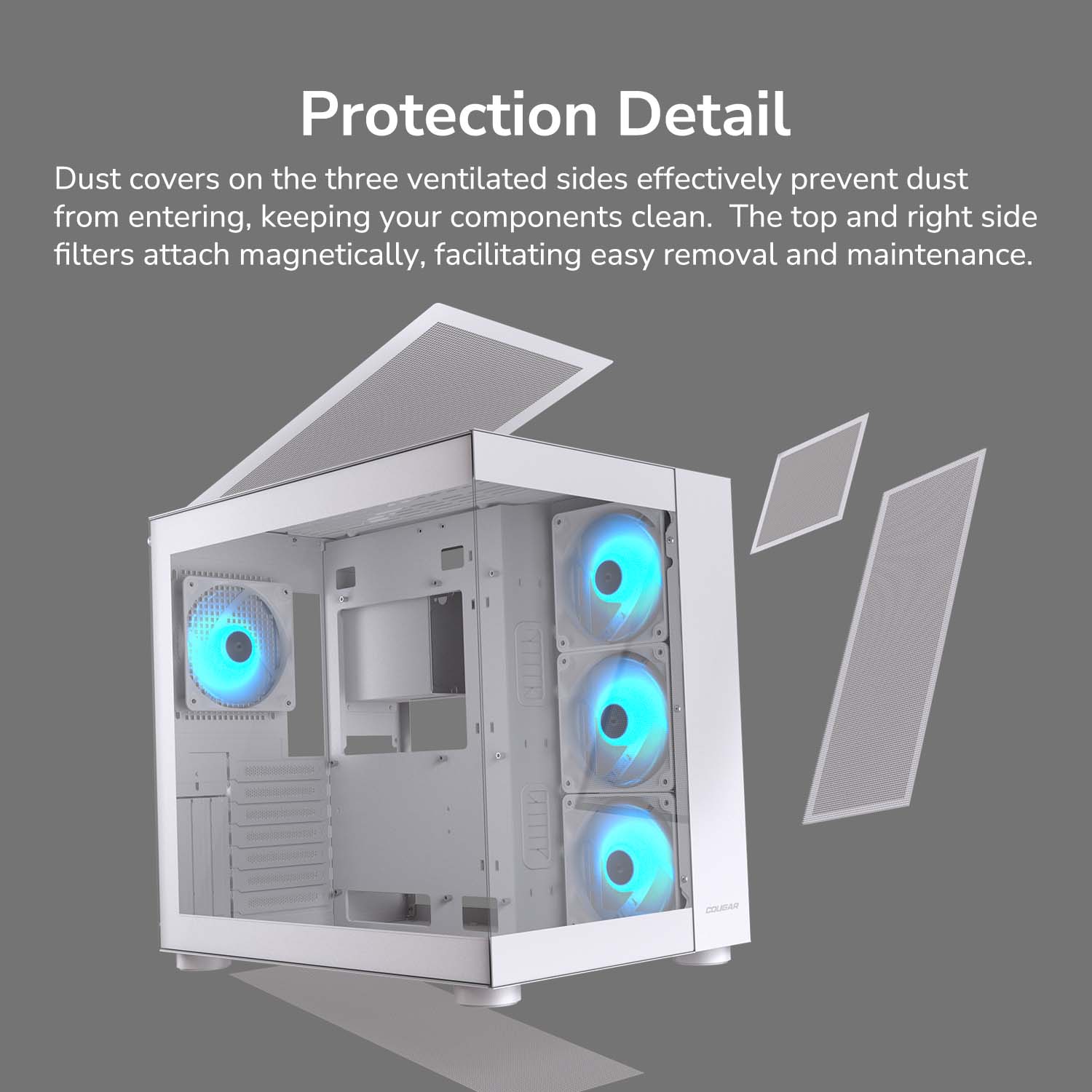

Dust Filters: Magnetic dust filters on the top and right side, along with a ventilated bottom cover, effectively keep dust out while facilitating easy removal and maintenance.
Specifications
| Product Name |
FV150 RGB / FV150 RGB (White) / FV150 RGB (Pink) |
| Case Form Factor |
Mid Tower |
| Motherboard Type |
Mini ITX / Micro ATX / ATX |
| Dimensions (WxHxD) |
300 x 400 x 415 (mm)
11.8 x 15.7 x 16.3 (in) |
| I/O Panel |
USB Type-C Gen 2 x 1, USB-A 3.0 x 2, 4 Pole Headset Audio Jack |
| 3.5" Drive Bay |
2 |
| 2.5" Drive Bay |
1+1 (converted from 3.5" drive bays) |

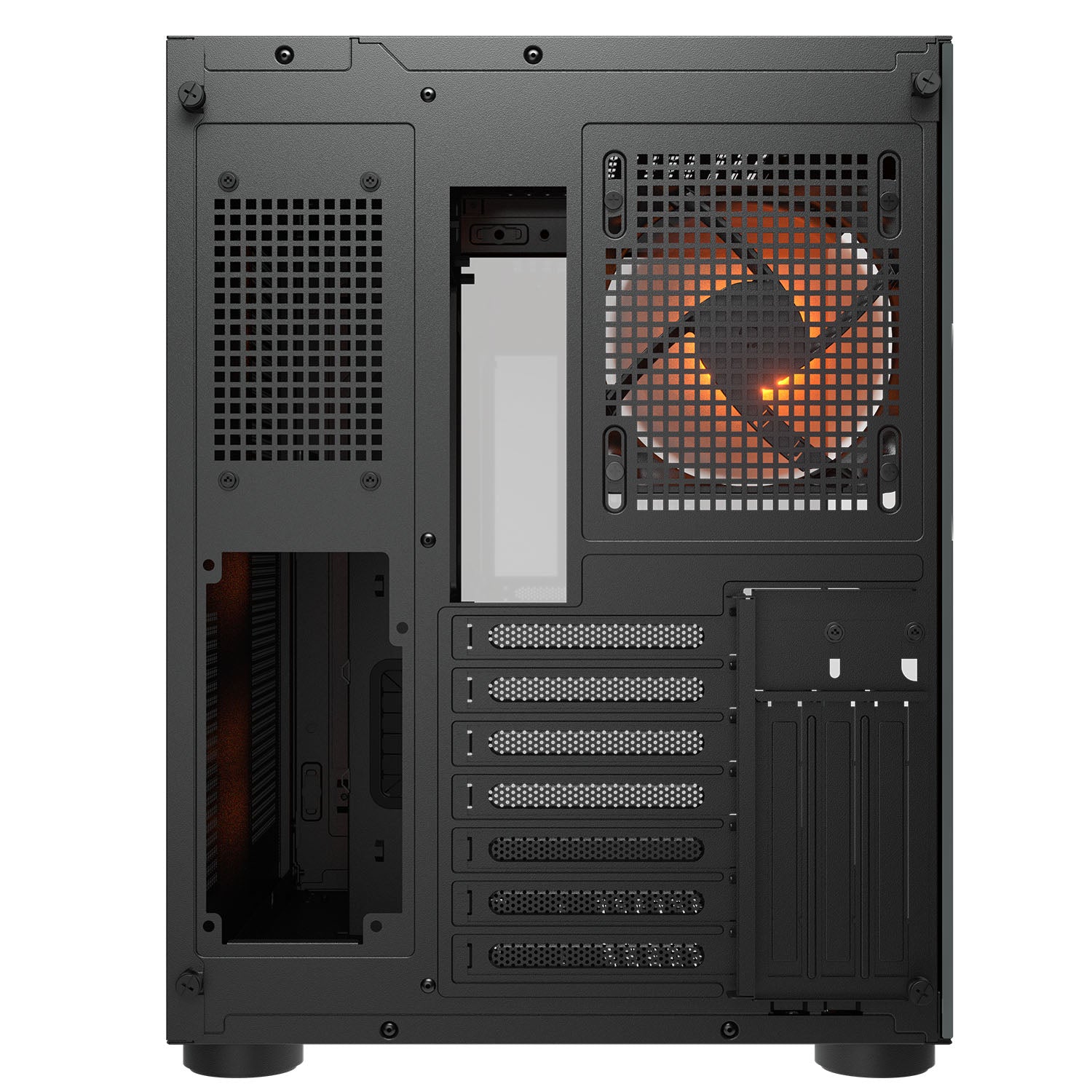

| Expansion Slots |
7+3 |
| Vertical GPU Support |
Yes |
| Cooling Fan Support |
Top |
120mm x 3 / 140mm x 2 |
| M/B Side |
120mm x 3 / 140mm x 2 |
| Bottom |
120mm x 3 |
| Rear |
120mm x 1 |
| Pre-installed Fans |
M/B Side |
120mm Reversed ARGB fan x 3 |
| Rear |
120mm ARGB fan x 1 |
| Speed |
1000 (±10%) RPM |
| Connector |
5V 3 Pin (ARGB) / 3 Pin (Fan) |
| Maximun Number of Fans |
10 |
| Water Cooling Support |
Top |
360mm / 280mm / 240mm |
| M/B Side |
240mm / 120mm |
| Rear |
120mm |
| Max. Graphics Card Length |
400 (mm) / 15.7 (in) |
| Max. CPU Cooler Height |
180 (mm) / 7.1 (in) |
| Max. PSU Length |
210 (mm) / 8.3 (in) |
