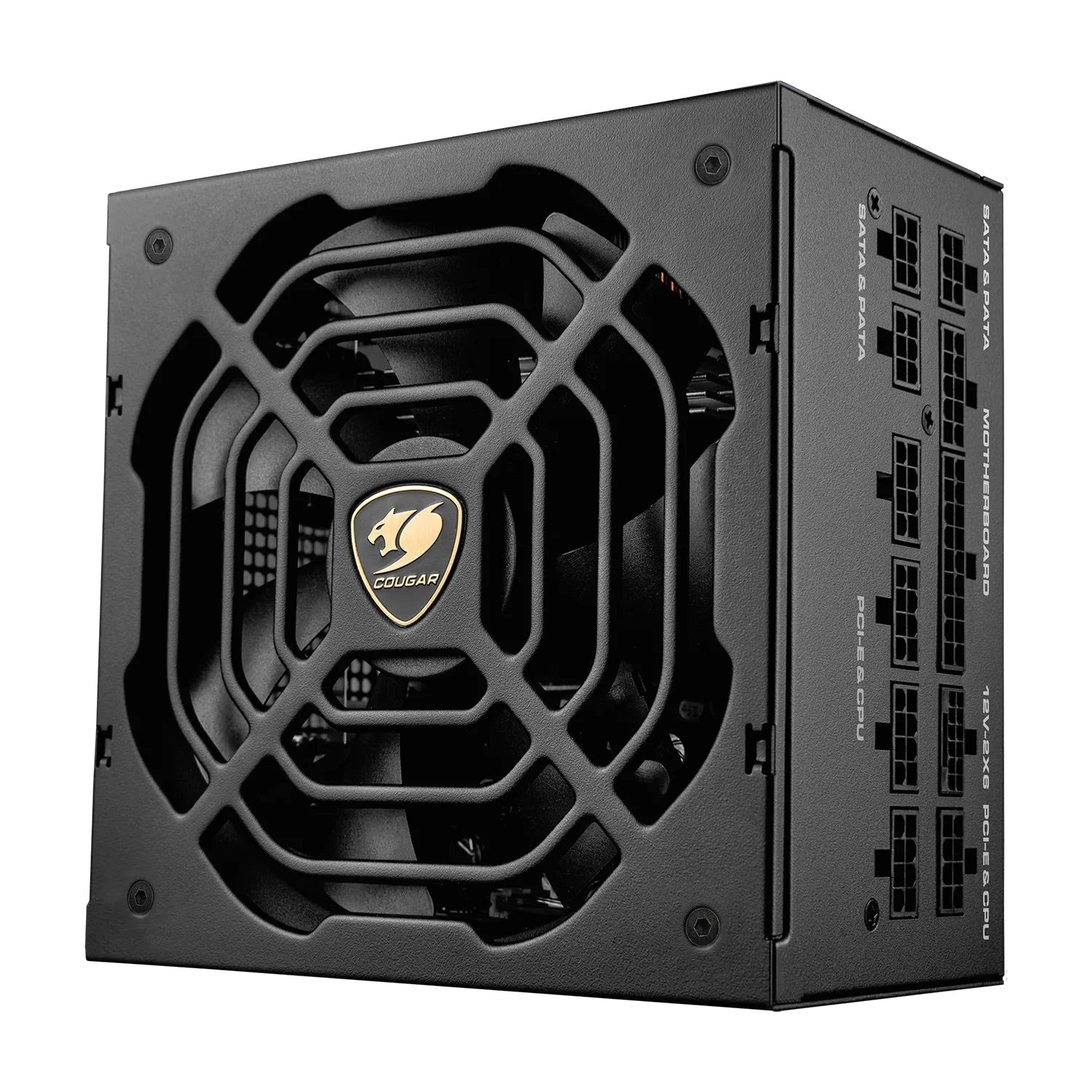

Name: GR 1000 - PSU
Brand: Cougar
SKU: 301229
Price: 169.99 CAD
Availability: InStock

Roll over image to zoom in Click on image to zoom

POWER YOU RELY ON

The COUGAR GR 1200/1000 is an 80 PLUS Gold-certified power supply, delivering reliable performance even at 40°C. Designed with a native PCIe 12V-2X6 connector, it meets Intel ATX 3.1 and PCIe 5.1 standards. As a modular PSU, it efficiently supports next-gen GPUs with a single 12+4-pin cable, reaching up to 91% efficiency. This reduces energy consumption, lowers electricity costs, and ensures stable power delivery.

Supports PCI Express 5.1 Graphics Cards with 12+4 Pin Connector for true 200% power excursion dynamic outputs.
80 PLUS Gold Certified for up to 91% efficiency in power conversion, reducing electricity bills.
Durable Fluid Dynamic Bearing Fan lets you experience noiseless gaming.
100% Refined Japanese Capacitors for outstanding component longevity in the PSU.
Designed for current and next-generation multi-core CPU platforms, compatible with the latest PC technology.
Powerful performance even at 40°C ambient temperature.
Full Protections with UVP, OCP, SCP, OTP, OVP, OPP
Platinum Cybenetics rating for efficiency (1000W only)
A+ Cybenetics rating for noise level. (1000W only)
The GR 1200/1000 is protected by a 10 year warranty with a build quality second to none.

ATX 3.1 Certified

Designed to support next-generation systems, the COUGAR GR 1200/1000 conforms to the ATX 3.1 standard. Featuring a native 12V-2X6 design, it provides power to the next-generation graphics cards through a single 12+4-pin cable. With an 80 PLUS Gold efficiency rating, it offers high-quality stability, durability, and reliability.

Designed for the Next Generation of GPUs

The COUGAR GR 1200/1000 supports the latest PCIe 5.1 specification: its powerful and stable performance meets the needs of next-generation GPUs, delivering perfect power for next-gen graphics cards. Equipped with a modular native PCIe 12V-2X6 connector, the 600mm length provides sufficient slack to reduce the risk of faulty connection during PC installation, without the need for a 6+2 pin adapter.

High Performance

Efficiency

The GR 1200/1000 features a highly efficient design that surpasses the 80 PLUS Gold standard, to help you save money on your electricity bill.

Perfect Fan Speed to Noise Ratio

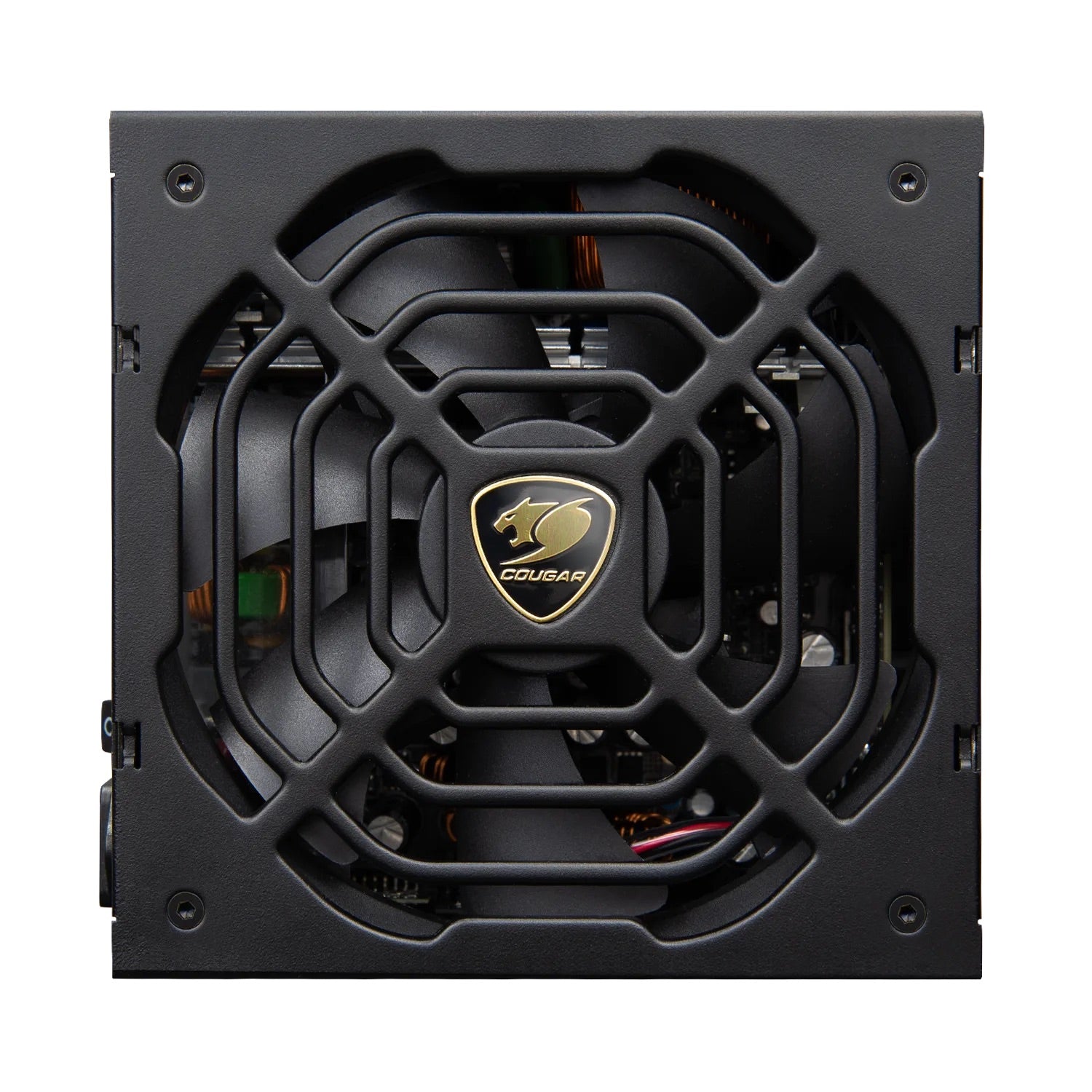

The 140mm Fluid Dynamic Bearing (FDB) fan perfectly balances fan speed and silent performance.

Fluid Dynamic Bearing (FDB) Fan

Compared to other fan bearing types, the Fluid Dynamic Bearing (FDB) fan is considered the best in its class for operating noise and expected lifespan. Fluid dynamics and fluid-based characteristics greatly reduce friction and vibration, resulting in better reliability and quieter operation.

Refined Regulation. Stable Operation

100% 105°C Japanese capacitors minimize voltage ripple, improving durability and stability to extend lifespan
APFC , Full-bridge LLC , DC-DC electrical design for stable outputs.
Optimally perform in 40ºC working temperature environments.

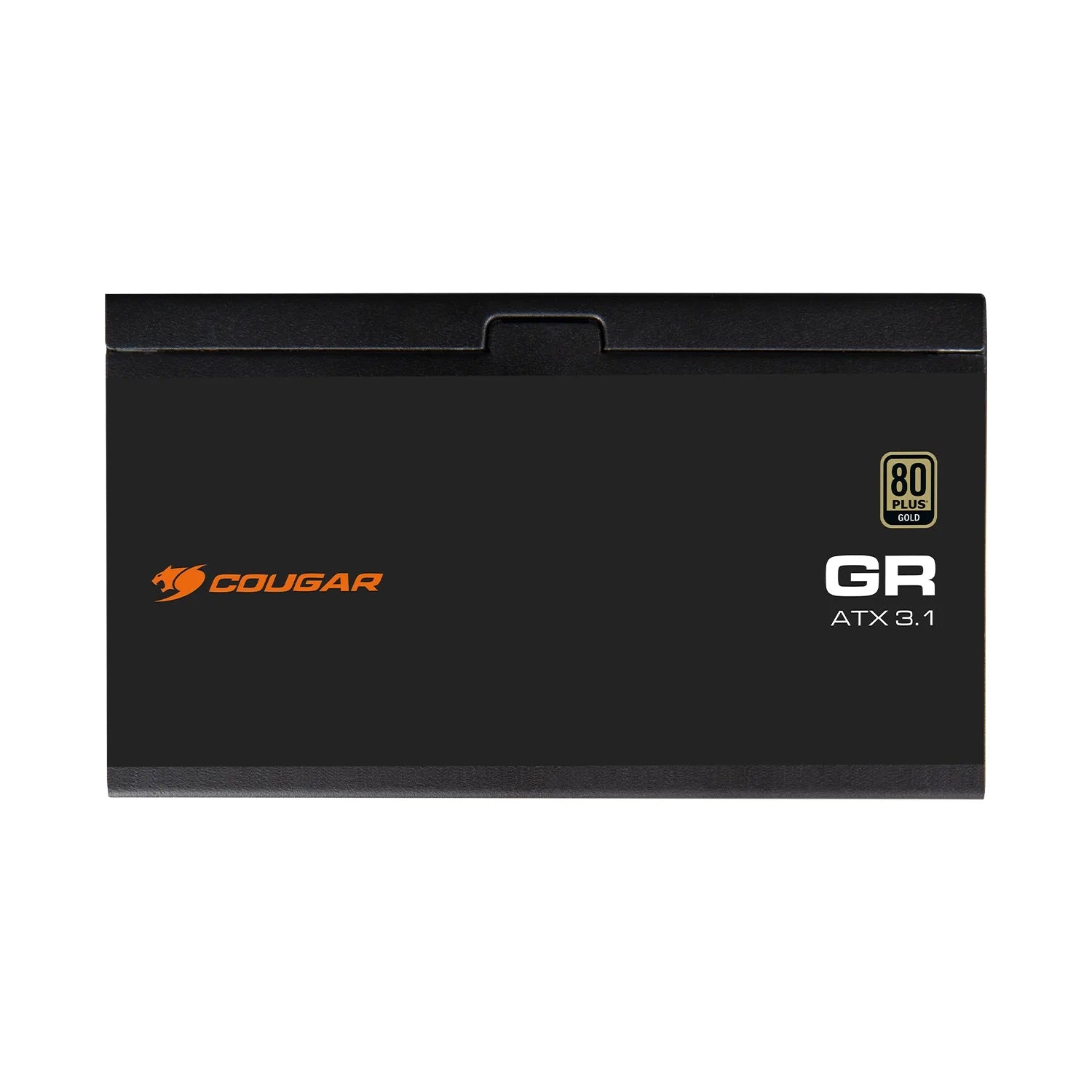

Stylish Design

Featuring a sleek embossed black design with ample cable length for easy and aesthetically pleasing PC installation.

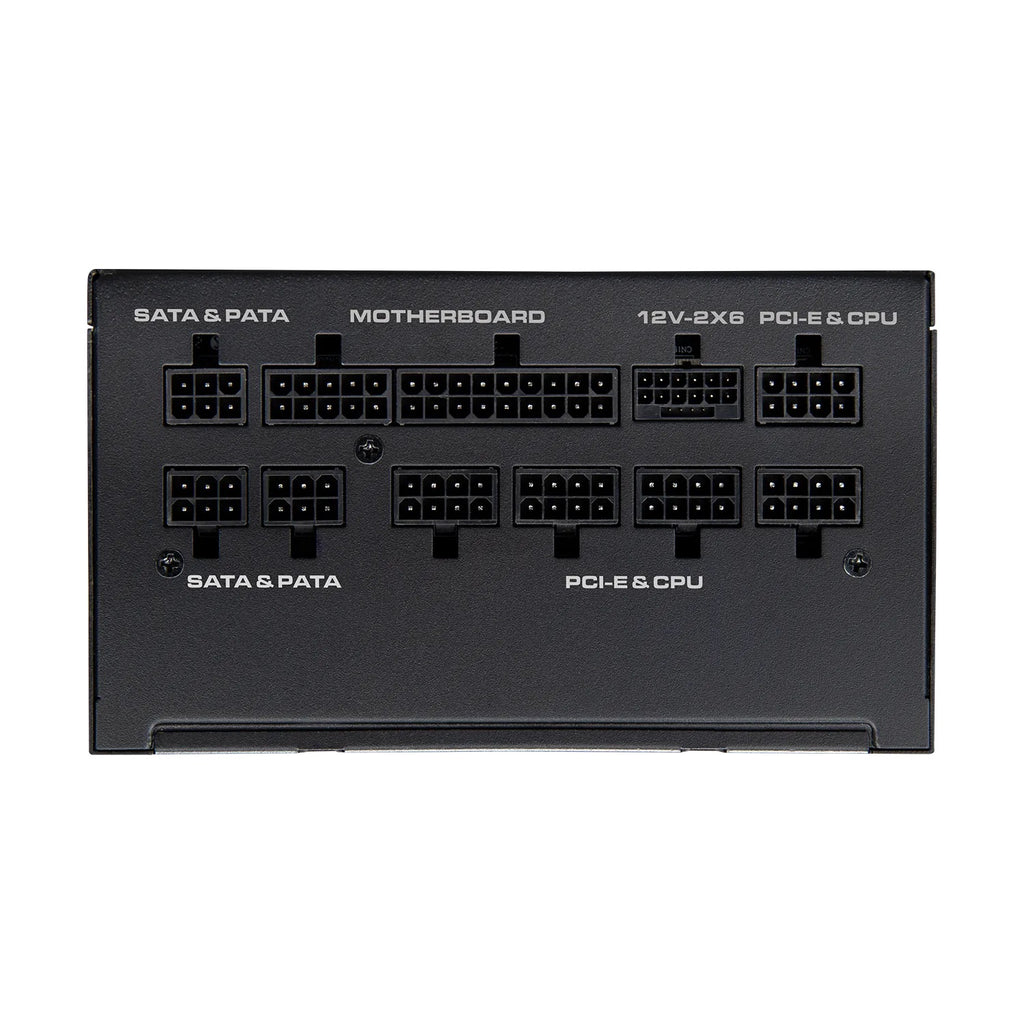

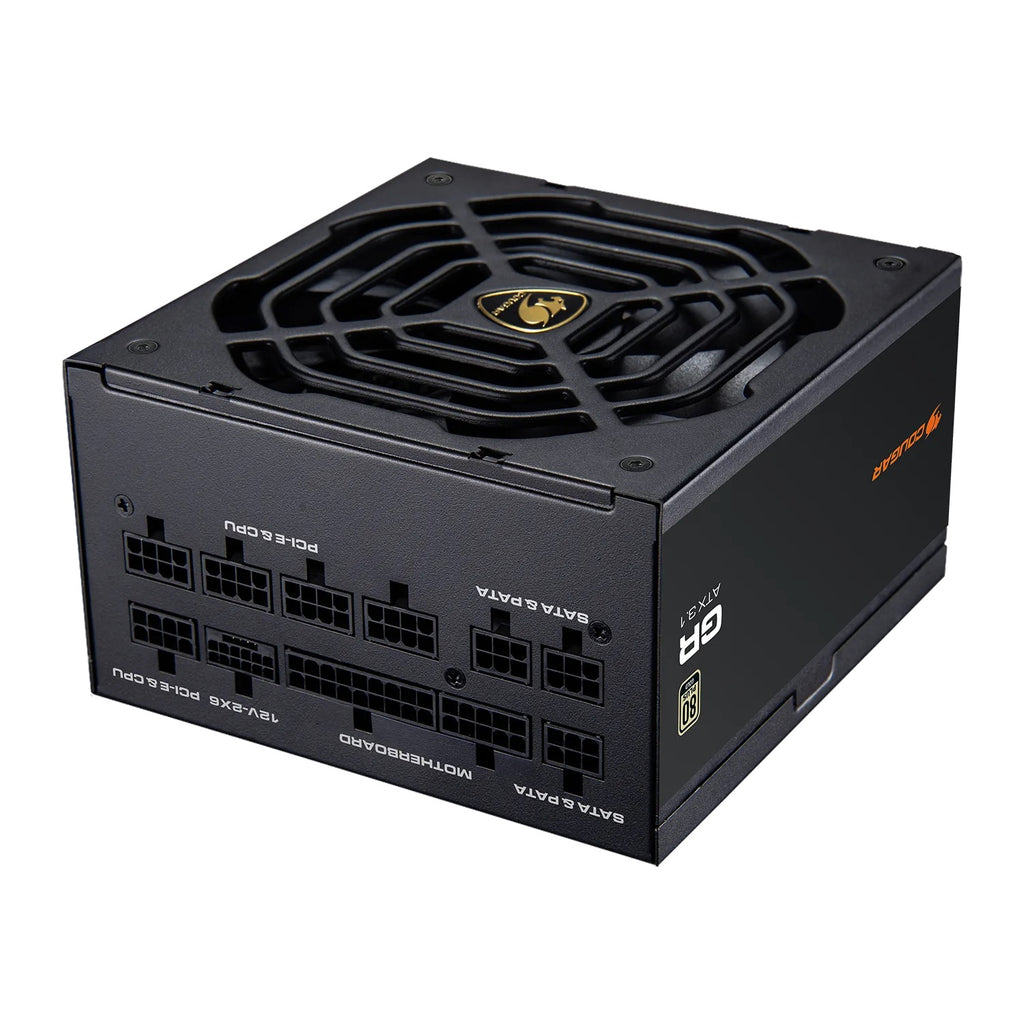

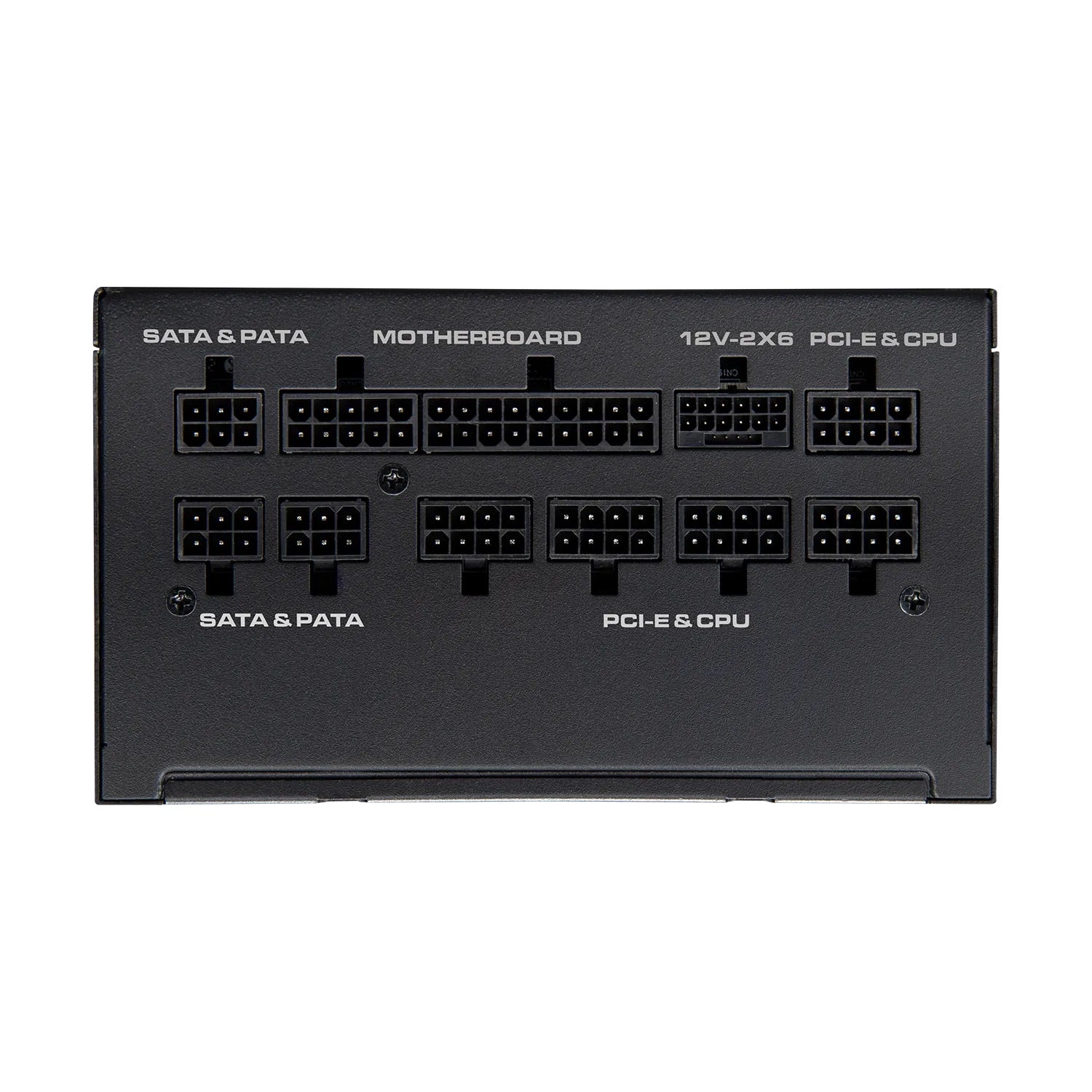

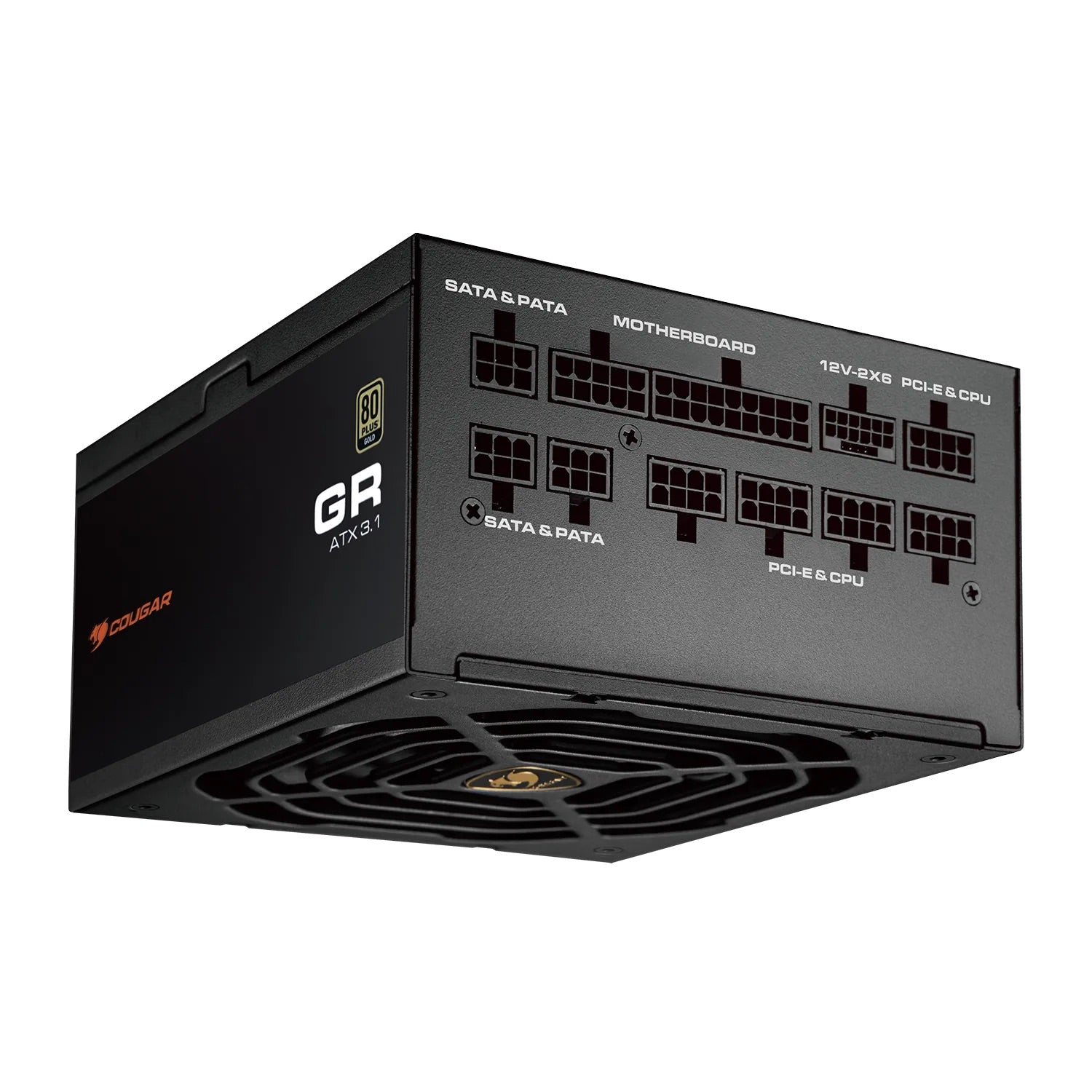

Fully Modular Cables / Embossed black cables

Connect only the cables you need, reducing cable clutter and friction and improving the airflow and the ease of installation of DIY solutions.

10 Years Warranty

The GR 1200/1000 is protected by a 10 year warranty with a build quality second to none.

Features

Support PCI Express 5.1 Graphics Cards 12+4 Pin Connector

Connect the 12V-2X6 with true 200% power excursion dynamic outputs.

80 PLUS Gold Certified

Up to 91% efficiency power conversion to cut down your electricity bill.

Fully Modular Power Supply Unit

Connect only the cables you need for less clutter and better airflow.

100% Refined Japanese Capacitors

Outstanding components extend the longevity of PSU.

Full Protections

UVP, OCP, SCP, OTP, OVP, OPP

Durable FDB Fan

Fluid Dynamic Fan: Extended durability and lower noise levels.

Compatible with The Lastest PC Technology

Created for user with current and next-generation multi-core CPU platforms.

Flawless Operation at 40°C

Powerful performance at 40°C ambient temperature.

Specifications

Product Name	GR 1200	GR 1000
Model No.	CGR GDN-1200	CGR GDN-1000
ATX Version	ATX3.1
PFC	Active PFC
Input Voltage	100-240VAC
Input Current	15-8A
Input Frequency	50-60Hz
Dimensions (LxWxH)	150 x 150 x 86mm
Fan Size	140mm
Fan Bearing	Fluid Dynamic Bearing
Fan Speed	1900RPM
80 PLUS Rating	80 PLUS Gold
Operating Temperature	40℃
MTBF	>100,000 hours @ 25℃
Protections	OCP / OVP / SCP / OTP / OPP / UVP
Regulatory	CB/CCC/FCC/TUV/cTUVus/EAC/CE

AC input & DC output rating

Product Name	AC Input	DC output
Product Name	AC Input	+3.3V	+5V	+12V	-12V	+5Vsb	Total
GR 1200	100-240VAC 15-8A 50-60Hz	20A	20A	100A	0.4A	3A	1200W
GR 1200	100-240VAC 15-8A 50-60Hz	100W		1200W	4.8W	15W	1200W
GR 1000	100-240VAC 15-8A 50-60Hz	20A	20A	83.3A	0.4A	3A	1000W
GR 1000	100-240VAC 15-8A 50-60Hz	100W		999.6W	4.8W	15W	1000W

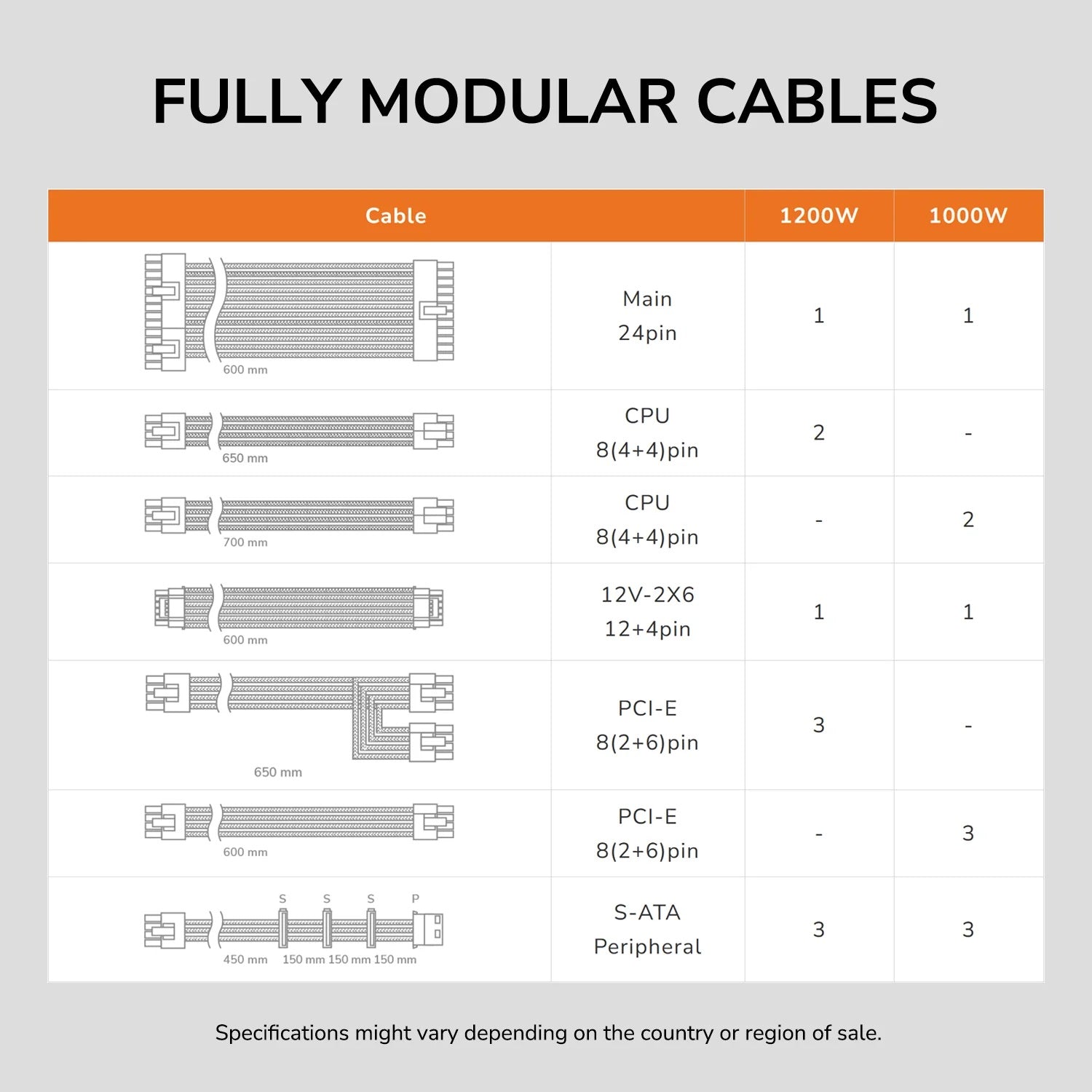

Total Connectors

Product Name	Main 24 Pin	CPU 4+4 Pin	Peripheral	S-ATA	12V-2X6 12+4 Pin	PCI-E 6+2 Pin
GR 1200	1	2	3	9	1	6
GR 1000	1	2	3	9	1	3

Specification	Detail
Carton Weight	15.8 kg
Carton Quantity	5
Warranty	10 Years
Package Height	150.0 mm
Package Depth	320.0 mm
Package Width	220.0 mm
Carton Volume	50.8 dm³
MPN	31GR100004P01
Barcode	192554009612
