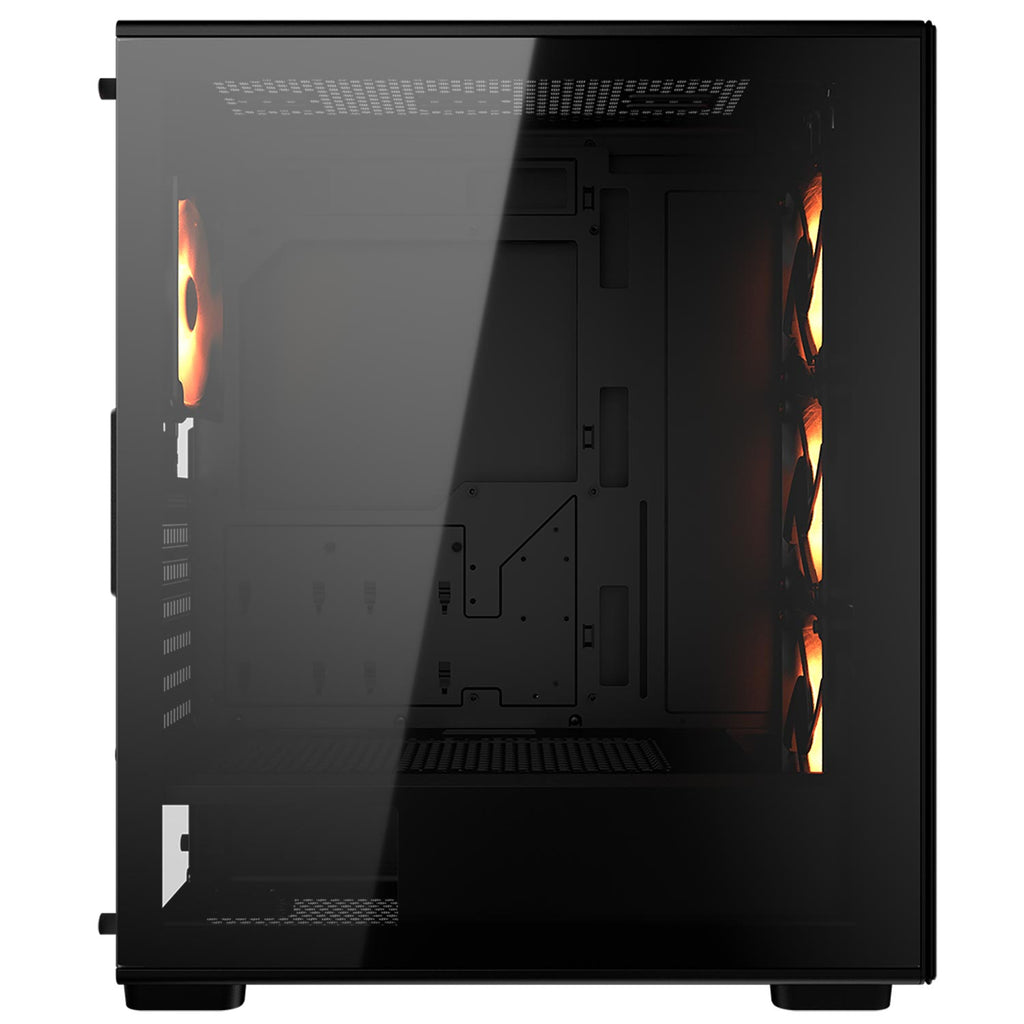

The MX220 RGB combines sleek minimalism with advanced airflow and modern design. The ventilated front panel attaches magnetically to the main chassis, eliminating the need for a spacer frame and maintaining a streamlined appearance. By integrating the mesh filter into the front panel itself, maintenance is easy and efficient. The top mesh filter, rimmed with solid borders, enhances both the appearance and tactile experience, ensuring comfortable removal. With its curved edges and rounded corners, the MX220 RGB offers a softer, more refined profile that stands apart from the traditional sharp lines of other cases.
Key Features:
-
Minimalist, Ultraslim Design: The magnetically-attached front panel integrates the mesh filter, simplifying maintenance while providing optimal airflow.
-

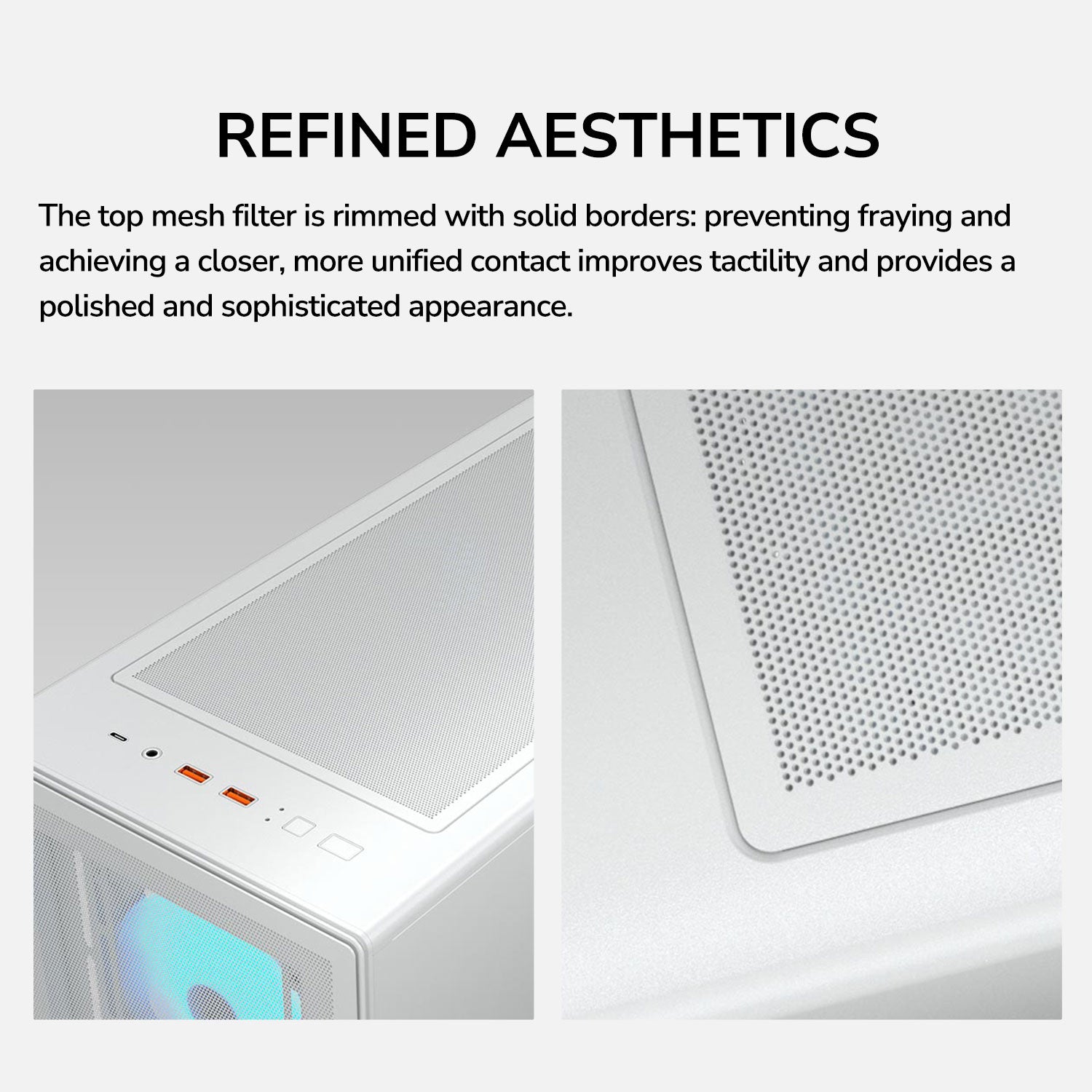

Refined Aesthetics: Solid borders on the top mesh filter prevent fraying, ensuring a clean, polished look with improved tactility.
-

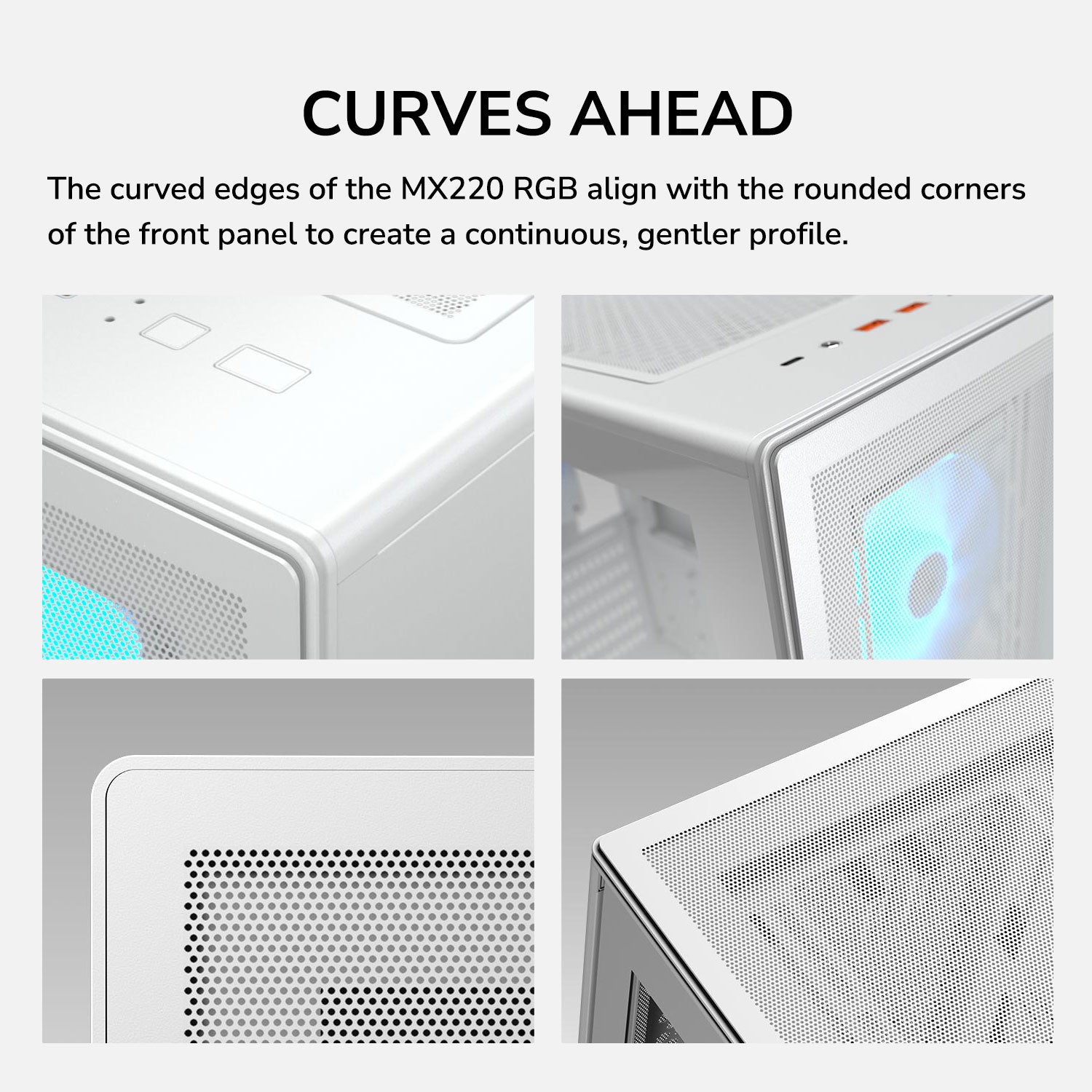

Curved Edge Profile: Rounded corners and curved edges create a continuous, gentle aesthetic, offering an alternative to sharp, angular designs.
-

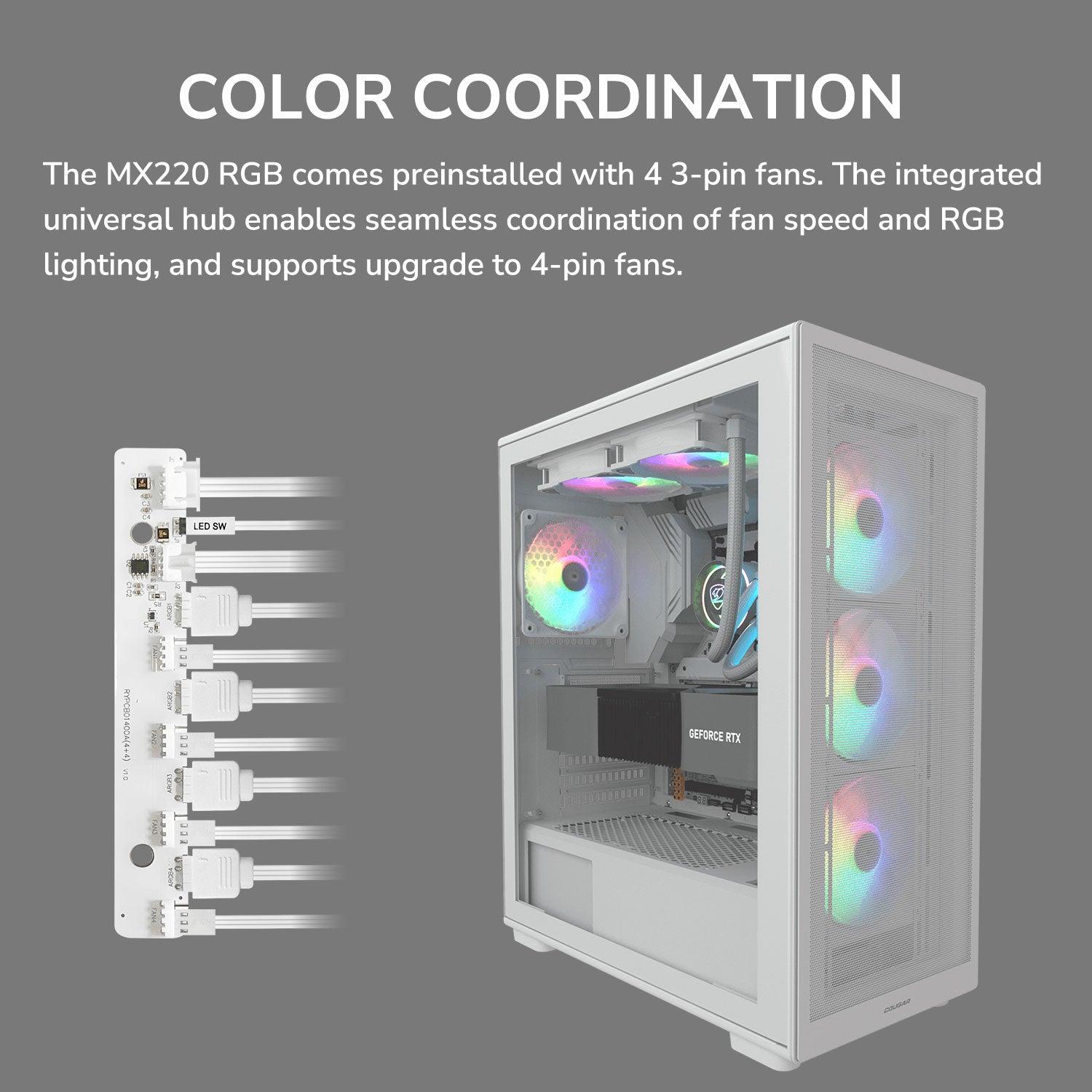

Preinstalled Fans with Upgrade Option: Equipped with four preinstalled 3-pin fans and an integrated 4-pin RGB hub that supports upgrades to 4-pin fans for enhanced cooling and RGB control.
-
USB 3.2 Gen 2 Type-C Ports: Ensures seamless connectivity with the latest peripherals and external devices.
Cooling Capacity:
-

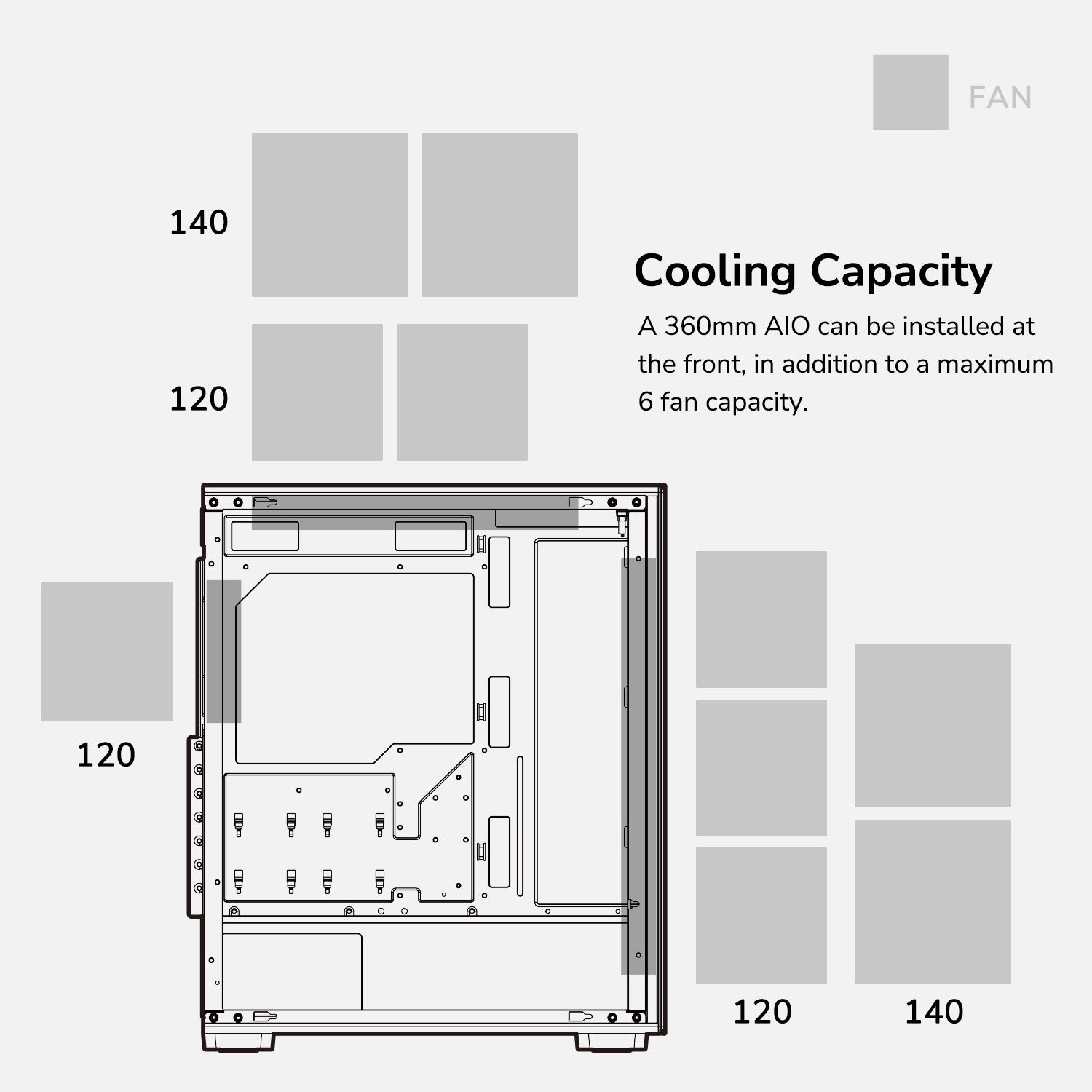

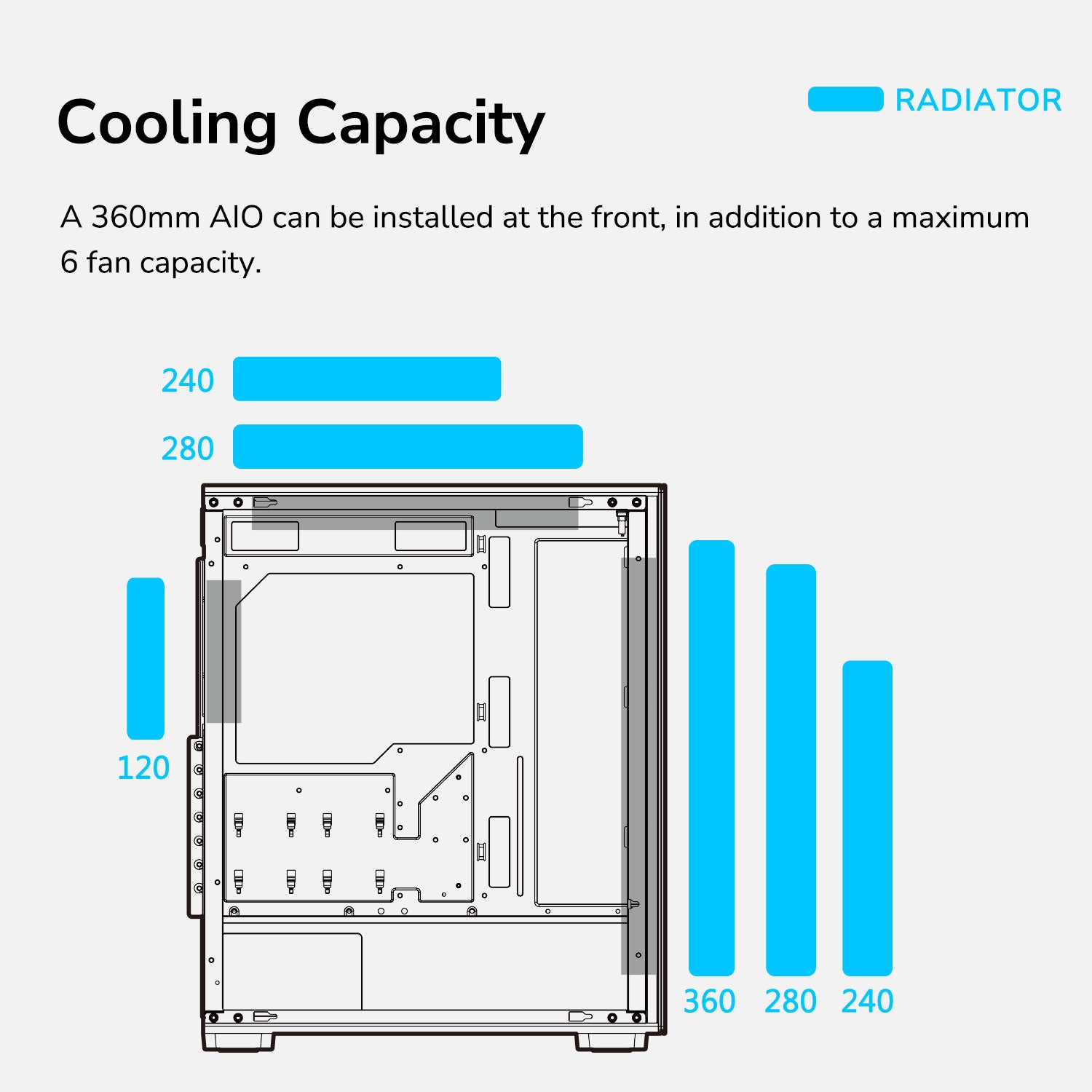

360mm AIO Radiator Support: The front panel can house a 360mm radiator, providing advanced cooling options. The case supports a maximum of 6 fans for superior cooling potential.
- Note: When installing a 360mm front radiator, the top-mounted 3.5" HDD bay cannot be used.
Performance Graphics and Storage:
-

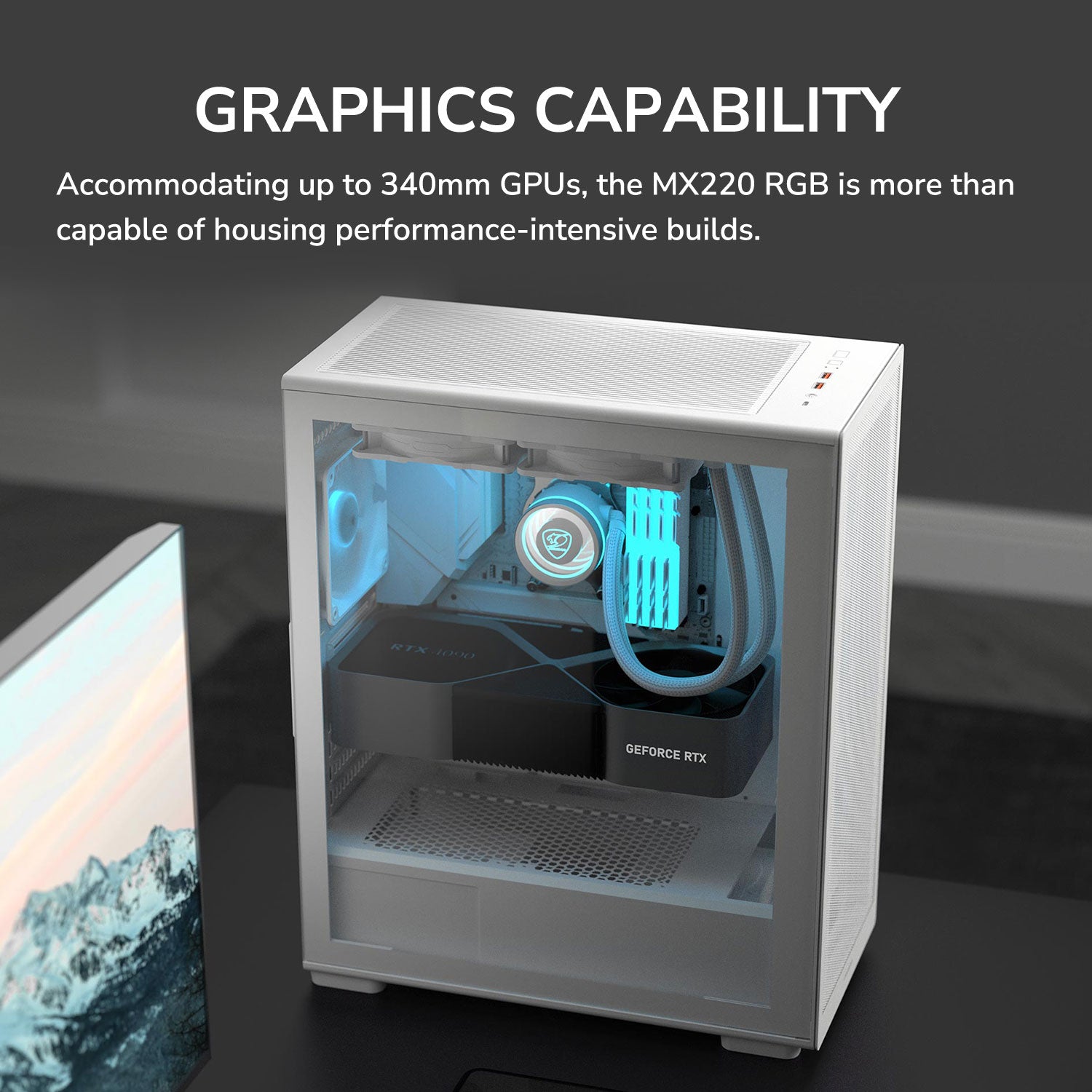

Supports up to 340mm GPUs: Accommodates large, performance-oriented graphics cards, making it ideal for high-performance builds.
-

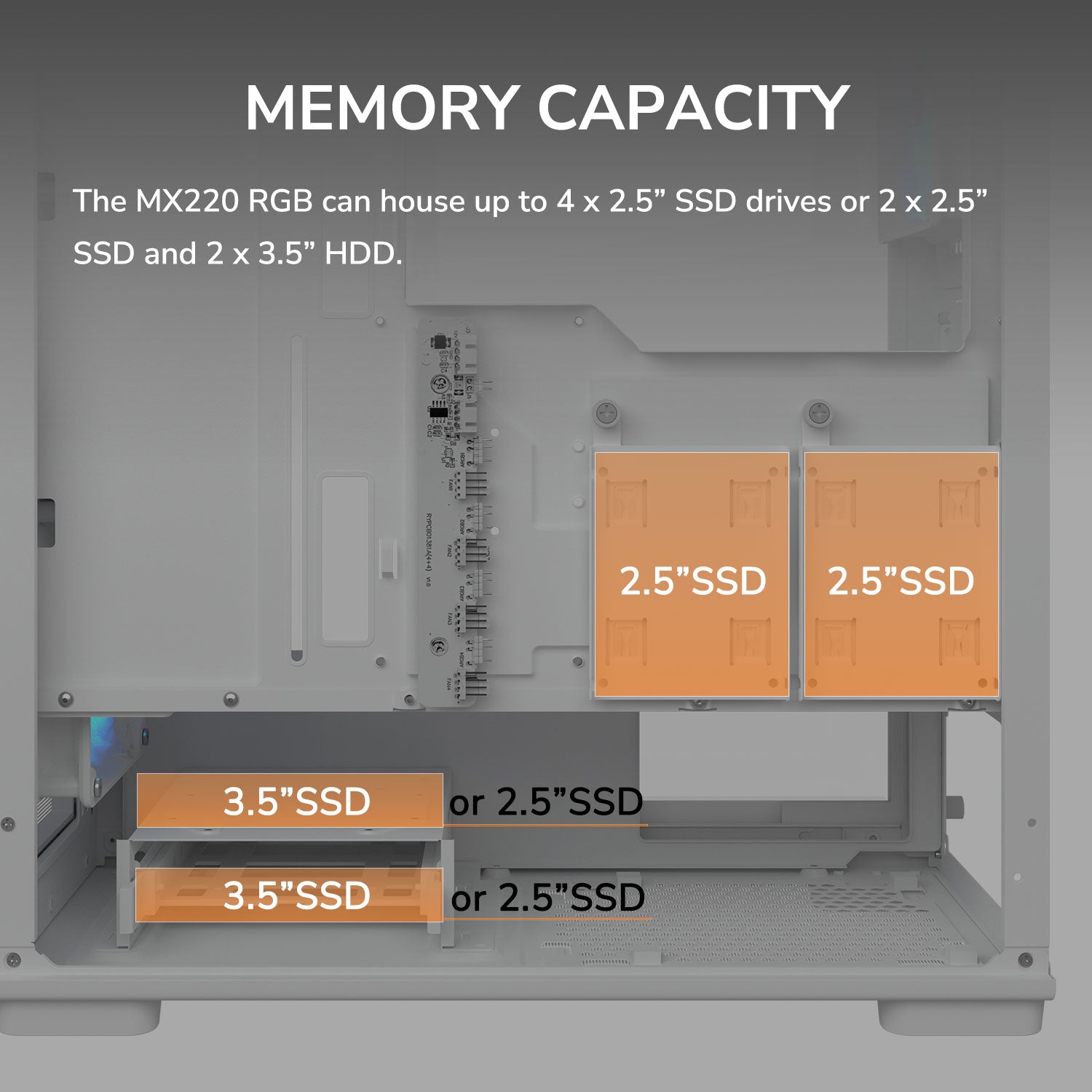

Storage Flexibility: Capable of housing up to 4 x 2.5” SSDs or a combination of 2 x 2.5” SSDs and 2 x 3.5” HDDs.
Modern Connectivity:
-

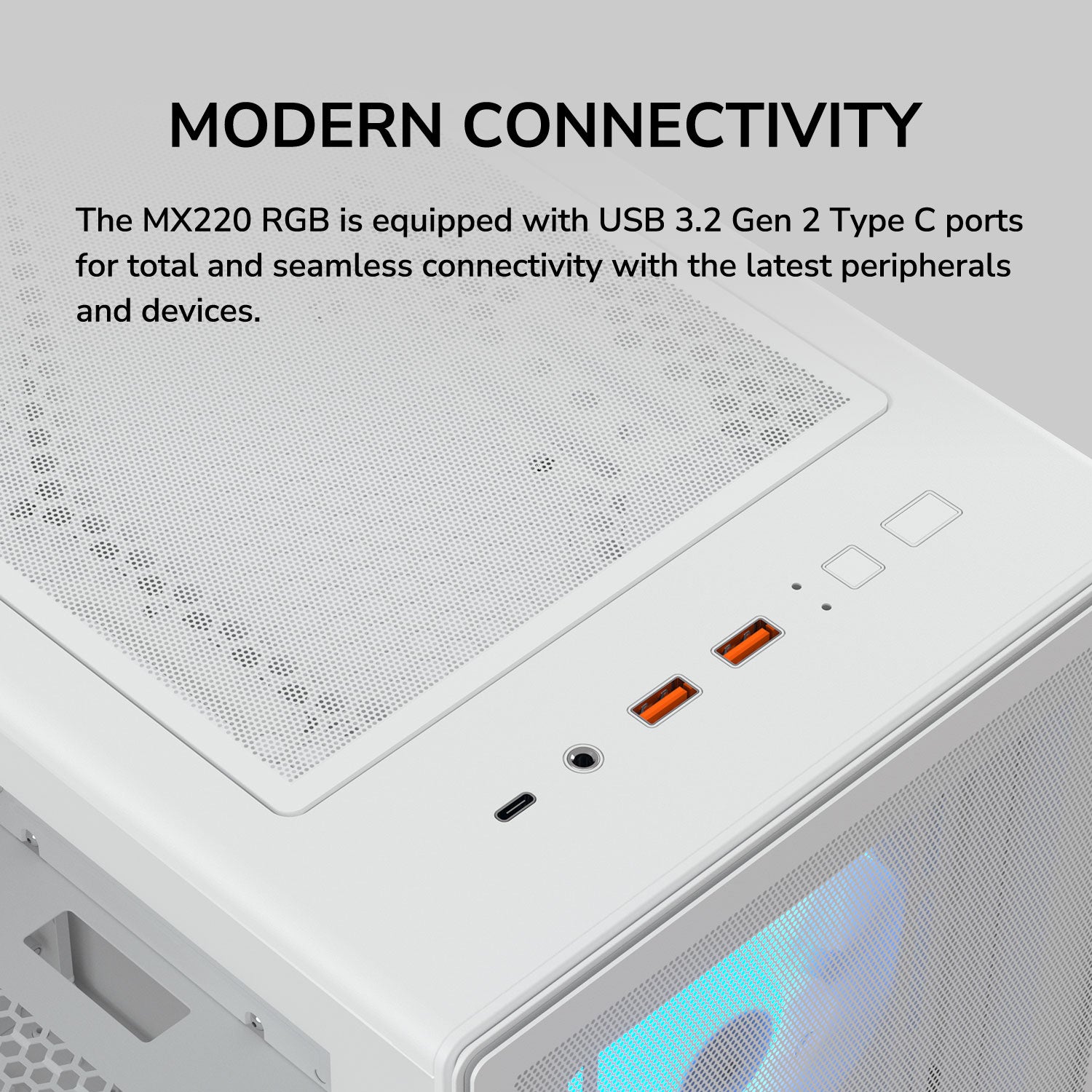

USB 3.2 Gen 2 Type-C Ports: The MX220 RGB is equipped with USB 3.2 Gen 2 Type-C ports for fast and easy connections to modern devices and peripherals.
Specifications
Product Name |
MX220 RGB / MX220 RGB (White) |
Case Form Factor |
Mid Tower |
Motherboard Type |
Mini ITX / Micro ATX / ATX |
Dimensions (WxHxD) |
205 x 485 x 393 (mm) 8.1 x 19.1 x 15.5 (in) |
I/O Panel |
USB 3.2 Gen 2 Type C x 1, USB-A 3.0 x 2, 4 Pole Headset Audio Jack, RGB Button |
3.5" Drive Bay |
2 |
2.5" Drive Bay |
2+2 (converted from 3.5" drive bays) |
Expansion Slots |
7 |
Cooling Fan Support |
Front |
120mm x 3 / 140mm x 2 |
Top |
120mm x 2 / 140mm x 2 |
Rear |
120mm x 1 |
Pre-installed Fans |
Front |
120mm ARGB fan x 3 |
Rear |
120mm ARGB fan x 1 |
Speed |
1200 ± 10% RPM |
Connector |
5V 3 Pin (ARGB) / 3 Pin (Fan) |
Maximun Number of Fans |
6 |
Water Cooling Support |
Front |
* 360mm / 280mm / 240mm / 140mm / 120mm |
Top |
* 280mm / 240mm / 140mm / 120mm |
Rear |
120mm |
PWM and RGB hub Sync with M/B |
Yes |
Max. Graphics Card Length |
340 (mm) / 13.4 (in) |
Max. CPU Cooler Height |
160 (mm) / 6.3 (in) |
Max. PSU Length |
160 (mm) / 6.3 (in) |
