Introducing the Wireless 4K Polling version of the XM2w!
The XM2w 4k Wireless Gaming Mouse is the long-awaited high-end wireless version of the XM series. While maintaining the same ergonomic shape, Endgame Gear has integrated numerous internal enhancements for reduced weight and increased consistency. Equipped with the flawless PixArt PAW3395 sensor, a Nordic MCU, and an included high polling rate dongle, this mouse delivers outstanding performance at up to 4000Hz wireless. Experience super crisp and satisfying clicks with the custom-made and pre-sorted Kailh GX SPDT switches. The updated Hybrid skate design offers two redesigned shapes for customizable glide.
Built for Competitive Play
While the outer shape remained identical to the famous XM claw grip shape, the inside was re-designed to achieve a lower overall weight of ~62g while maintaining a robust shell design without holes. The XM2w 4k has been developed by esports veterans for use in competitive play, with top-of-the-line components including PixArt's PAW3395 sensor, the Nordic nRF52840 wireless MCU, and Endgame Gear's exclusive Kailh GX SPDT switches with GX Mode compatibility.
Wireless Polling Rate of up to 4000Hz - Dongle Included!
To achieve the best performance possible, XM2w 4k is powered by the Nordic nRF52840 wireless MCU. The 4k dongle utilizes a Nordic nRF52820 to guarantee stable and reliable wireless data transmissions. Additionally, a Nuvoton M483 MCU is used for the high-speed USB connection, enabling high wireless polling rates of up to 4000Hz for incredibly low sensor and click latency. The 4k dongle is included with the mouse for ideal performance straight out of the box.
Industry-Leading Click Latency
The XM2w 4k sets a new standard for wireless performance with click latency measuring an average below 310 microseconds*. With a constant 4000 Hz polling rate for the clicks, you’ll experience ultra-low click latency, no matter which sensor polling rate you choose. This exceptional responsiveness ensures your every click is registered instantly, giving you a competitive edge and winning you the deciding duels.
*10.000 clicks on XLAT v.1.4.0
PixArt 3395 Sensor
The XM2w 4k's responsiveness significantly improves by implementing the PixArt PAW3395 featuring a higher resolution pixel array and up to 26000 CPI, Lift-Off-Distance as low as 1mm, and up to 650 IPS for best accuracy during the fastest of swipes. The PAW3395 also offers sensor-level MotionSync for consistent and synced reports. With all smoothing and angle-snapping disabled, the tracking data from the sensor is as raw as it can be. Power-saving features are completely disabled (corded mode) squeezing every last bit of performance out of the XM2w 4k.
Kailh GX Switches developed by Endgame Gear
Designed for lightning-fast precision at all polling rates, the mechanical Kailh GX switches guarantee you won't miss a crucial click. Their SPDT configuration ensures optimal electrical contact and unmatched reliability. Featuring both top and bottom contacts, Kailh GX Switches excel whether you prefer low click latency in GX Speed Mode or security in GX Safe Mode. What sets them apart is their crisp, defined click sensation, offering tactile feedback for enhanced gaming control. Precise actuation and a balanced design ensure flawless, spam-friendly rapid-fire actions.
Hybrid Skate Design
The XM2w 4k comes with two sets of PTFE skates (large & small) and a sensor skate. Thanks to a hybrid design bottom shell, it's possible to easily install either large or small skates with the smaller skates fitted by default. The larger area offers added flexibility when customizing the XM2w 4k's glide and re-using already purchased skates. The sensor skate is optional but recommended on softer surfaces.
(Almost) No Power-Saving
Engineered for peak performance the moment you plug it in, XM2w 4k ensures every click and movement is delivered with precision and speed. While the focus is on performance, we’ve also integrated customizable power settings for those who want to extend their battery life. Fine-tune your experience with adjustable sensor power-saving options and customizable deep sleep timers, giving you more control without sacrificing performance.
Specifications expand_less
| Mouse Specifications |
| Skates |
Hybrid Skate Design |
| Skates note |
small skates pre-installed, large skates included |
| Microcontroller |
Nordic nRF52840 |
| Colour |
| Colours |
Black, White, Dark Frost, White Frost
|
| Sensor |
| Sensor Type |
optical |
| Sensor Model |
Pixart PAW 3395 |
| DPI adjustable |
Yes |
| Min. DPI |
50 DPI |
| Max. DPI |
26000 DPI |
| DPI note |
steps of 50 CPI; pre-defined: 400, 800 (default), 1600, 3200 |
| Lift Off Distance (LoT) |
1 mm |
| Lift off distance note |
2 mm via software |
| Acceleration |
50 G |
| Max. Tracking Speed |
650 IPS |
| Ergonomics |
| Mouse layout |
right-handed |
| Supported Grip Types |
Claw Grip, Palm Grip, Finger Tip Grip |
| Product Series |
| Product Series/Family |
XM2w |
| Standards / Specifications |
| Polling Rate |
4000 Hz, 2000 Hz, 1000 Hz |
| Polling Rate note |
4000Hz by default |
| Battery |
| Battery Capacity |
335 mAh |
| Max. Battery Lifetime |
7 d |
| Dimensions |
| Length / Depth |
122 mm |
| Width |
66 mm |
| Height |
38 mm |
| Weight |
62 g |
| Connectivity |
| Wired / Wireless |
Wired, Wireless |
| Connection Type |
USB Typ A, 2.4 Ghz Wireless |
| Connection type note |
wireless (2.4 GHz, Dongle: USB 2.0 Type A)
wired USB Type-A (PC), USB Type-C (Mouse & Dongle) |

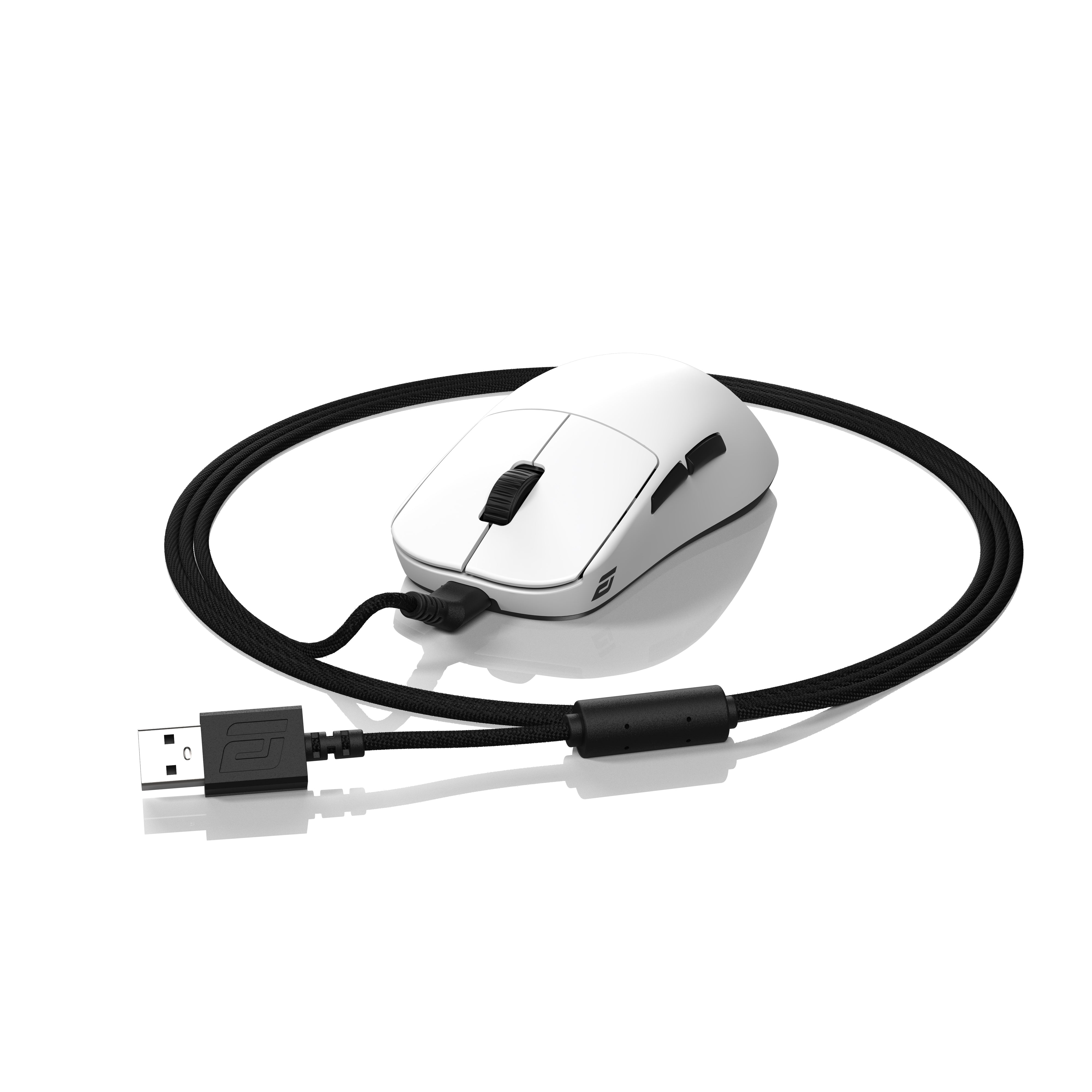

| Cable |
Black Flex Cord 4.0 Type-C (180cm, USB 2.0 Type A to USB-C) |
| Cable Length |
180 cm |
| Lighting |
| Lighting |
No |
| Materials |
| Materials Chassis |
Plastic |
| Materials Surface |
Dry Grip Coating |
| Materials Skates |
PTFE |
| Keys |
| Number of Buttons / Keys |
7 |
| Number of Buttons / Keys Note |
5+2 (2x top, 2x side, 1x mouse wheel, 1x CPI on bottom, 1x ON/OFF Switch) |
| Primary Mouse Button Switches (right / left) |
pre-sorted Kailh GX switches |
| Switch lifetime |
80 million actuations |
| Click Detection |
Digital |
| Wheel Encoder |
TTC silver (wide) |
| Mouse Wheel Scrolling |
2-way |
| Middle Mouse Button Switch |
Kailh GM 2.0 switches, pre-sorted (20 million actuations) |
| Side Button Switchtes |
Kailh GM 2.0 switches, pre-sorted (20 million actuations) |
