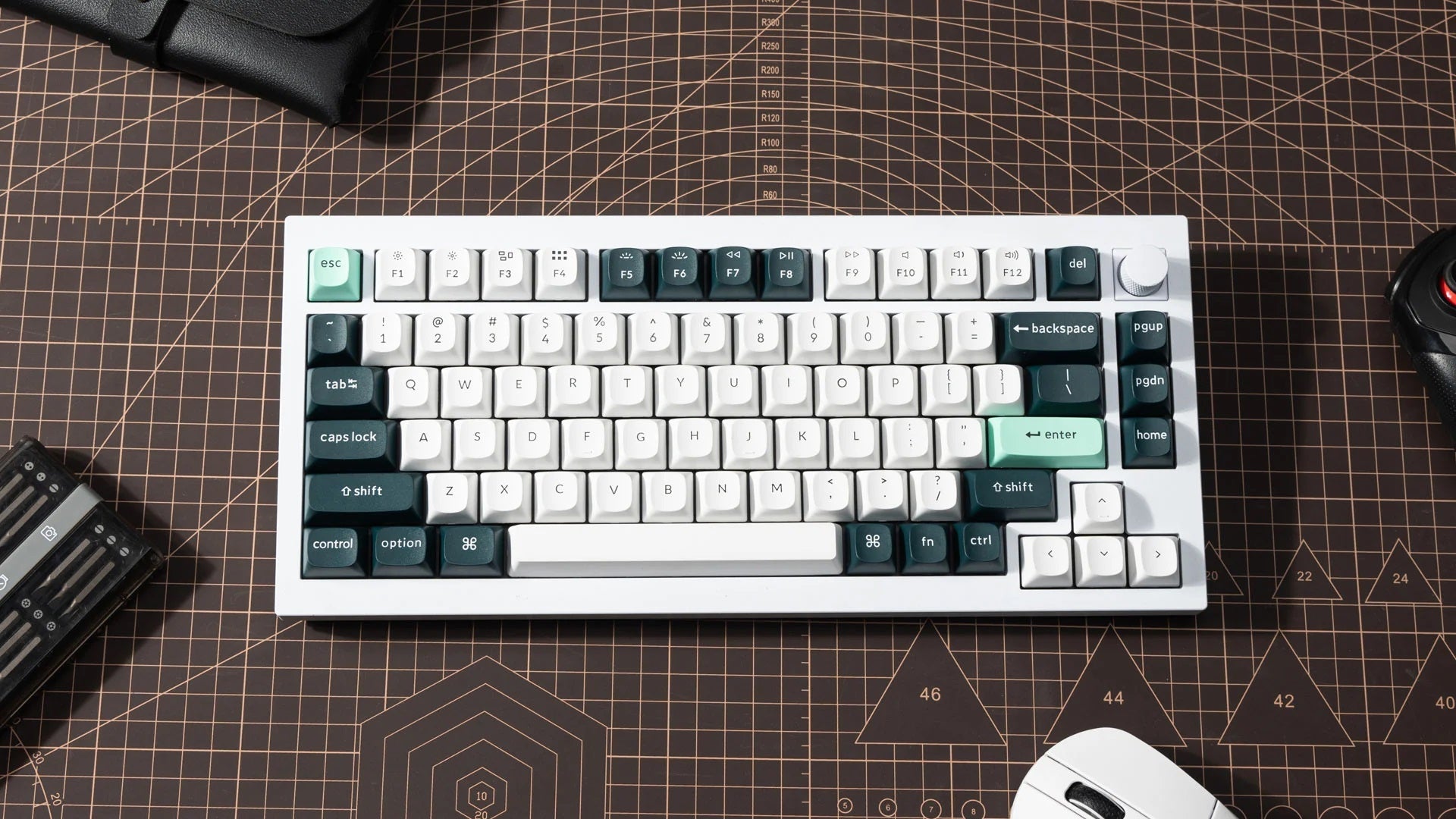

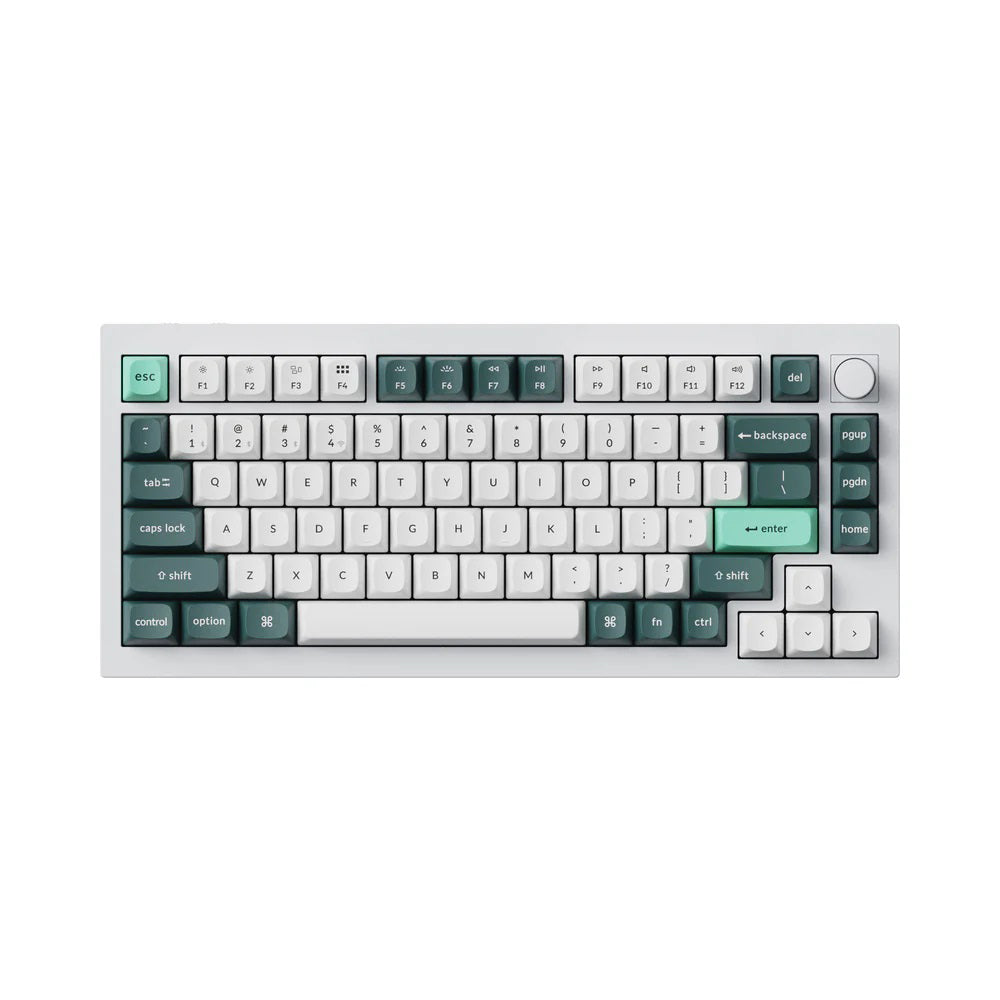

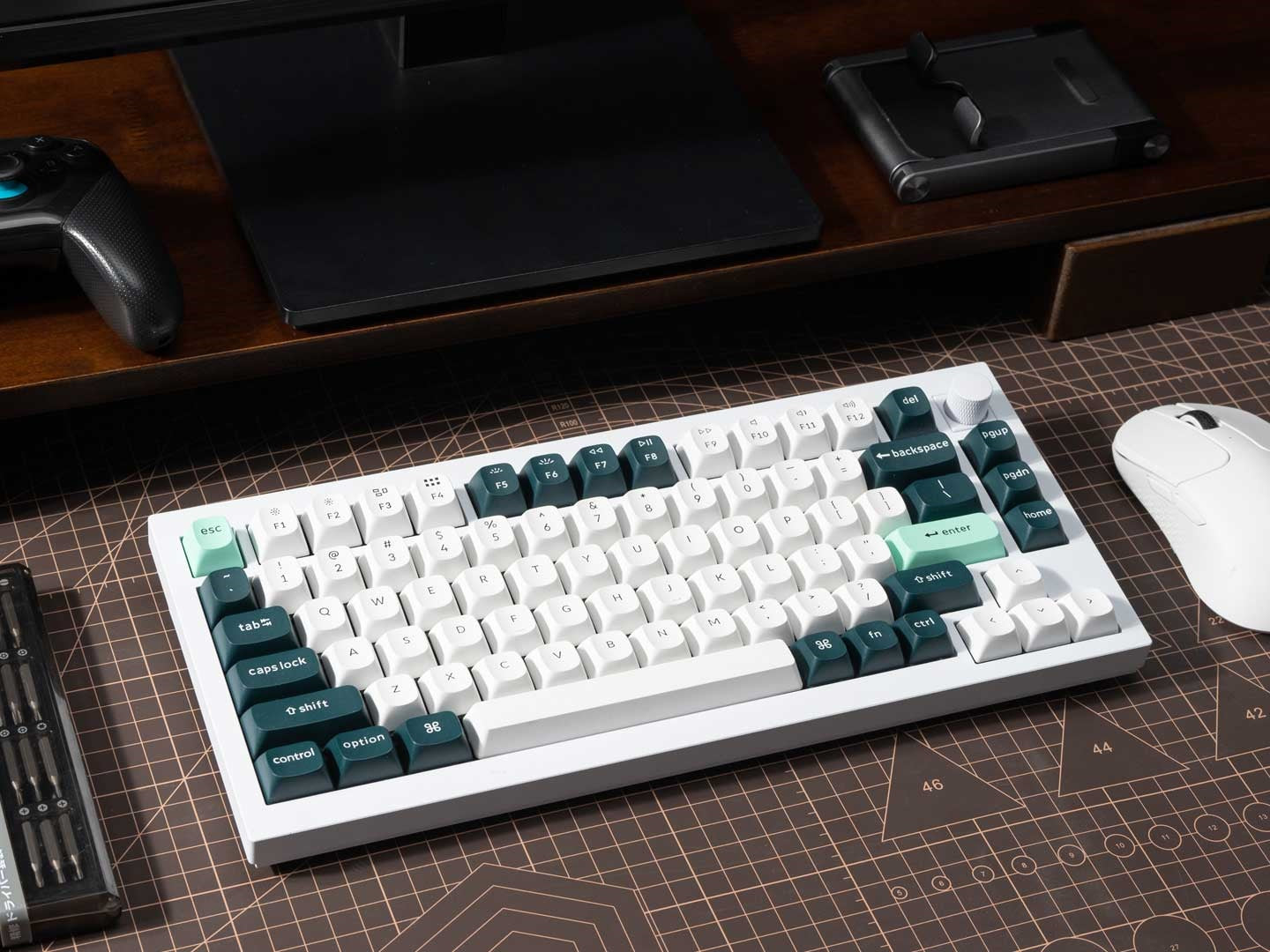

Meet the Q1 HE, the world’s first 75% layout wireless QMK custom keyboard with Hall Effect Gateron 2.0 magnetic switches. These switches offer faster feedback, dynamic rapid triggering, and adjustable actuation points, enhancing your gaming experience. The Q1 HE also features a 2.4G connection mode with a 1000Hz polling rate, Bluetooth connectivity, a double-gasket design, an all-aluminum body, and PBT keycaps.
Features:

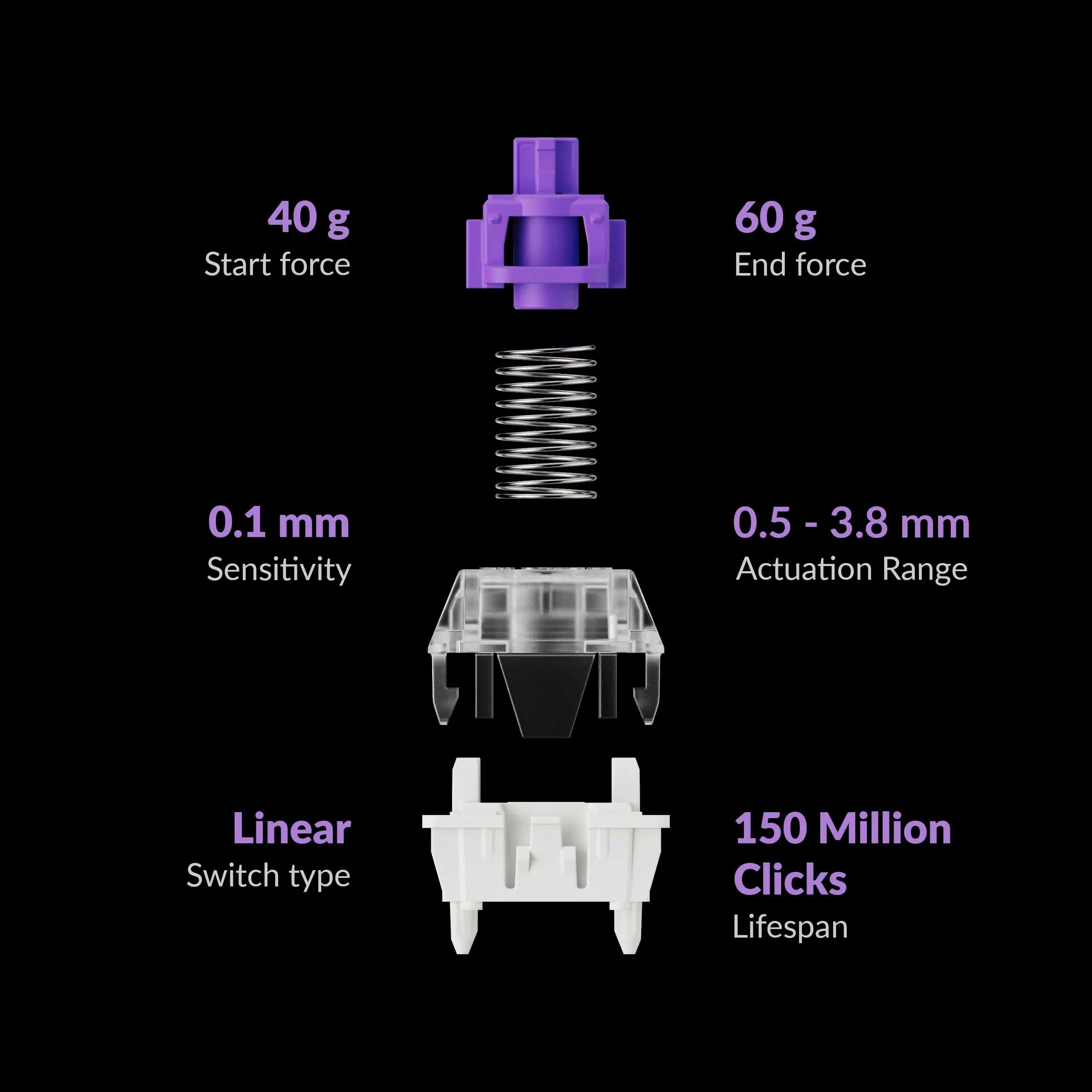

Gateron Double-Rail Magnetic Hall Effect Switches:
-
Dual-rail structure and pre-lubed: Ensures unparalleled stability and smoothness.
-
Optimal magnetic sensor: Sensitivity of 0.1 mm, providing precise feedback.
-
Customizable actuation points: Assign multiple actions to a single key based on travel depth, enhancing gameplay.
Adjustable Actuation Point:
-
Ultra-precise 0.1 mm sensitivity: Adjustable points from 0.5 to 3.8 mm.
-
Faster response: Trigger and reset occur quickly, ensuring swift key presses.
Dynamic Rapid Trigger:
-
Travel distance-based activation: Immediate keystroke repetition for quick action execution in gameplay.
Multiple Actions, One Keystroke:
-
Assign up to four actions per key: Allows for complex commands based on press depth.
Reassign Keys with Keychron Launcher Web App:
-
Effortlessly remap keys: Adjust actuation points and create personalized macros and shortcuts.
2.4 GHz & Bluetooth Connection:
-
Peak gaming performance: 2.4 GHz wireless with 1000 Hz polling rate.
-
Bluetooth 5.1: Connect to up to three devices for seamless multitasking.

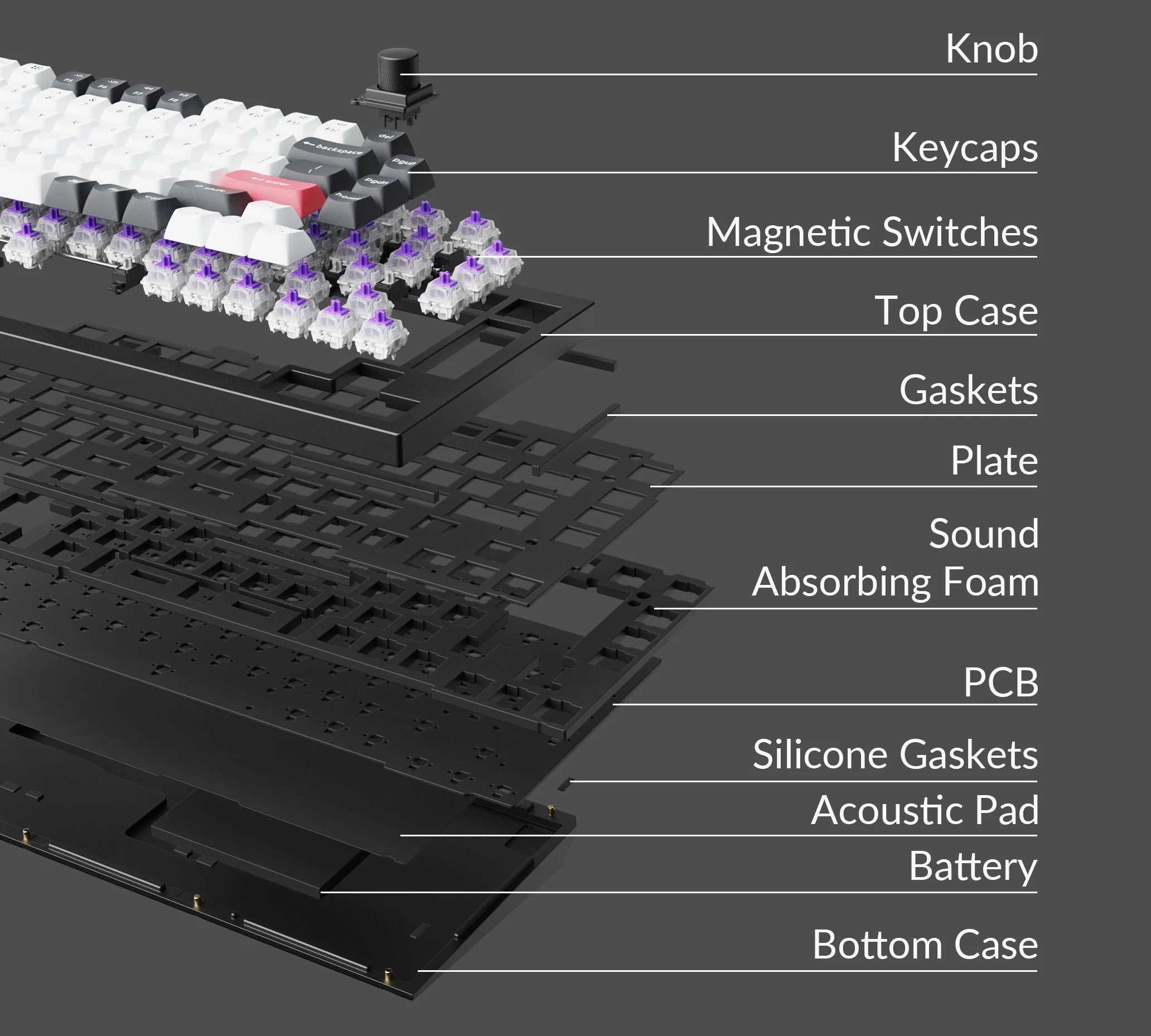

Premium Build:
-
6063 aluminum body: Durable, stable, and environmentally friendly.
-
Double-gasket design: Reduces acoustic resonance, enhancing typing sound.
Powerful Core:
-
MCU with 256K flash: QMK open-source firmware for flexibility.
-
1000 Hz polling rate: Optimal for competitive gaming.
Suitable for All Devices:
-
Mac and Windows compatibility: System toggle and keycaps for both systems.
-
OSA Profile Double-shot PBT Keycaps: Durable, oil-resistant, and comfortable typing feel.
Hot-swappable:
-
Effortless switch swapping: Compatible with Keychron’s magnetic switches only.
South-facing RGB LED Lights:
-
Better illumination: Designed to illuminate the backlight from the typist’s angle.
All New Screw-In PCB Stabilizers:
-
Increased stability: More stable and smooth typing experience on big keys.
Specs:
| Width |
145 mm |
| Length |
327.5 mm |
| Front Height |
22.6 mm (without keycaps) |
| Back Height |
35.8 mm (without keycaps) |
| Feet Height |
2.4 mm |
| Angle |
5.2° |
| Weight |
1735 g ± 10 g (Fully Assembled version) |
| Body Material |
Aluminum |
| Plate Material |
Aluminum |
| Polling Rate |
1000 Hz (Wired and 2.4 GHz) / 90Hz (Bluetooth) |
| N-Key Rollover (NKRO) |
Yes for both wireless and wired modes |
| Rapid Trigger |
Yes |
| Adjustable Actuation Points |
0.5 - 3.8 mm |
| Dynamic Keystrokes |
4-in-1 action keys |
| Sensitivity |
0.1 mm |
| N-Key Rollover (NKRO) |
Yes for both wireless and wired modes |
| Keycap |
OSA Double-shot keycaps, not shine-through |
| MCU |
ARM Cortex-M4 32-bit STM32F402RC (256KB Flash)
|
| Backlight |
South-facing RGB LED |
| Switch |
Gateron double-rail magnetic switch
|
| Hot-swappable Support |
Yes, compatible with Gateron double-rail magnetic switch only. |
| Stabilizer |
Screw-in PCB stabilizer |
| Cable |
Type-C cable + Type-A to Type-C adapter |
| Connectivity |
2.4 GHz / Bluetooth / Type-C wired |
| Bluetooth Version |
5.1 |
| Bluetooth Device Name |
Keychron Q1 HE |
| Battery |
4000 mAh Rechargeable li-polymer battery |
| Operating Environment |
-10 to 50℃ |
| Wireless Working Time (Backlit off) |
Up to 100 hours |
