The Keychron Q3 Max Keyboard, featuring an 80% TKL layout, combines advanced 2.4G wireless, Bluetooth, and Type-C wired connectivity. It enhances workspaces by reducing clutter and facilitating efficient remote work. Its upgraded acoustic foam ensures quieter typing and elevates the tactile experience, making each keystroke smoother and more refined.
Features:
Double-Shot PBT Keycaps:
-
Oil-resistant and durable: Prevents legends from fading.
Significantly Enhanced Acoustic Foams:
-
Premium foams: IXPE, PET, and Latex provide a satisfying typing experience.
Easy Assembly:
-
Customizable components: Allows users to easily modify and personalize their keyboard.

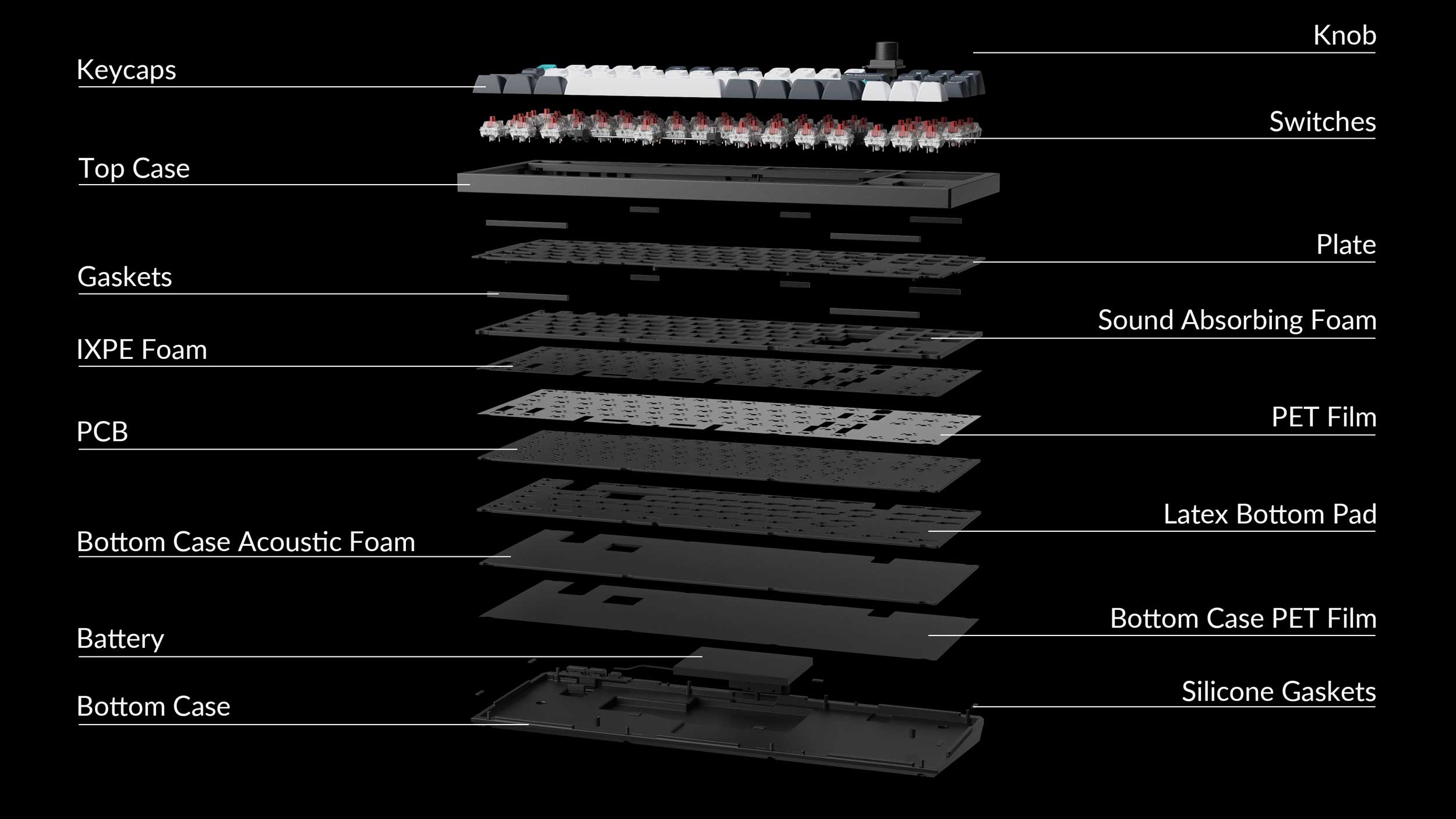

Double Gasket Design:
-
Innovative structure: Reduces acoustic resonance and noise, maintaining flexibility and improving typing sound.
2.4 GHz & Bluetooth Connection:
-
Rapid 1000 Hz polling rate: Ensures responsive performance.
-
Bluetooth 5.1: Connects to up to three devices for efficient multitasking.
A Refined Piece of Metal Art:
-
6063 aluminum body: CNC machined and polished, providing durability and aesthetic appeal.
Hot-swappable:
-
Supports 3-pin and 5-pin MX mechanical switches: Easy to change without soldering.
An Epic Core Inside The Keyboard:
-
ARM Cortex-M4 chip with 256K flash: Provides flexibility for developers and supports high polling rates.
Switch layouts between macOS & Windows:
-
System toggle: Comes with keycaps for both systems.
Programmable Knob:
-
Customizable through VIA software: Enhances creative workflow with various functions.
South-facing RGB LED Lights:
-
Better illumination: Designed for optimal backlight visibility with non-shine-through PBT keycaps.
Gateron Jupiter Switch:
-
Exclusive design: Pre-lubed with up to 80 million keystrokes lifespan, offering high RGB backlight transmittance.
All New Screw-in PCB Stabilizers:
-
Increased stability: More stable and smooth typing experience on big keys, supporting third-party stabilizers.
Specs:
Width |
137 mm |
Length |
365 mm |
Front Height |
19.7 mm (without keycaps) |
Back Height |
32.6 mm (without keycaps)
|
Feet Height |
2.7 mm |
Angle |
5.2° |
Weight |
1770g ± 10g (Fully Assembled Version) |
Body Material |
Aluminum |
Plate Material |
PC |
Polling Rate |
1000 Hz (2.4 GHz & wired) / 90 Hz (Bluetooth) |
Backlight |
22 types of RGB backlight options plus endless possibilities |
Operating Environment |
-10℃ to 50℃ |
Battery |
4000 mAh Rechargeable li-polymer battery |
Keycaps (Fully Assembled Version) |
KSA double-shot PBT keycaps, not shine-through (Fully Assembled version) / OSA side-printed double-shot PBT keycaps (Fully Assembled version) |
MCU |
ARM Cortex-M4 32-bit STM32F402 (256KB Flash) |
Switches |
Gateron Jupiter (Fully Assembled version) |
Backlight |
South-facing RGB LED
|
Switch Support |
Hot-swappable (5 pin & 3 pin) |
Stabilizer |
Screw-in PCB stabilizer |
Connectivity |
2.4 GHz/Bluetooth/ Type-C wired |
Cable |
Type-C cable + Type-A to Type-C adapter |
Charging Time |
Around 5 hours |
Bluetooth Device Name |
Keychron Q3 Max |
Cable Length
|
1.8 m
|
Wireless Working Time (Backlit off) |
Up to 180 hours (Lab test result may vary by actual use) |
Wireless Working Time (RGB) |
Up to 100 hours (Lowest brightness)
|
Bluetooth Version |
5.1
|
Compatible System |
macOS/Windows/Linux |
Charging Port |
USB type-C |
N-Key Rollover (NKRO) |
Yes for both wireless and wired modes |
Hot-swappable |
Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc. |
